Fire up the nostalgia!

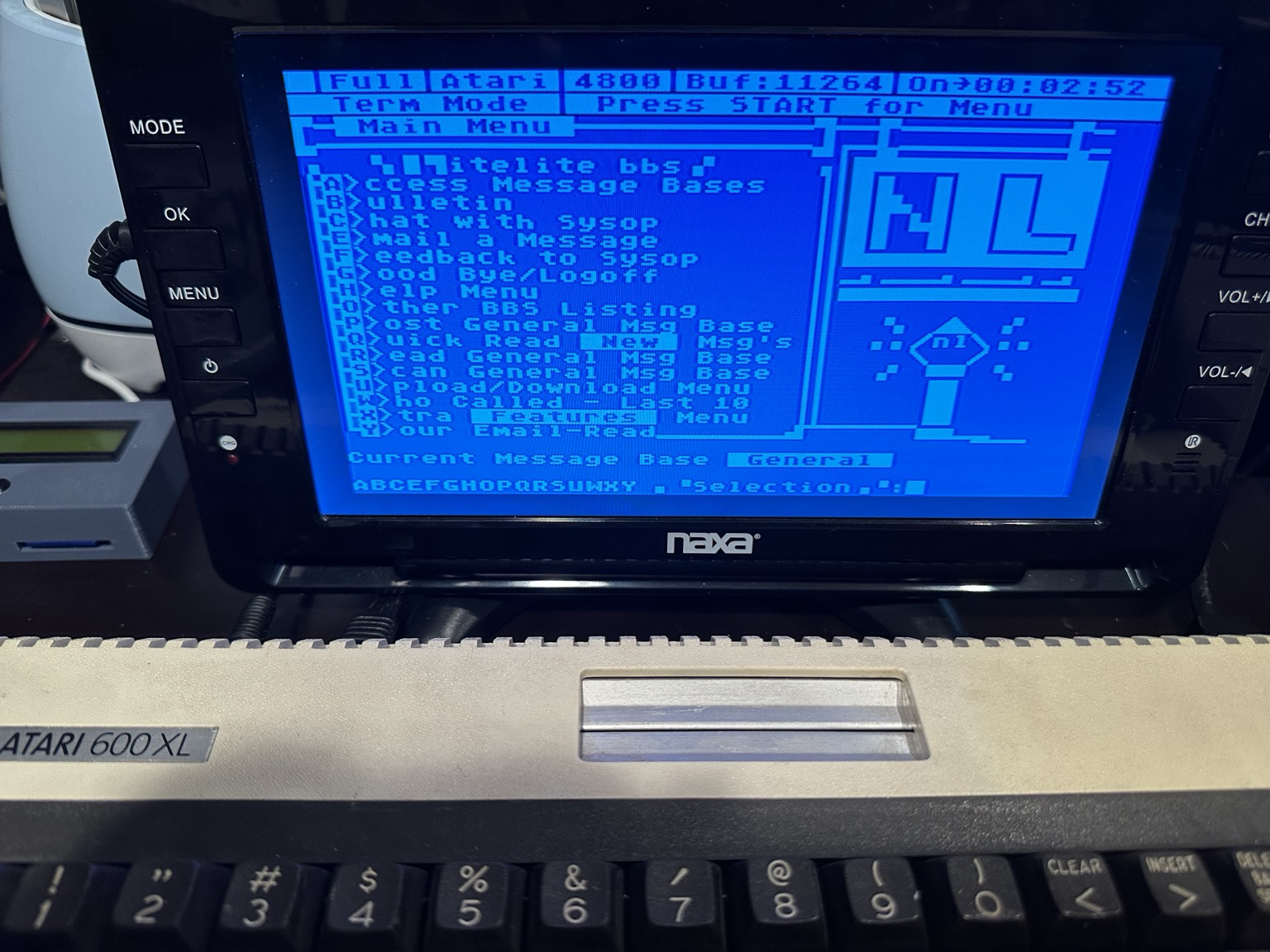

Watch this Atari 600XL (U1MB) in action, dialing into Southern AMIS BBS using FujiNet!

Hear that HSIO and Wow rich ATASCII graphics—this is how online used to be.

Call Today:
southernamis.ddns.net (Port 23) Pure ATASCII goodness!

Get connected. Get retro. Get AMIS.
#Atari #FujiNet #BBSing #RetroComputing #Southernamis #Atari600XL #Ul1MB #atascii

NEW VID: Double Bonus - Damage AND Cockroaches!
https://www.youtube.com/watch?v=FfJU5Mr2i1o

#Atari #ATR8000 #Atari8Bit #AtariXL #AtariXE #Atari400 #Atari800 #Atari1200XL #Atari600XL #Atari800XL #Atari65XE #Atari130XE #Atari800XE #AtariXEGS #IBoughtItOnEbay #VintageComputing #RetroComputers #RetroGaming #WallOfRetro #NerdsOfVintage #HappyNerding #TheVintNerd

@Commodore_Kevin Do you have precise technical details about that?

Because I tried but the "SRAM 64kB revised" card and the "Ultimate 1MB" card did not seem to work together.

My old thread from 2y ago with pictures is here on my old account:

https://mastodon.social/@eiZen/106404964773552553

#Atari600XL

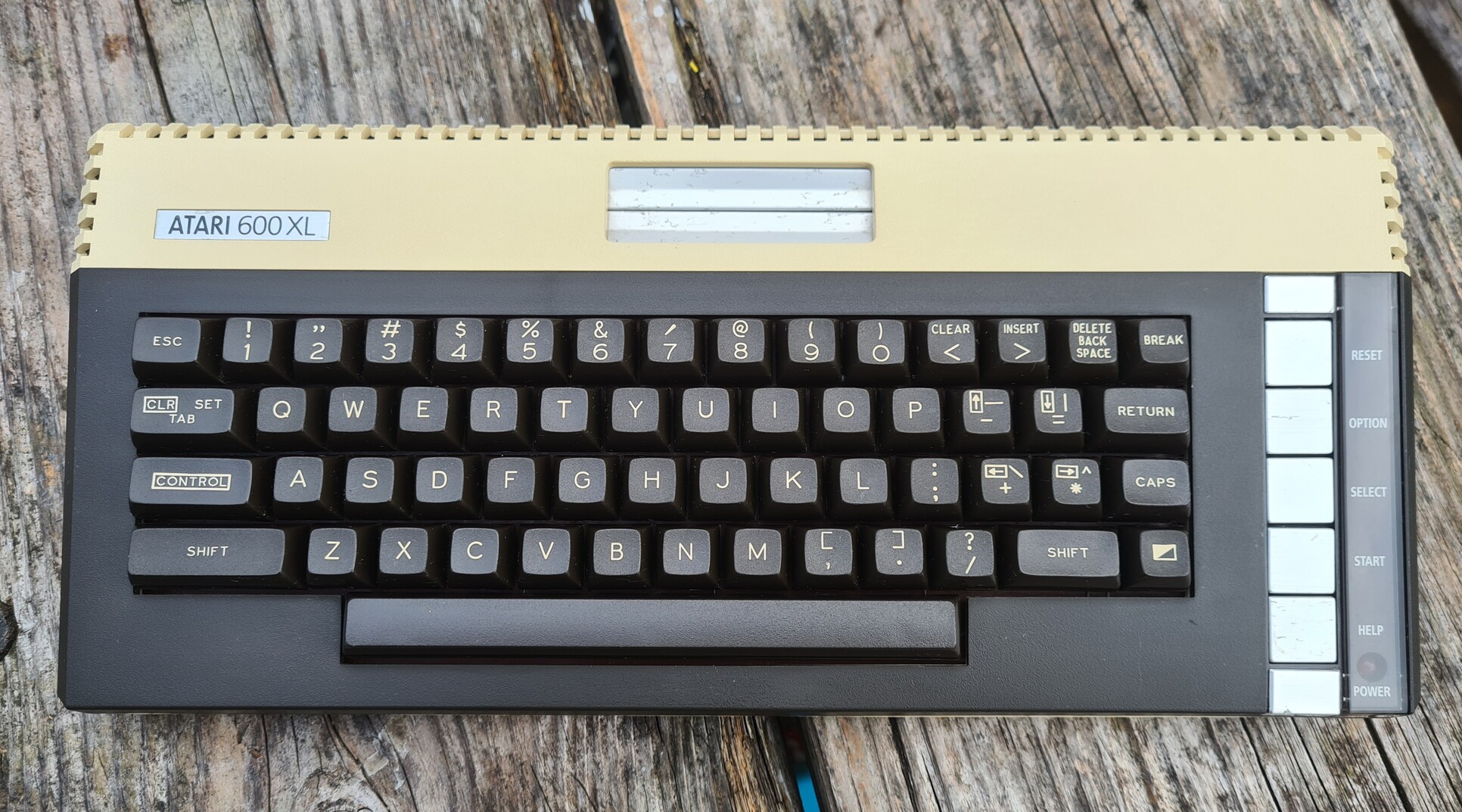

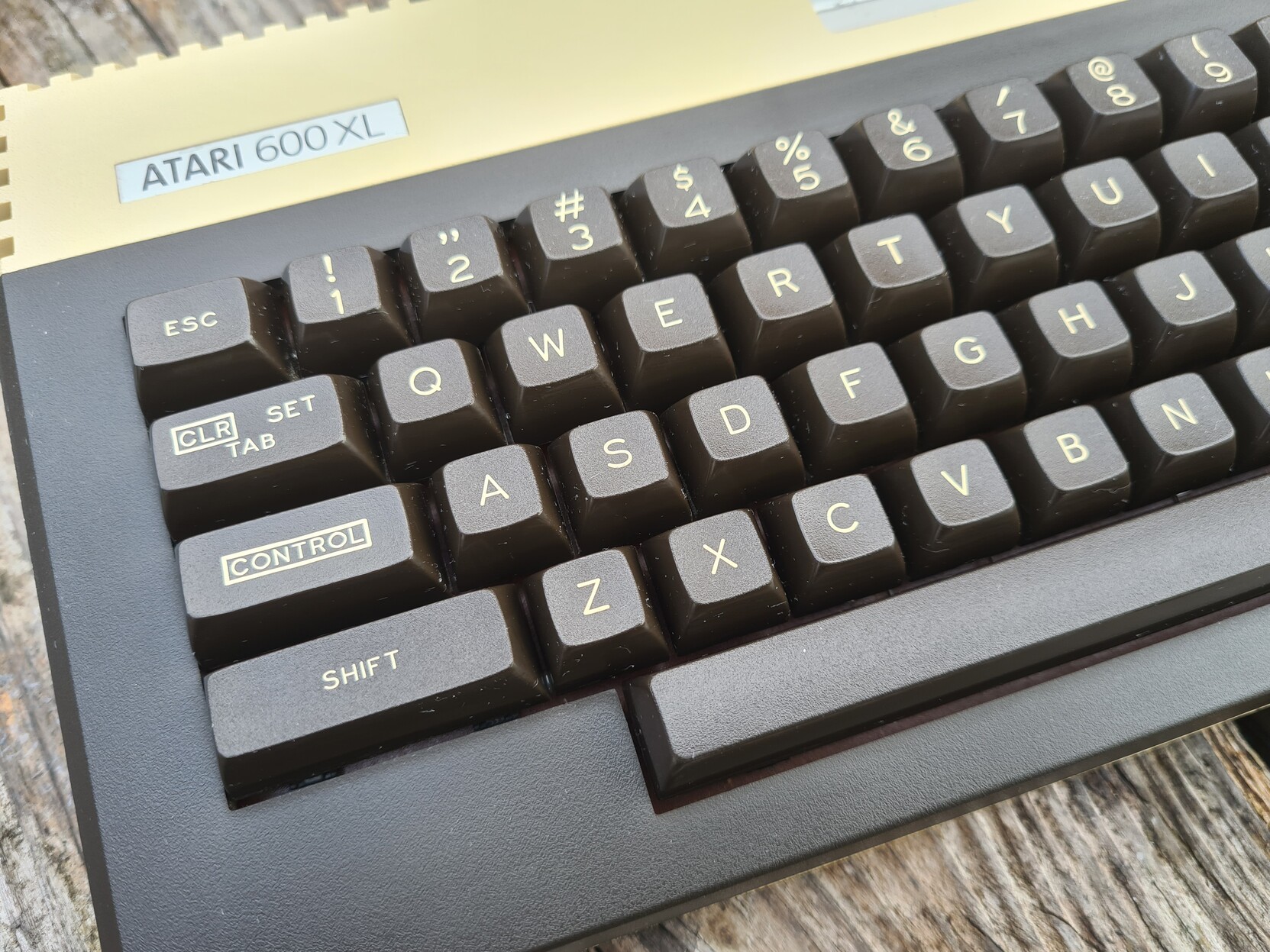

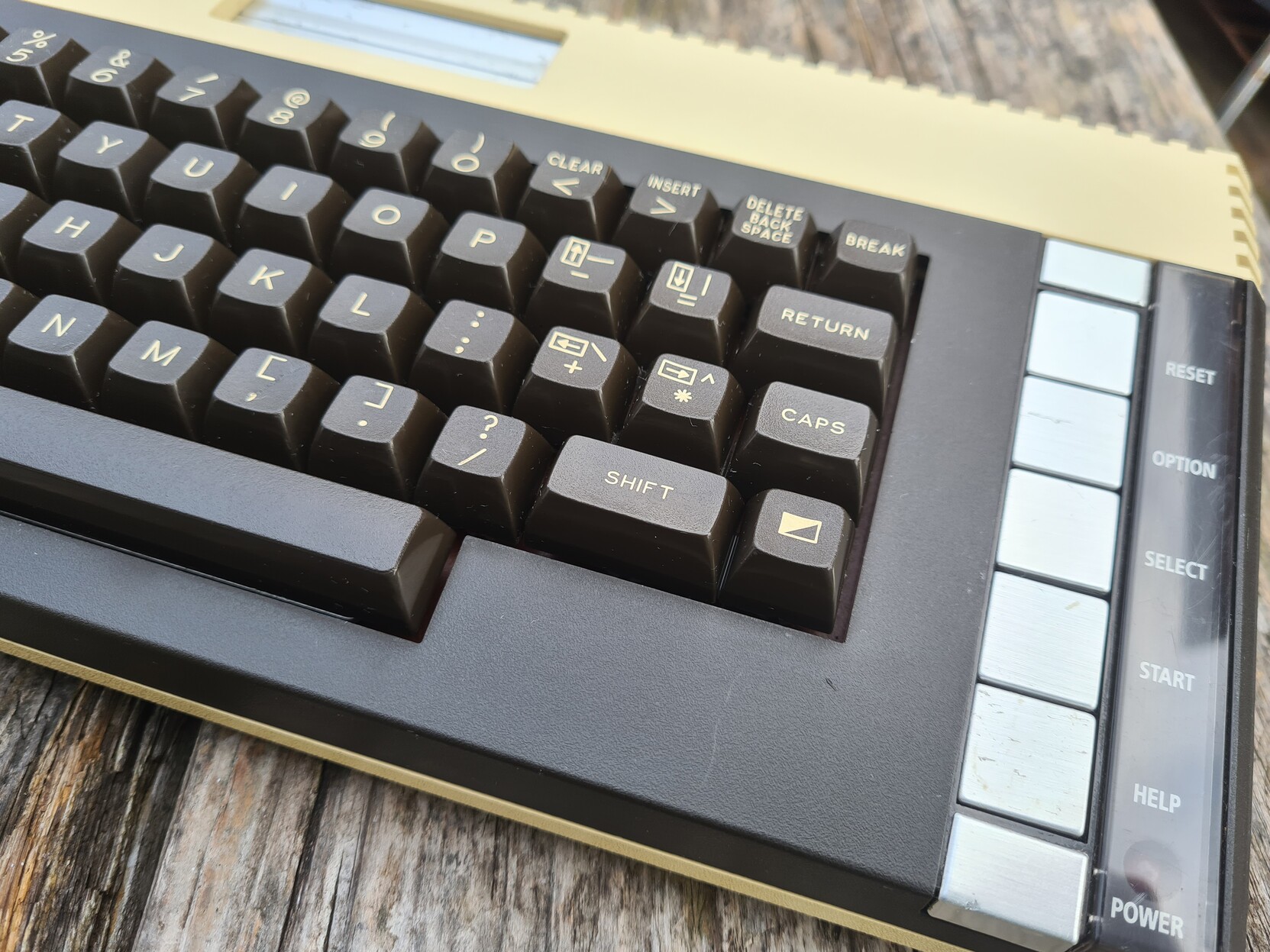

Looking much better after I've been at it with the cleaning foam!

#Atari #Atari600XL

Oooh this is cute 😍 Bloody arsebook and it's dirty old computers ...

#Atari #Atari600xl #retrocomputing

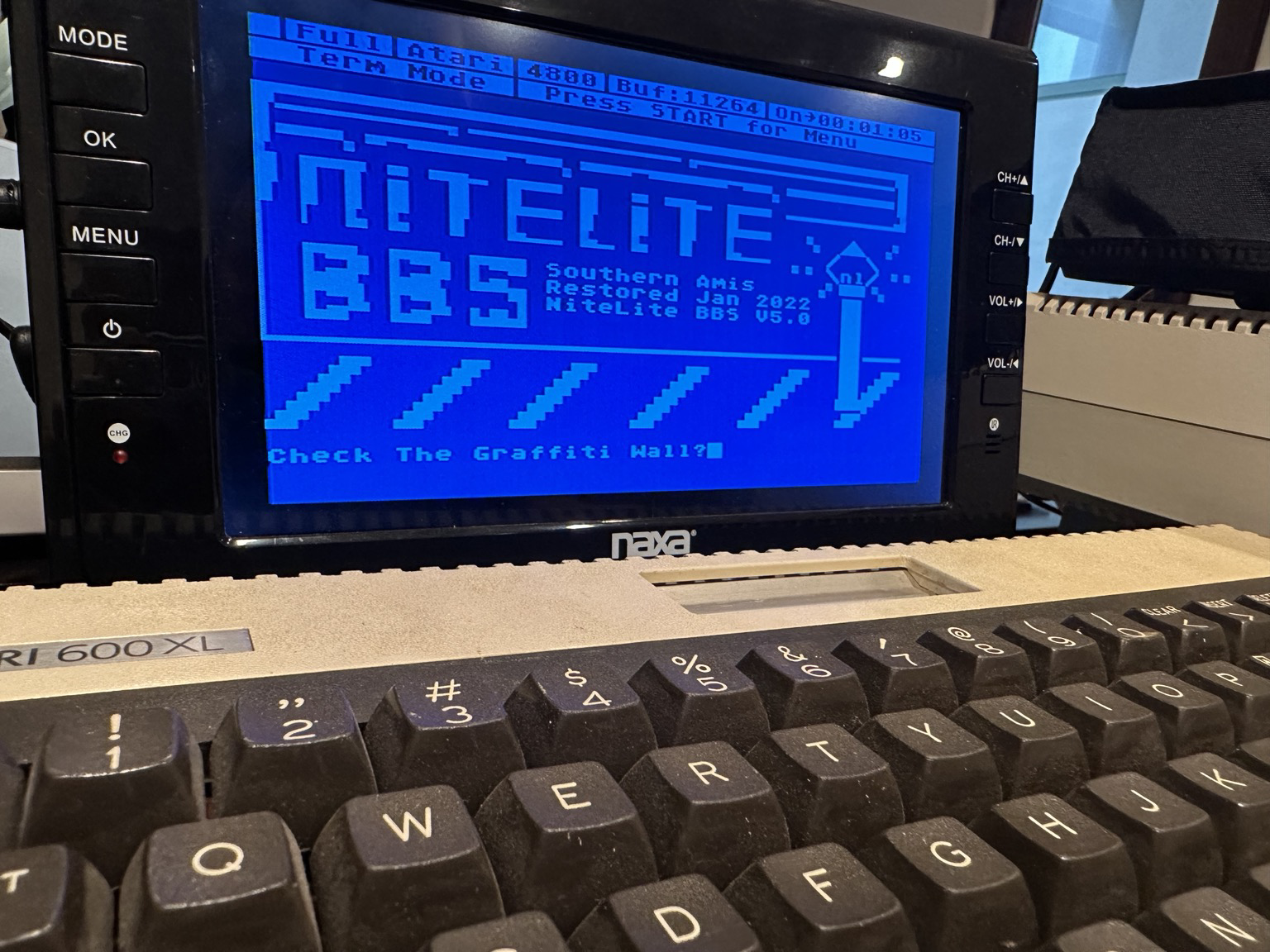

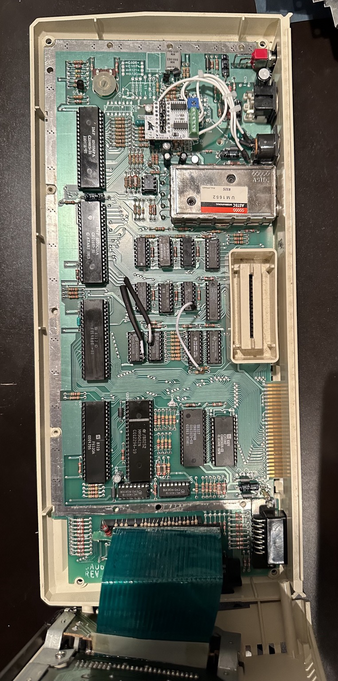

And a good start to the weekend with another #atari 600XL upgraded to a whopping 64K and UAV for amazing video! #bbsing #vintagecomputer #RetroComputing #atari600xl connected to bbs: nitelite.ddns.net :9000

#qbert

#atari5200 #ti994a #atari400 #atari800 #atari600 #atari800xl #atari600xl #intellivision #commodoreVic20 #atari2600 #commodore64 #colecovision

#atari #coleco #commodore #mattel #texasInstruments

#retroGaming #vintageGaming
#retroComputing #vintageComputing

#frogger

#atari5200 #ti994a #atari400 #atari800 #atari600 #atari800xl #atari600xl #intellivision #commodoreVic20 #atari2600 #commodore64 #colecovision

#atari #coleco #commodore #mattel #texasInstruments

#retroGaming #vintageGaming
#retroComputing #vintageComputing

@binarytango@mstdn.binarytango.com Atari 600XL with 1064 memory upgrade module 😳 "...upgrade your Atari 600XL from 16k of memory to 64k of memory.... and results in your Atari 600XL functioning like an Atari 800XL." 😮 😁

#Atari #Atari600XL #Atari800XL #RetroComputing

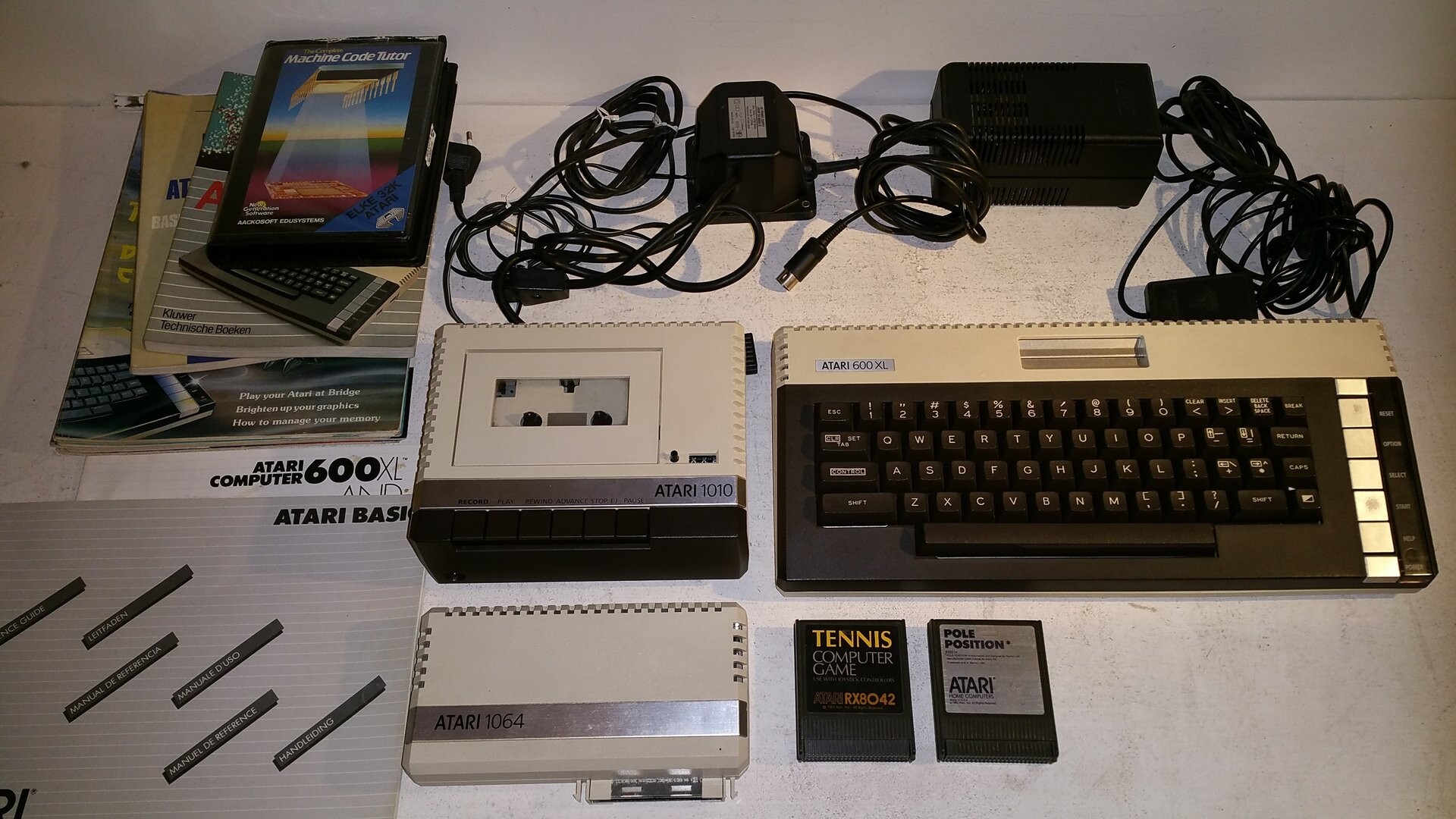

Atari 600XL with tape system and memory upgrade block displayed side by side... Similar system & set-up as mine, but not my photo.

Life goal:

"Towers of Hanoi" on Atari XL.

#Atari600XL
#Atari800XL
#Atari1200XL
#RetroHardware

Atari 600XL on top of Atari 800XL on top of Atari 1200XL - i.e., a tower of Atari XL computers.

A drawing of an #Atari 600XL that I made a few years ago in #Inkscape.

#atari8bit #atari600xl #retrocomputing

A drawing of an Atari 600XL above a brown background with a gold-orange-red curved line path.

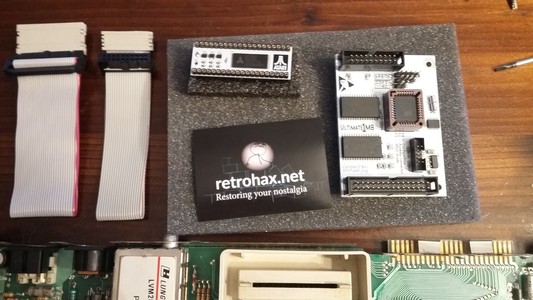

Here are the pristine #Atari600XL board and both extensions: the small one is "SRAM 64kB revised", the big one is the "Ultimate 1MB RAM expansion" which is said to require 64kB first.

The last picture shows the SRAM extension. CI is a "pluggable" wire to pin 16 of the MMU (CAS_INHIBIT).

The cables on the 6502 are unused here. The will go to the Ultimate card in the complete setup.

PS: I don't have electronics knowledge but mostly sort my thoughts.

#atari8bit
#retrohardware
#retrocomputing

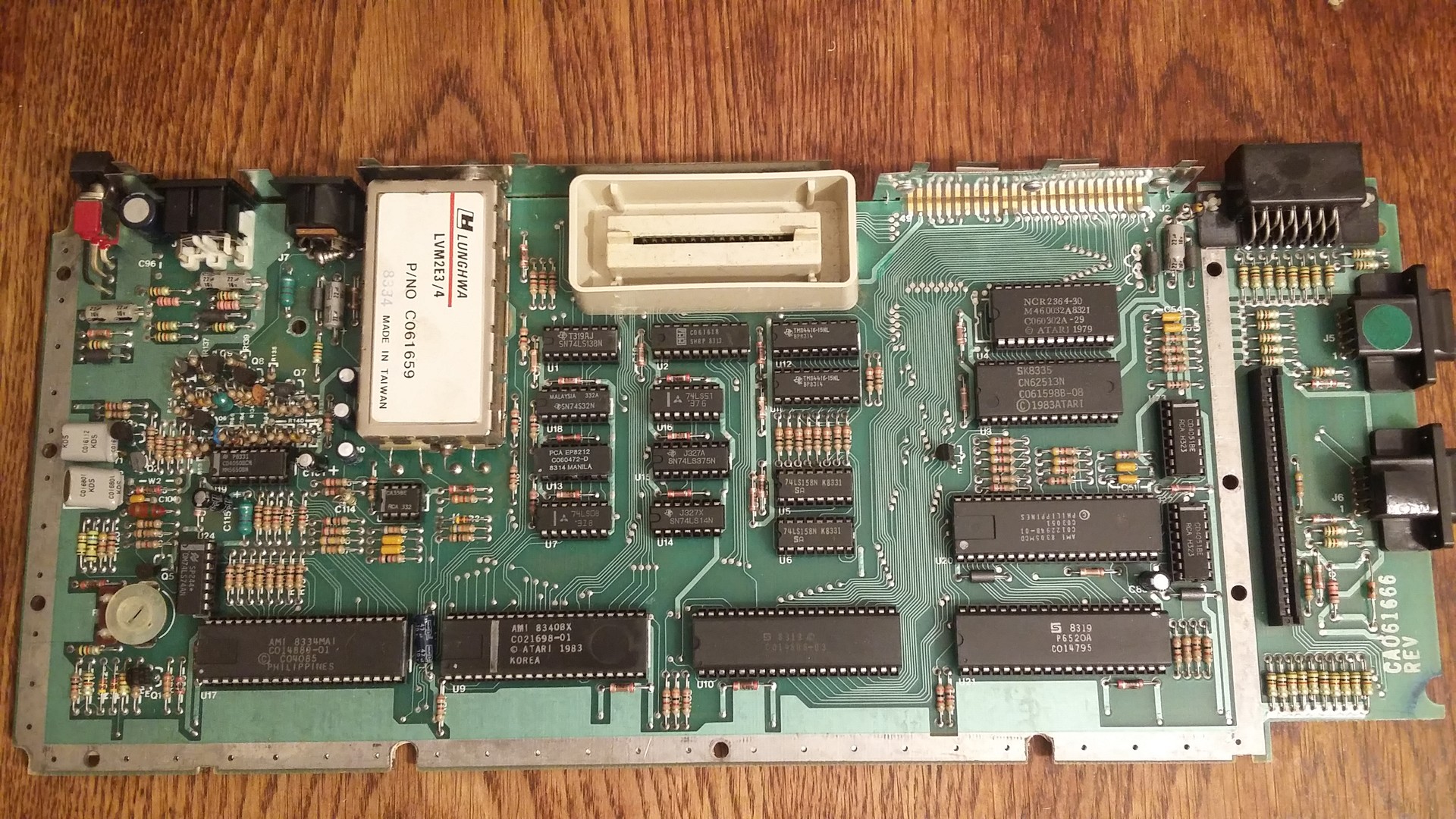

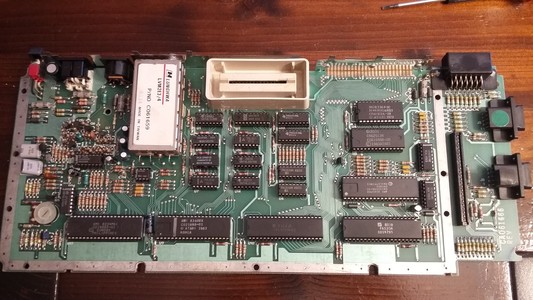

Unmodified but opened up Atari 600XL board. In the upper center the cartridge slot, big chips on the south, with the 3rd being the 6502. Joystick ports on the right.

The extension board as described in the toot.

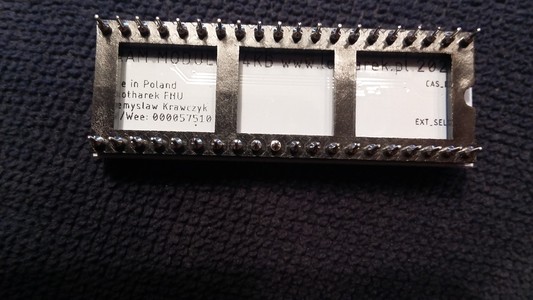

The other of the SRAM extension showing the somewhat incomplete text

SRAM 64KB www.lotharek.pl 2020 (or 2021?)

Made in Poland
Lotharek
Przemyslaw Krawczyk

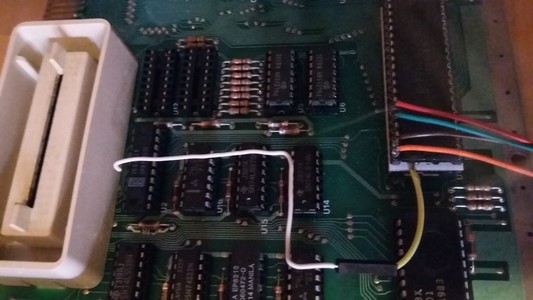

The wire as described in the toot, from CI on the module to pin 16 of the MMU. It contains a wire plug to be easily disconnected. Four other wires are soldered to 6502 chip but are unused here. Colors are red, orange, green, brown.

So I'm sure my soldering itself was fine as the #Atari600XL still works with the SIDE3 cartridge and the "SRAM revised" extension.

#atari8bit
#retrocomputing
#retrohardware

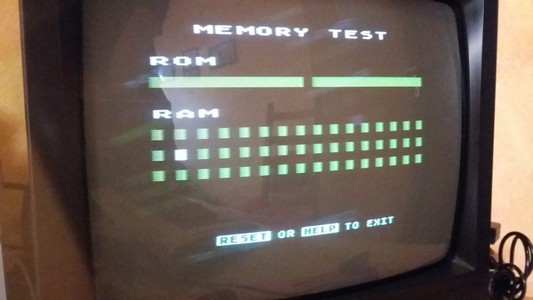

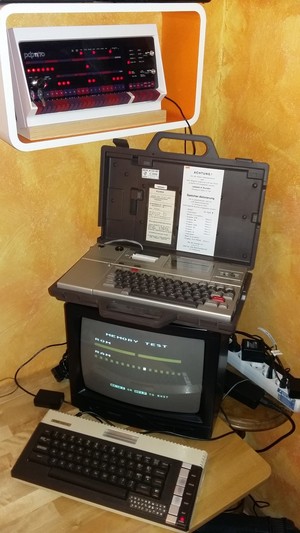

Memory Test screen of an Atari 600XL showing 48KB RAM.

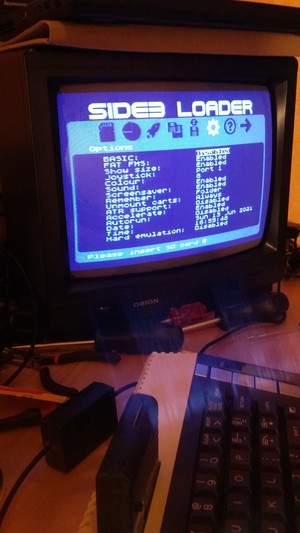

Boot screen of the SIDE3 cartridge showing lots of menu and config options.

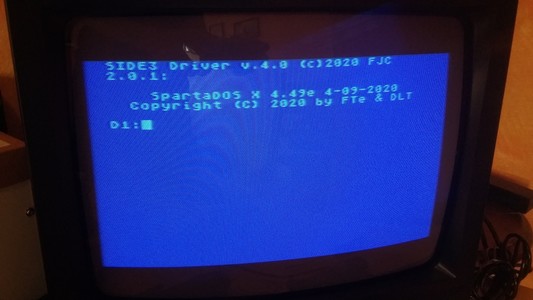

SpartaDOS X 4.49e boot screen from the SIDE3 cartridge. The prompt says

D1:

with the cursor waiting there

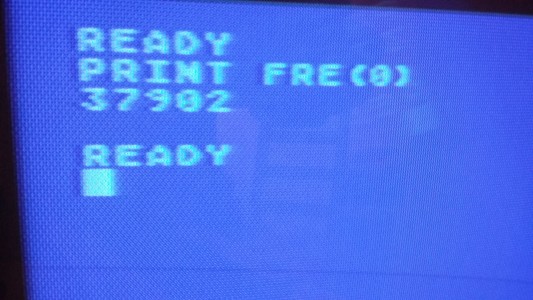

Atari Basic screen showing

PRINT FRE(0)
37902

indicating that it's at least more than the original 16KB of the Atari 600XL.

My soldering activities and my #6502processor were like Janet and Michael Jackson - never together in the same room.

Today I resolved that.

Though only with 40% success. The SRAM extension in my #Atari600XL works alone a bit (sic!?) but the combo with the Ultimate 1MB card does not.

I'm a bit lost.

More details later.

I tried to clean up that #Atari600XL metal plate.

The only thing that helped a bit at all was NEVR-DULL, an oily cleaning cotton wool usually used to clean motorcycles.

Still not really shiny but it feels less dirty.

#retrohardware

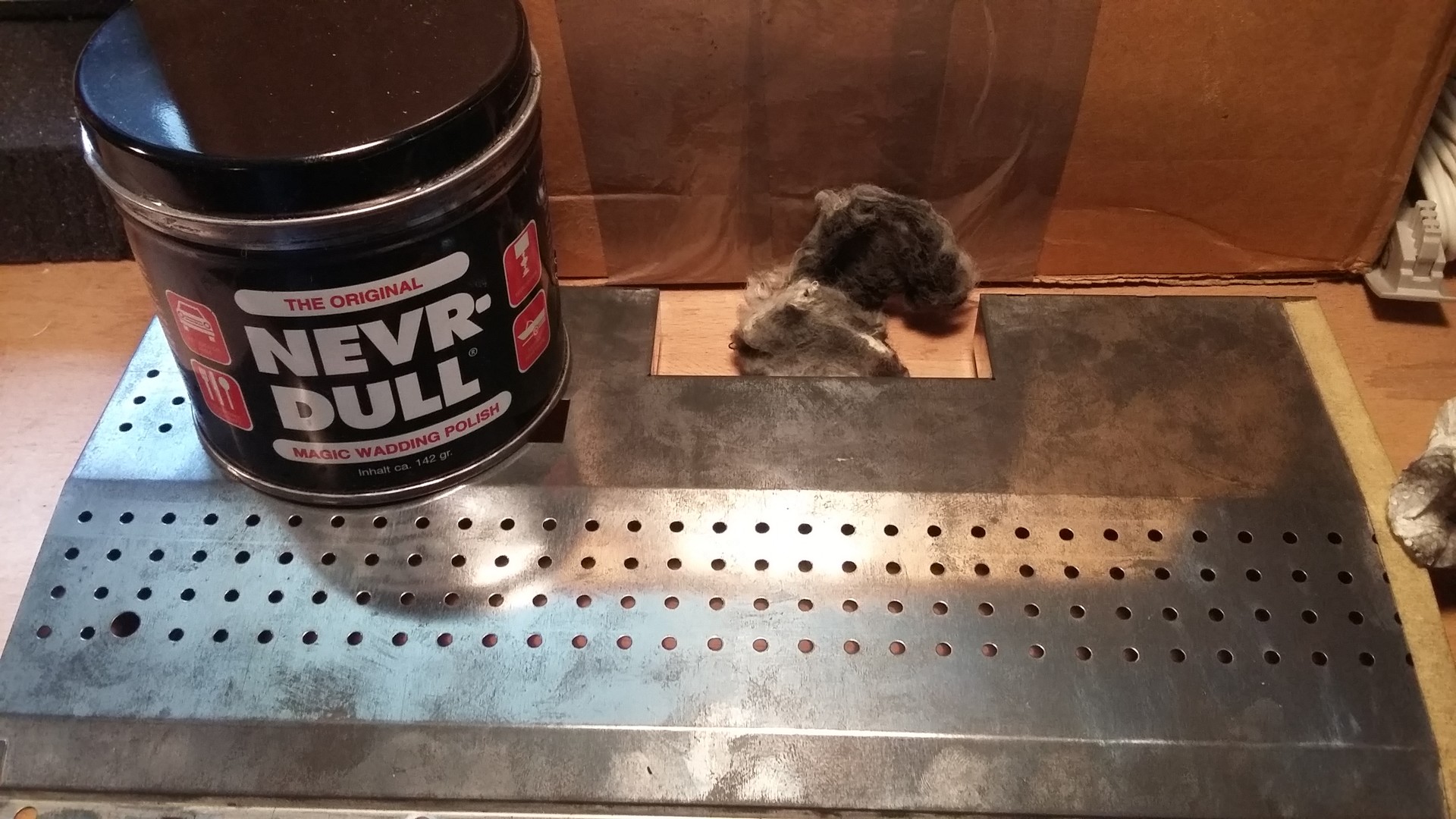

The separate metal plate from the 600XL with a box of nevr-dull on it.

Are the chips in my #Atari600XL socketed so that it's easy to upgrade?

Let's have a look...

#retrohardware

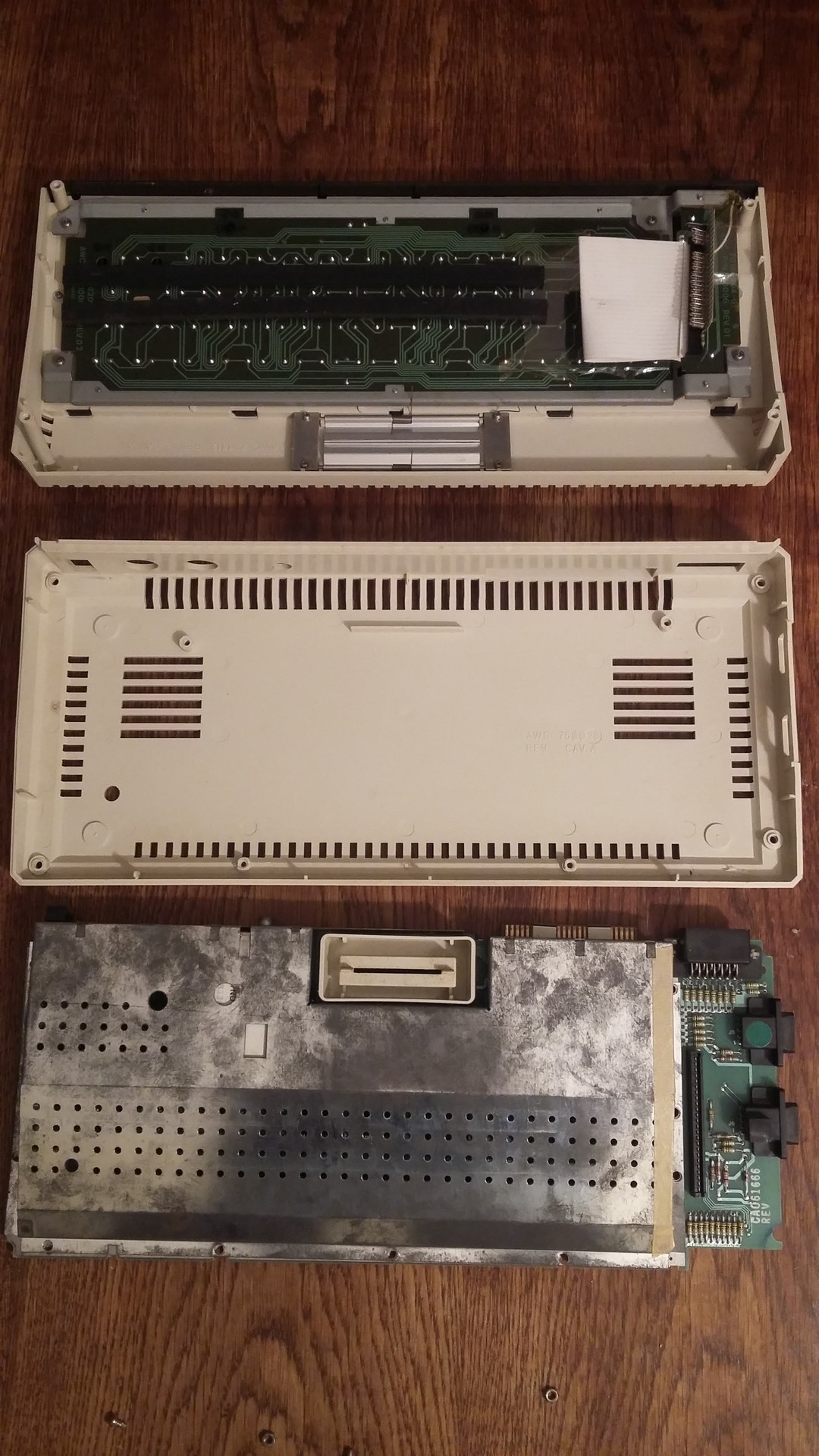

An opened Atari 600XL, 3 parts on a table: the keyboard, the ground plastics, and the actual board which is still closed with a somewhat dirty metal case.

The Atari 600XL board with all the chips visible. They are all socketed. That's good news as it requires less soldering.

#retrofriday again.

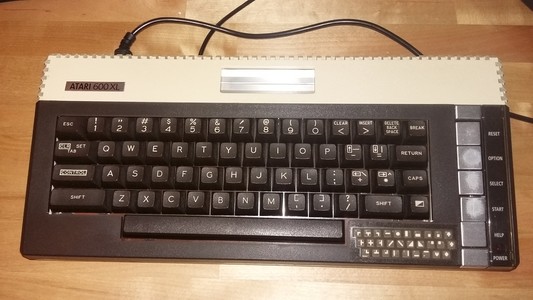

I welcomed an #Atari600XL in my #retrocomputing corner.

Got it on eBay just for curiosity. Smaller than I thought, I didn't expect it to be so ... cute.

Unfortunately the keyboard is one of the cheap/bad variants, not well suited for serious typing.

As I'm not so emotionally tied to the 600XL I might read around if it allows some of those modern extensions that I don't allow to my sacred original 800XL.

#retrohardware

#Atari600XL
