Yesterday was #worldmetrologyday and thus, a perfect occasion to do the monthly statistical readout of my four 10V references, based on the popular LM399.

Two of them arrived January 15 and has been powered since. A couple of months later, March 22, I added two more. The idea is, that the standard deviation (noise) of the 10V output should improve with time, lots of time 😂

Well, that is in fact what I see. Three of them are now at 1.15uV, 1.17uV and 1.45uV.
The fourth however, started out really high, 81uV 😳, but has since improved to 29uV in just two months.

I plan to keep doing this, - Let’s see what the rest of the year brings 🙂🙂

Long term plan: a 10V calibration transfer 👍🏼

#testandmeasurement #engineer #electronicsengineering #electronics

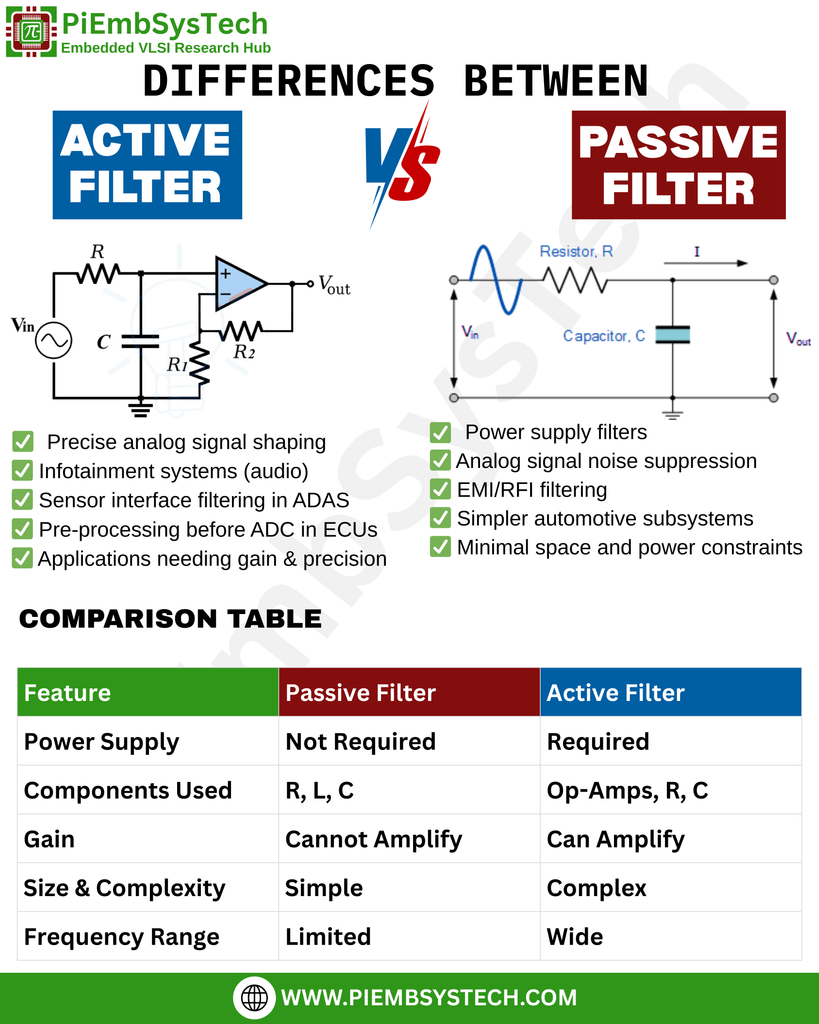

Active Filter vs Passive Filter

👉 Download Now from Google Play
🔗 https://play.google.com/store/apps/details?id=com.piembsystech&pcampaignid=web_share
🌎 https://piembsystech.com/difference-between-active-filter-and-passive-filter/

#ActiveFilter #PassiveFilter #AutomotiveEmbedded #EmbeddedSystems #SignalConditioning #AnalogDesign #PowerIntegrity #EMIFiltering #ElectronicsDesign #ECUDevelopment #ADASDesign #AutomotiveElectronics #SensorFiltering #AnalogCircuits #OpAmps #AutomotiveInfotainment #EmbeddedLearning #PiEmbSysTech #OpenSourceLearning #TechEducation #SelfLearning #ElectronicsEngineering

CPU vs GPU

📥 Download the App from Google Play
🔗 https://play.google.com/store/apps/details?id=com.piembsystech&pcampaignid=web_share
🌐 Explore more at - https://piembsystech.com/difference-between-cpu-and-gpu/

#CPUVsGPU #AutomotiveEmbedded #EmbeddedSystems #ADAS #VehicleAI #GraphicsProcessing #SensorFusion #AIinAutomotive #MLinVehicles #AutonomousVehicles #RealTimeSystems #MicrocontrollerProgramming #PowertrainECU #InfotainmentSystems #ChassisControl #DigitalMobility #EmbeddedInnovation #ElectronicsEngineering #SoftwareArchitecture #AutoTech #CANBus #UDSProtocol

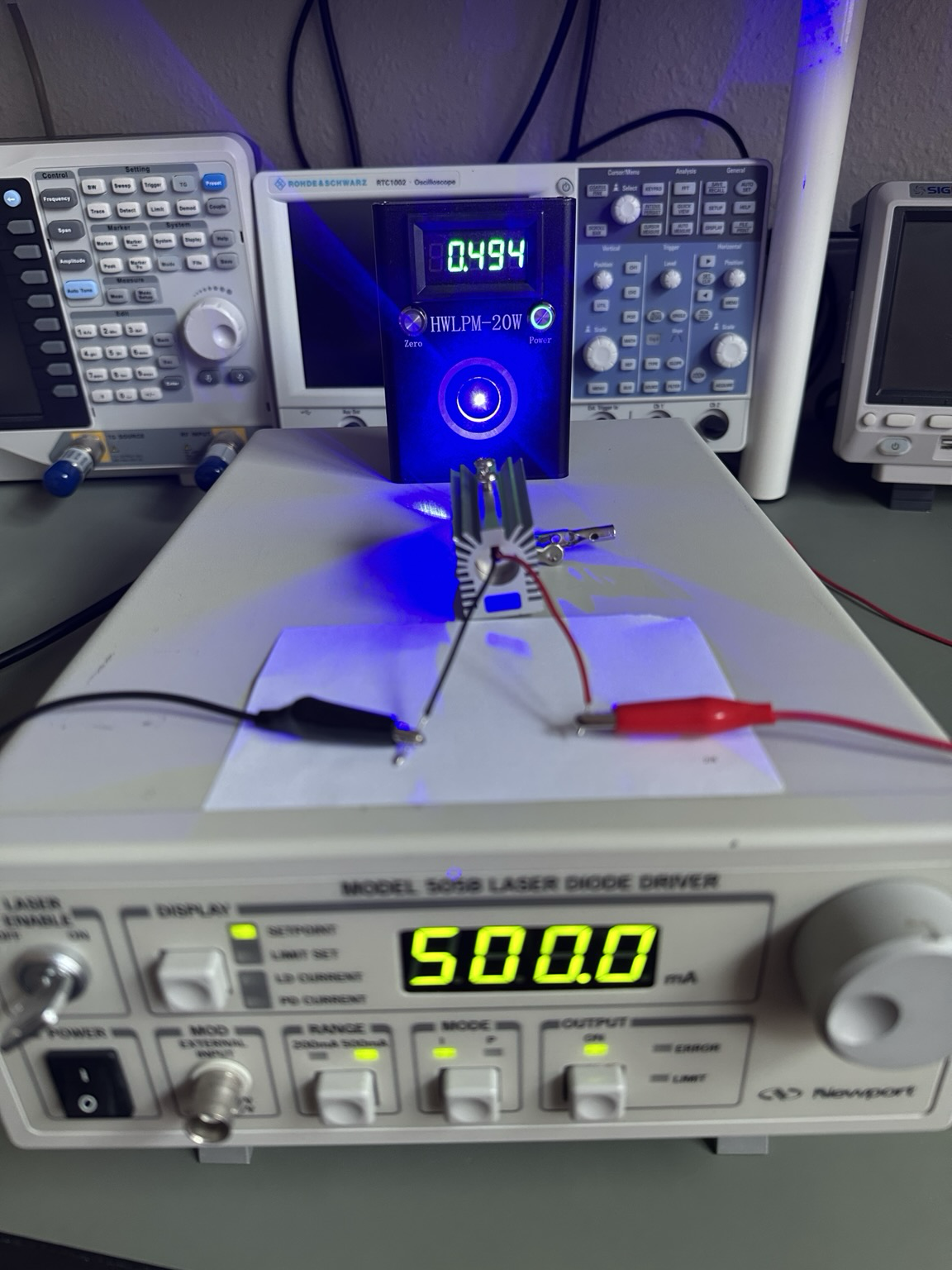

Powering up a blue laser diode to 500mW 🙂

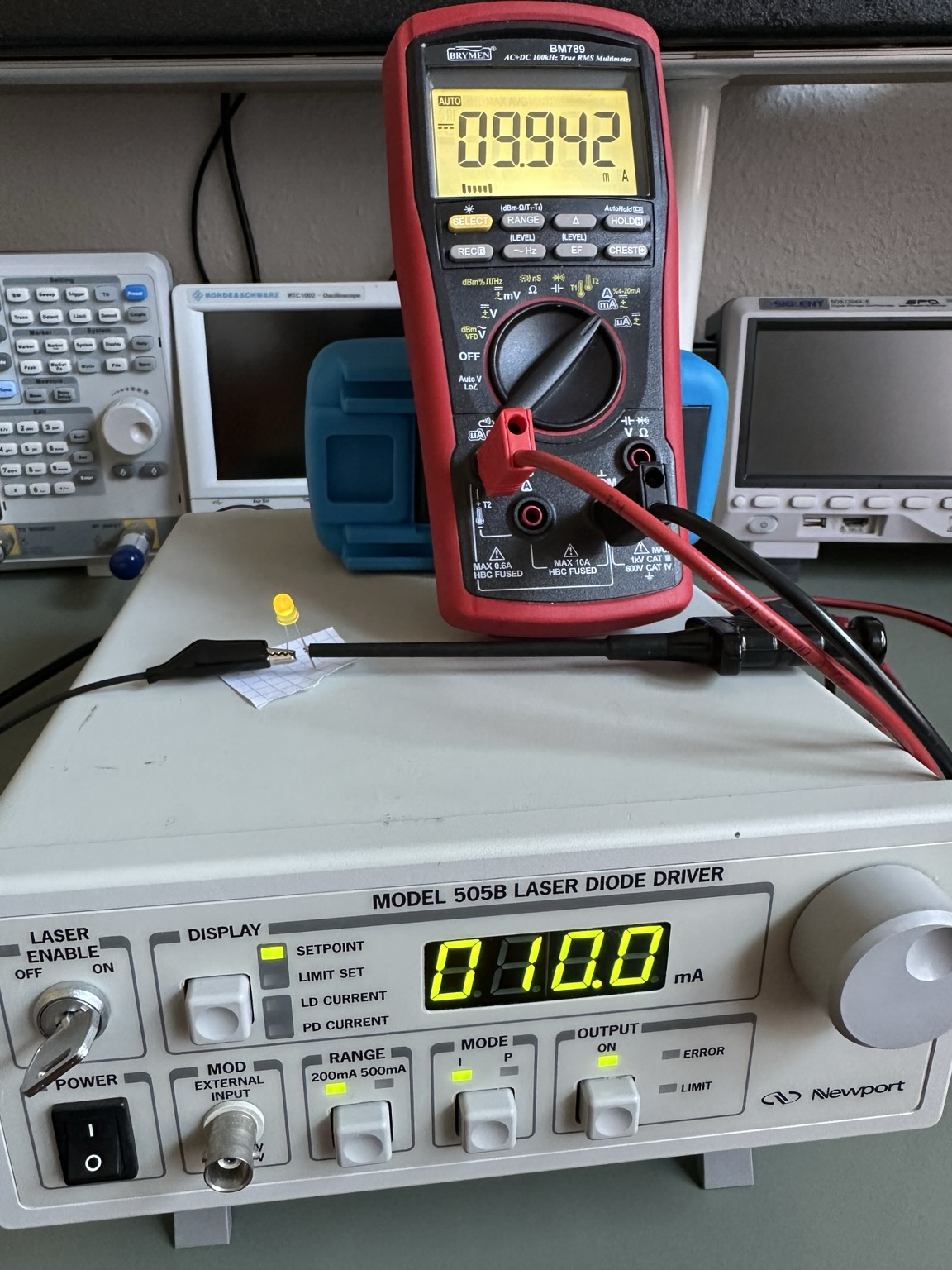

Note how it acts like a poor LED until 150mA, at which point the laser process fires 🔥

The 505B is an accurate, adjustable current source which allows for external modulation input.

It’s designed for low-noise (<1.5uA RMS) and it has a photo diode input, so with a calibrated light sensor, you can achieve constant power regulation.

Last but not least: it’s designed for maximum safety with two interlock circuits, one with a physical key.
Its internal design has a complex redundant output circuit, which ensures that the laser will NEVER illuminate unintended and it will NEVER exceed the chosen power setting.

A fancy current source indeed, a laboratory grade instrument 🙂

This video was shot wearing the appropriate safety glasses, be VERY CAREFUL when experimenting with lasers. Even a short duration reflection at this power level WILL damage your vision 🚨‼️

#electronicsengineering #electronics #physics #stem #laserfun #funwithlasers #ee #testandmeasurement

Switching gears back to Ember for a bit, I'm updating the emulator and debugger with changes since my last round of blog posts on the Project Ember implementation, including adding rudimentary syntax highlighting to the debugger disassembly display!

#cpudesign #retrodev #8bit #16bit #DigitalDesign #ElectronicsEngineering #TechInnovation #hardwaredesign #DIYProjects #retrocomputer #retroconsole

Got my hands on this little gem recently, they’re hard to find in a decent state at a decent price tag. Got lucky though so now I have a dedicated laser diode driver in my lab 🤩
Not super high power, it maxes out at 500mA, but it’s enough for a whole range of experiments and it has a lot of nice safety and control features 🙂

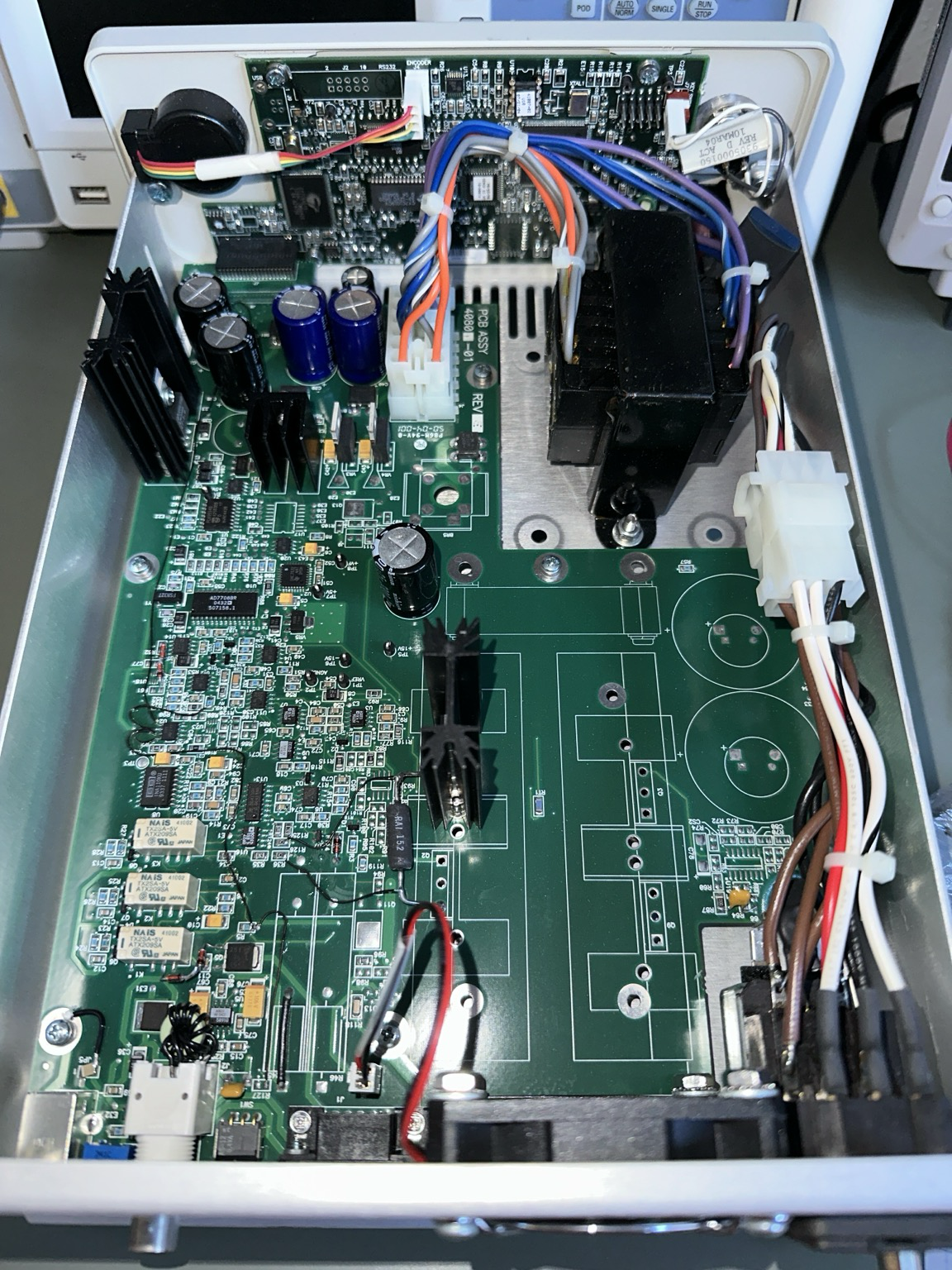

It’s surprisingly complex inside, but nicely built and very clean. Doubt it’s seen many hours usage, the fan is just fine 👍🏼
#electronicsengineering #laser #testandmeasurement
