I've converted the step file to stl using #freecad. Seems OK.

Converting it to editable openscad is more ambitious, and it wouldn't surprise me if it's impossible.

I don't understand why #QCad is not very popular in the Linux community. It has a free, GPL version that is way more put together than LibreCAD. In fact, LibreCAD is a fork of QCad from the late 2000s. QCad has way more features now, and most are free.

Sure, there's FreeCAD too, but that's more about 3D CAD, and it's more difficult to learn & use. QCad is a good starter 2D Cad/Cam, especially if you're coming from #AutoCAD 's UI.

#linux #opensouce #foss #cad #freecad #3dprinting #librecad

#FreeCAD, "we know #Unicode."

T\X\FCr v043

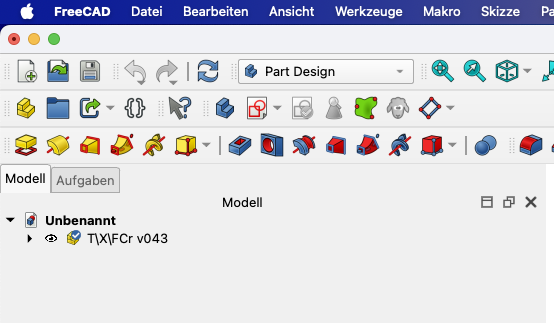

$FreeCAD on macOS, with German language. "Unnamed"-model with imported STEP file "T\X\FCr v043" - or what it should be "Tür v043"$

My Evil Cube print files are public now... The solution is not. Please let me know if you find one. #FreeCAD https://www.printables.com/model/1339793-evil-cube

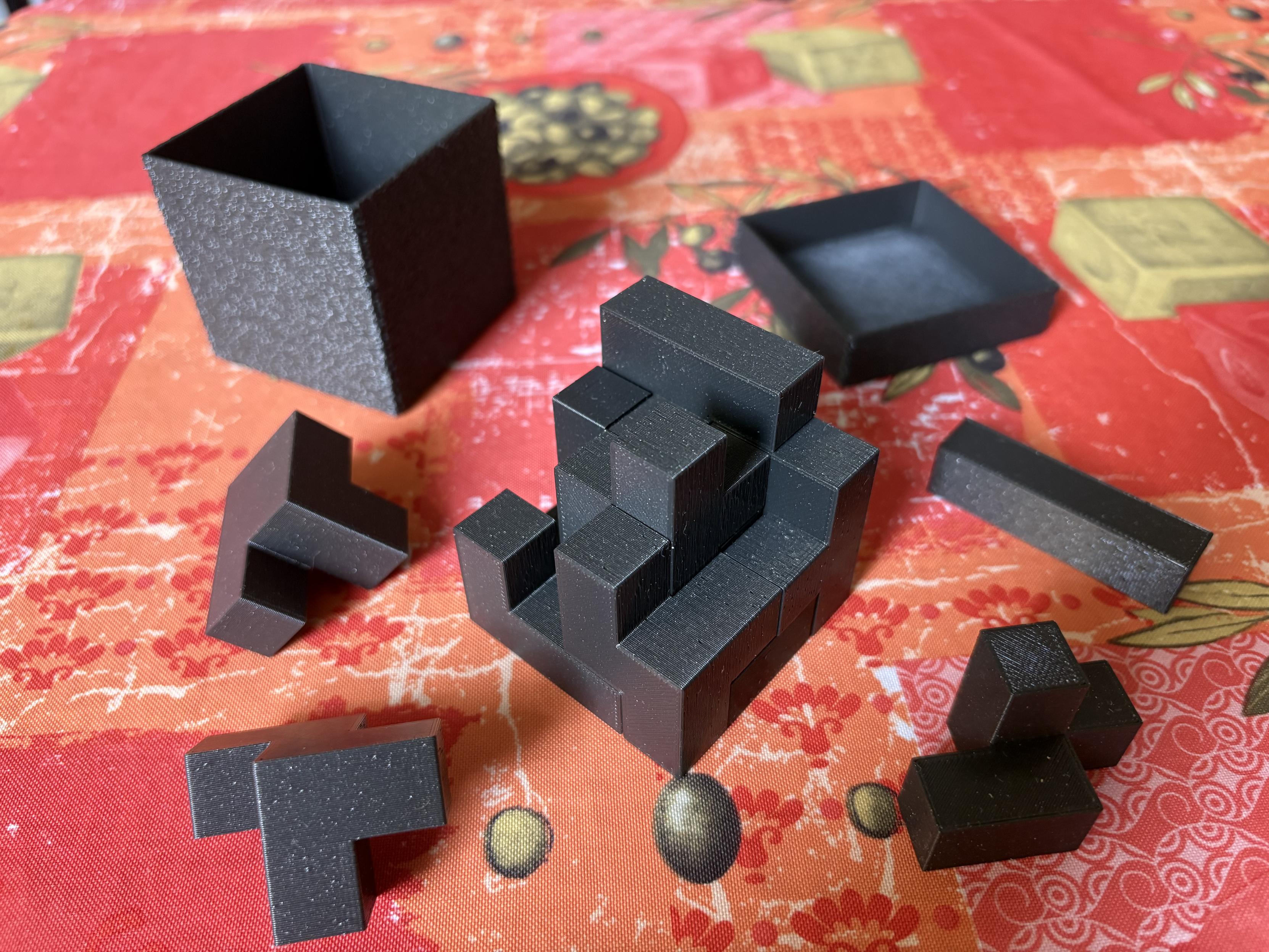

Box for a 4x4x4 cube which should be composed of given pieces of mostly irregular forms, made of 1x1x1 cubelets.

I just updated #Anubis for the @FreeCAD infrastructure. There's now support for challenges without requiring client-side #JavaScript, and a "success... failure!"-type bug affecting #Chromium should now be fixed. Please let me know if you run into any issues! #FreeCAD

#Freecad Friday's print is a sleeve I had to design myself for a medication thermos. Over the last ~30+ years, personal medication transport hasn't improved all that much to me. This TPU sleeve is going to keep glass bottles from getting rattled around between an ice pack and a metal interior thermos wall. I'll put this on printables in case anybody else can use this. #3dprinting

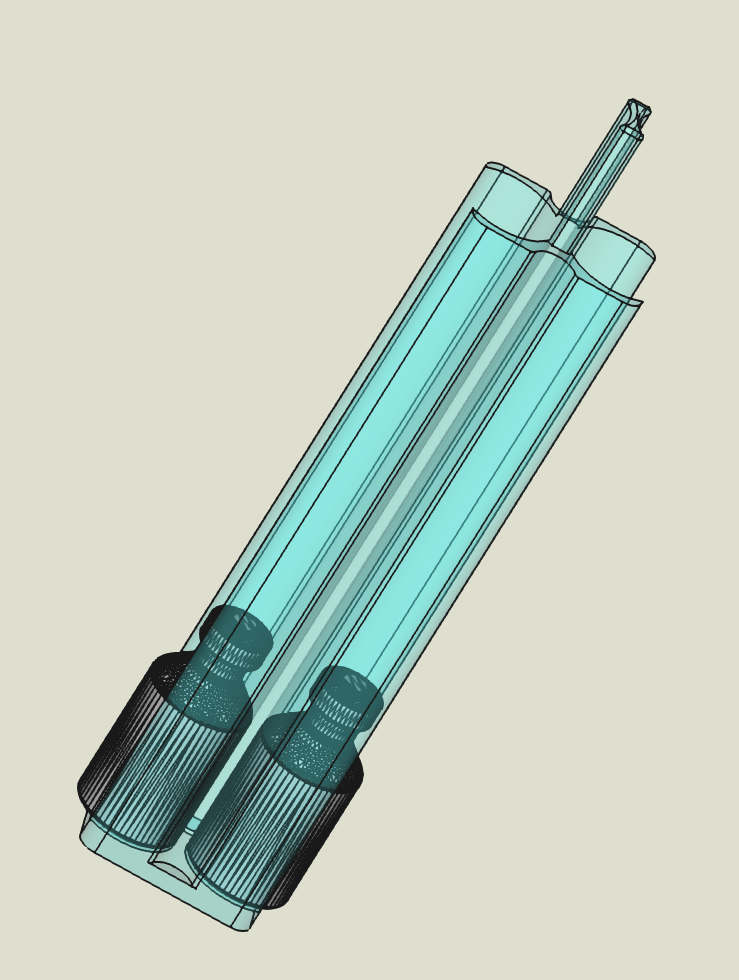

Large rectangular caddy with 2 medicine vials shown inside at the bottom. Sleeve holds vials with an internal wall between them, and outer wall cutouts to enable manual individual removal. Sleeve is meant to allow up to 8 vials to be stacked upward in a 2x4 layout.

Prototyping a kinetic sculpture with #FreeCAD

#FreeCADFriday #creativecoding #cad #art #mechanics

#freecadriday ich konnte endlich die Tasten für meine Tastatur fräsen, noch etwas schleifen und mal sehen wie gut sie im Alltag sind :)
#freecad #carvera #qmk #cnc #keyboard

Tasten einer Tastatur die aus einem Holzbrett gefräst worden sind.

Einzelne Tasten nachdem sie geschliffen würden.

It's #FreeCADFriday once again! Have a great weekend when you get there. In the meantime, what are you working on with #FreeCAD?

There seems to be a point where #Freecad models get just too complicated to reasonably manage x.x

The great thing about CAD-Modeling is that you spot a bunch of problems in the design stage of a project.

The terrible thing about CAD-Modeling is that you spot a bunch of problem in the design stage of a project.

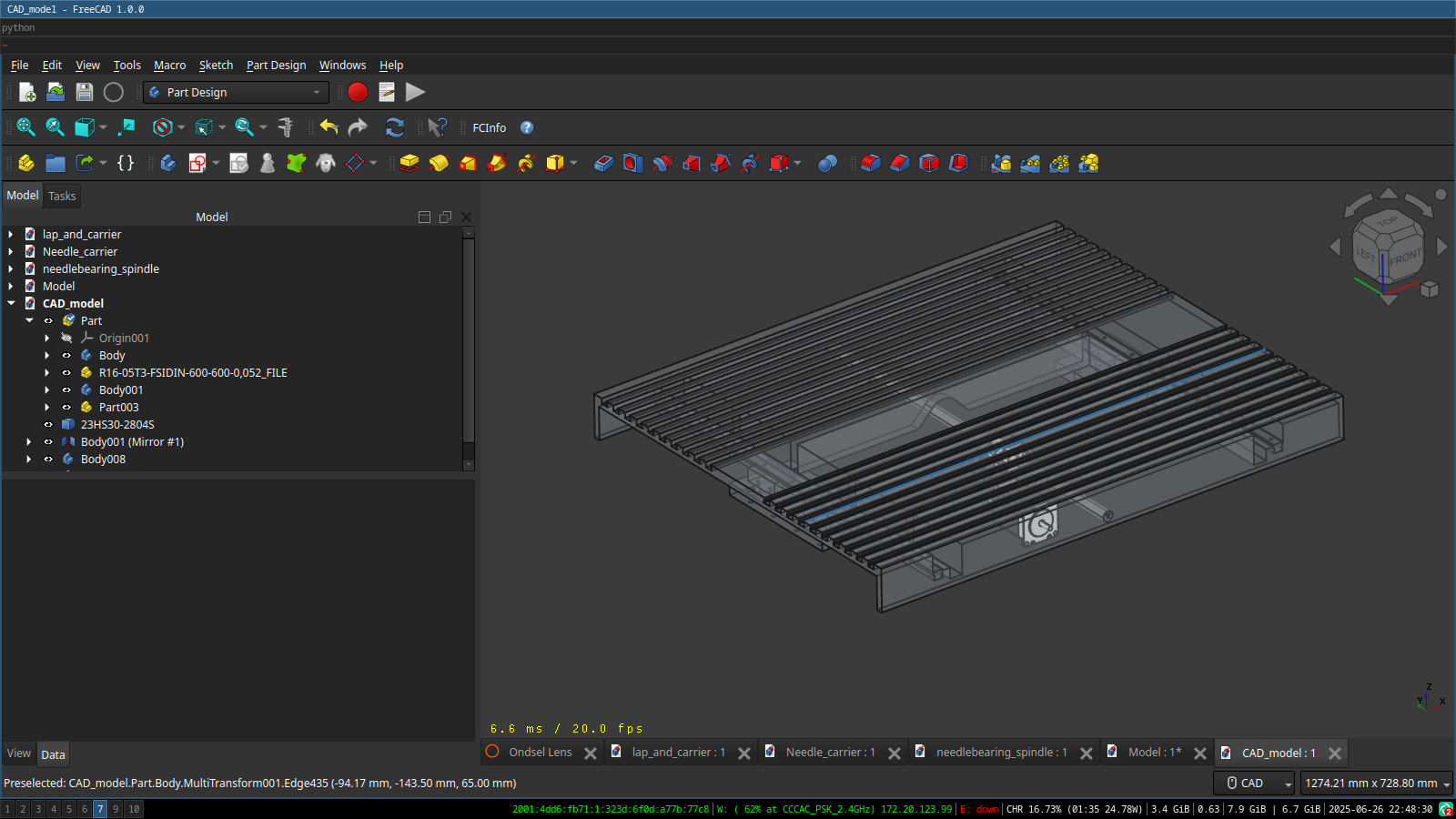

A FreeCAD model of the planned Y-Axis of the CNC@CCCAC

IIRC, after 18 months of owning a 3D printer, after my split keyboard this is the second actually practical #3dprint ...

That said, I'm actually starting to get the feel for #freecad , I managed to put this together in 10 minutes, mostly hunting across various workbenches to find the operations I need
