#Fungeneration RTA-31 rack mountable #SpectrumAnalyzer. This is occupying a single slot on the rack so that it is thin enough. A #Techmoan induced purchase from many years ago and was disconnected for about two years or maybe more. I got it from #Thomann back then, they still seem to sell it but it became more expensive (IIRC).

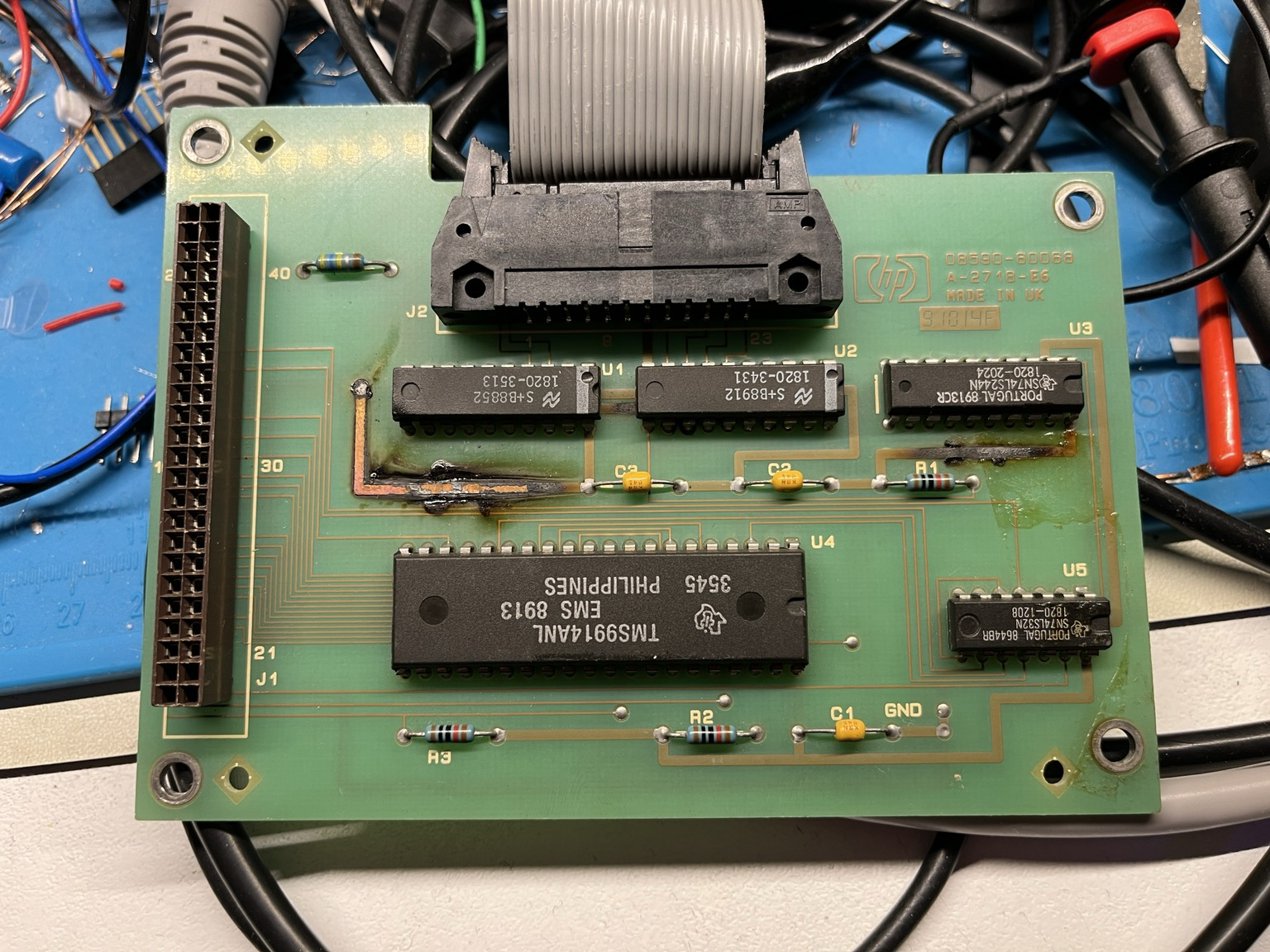

Some carnage it was indeed! Ended up replacing all ICs except the main TMS9914. A wonder it survived. The other chips were mostly a dead short to ground. No surprise the supply rail was a little scorched. I really wonder what happened here and what became of the poor instrument is was originally installed in…
Now at least it got a new life and my 8590A spectrum analyzer is happily communicating with the outside world!
#vintagehp #hp #testgear #8590A #spectrumanalyzer #repair #hpib #gpib
Been looking for an HP-IB card for my HP 8590A spectrum analyzer for some time and found one in rough shape. I wonder what happened to this poor thing. Got all the parts in stock so I think I may just strip it and rebuild 🤷♂️ #hp #spectrumanalyzer #testgear #testgeartuesday
