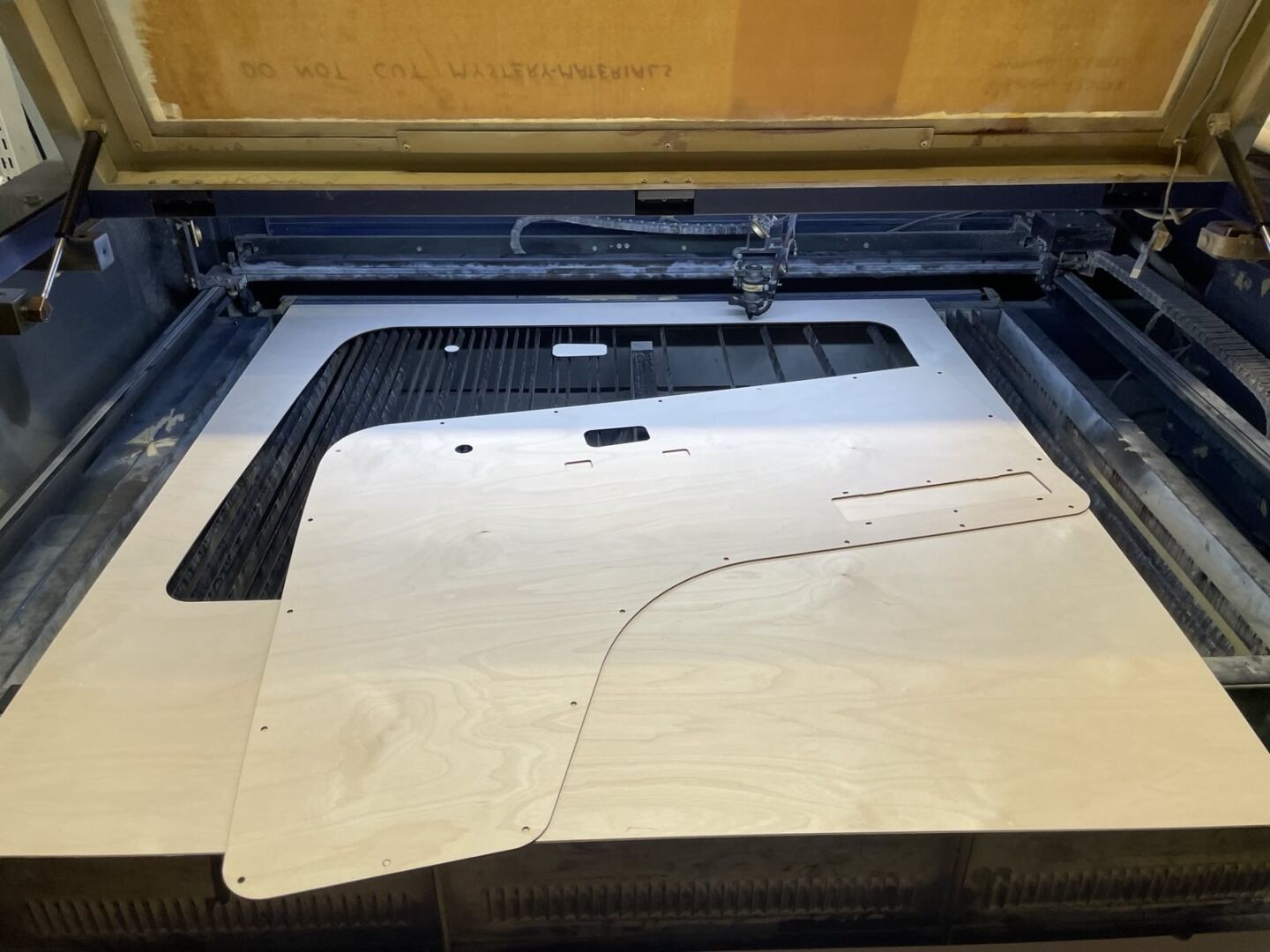

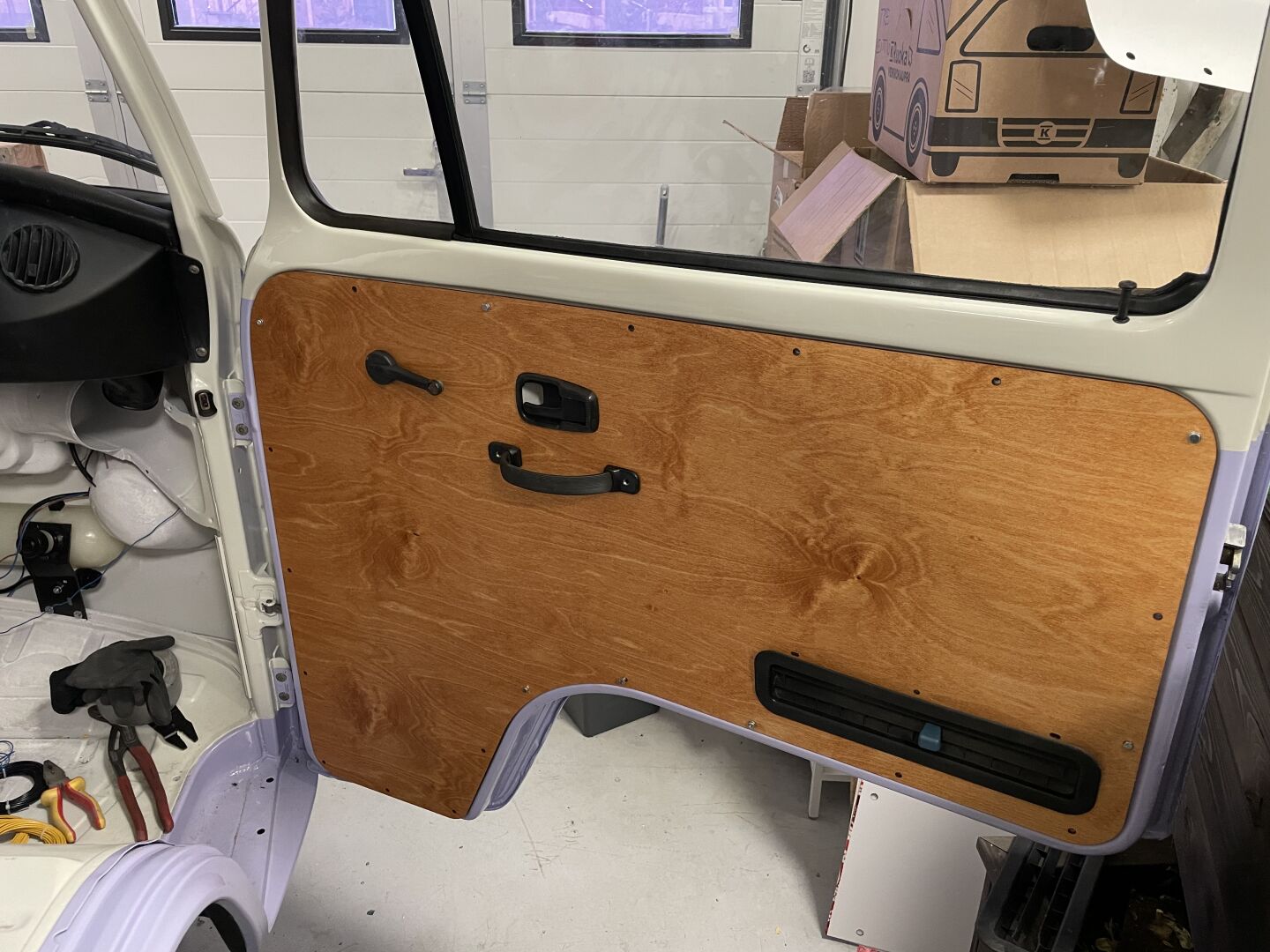

Sneak peak. Waiting for some parts to arrive, so woodworking for a change meanwhile.

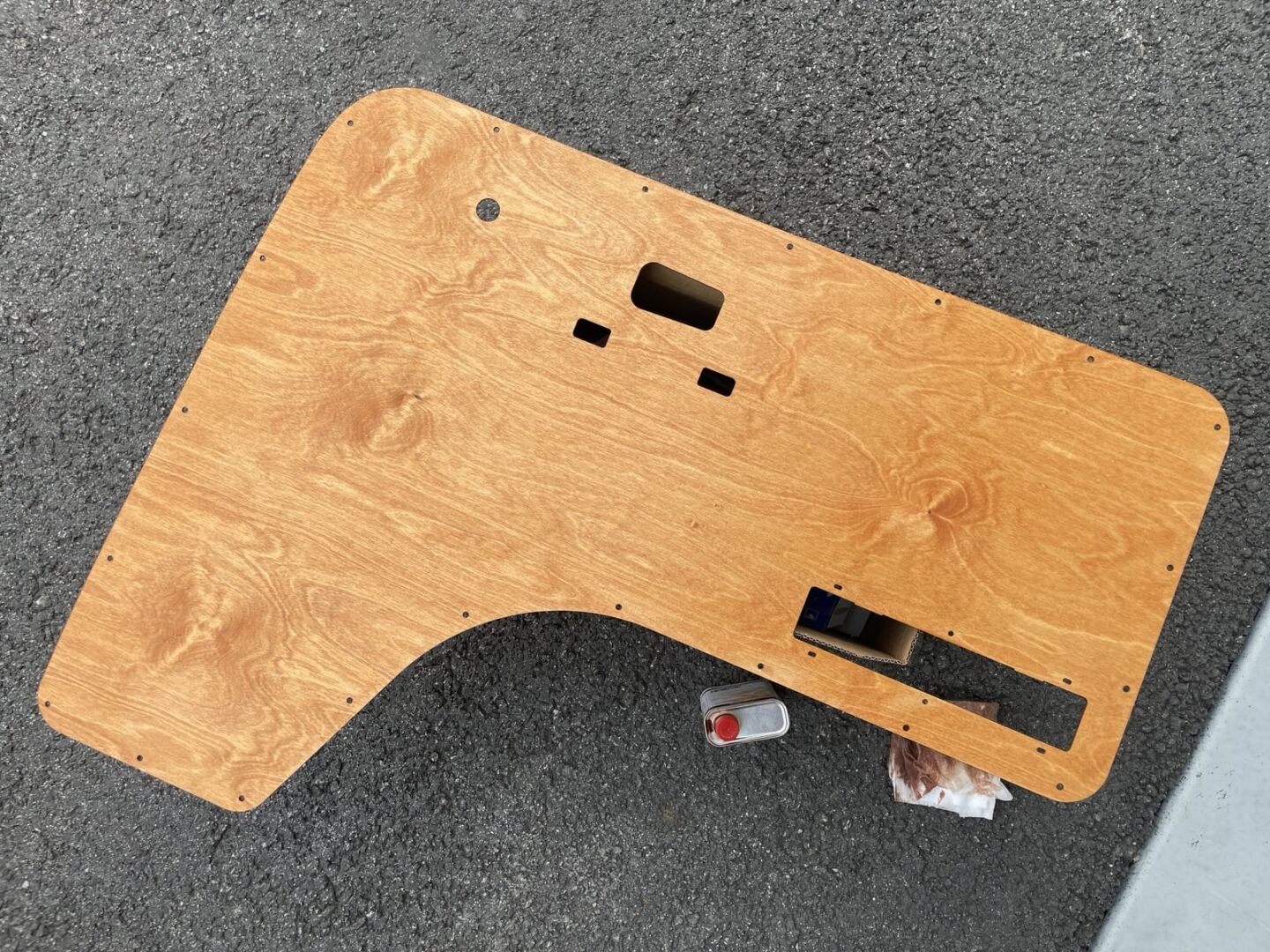

I want a warm wood finish for the interior instead of the original vinyl leather look. Took measurements, lasercut out of baltic birch plywood. Might still add one or two more coats of oil, but already looking a lot like what I planned! 😊 You really learn a lot when doing all on your own! ...but it's a very slow progress. 😂

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace

Back from holiday, finished the final motor mount and there it finally is! 😊

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace

😵‍💫

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace

Summoning the 4th state of matter to cut 6mm steel with a press of a button feels like violating some laws of dark magic.

Plasma cutting parts to be welded for the upper motor mount.

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace

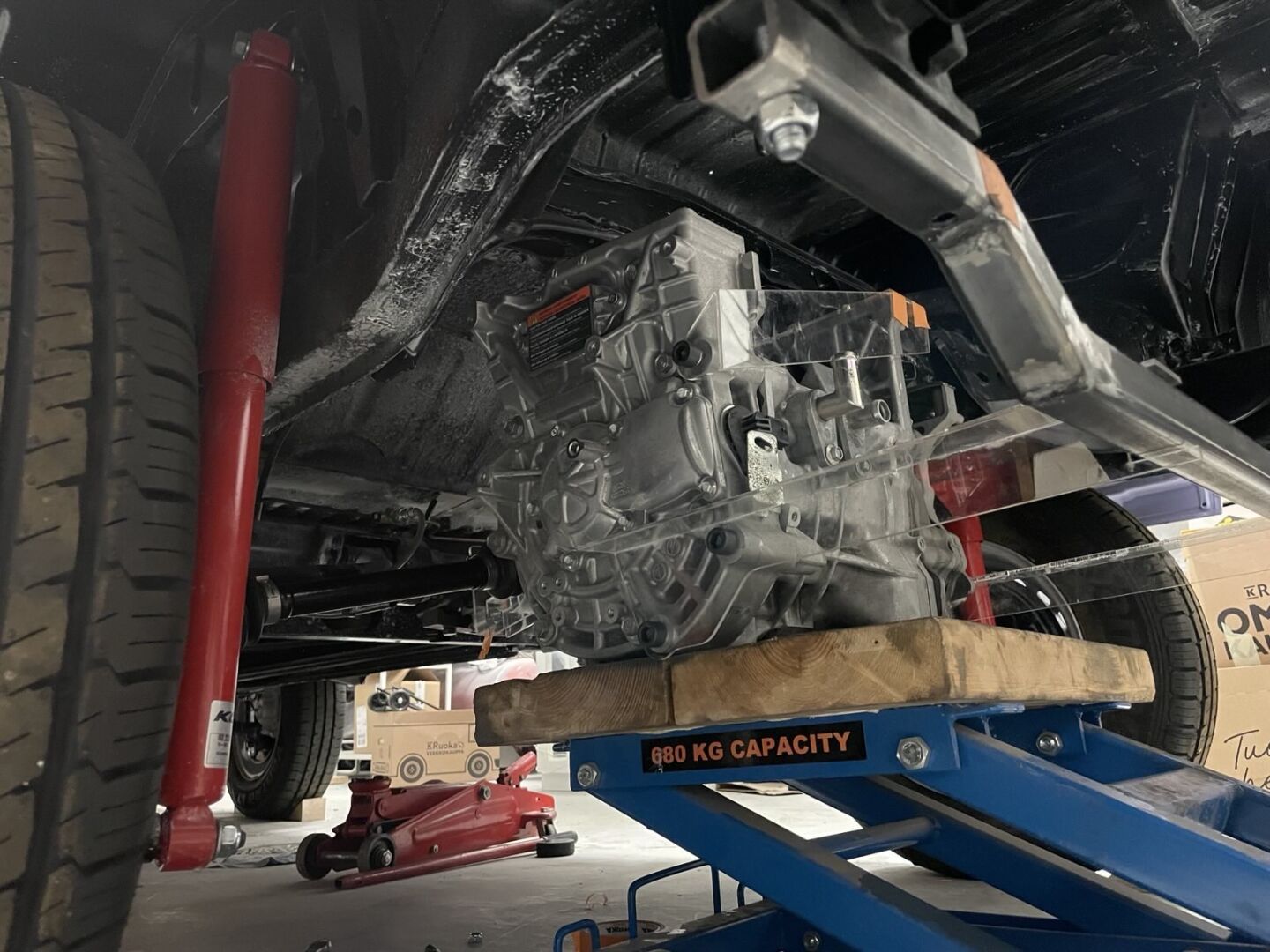

Motor is IN!

Still missing the top mount, some suitable bolts and powder coating but...

IT'S THERE. IT FITS. IT'S ELECTRIC ⚡ ⚡

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace

Something easier for a change. Measurements from the old worn out kickpanels, lasercut new ones. 😊

Need to find some suitable fabric for upholstery 🤔

Oh and of course saving and cleaning the old stickers...

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace

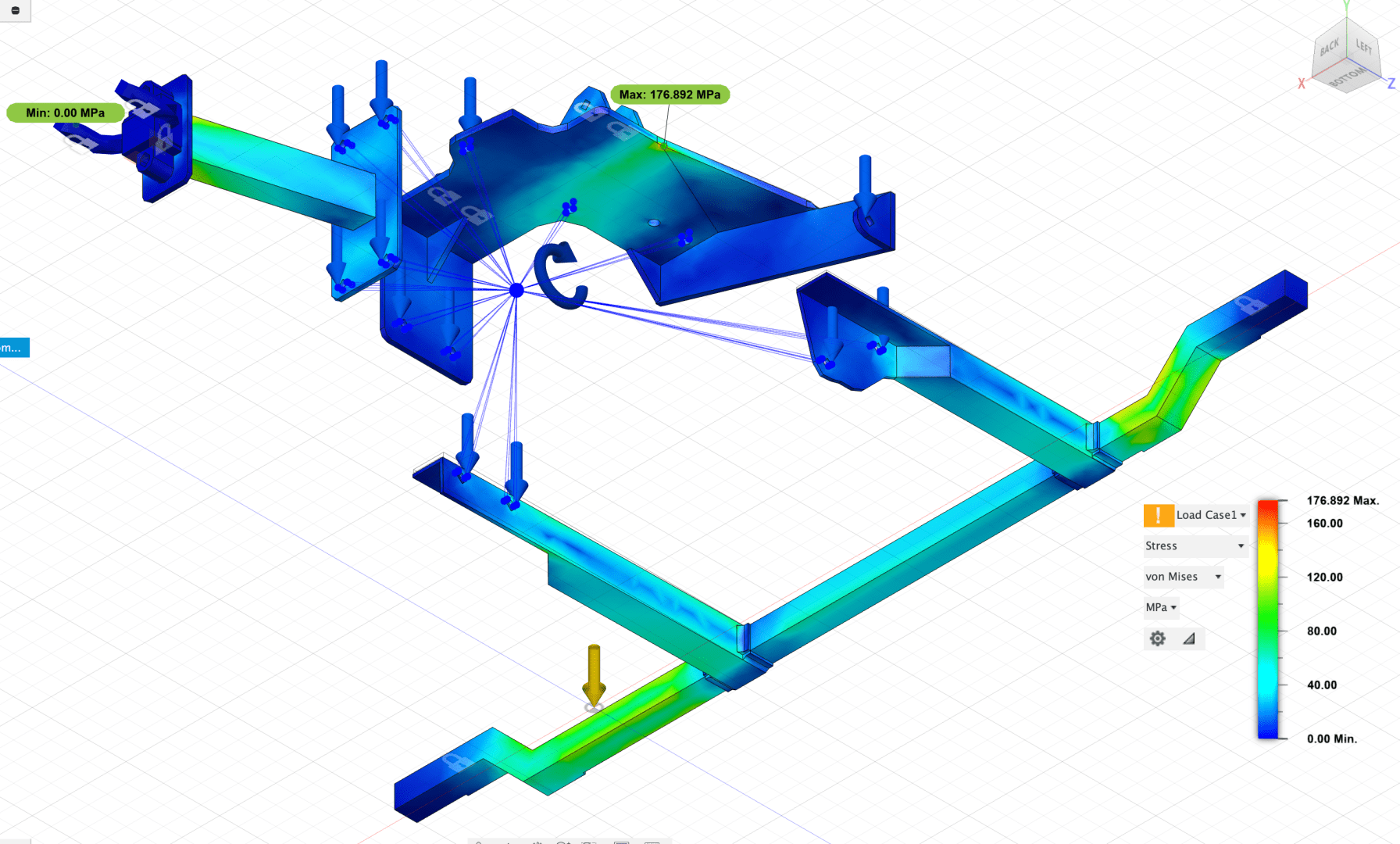

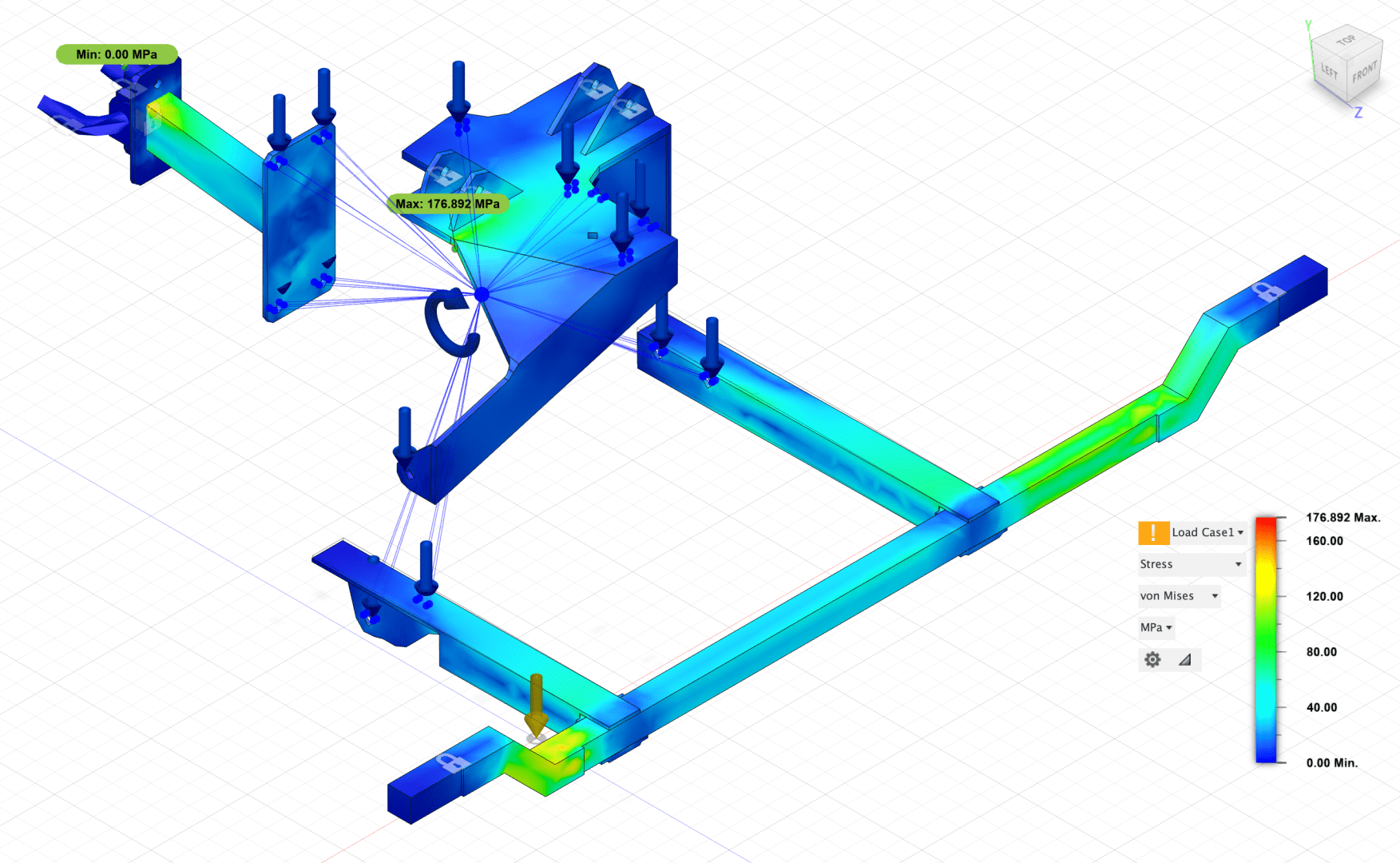

Couple of youtube vids later, learning how to use Fusion simulation features. Added more strength to the motor mounts based on the feedback from earlier calculations + simulation environment.

Now stable for:
100kg * 9.81 downwards force (weight of the stack)
280Nm * 7.94 (reduction gearbox) = 2223Nm rotational force

with ~2.4 safety factor. I'd have liked SF >3 but ah well. I don't think this steel will ever see full 280Nm and I'd be more concerned it'll tear the original engine mount rubbers into pieces far before that.

Next up.. steel?

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace #Engineering

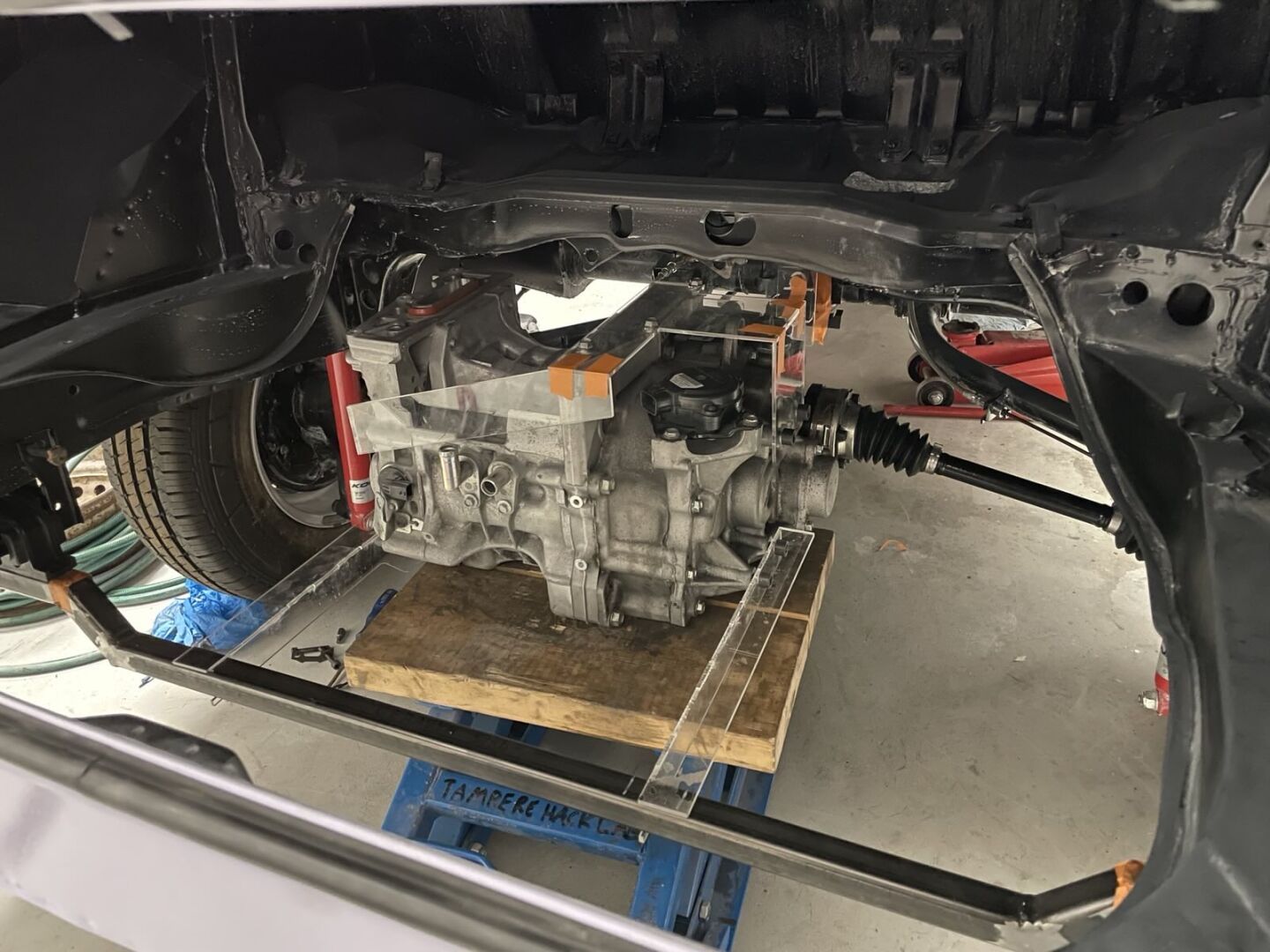

Quick update about motor mounts.

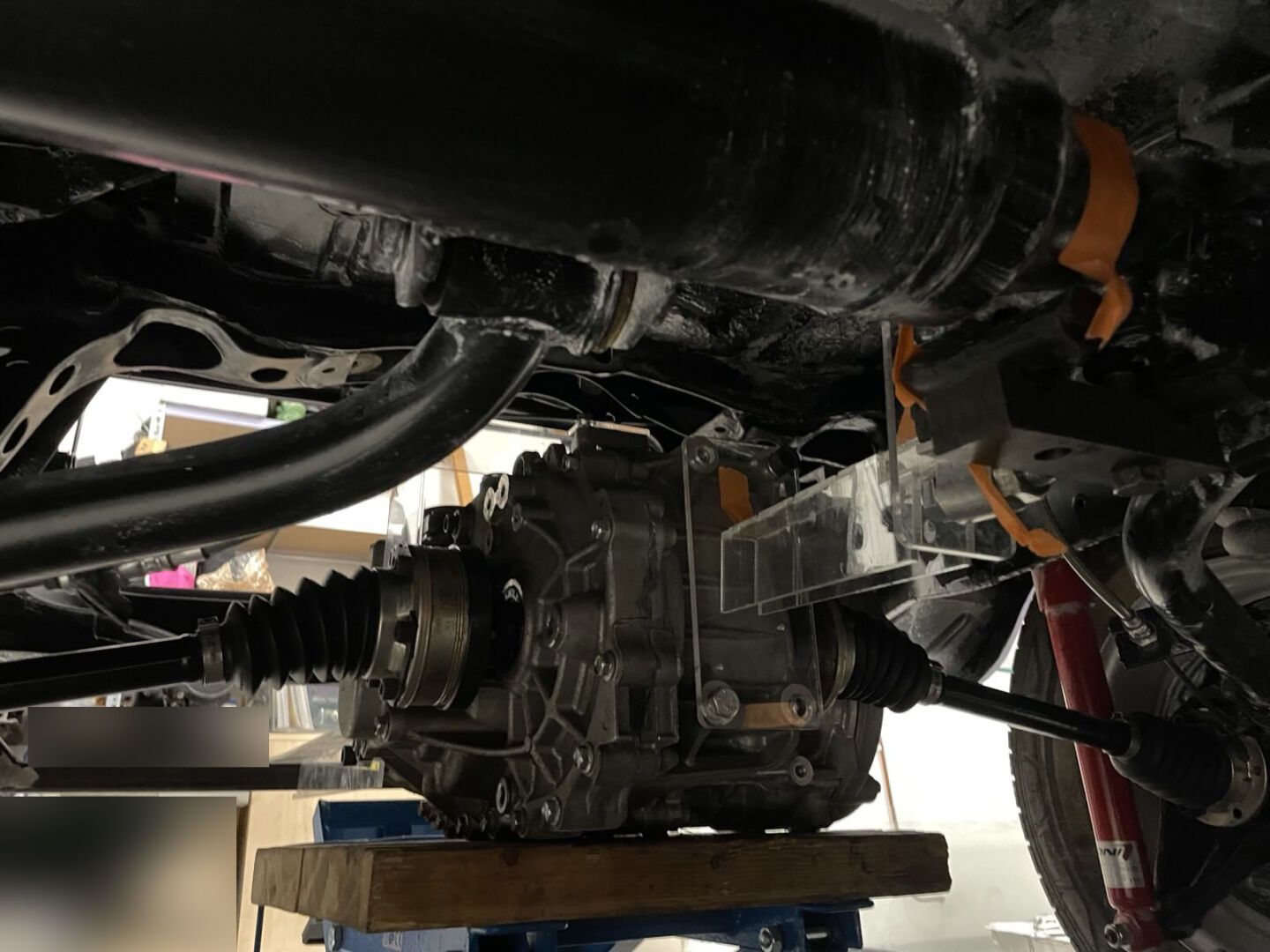

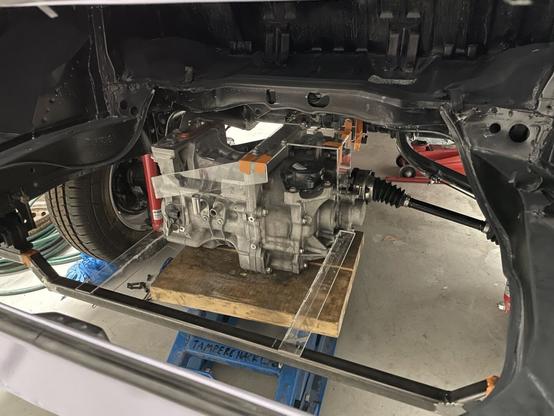

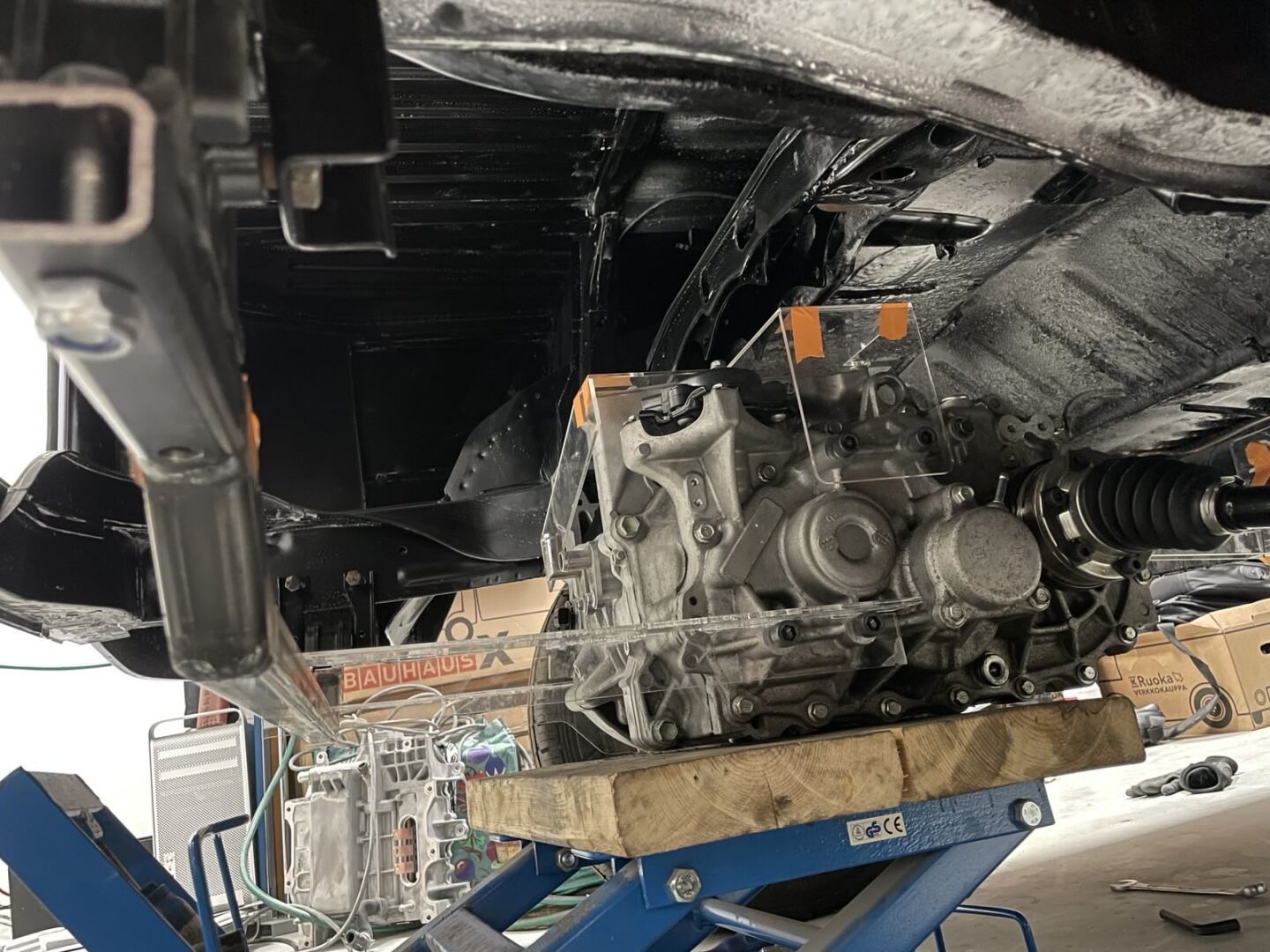

Lasercut templates from clear acrylic to check that everything fits and oh do they. It's so satisfying to draw things onto the 3D-scan, make templates and find out it's within 0.25mm!

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace

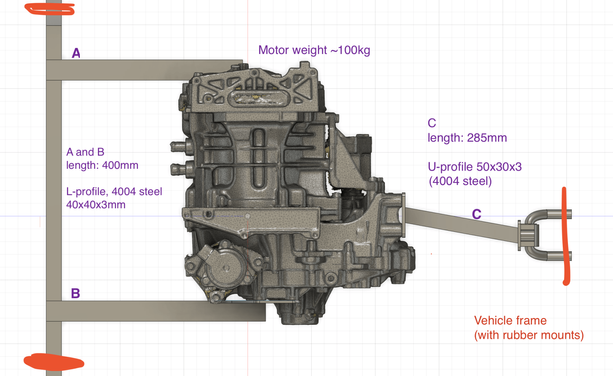

Polling fedi engineer people before attempting to learn how to calculate this myself. 😄

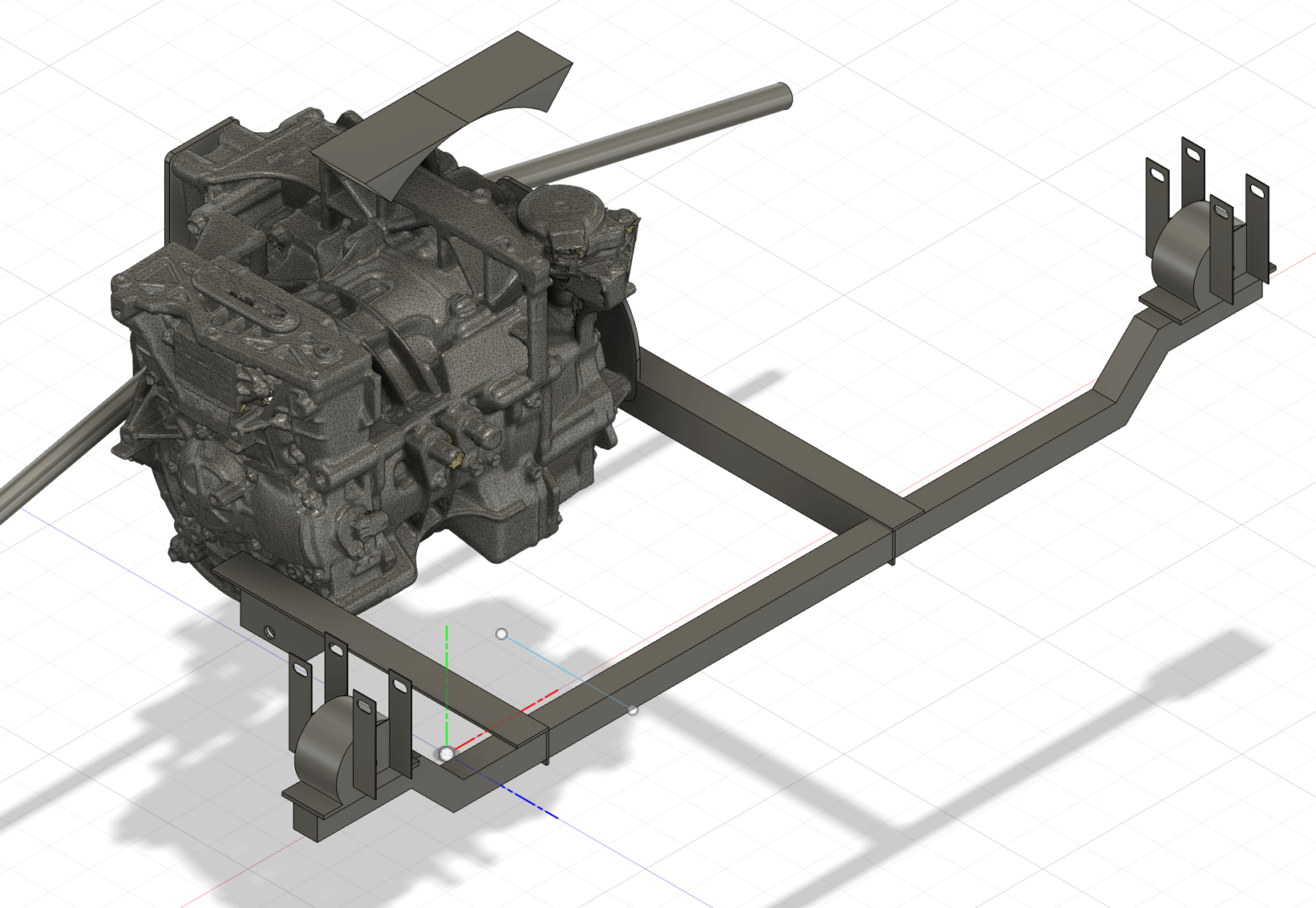

Mounting the motor like this is going to be alright? Right? 😄 (view from above)

There's going to be 4th mounting point above the stack as well just for the safety. But ideally I want these three to be able to support the motor on their own.

Using the original mounting points and rubber vibration dampener mounts, but slightly concerned about the long beams deflection/yield. Would *not* want to lose the motor onto a motorway!

#Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace #engineering

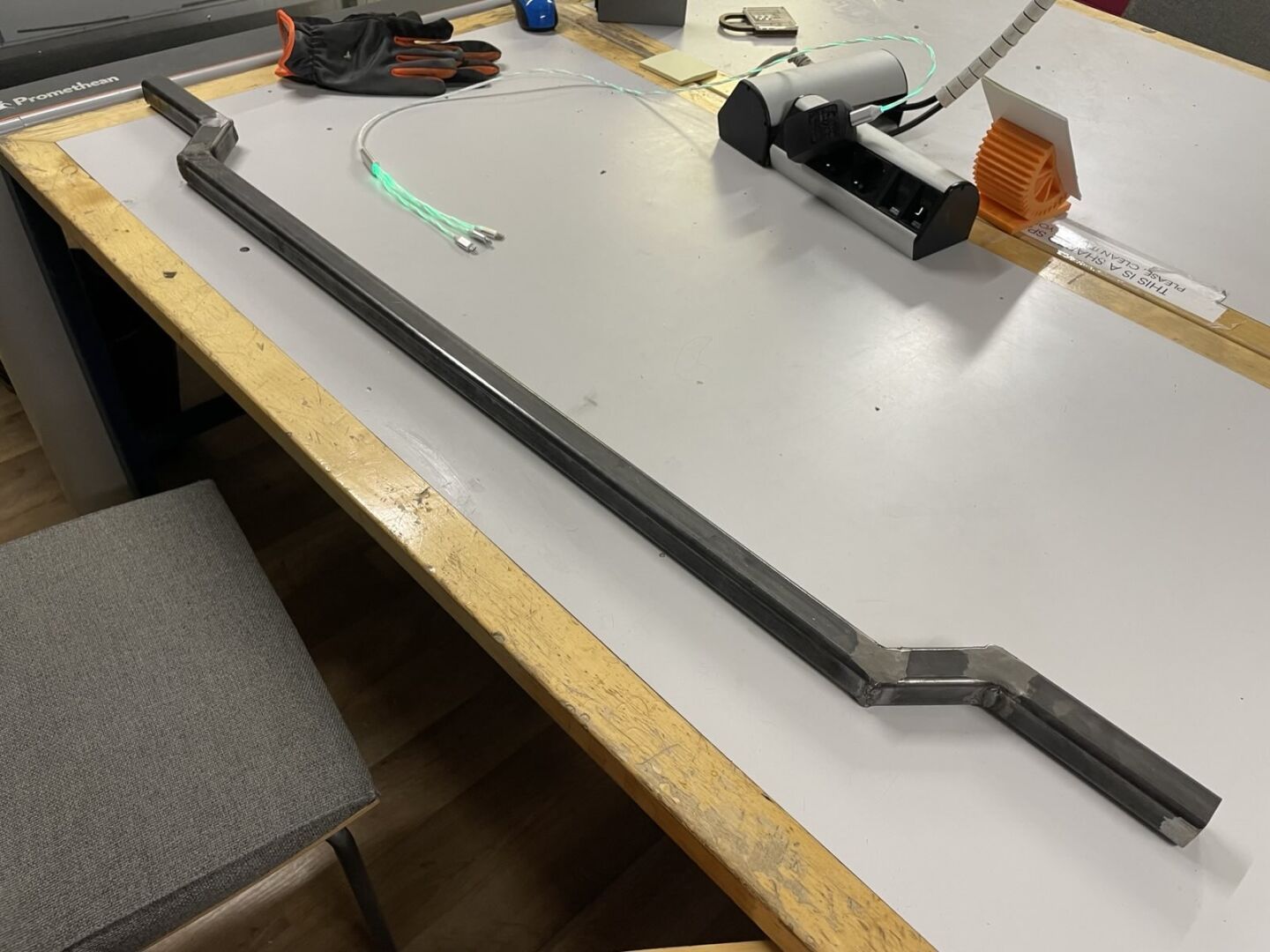

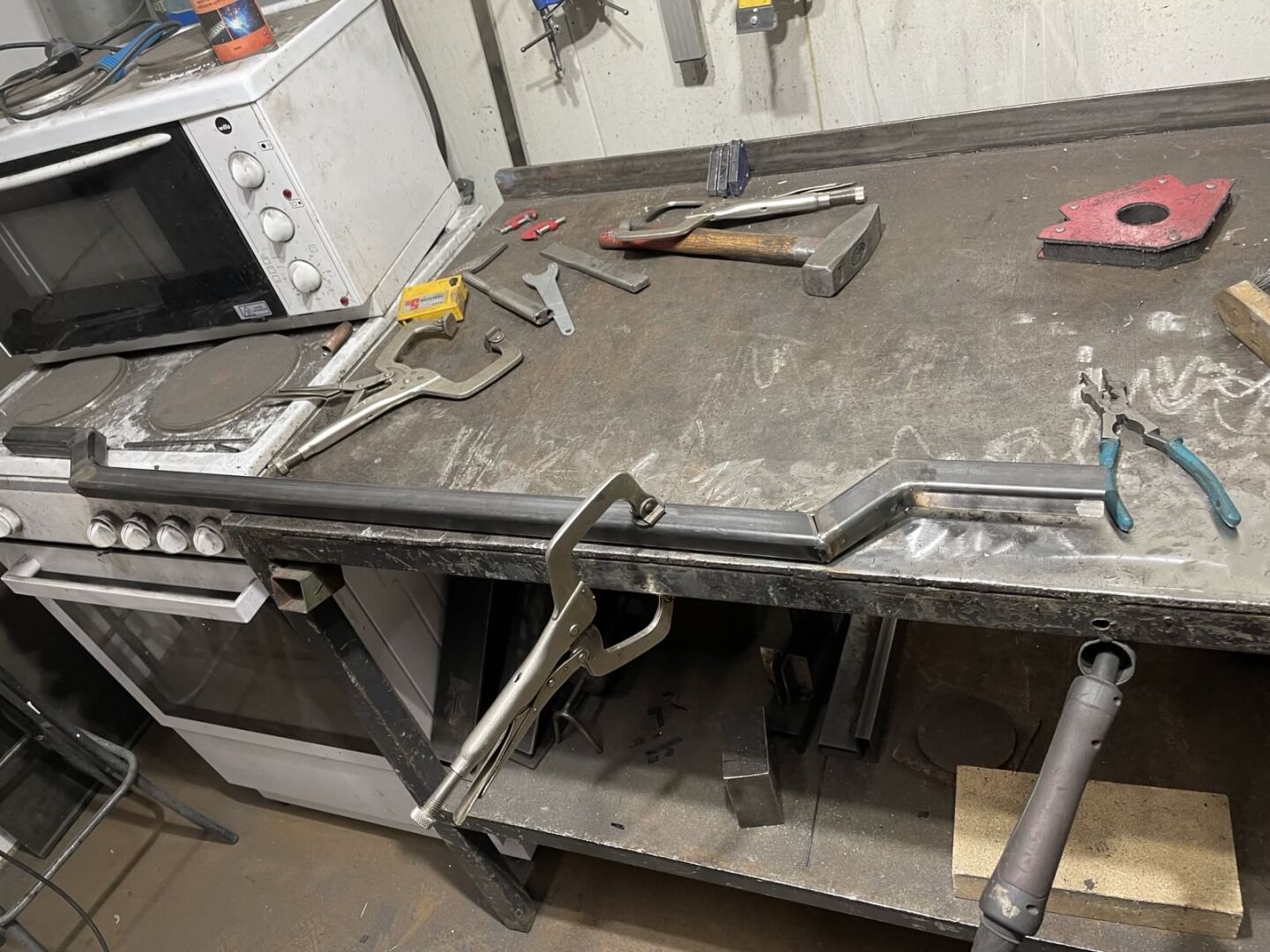

Practice time over and on to the real business. 😎

Rear motor mount will attach to the original engine mounting bar rubbers and has two L-brackets to hug the sides of the motor. This will provide a subframe/cradle of sorts for the inverter, charger, etc to stack up next to the motor.

Front motor mount will connect to the rear axle where the transmission nose bolts onto. Still have to figure out 3rd mounting point, preferably above somehow.

I'm trying to design following the original mounting points and avoid making changes to the chassis. Bolt-on is the best. 😅

#Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Voltswagen #BayWindow #OnlyVans #HacklabFI #TampereHacklab #Makerspace

With my post today, let’s embark on a nostalgic trip with the iconic Volkswagen Camper Westfalia, a symbol of freedom and the open road.

Read it here: https://discovermyeurope.eu/a-journey-through-time-the-volkswagen-camper-westfalia-legacy/

#VWCamper #Westfalia #VintageVibes #HippyLifestyle #IconicRides

You know that thing that #VWCamper owners do, that little flash of the headlights or wave to each other? Complete strangers bound together by nothing more than a #campervan?

Well I discovered today that it’s apparently a thing between #TentBox owners too.

I couldn’t help smiling at the wave of acknowledgment from the driver of another vehicle with a TentBox on their roof this afternoon. Apparently I’m a member of a little club I didn’t know about. 🙂

At least I hope it’s a club. #NotACult

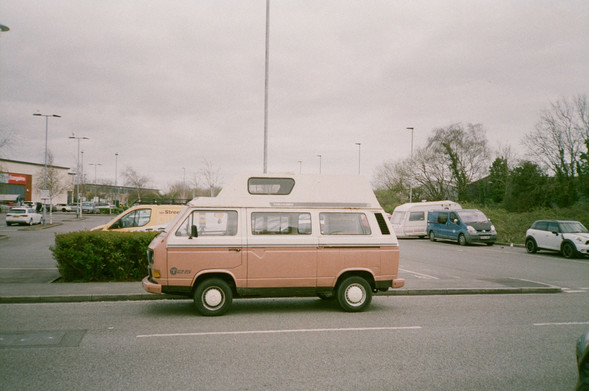

Van Transportation.

📷 Nikon F55.
🎞 Agfa HDC+ 200.
🏷 #vwCamper #portishead #35mmFilm #believeInFilm #filmPhotography

More aircon in preparation for the future heatwaves. 😊 Sliding window, that seal was by far the worst to install! Took three tries to get it.

Also check out another vehicle project in local #hackerspace #makerspace recently back on the road again! https://www.youtube.com/watch?v=AZ1qq7INEWA

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

auto sleeper.

📷 Canon EOS300.
🎞 Agfa Ultra 100.
🏷 #portishead #vwCamper #car #filmIsNotDead #believeInFilm #filmPhotography

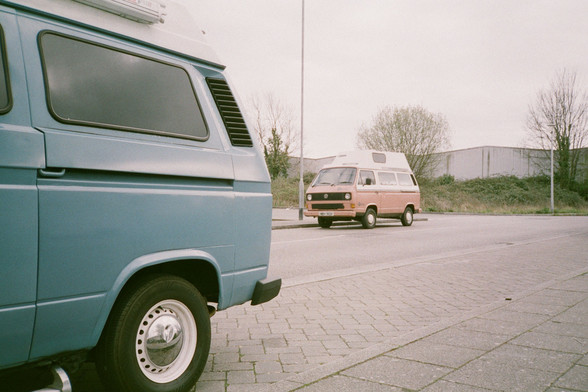

VW Campers.

📷 Olympus XA.
🎞 Agfa XRG200.
🏷 #olympusXA #portishead #vwCamper #iShootFilm #believeInFilm #filmPhotography #car

half of a blue van. in the background is another van which is white & brown

a blue volkswagen camper van. it has shiny hub caps and four lights on the front.

So what about the battery pack then. 🤔 I recently did some quick sketching and...

I'll split the four module Tesla M3 pack into two packs with two modules each. Rear pack sits below the rear seat and the front pack against the wall between the cargo space and the cabin, probably with some furniture on top of it in the future too.

🤔 🤔 🤔

#Tesla #Ceravanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #BayWindow #ClassicCars #Campervan #OnlyVans #ElectricVehicles #EV

3D scanned the entire motor room and the Leaf motor. Should make things rather much easier than good old fashion cardboard aided design.

Many thanks to Arno from https://mekanisaatio.fi 😊

Firing up Fusion 360 for motor mounts in 3... 2... 1...

#3Dscanning #engineering #Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

👀

#3DScanning #Engineering #Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans

With the wiper stalk slightly modified, it was time to put the steering column back together complete with the steering wheel and the horn button.

And it steers!

Still some minor lash to adjust in the steering box and cambers and tierods are probably all askew.

But it steers!

#Ceravanlife #Ceravan #Vanlife #Vanbuild #DIYEV #EVconversion #VWcamper #VanlifeDreams #Volkswagen #Voltswagen #BayWindow #DIYcamper #ClassicCars #ClassicRestoration #Campervan #OnlyVans
