Working on a radical different design than the L shape for the BirdNET-Go platform, only this one is comically too large to print, even in pieces, so I am going to scale this version down to a size that works with the Reolink 8MP PoE camera I'm hoping to use it with.

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

Also working on an open source version of the bird buddy feeder which uses a much better camera [Raolink] with Birdnet-Go!

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

A few revisions later and much bigger magnets!

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

Final Version!

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

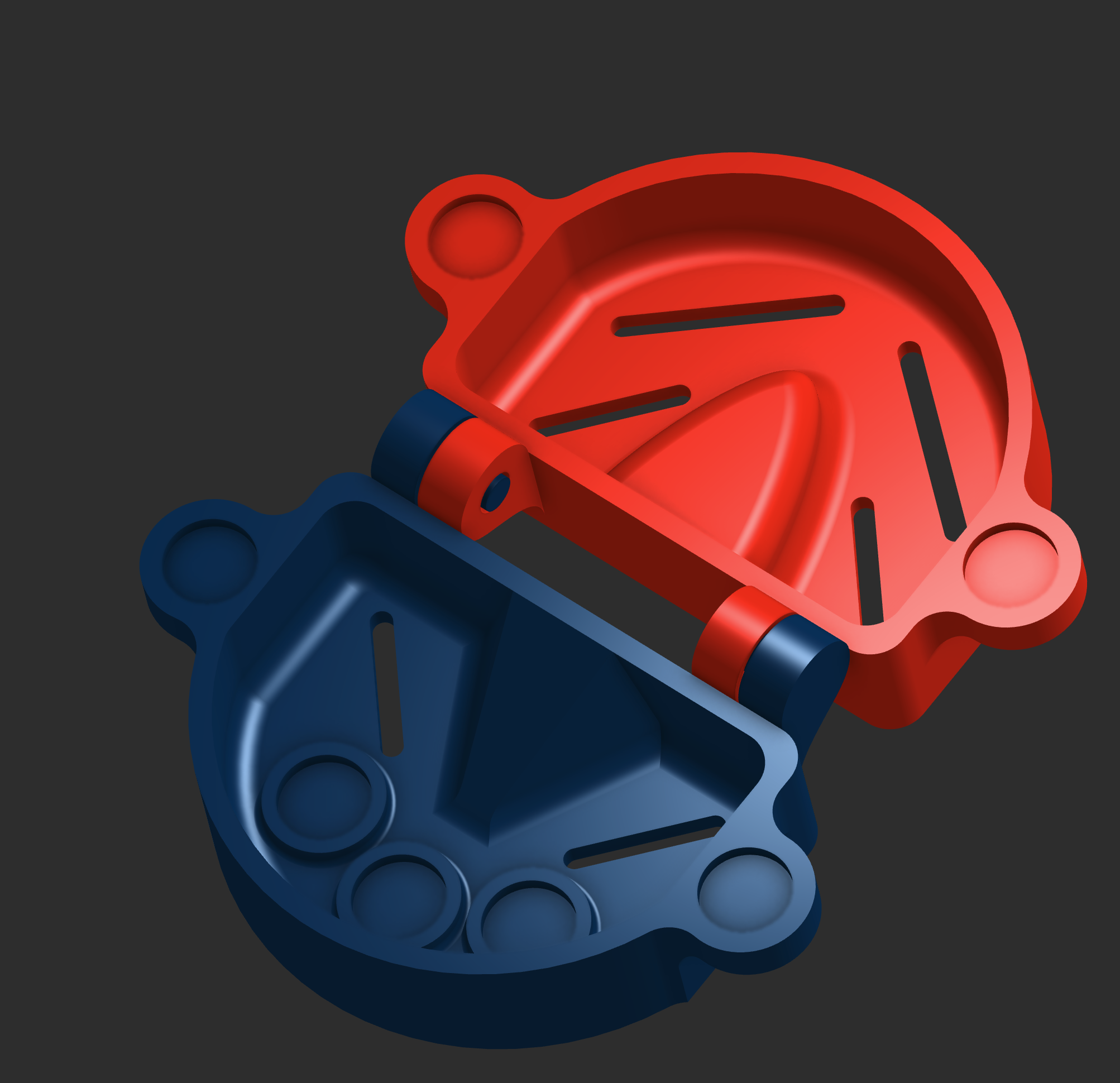

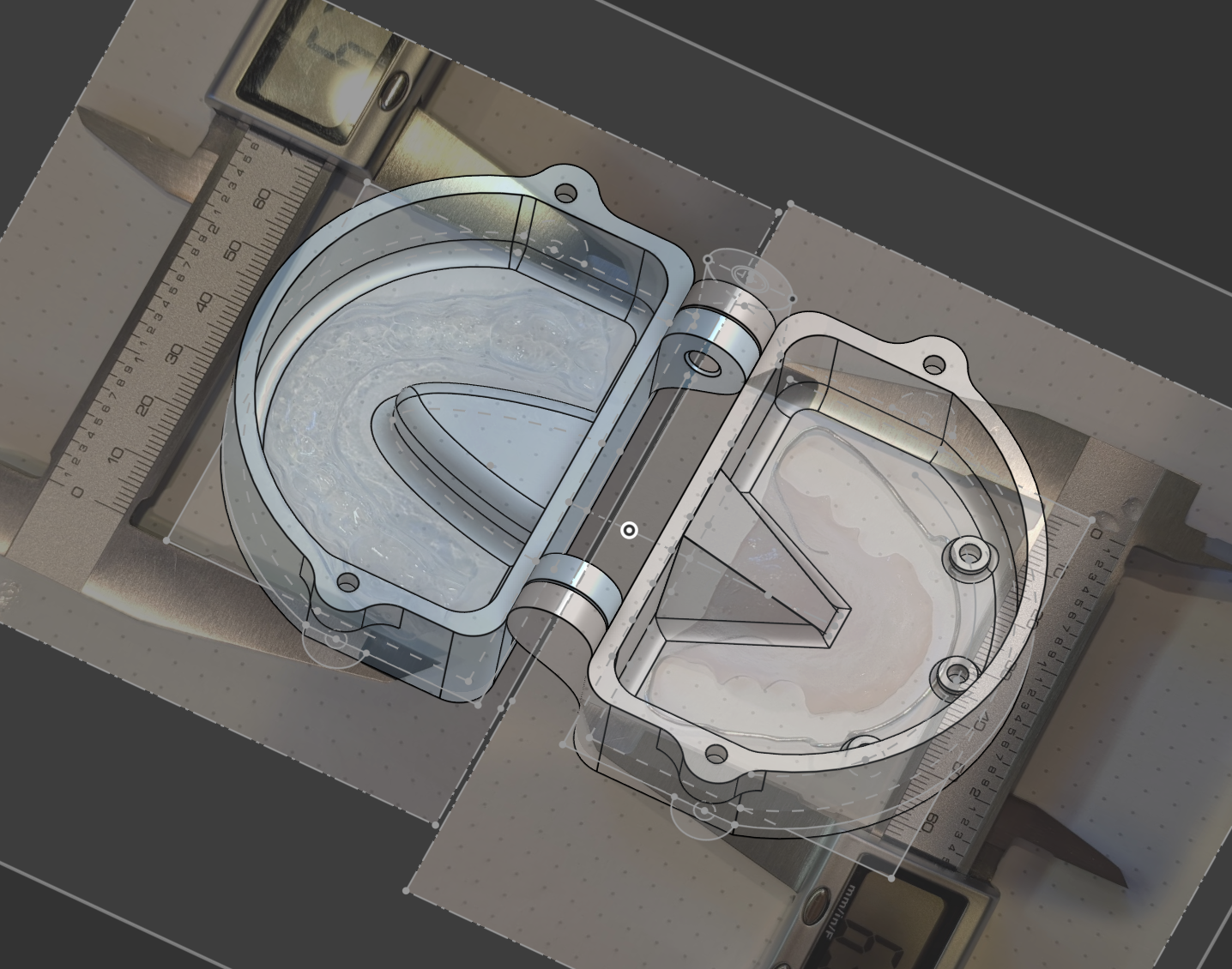

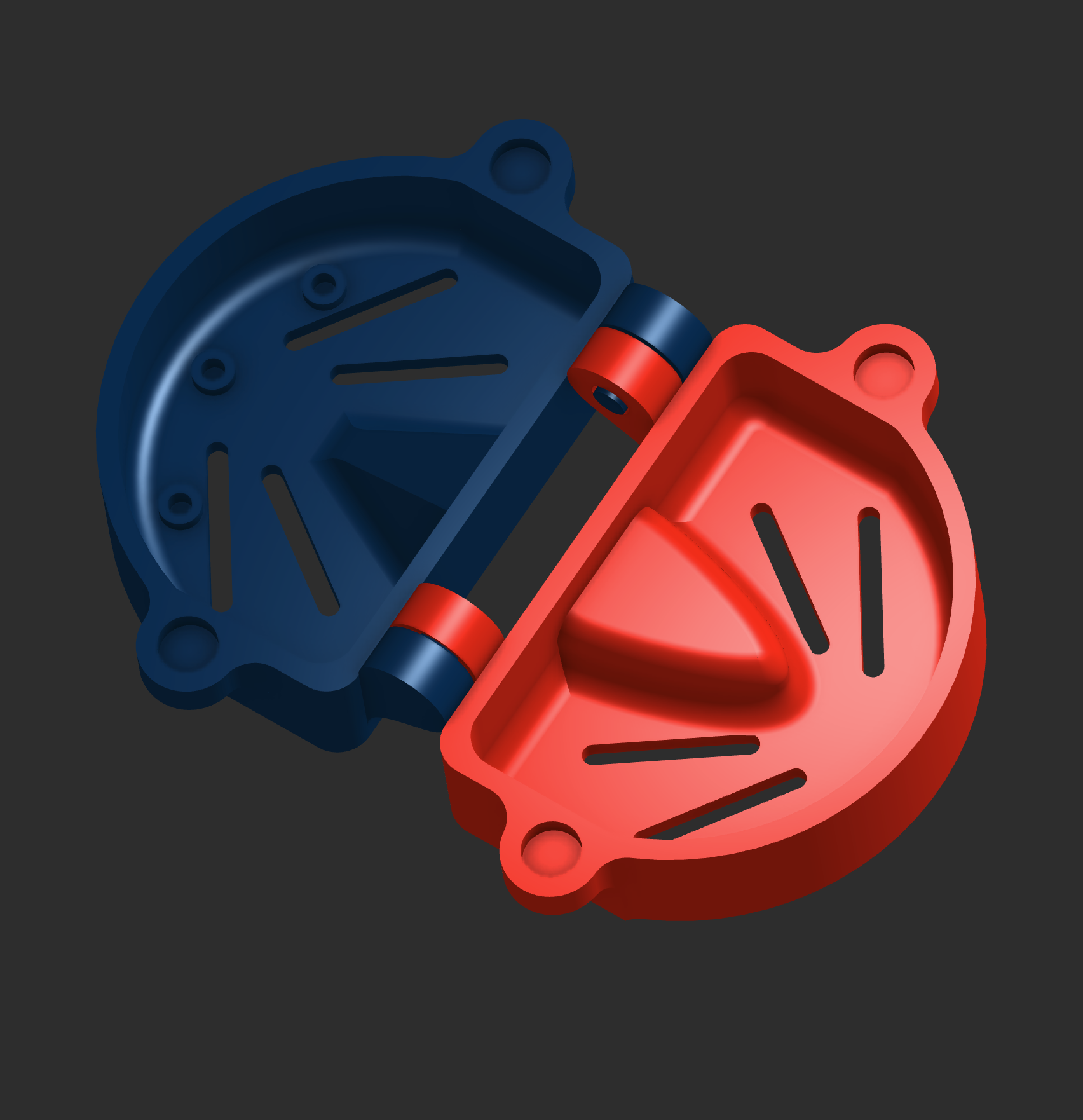

Making a custom retainer case for the little one. Magnetic closure and retainer holder. I need to add some vents and some stylizing to make it look a bit better. I have already tested my "print in place" design and it totally works!

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

Final version of the bathroom shelf that's printing now! <3

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

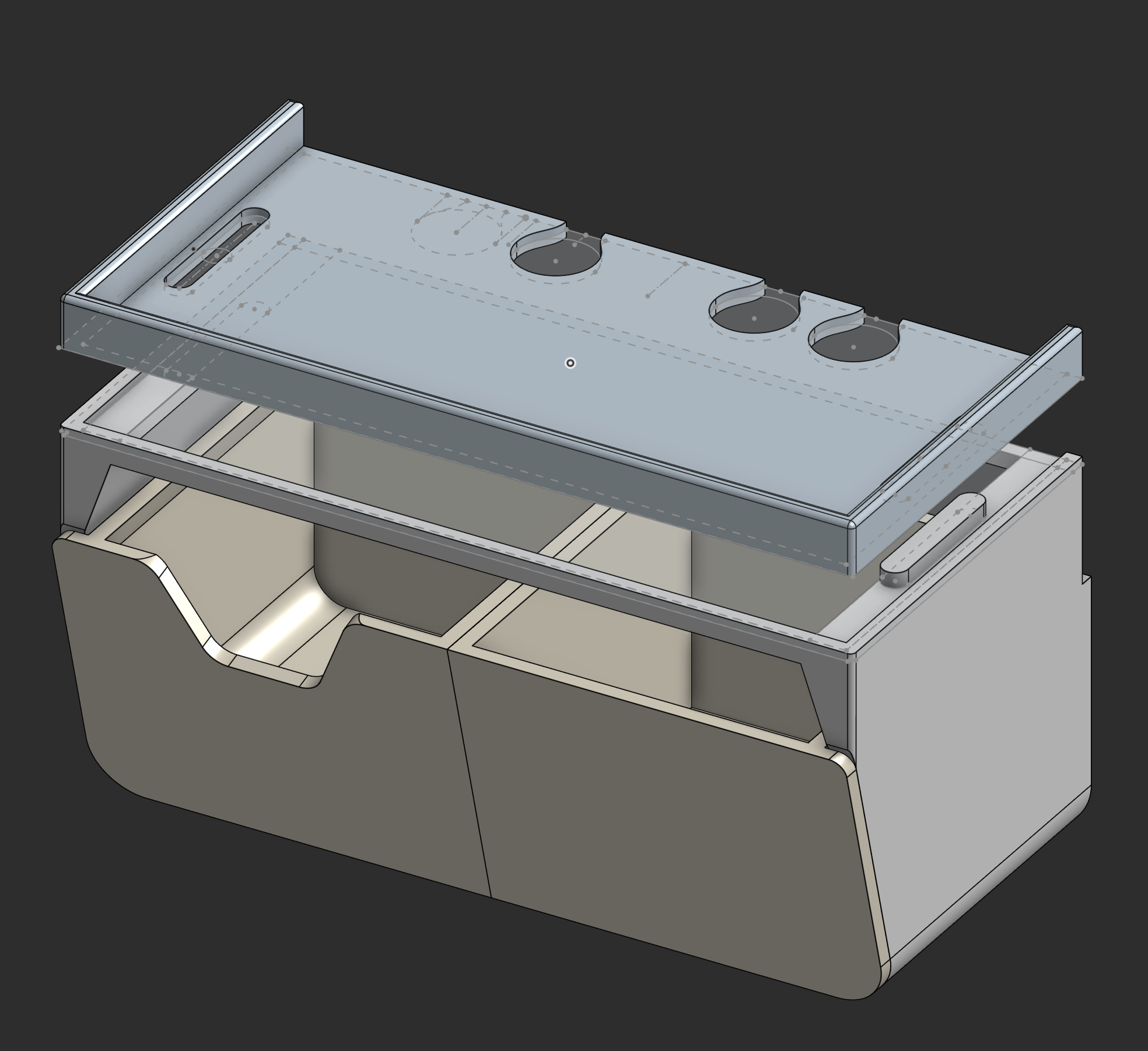

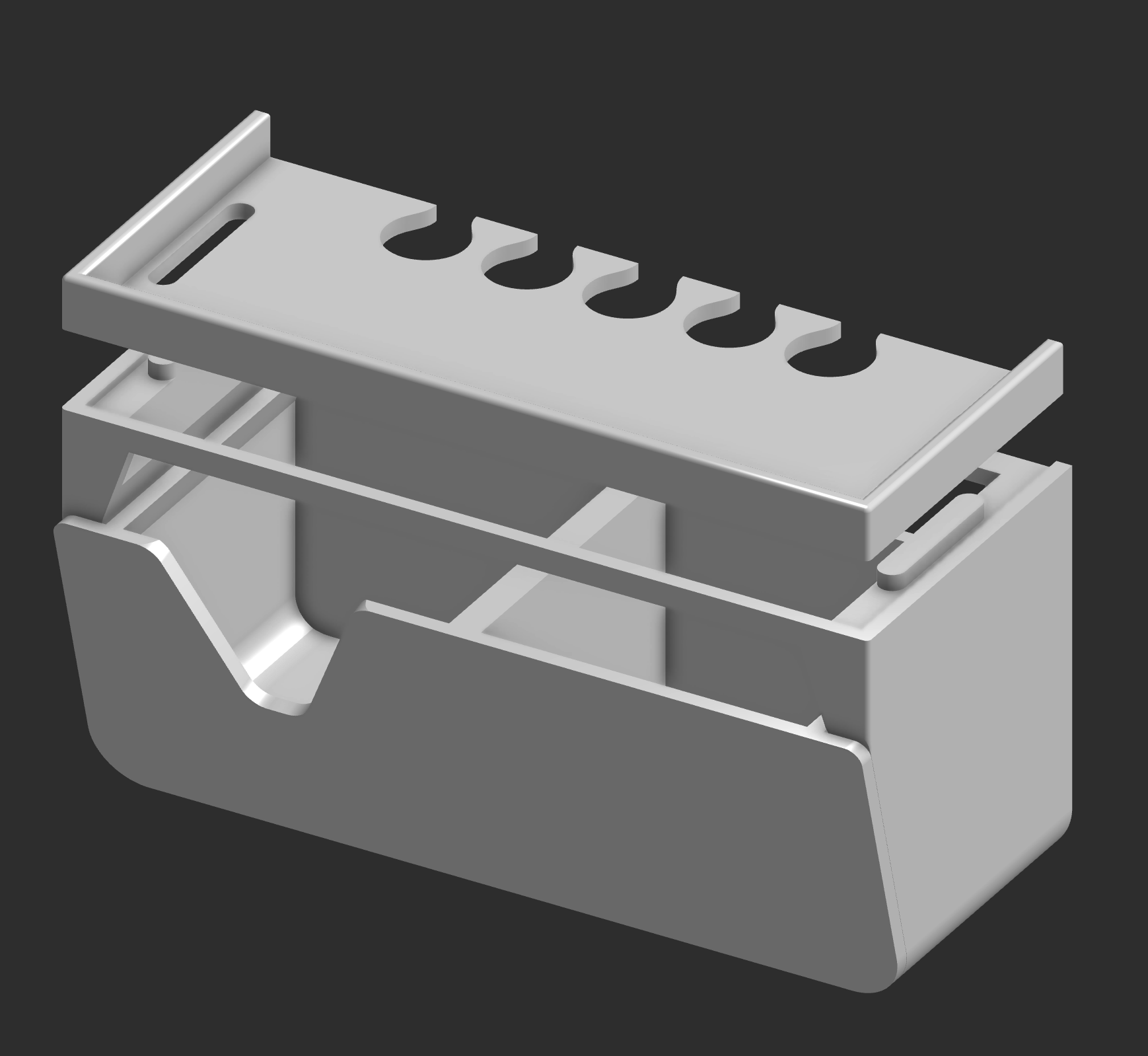

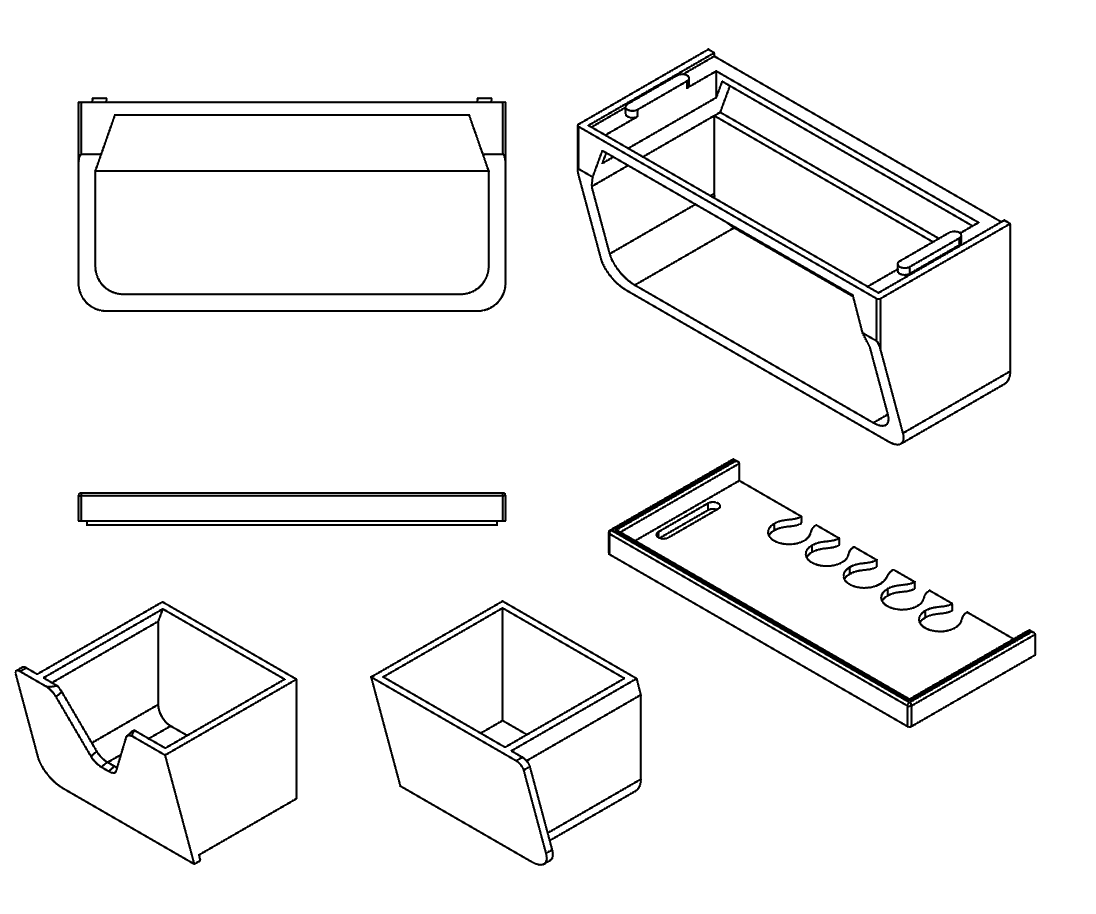

Made a quick bathroom organizer for floss picks and toothbrush chargers.

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

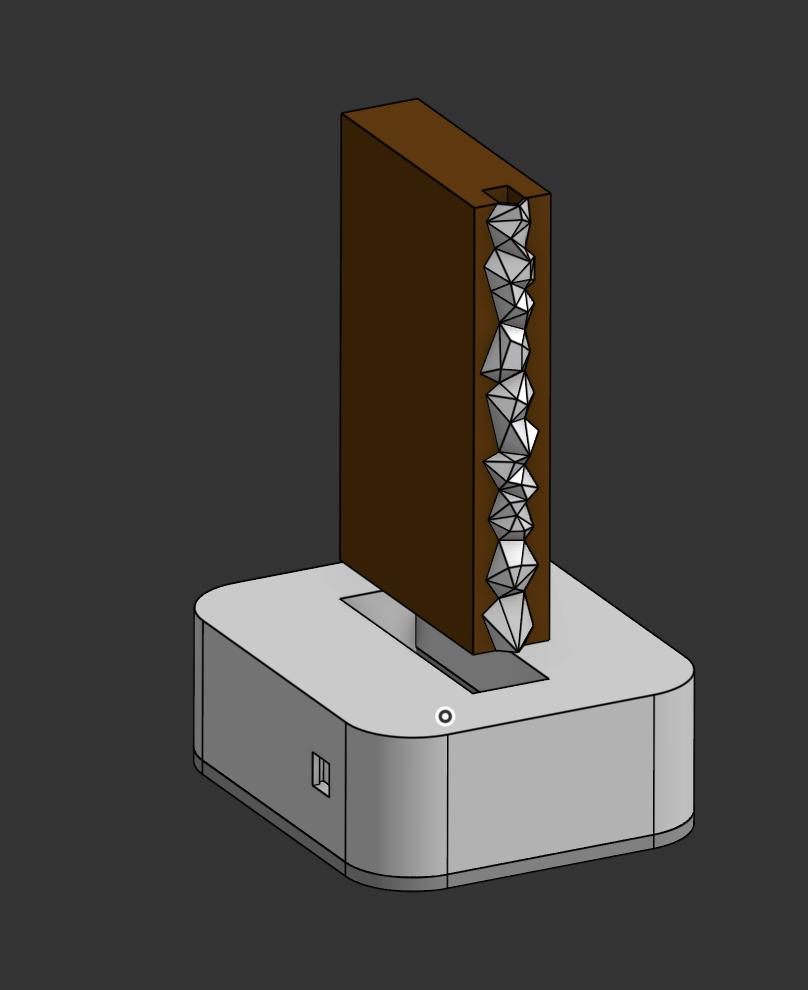

Making 5 foot floor lamp out of wood with a 3D printed base and polygon diffusers. This assembly is just test fitting a very small section. PIR sensor will control the self-illuminating as well as a custom light pattern based on sun and moon positioning.

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

Made a template to make aligning LEDs behind things super easy and then went and did this to the kids Ikea desk.

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

Working on a fun 3D designed lamp for my uncle. I got some ribbon cable to hide the LED wires but I still need to workout where I want to add the supports and how to route it so it's nearly invisible.

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

Sneak peak of my largest installation to date, and that's not even half of it!

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

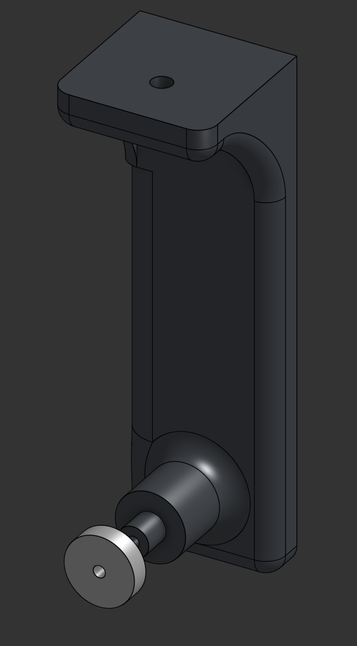

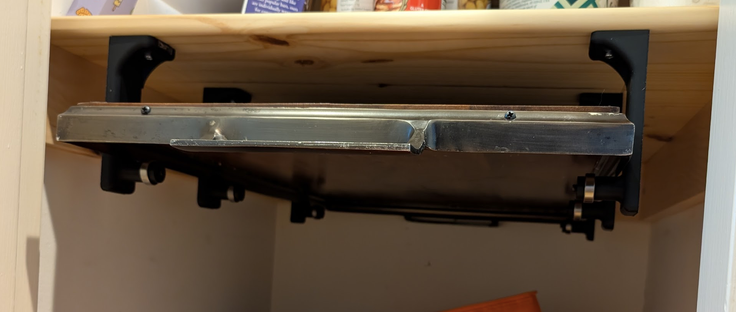

We needed a super convenient place to store a serving tray we use a LOT in the movie room for snacks and drinks. I designed this bracket to take a 68 skateboard bearing but unfortunately the handle on the tray makes it too long to close the door correctly due to the shelf trim. It works upside down though! Job done.

#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #kitchen #kitchenupgrades #pantry #pantryheaven #anikimakes

Working out the design of a boat cradle for my SO's Adirondack guide boat. It's a bit over engineered but the idea would be to be able to use both upper support beams as a drying rack and allow the boat to be inspected, maintained, and cleaned all in one space. The straps will be made from outdoor carpet for durability and friction-less sliding against the composite hull.

#cad #cad3d #onshape #parametriccad #boat #boating #cradle #guideboat #wood #woodworking #framing #anikimakes #boatcradle

I really wanted to make a WLED version of the overpriced Goovee light bars but I wasn't wild about how difficult it was to construct and the overall diffusion of my design, not to mention the amount of work necessary to make sure it's perfectly straight. This next version will slot together much nicer, be easier to construct and wire, and should have some really nice diffusion effects on both sides!
