Lmst

Voiskohan HS lisätä alt tekstin jokaiselle fingerpori sarjakuvalle jotta saataisiin tänne fediinkin alt tekstit fingerpori-botin päivittäisiin julkaisuihin.

Pitänee selvittää voinko lähettää HS:lle sähköpostia aiheesta. Muistaakseni EU:n "European Accessibility Act (EAA)" vaatii tämmöisiä saavutettavuus parannuksia varsinkin isoilta sivustoilta.

#helsinginsanomat #fingerpori #saavutettavuus #EAA

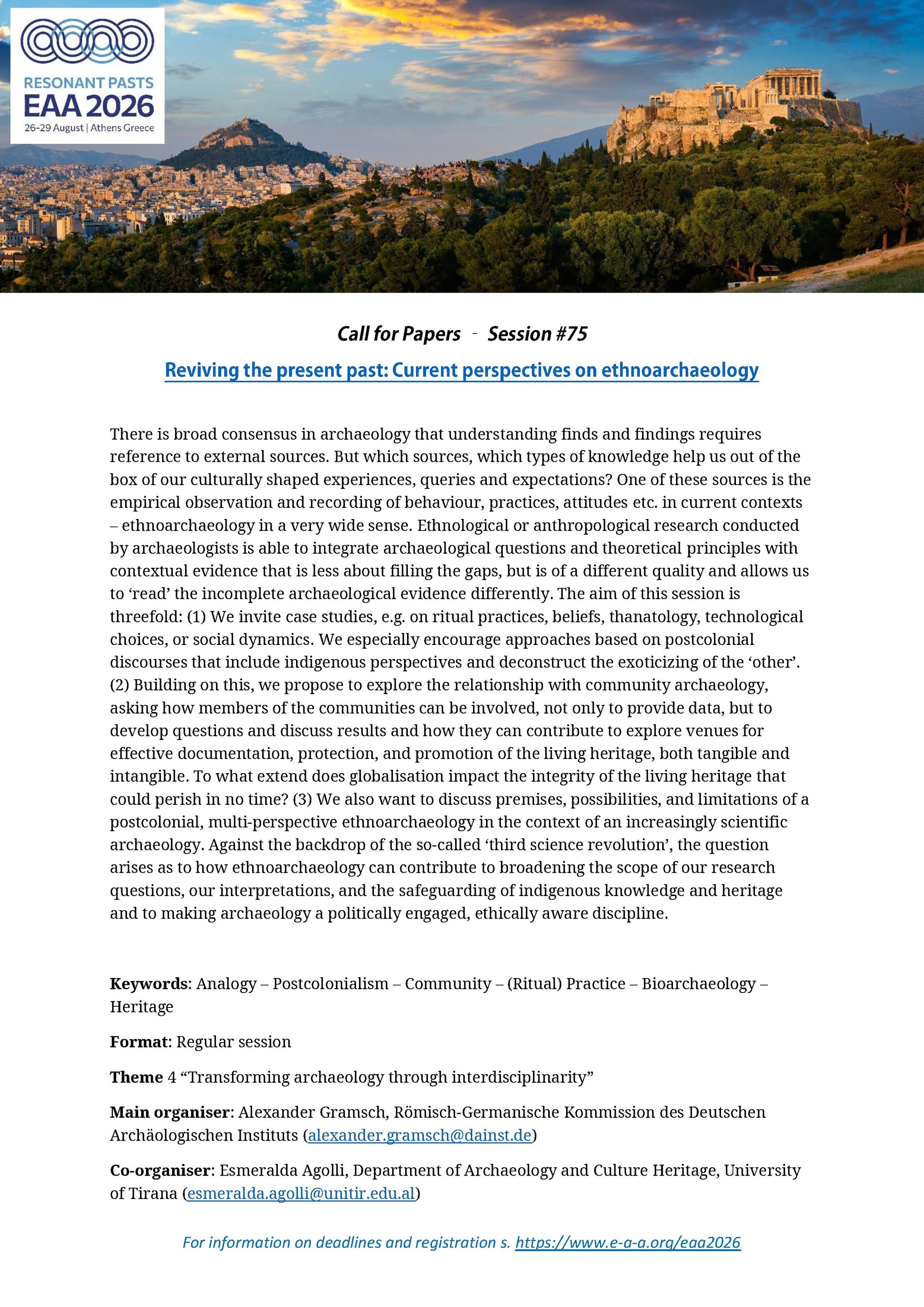

📣 EAA 2026 Session 75 | Call for Papers🏺
Session 75 "Reviving the present past: Current perspectives on ethnoarchaeology" explores how ethnoarchaeology can help us move beyond culturally shaped assumptions in archaeological interpretation.
📆 Submission deadline: 05 Feb 2026
📌 Submission and registration: https://www.e-a-a.org/eaa2026
#eaa #cfp #ethnoarchaeology #archaeology #announcement

PSA: Der aktuelle Plan ist, die Fundstelle der harmonisierten Europäischen Norm 301 549 V4.1.1 an einem Freitag Nachmittag im Amtsblatt der Union zu veröffentlichen.

Wer in der #Barrierefreiheit arbeitet sollte in KW 44 Urlaub nehmen.

#BITV #BFSG #WAD #EAA

The glider now has 12 pounds of lead shot and epoxy added to dead space in the very end of the tail boom.

My initial estimate of volume indicated that I could add 8 - 10 pounds this way. I'm pleasantly surprised, and I didn't make a chocolate covered mess of things as I was pouring this goop into the tail.

I need to add a few more pounds to the tail. Phase two of this project will use lead plate, bolted to the vertical fin spar. (I need to unroll the 1/4-inch plate first, then develop a template to cut the lead.)

I could not add the epoxy/lead shot mix all at once because of the exothermic reaction of epoxy. When mixed epoxy is in a thick blob (instead of a thin layer), it generates enough heat to warm itself...which accelerates the chemical reaction...releasing more heat...further accelerating the reaction.... I have seen epoxy smoking hot because of this, so I added a bit, waited a half hour, checked temperature with an IR non-contact thermometer, added a bit more when it was clear that the exotherm was only very mild, etc. That took a while, but turned out well.

I note that Roto Metals has a discount on some 1-inch lead plate. Get your fork lift ready. No free shipping!

https://www.rotometals.com/lead-sheet-plates/sheet-lead-1-64-lbs-sq-ft/

#AvGeek #Aviation #ElectricAircraft #Homebuilt #Glider #DIY #EAA #Ballast #Math #Density #Exothermic #Chemistry #Thermodynamics #Lead #Epoxy

A view from inside the tail boom, aft of the tailwheel, looking aft. A Plexiglass dam was caulked into place as a 'dam' to hold the lead shot and epoxy mix. I was able to fill up to the dam, then top off with extra epoxy. The lead shot is dark gray and most of the tail boom interior is carbon fiber...black.

A view of the very end of the tail boom, looking forward. Two dams on the sides of the tail boom's circular cross section are holding back several pounds of lead shot and epoxy. The ends of the rudder cables are wrapped in blue tape to keep away epoxy.

Dark gray lead sheet, 1/4-inch thick, needs to be unrolled and then cut into rectangular sections and bolted into the tail for further ballast.

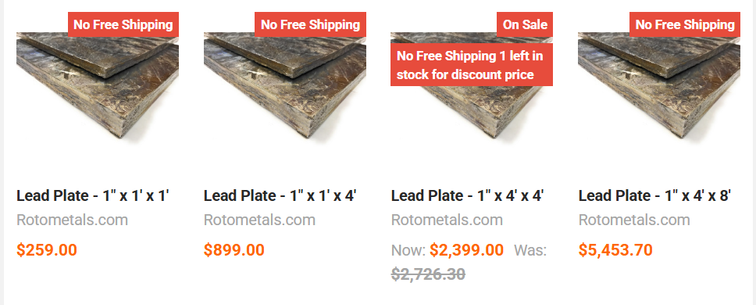

Do you need any 1-inch thick lead plate? Cheap at the price! No free shipping!

https://www.rotometals.com/lead-sheet-plates/sheet-lead-1-64-lbs-sq-ft/

Comment signaler un manquement aux obligations d’accessibilité numérique d'un produit ou service ?

Le service Signal Conso de la DGCCRF vous permet de réaliser cette démarche en ligne :

https://a42.fr/aide-signal-conso

#a11y #accessibilité #handicap #EAA

The workshop was pretty neat. Aside from learning a bunch of the theory and getting recommendations for books and whatnot, you do some hands on stuff which is always a great way to learn. On day one we did various crimping practice and made a wire harness connected to aviation headset jacks and once we were done, we plugged it into an actual intercom to test it (and it worked, which feels great).

Second day we went over antenna theory and some things there, then made a coax cable end (tedious to be sure). The final project was soldering and crimping to simulate building a part of a panel. Basically a lighting circuit for nav lights and the panel lighting is tied to it with a dimmer. My soldering skills are fairly out of date but I managed all the same.

It was a neat class and I look forward to using some of that knowledge on the builds I'm helping with (as well as my own).

#eaa #avgeek #experimentalAviation #homebuilt

A 25 pin d-sub connector (the kind used for old printers) but it only has a whopping five pins in it so far. When done this plugged the headset into an intercom.

A slide showing an example pinout for a D-sub connector.

Final project before beginning. A small "panel" section made of sheet metal and a pile of components I have to install. There is wire, crimp ends, a fuse, fuse holder, toggle switch, potentiometer, a knob, and whatnot. It is laid on the table in parts.

Completed final project. Battery feeds into a bus, which goes to a fuse and then the switch. One bulb is right off the switch (NAV lights) and the switch then goes to the potentiometer to feed the second bulb (Panel lights). The wires are routed via a central bundle to get in the habit of doing that. Heat shrink covers soldered parts to help protect those.

I'm at the EAA headquarters this morning to take a SportAir workshop on aircraft electrical systems. I can think of worse ways to spend a snowy Saturday.

#eaa #avgeek

Parked in front of a building that said "EAA Aviation Center". It is snowing and visibility isn't great

Early Signs of EAA Enforcement Across Europe, by @dequesystems:

https://www.deque.com/blog/early-signs-of-eaa-enforcement-across-europe/

#accessibility #eaa #legal #compliance

The glider's 3rd battery now has a sewn carrying handle that makes it easier and safer to install in the crowded battery box.

Next, I need to devise a retaining system for it and finish the wiring harness that connects it to the rest of the system.

Progress will slow for the next day or two because the things I have ordered (epoxy, lead shot, etc.) will be delayed while we ride out a snowstorm that should end tomorrow.

#AvGeek #Aviation #ElectricAircraft #Homebuilt #Glider #DIY #EAA #Safety #Battery #Sewing

The white fuselage, aft of the wings, has a cutout section for the battery box. I am lowering into the box the 3rd battery, which now has a sewn carrying handle.

Where does the 'typical' glider battery go in this electric glider?

In the battery box, next to the high voltage motor batteries.

My final decision on this battery location depended on the weight and balance measurements I made last week. It shows that I need to add weight to the tail...so, the heaviest batteries are full-aft in the battery box, and this 3rd battery goes in front. All of this is aft of the tail in the fuselage/tail boom.

I now need to sew some sort of sack and carrying handle for this battery. It's not a heavy battery, but I want a secure way to handle it as I install/remove it.

Above my hand is a black/gray marbled-pattern object. It's a yoga block. That semi-dense foam will be cut to size to take up any dead space along the sides of the battery box to prevent the batteries from banging side-to-side if the other retaining systems fail.

#AvGeek #Aviation #ElectricAircraft #Homebuilt #Glider #DIY #EAA #Safety #Battery

My hand is lowering the 3rd battery into the battery box in the fuselage aft of the wing. The two high-power motor batteries are already inside the battery box. Red and blue parts identify polarity on the high-power batteries, and two yellow bars across the batteries clamp them firmly in place. The fuselage exterior is white.

My glider will use a tow rope that is too strong. That rope, when under maximum pull, may damage the glider.

I need to install a weak link as a mechanical 'safety fuse'.

Here is one weak link system I can use:
https://wingsandwheels.com/tost-weak-link.html

But which weak link is appropriate for my glider?

Federal Aviation regulations require a tow rope (or weak link) to have a certain breaking strength with regard to the maximum operating weight of the glider:

"The towline used has breaking strength not less than 80 percent of the maximum certificated operating weight of the glider or unpowered ultralight vehicle and not more than twice this operating weight."

https://www.ecfr.gov/current/title-14/chapter-I/subchapter-F/part-91/subpart-D/section-91.309

To complicate matters, my glider can carry 400 pounds of water ballast. When I'm flying 'dry', I would prefer to have a weak link that is just strong enough for the dry glider, and when flying 'wet' I would prefer a (somewhat stronger) weak link appropriate to the heavier operating weight.

See the second graphic, which shows which Tost weak links I can use in the dry or wet ballast condition.

I will start out getting the weakest weak links allowed (green, yellow, and white) and see if that launches me well without premature weak link breaks.

Pro-tip. Try not to lift the rear end of the ground launch car.
https://youtu.be/kd9QxRPb3hk?t=33

#AvGeek #Aviation #ElectricAircraft #Homebuilt #Glider #DIY #EAA #Math #Weight #Safety

An example of a weak link system that can accommodate gliders of various gross weight.

https://wingsandwheels.com/tost-weak-link.html

A homemade decision matrix to help select which tow rope weak links I'm allowed to use when 'dry' or 'wet'. I would prefer to use the weakest weak link possible that does not prematurely break during normal towing/winch operations.

I had a lot of fun with this 2019 photo shoot of my #EAA chapter members and their airplanes. Not only did I produce the group shot, we did portraits of each member and their planes. I told them to wear something that told us who they are, and they came thru.

Not-so-fun fact: Steve Kretsinger, the guy with the Fairchild, always flew in shorts as far as I was told. He passed away in 2024 in a Piper Cub accident.

#avgeeks #aviation #flying #photography

Went to my #EAA chapter meeting and this oversize poster was on one of the walls of our meeting space. It is a group photo of all the member airplanes from 2019.

And no, I am not in the shot because I produced the shoot and was behind the camera. Besides, I was no longer an airplane owner in 2019.

#avgeeks #aviation #experimental #airplanes #photography

(apologies for the crappy available light iPhone pic)

My glider needs the center of gravity shifted aft, so I need to add weight in the tail.

The first photo is looking into the rudder cove (rudder removed). I can bolt some lead plates to the flat face of the vertical fin spar, but I will need even more weight added back here.

Note that the rudder hinge support is glowing green...a flashlight on the other side is illuminating it.

That part is hollow and it's nothing but dead space. I can add lead shot and epoxy in there.

The second photo shows the view of this pale green fiberglass part from the other side. Before I can add lead shot in there, I need to add a dam to retain it while the epoxy cures.

Third photo shows a piece of scrap Plexiglas that fits up against the end of the rudder hinge support.

Final photo shows the Plexiglas dam glued into place with RTV silicone caulk. It has a semicircular cutout that allows a larger diameter piece of tubing to be placed there while I pour lead shot and epoxy into a funnel and fill that empty space.

Half of the caulking work was done blind and by feel. I am accessing this tight space from the inspection port in the side of the vertical fin. There is just enough room for one hand and this part to pass through the port and then get positioned. I practiced before applying the caulk so I knew exactly how to position and twist the part so that I didn't make a mess and most of the caulk ended up in the desired location.

#AvGeek #Aviation #ElectricAircraft #Homebuilt #Glider #DIY #EAA #Epoxy #Ballast #Lead #Plexiglas

With the rudder removed, there is some space (up to an inch) between the rudder counterweight and the flat face of the vertical fin spar. That is dead space where I can bolt plates of lead for ballast.

Note the glowing fiberglass part. It's hollow and can accept lead shot and epoxy...by filling it from the other side.

The view from inside the tail boom. Most of the parts are carbon fiber, so it's quite dark in there. The pale green of the fiberglass part is visible, as well as its empty space that will soon hold lead shot and epoxy for tail ballast.

A piece of Plexiglass (I have not yet removed its frosted protective plastic) has been fit to the circular cross section of the tail boom. This new part will serve as a dam to keep the lead shot and epoxy from spilling into the rest of the tail.

The Plexiglas dam (now transparent with its protective plastic removed) has been glued/caulked into place with RTV silicone.

Half of the caulking work was done blind and by feel. I am accessing this tight space from the inspection port in the side of the vertical fin. There is just enough room for one hand and this part to pass through the port and then get positioned.

The electric glider's two main batteries each weigh about 16 Kg (36 lbs). I need a positive restraint system that can handle vibration and especially negative G.

Yesterday evening I epoxied in place some retaining blocks for the two battery clamping bars, but the garage gets cold overnight. I placed an incandescent lamp over the top of the battery box and wrapped some towels as a 'tent' to keep the warm air from easily escaping. This allowed the battery box to stay slightly warmer and accelerate the curing of the epoxy.

The second photo shows one end of a battery clamping bar (yellow) that fits under a carbon fiber inverted shelf (black). On each side of the clamping bar there are now two blocks of garolite (pale green) that prevent the battery block from sliding off to the side.

Garolite (G-10) is commonly used as the substrate for printed circuit boards, and you can get it in significant thickness, which is what I need.

https://en.wikipedia.org/wiki/G-10_(material)

#AvGeek #Aviation #ElectricAircraft #Homebuilt #Glider #DIY #EAA #Epoxy #Chemistry #Temperature #Garolite

The white fuselage tail boom has an incandescent lamp (in a reflective metal housing) sitting over the main battery box (not seen). Some towels are wrapped around the edge of the lamp housing to retain warm air in the battery box. In the background is a cluttered shop floor.

We are looking into the main battery box. A red plastic 'donut' is one of the main battery terminals. The interior of the battery box is mostly carbon fiber, which is black. The top of the batteries is black anodized aluminum. One end of a yellow battery clamping bar is visible as it fits under an inverted shelf of carbon fiber. On each side of the clamping bar are blocks of G-10 Garolite, which are epoxied to the inverted shelf. These blocks prevent the clamping block from shifting to either side.

For the glider's ground support equipment, there is good news and bad news in the first photo.

The good news is that the eScooter has more than enough pulling power to move the glider about on a smooth, level paved surface.

The bad news is that this version of the red tow bar means that any sideways push against the tail of the glider is transmitted to the eScooter...and makes it extremely difficult to keep the scooter from toppling over.

I had to re-design the tow bar.

The second photo shows what I've come up with. Now the wheel on the yellow tail dolly carries the weight of the glider's tail and reacts to any sideways loads. The eScooter merely needs to provide the pulling force and doesn't have to deal with those sideways forces. That should be much easier and safer for the driver.

The next time I assemble the glider at the airport, I'll give this towbar a final test with the eScooter.

#AvGeek #Aviation #ElectricAircraft #Homebuilt #Glider #DIY #EAA #Logistics #Design #Dynamics #Physics
