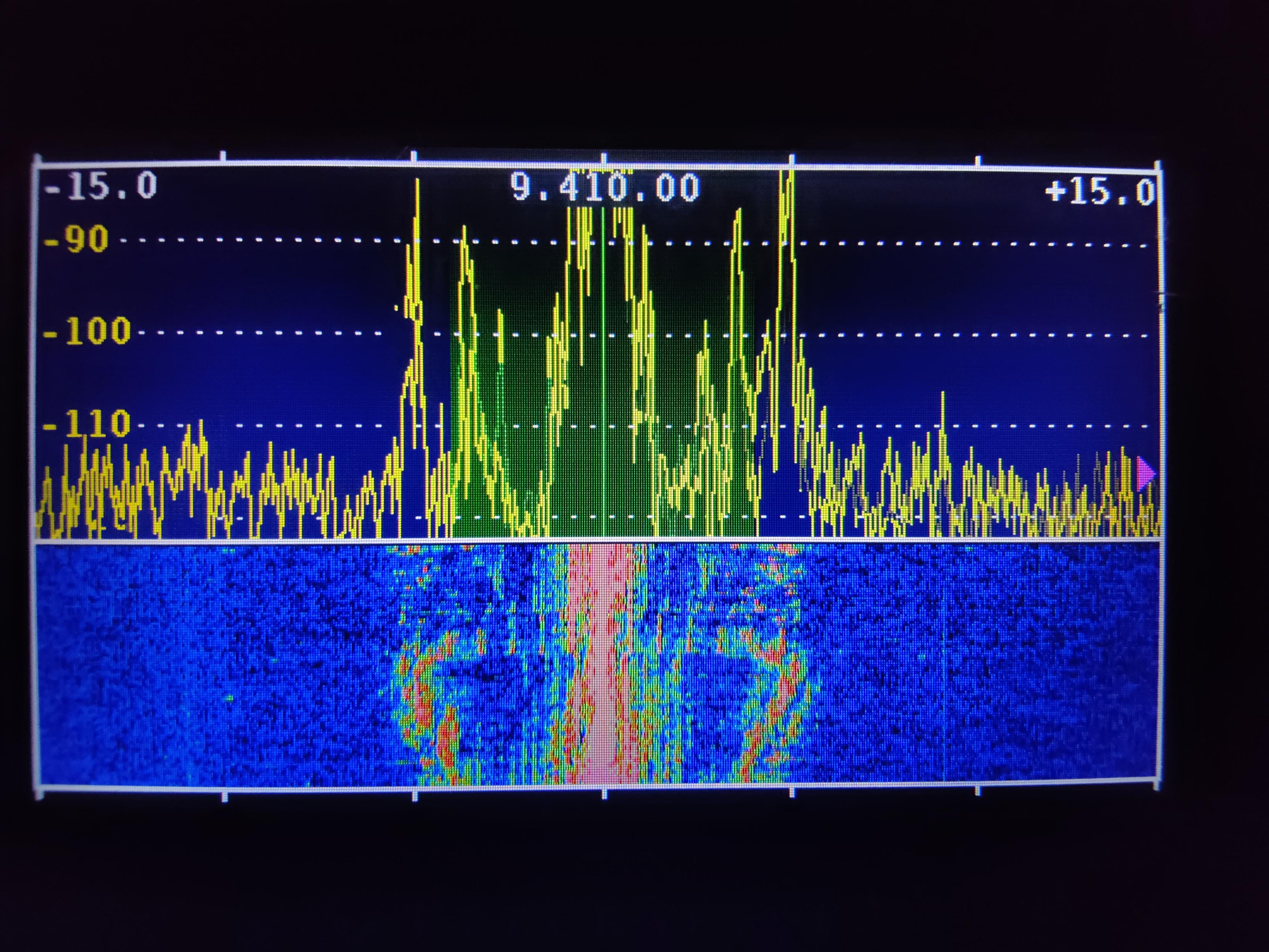

Pretty spectrum and waterfall display, 9.140MHz, AM. My filter bandwidth isn't wide enough to pass the whole broadcast.

(It is China Radio International - no, no propaganda radio programmes, just interesting instrumental music).

#elecraft #elecraftP3 #shortwavelistening

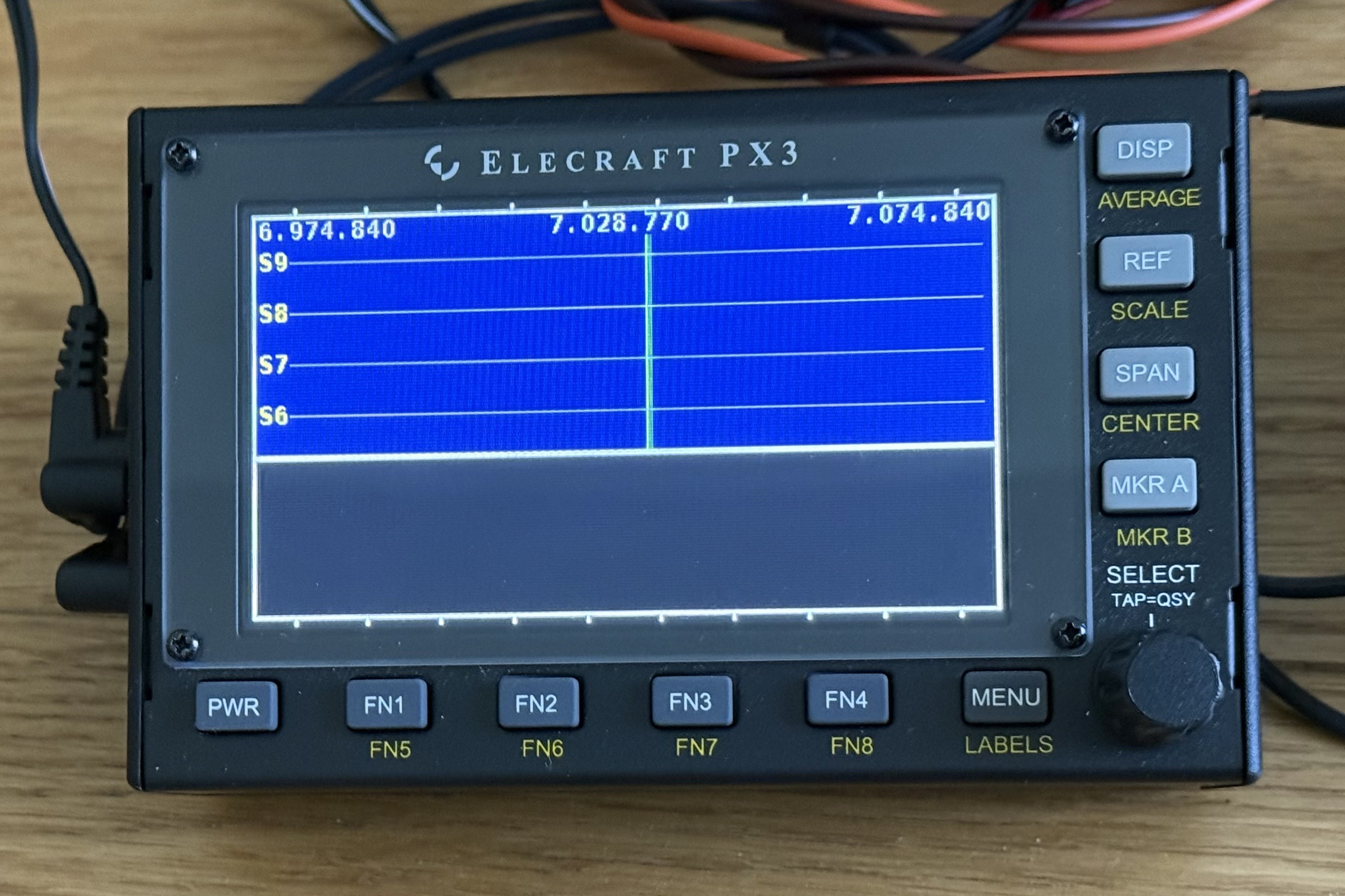

The #Elecraft PX3 (launched in 2014) can act as a USB host and be connected either to a mass storage device or a keyboard from which you can send text or directly program 50 macros. I programmed the function keys to set the radio RF output to 0.1, 1, 5 and 10W with one press.

A serial keypad with programmable keys sending commands to the KX3/2 would be quite neat, like the SOTACAT, but not needing an app.

2/2

Based on the hard work of Adam, K6ARK I designed a PCB which does all the work of the connections and designed a case for it.

I think it looks like a Turret from the game Portal, hence its name.

https://shop.g7ufo.radio/products/assembled-g7ufo-turret-mini-microphone-for-qmx-trusdx-usdx-fx-4cr-zbitx-kx2-and-kx3

#Elecraft #KX2 #KX3 #QRPLabs #QMX #truSDX #uSDX #FX4CR #zBitx

If only I had an antenna to test it.

#elecraft

The rubber grommets are for my #Elecraft #KX3 radio. The radio is externally powered by a barrel jack. The jack has come loose from the circuit board again, from twisting and tugging coming from the power cable.

I would like to install a cable with strain-relief, running through a rubber grommet in the KX3's side panel, coming out to a set of Anderson Powerpole connectors.

Most of my other stuff has those connectors on them already. Solar panel, SLA battery, charge controller.

#hamradio

After all why not? Why shouldn't I make pixel art of my favorite radios? #HamRadio #Elecraft

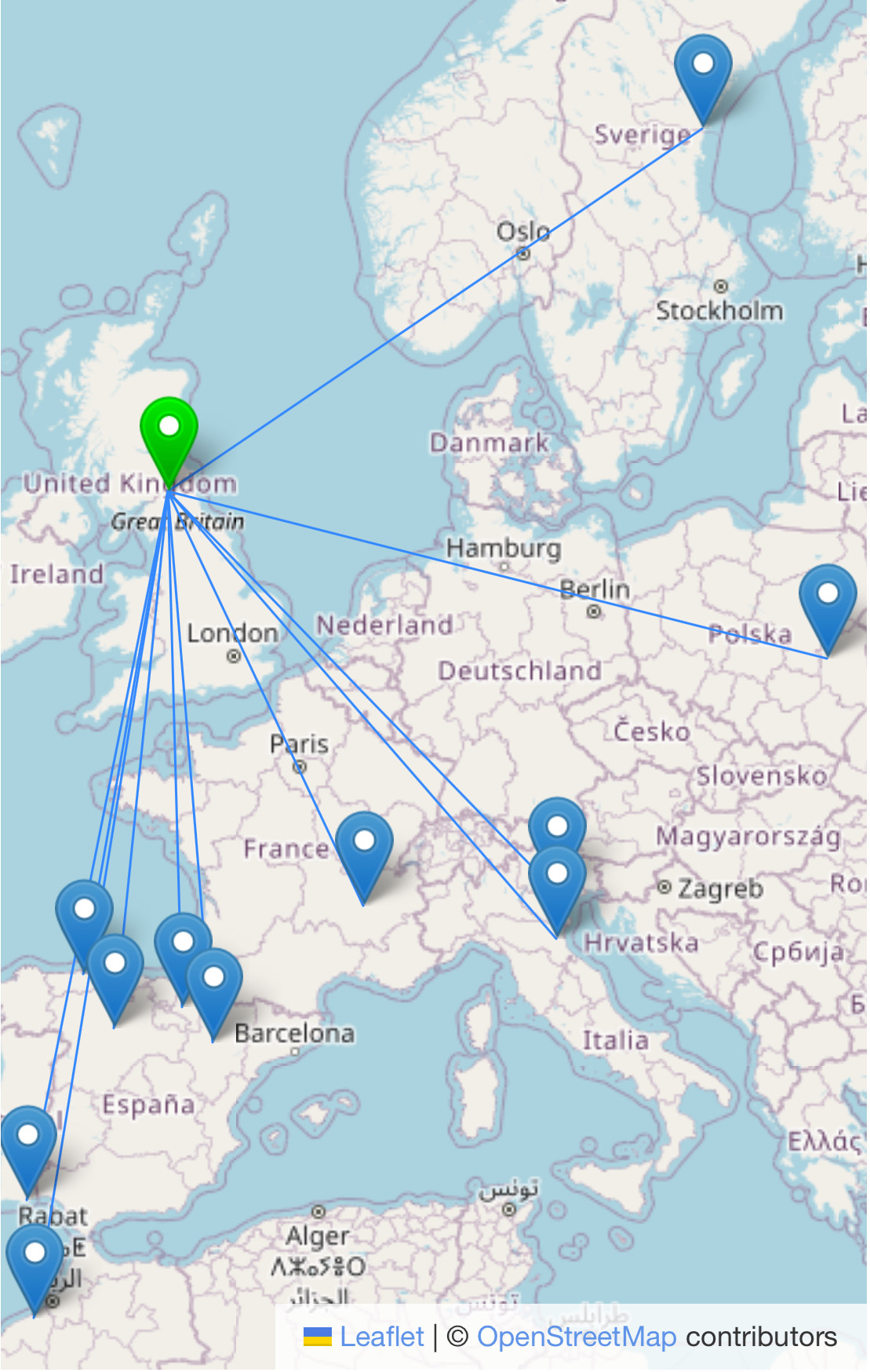

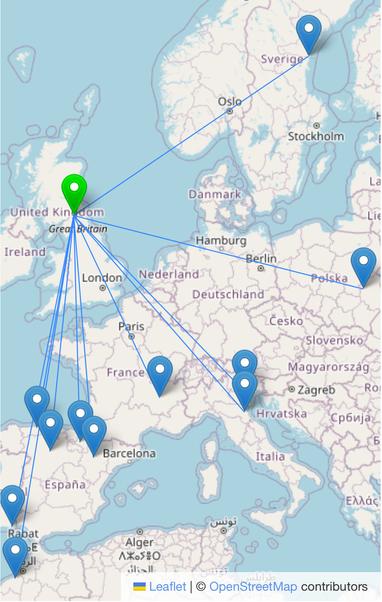

After 32 years as a ham I finally completed my first #pota activation!

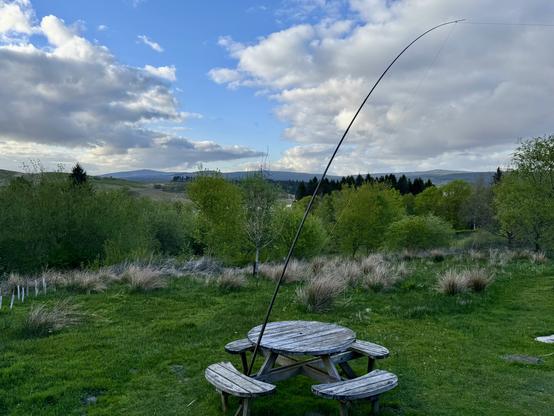

Thanks for everyone who hunted me at Kielder Water (GB-1285).

This one was SSB but I hope to add a CW one in the future.

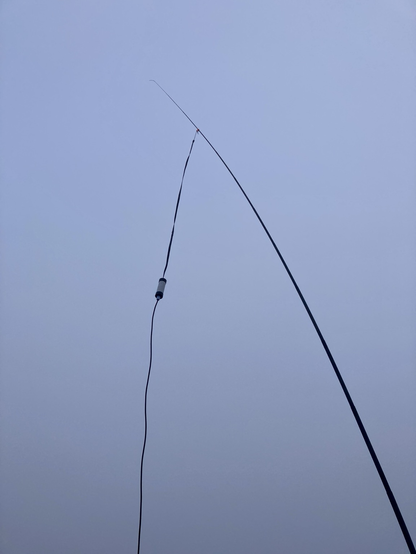

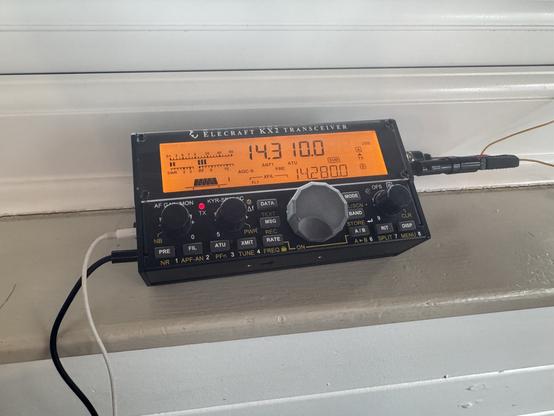

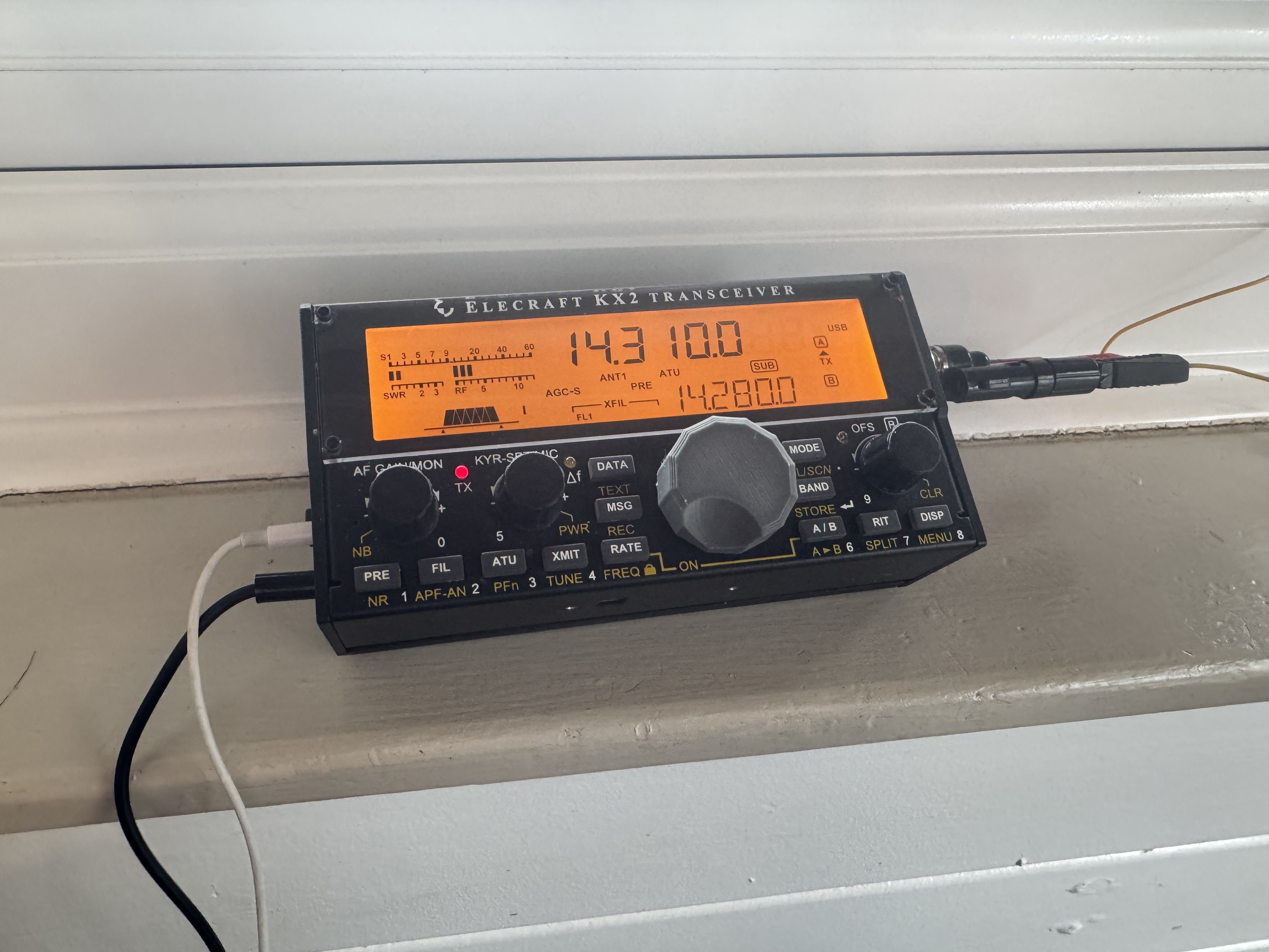

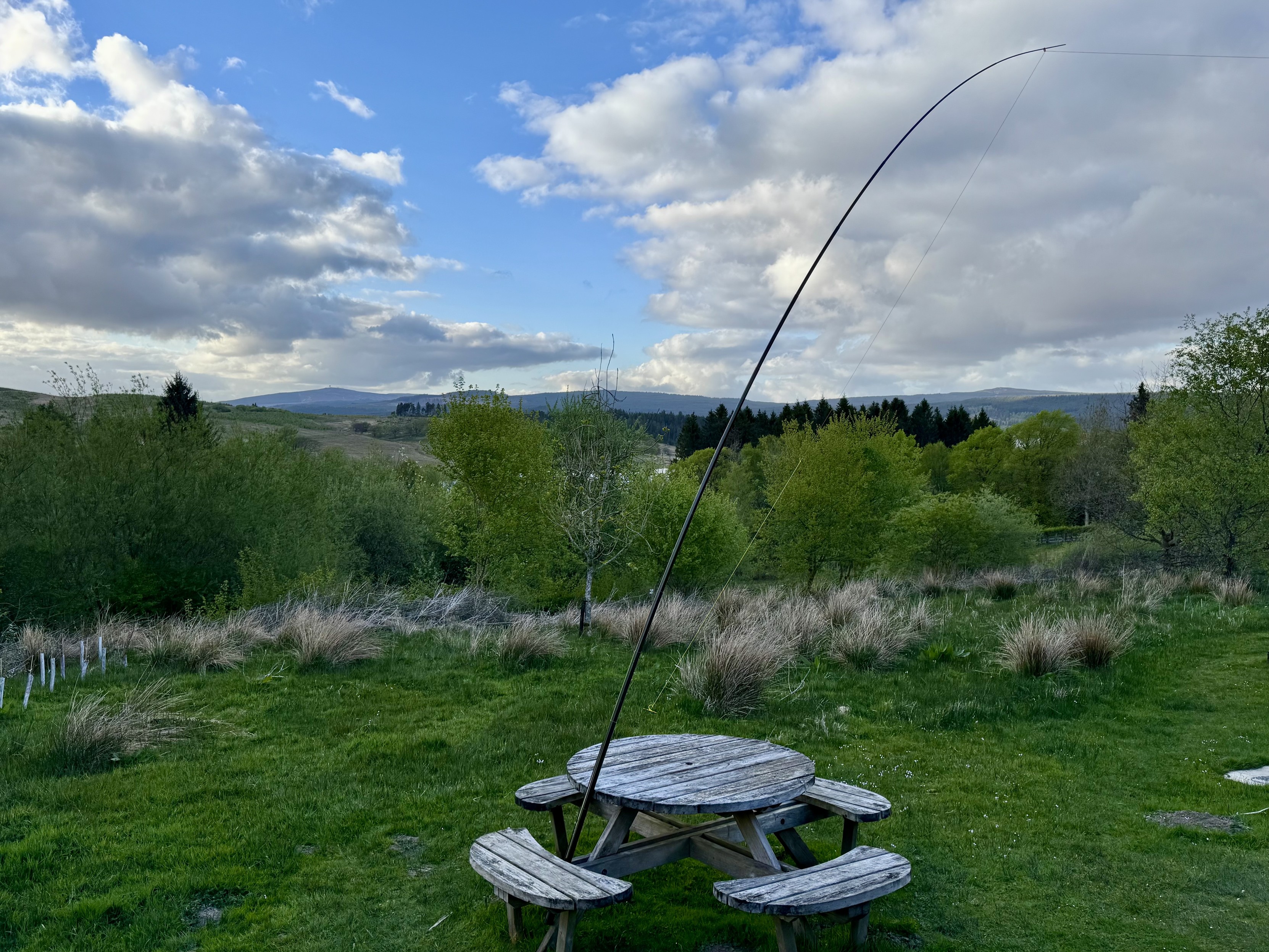

Gear was my trusty #elecraft #kx2 with wire antenna suspended on a SOTABeams tactical mast. Ran off battery and happily chucked out 10w.

40m didn’t give me any contacts (the noise floor was surprisingly high - possibly LED lighting in the cabins?). 20m was great though.

Some time ago, #Elecraft stopped making the 100W #amplifier module for their #K2 kit radio. However, all is not lost, as the #KXPA100 solid-state switching amplifier designed for their KX3 radio can work great with the K2, after a small mod to the K2. I describe this mod in the blog article linked below. As a result, I can send #CW on my K2 at 100W with silent switching and full QSK. The KXPA100 is equipped with a 100W ATU, giving full flexibility regarding the antenna.

https://www.teachmaths.org/20140420_elecraft-k2-amplifier-keying-circuit/

Front panel board is done. Still not sure about the LCD - it appears to be the highest component on the board, which means the front panel will be pressing against it. Does anybody know if this is expected?
#elecraft

A fun saturday morning build. The K6ARK KH1 loading coil. Got a QSO with WU7H on 40m (no counterpoise). We were both very weak. Got some RBN hits on the other bands. #3dPrinting #HamRadio #DIY #Elecraft #KH1

Control board is completed.
#elecraft #k2

@DJ5CW hey Fabian. Haven't spoken to you since the #Elecraft IRC days. I sent you an email about YFKlog. De VK2NA

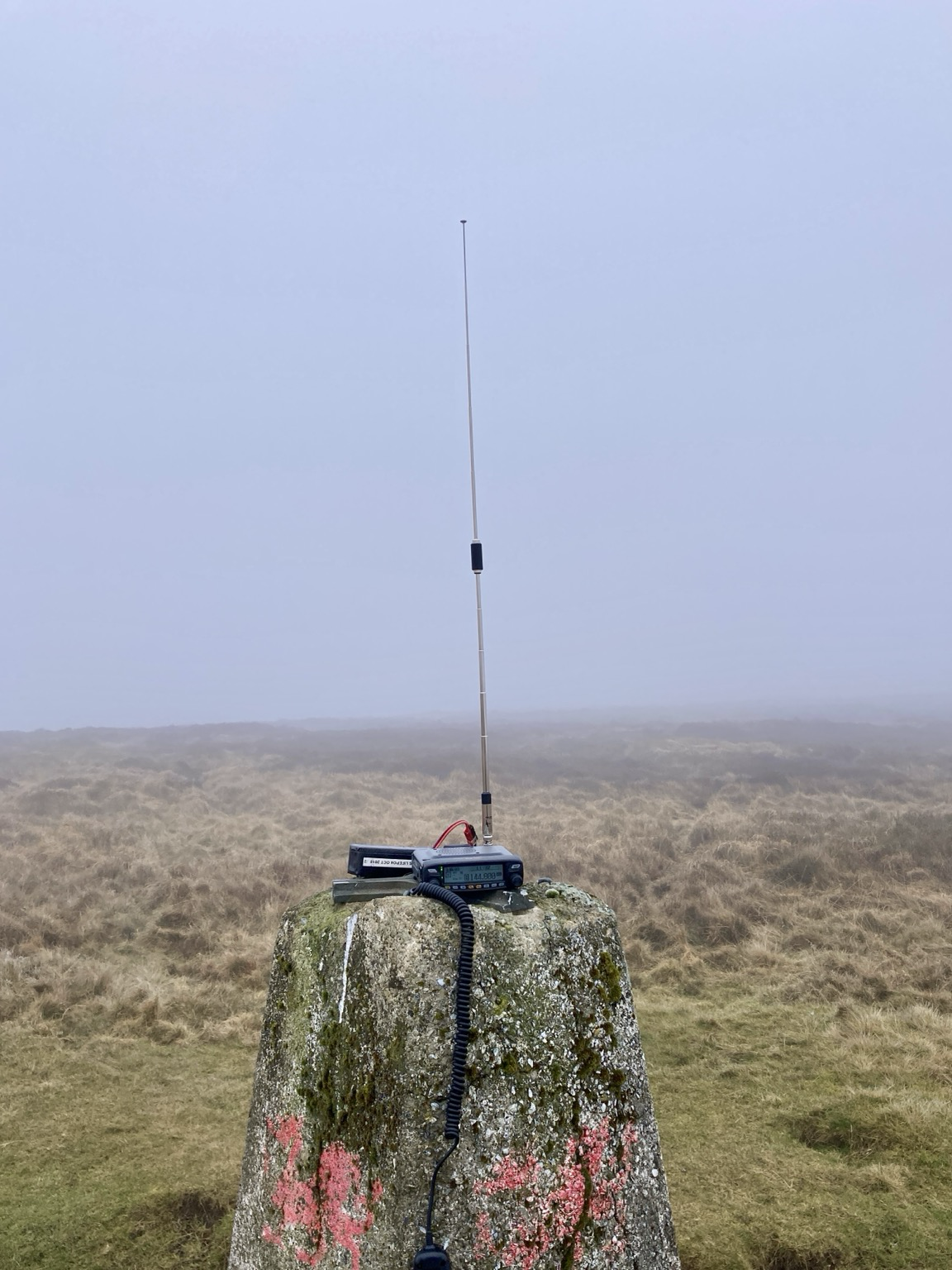

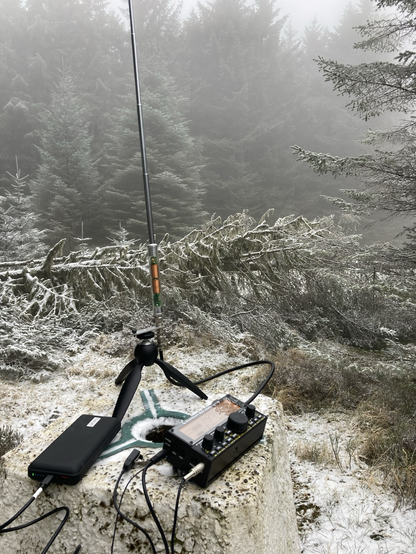

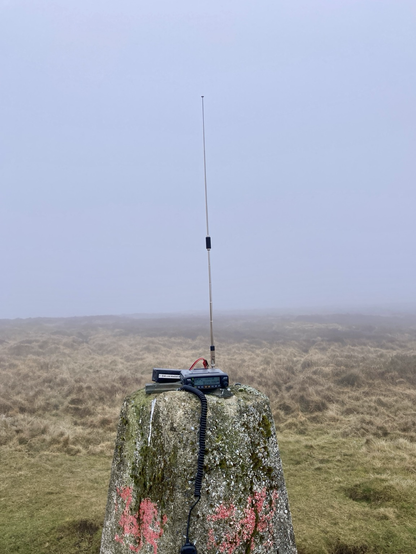

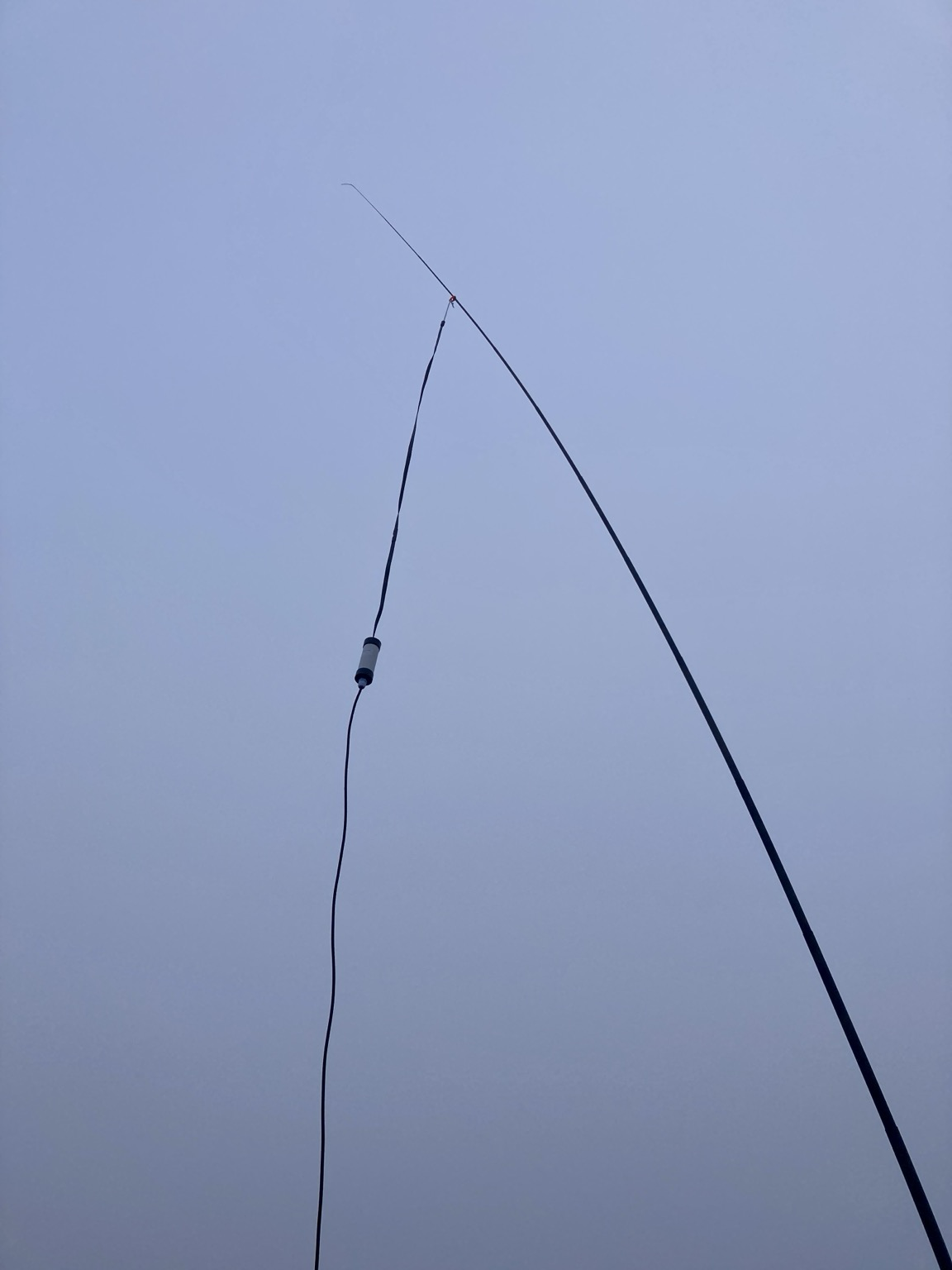

Three easier Summits on the Air hills in South Wales ticked off today including a new one, Allt yr Esgair. New “Slim G” 2m antenna and HT combo didn’t live up to expectations but will persevere.. Good conditions on 20m/17m tho.
#summitsontheair #sota #portableops #dx #qrp #mountains #elecraft #kx2 #hamr #hamradio #amateurradio #radio

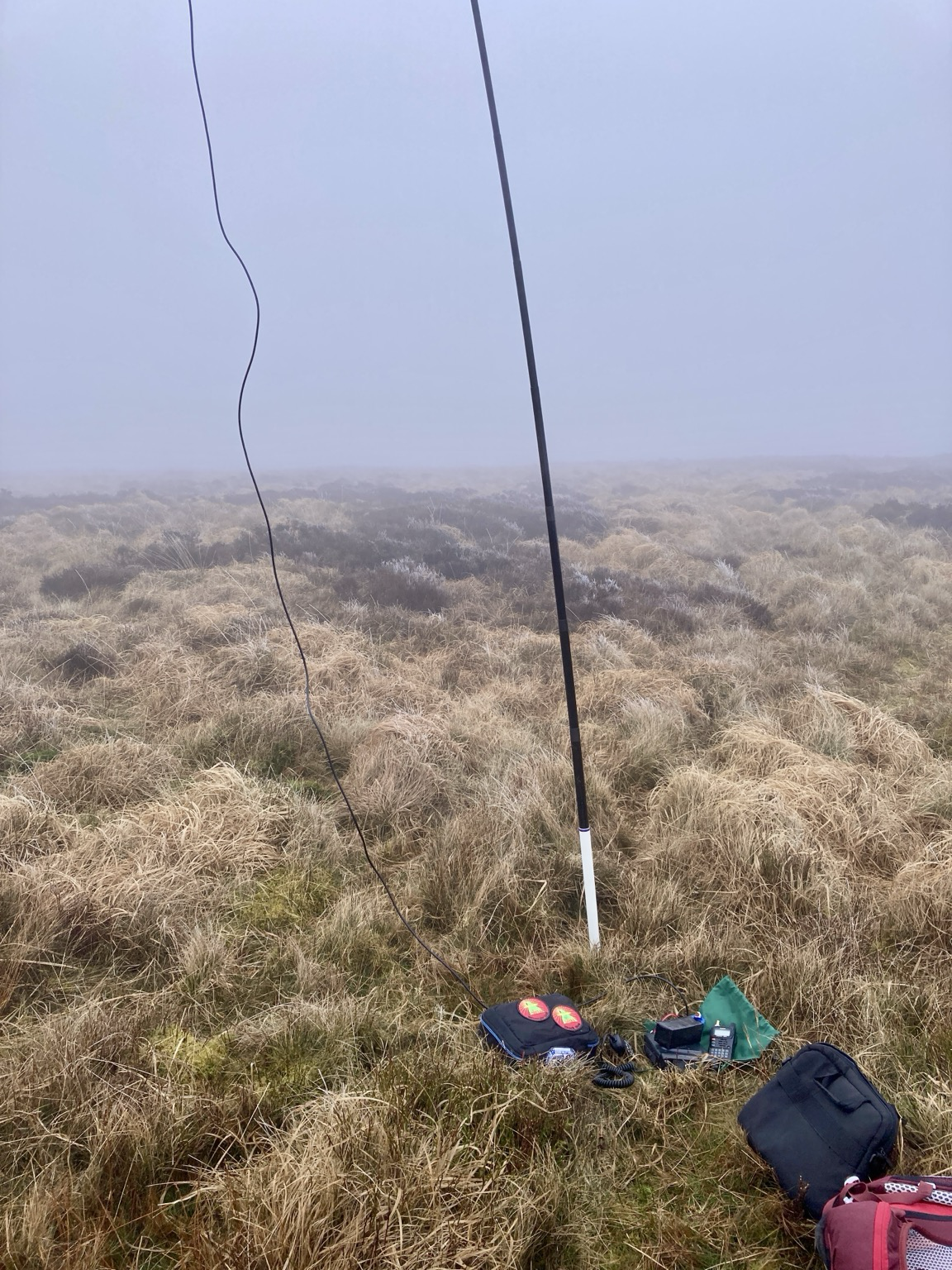

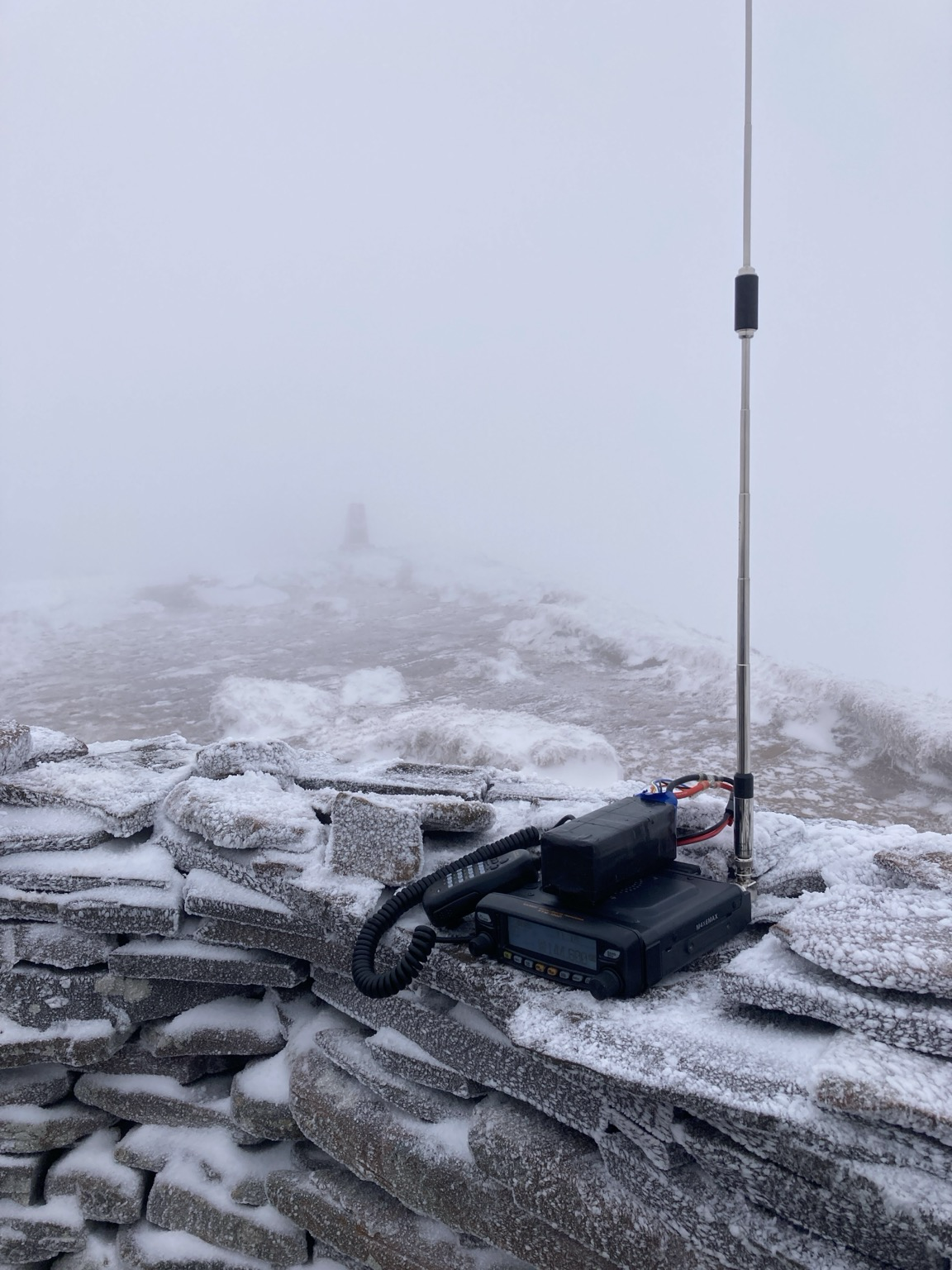

Hiked Fan Brycheiniog GW/SW-003 and Craig y Llyn GW/SW-010 today, cold and icy but not very windy. Lots of contacts on HF-UHF! #hamradio #yaesu #elecraft

@ve3qbz No, I am not the author of that post.

Have you seen this :

https://elecraft-kx.groups.io/g/main/topic/kh1_swr_issue/105773970

#Elecraft #KH1 modifications #SOTA

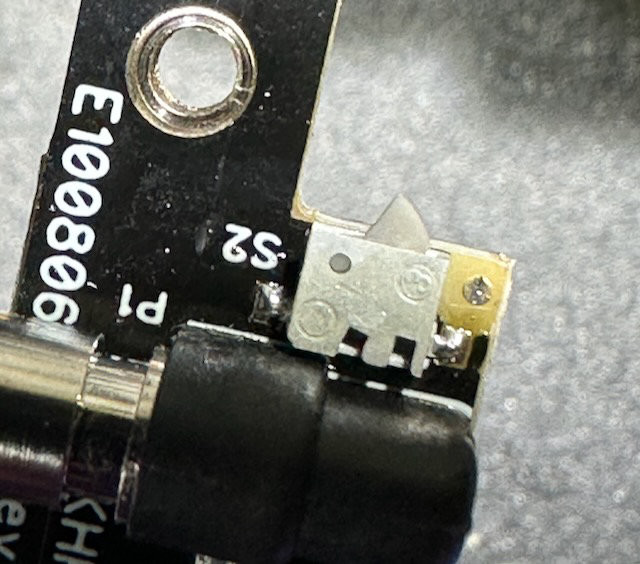

One of the tiny (3 x 3.5mm) micro switches failed on my #Elecraft #KH1 morse key. After a bit of searching I found they are readily available (DigiKey etc) C&K "detect switches" types HDS001L (left side) and HDS001R (right side). Replacement was fairly straightforward but I had to use a PCB microscope and my smallest bit for the soldering! Rig is back up and running again, ready for the next #POTA activation.

Time to do a backpack weight-check for the Shikoku Henro trail: 10.7kg including radio (Elecraft KX1), Sotabeams 6m mast, 20m wire + 49:1. Leaving the mast saves me 700gr.
Hmmm, what to do, what to do....

#hamradio #elecraft #sotabeams #thruhike #henro #shikoku #japan

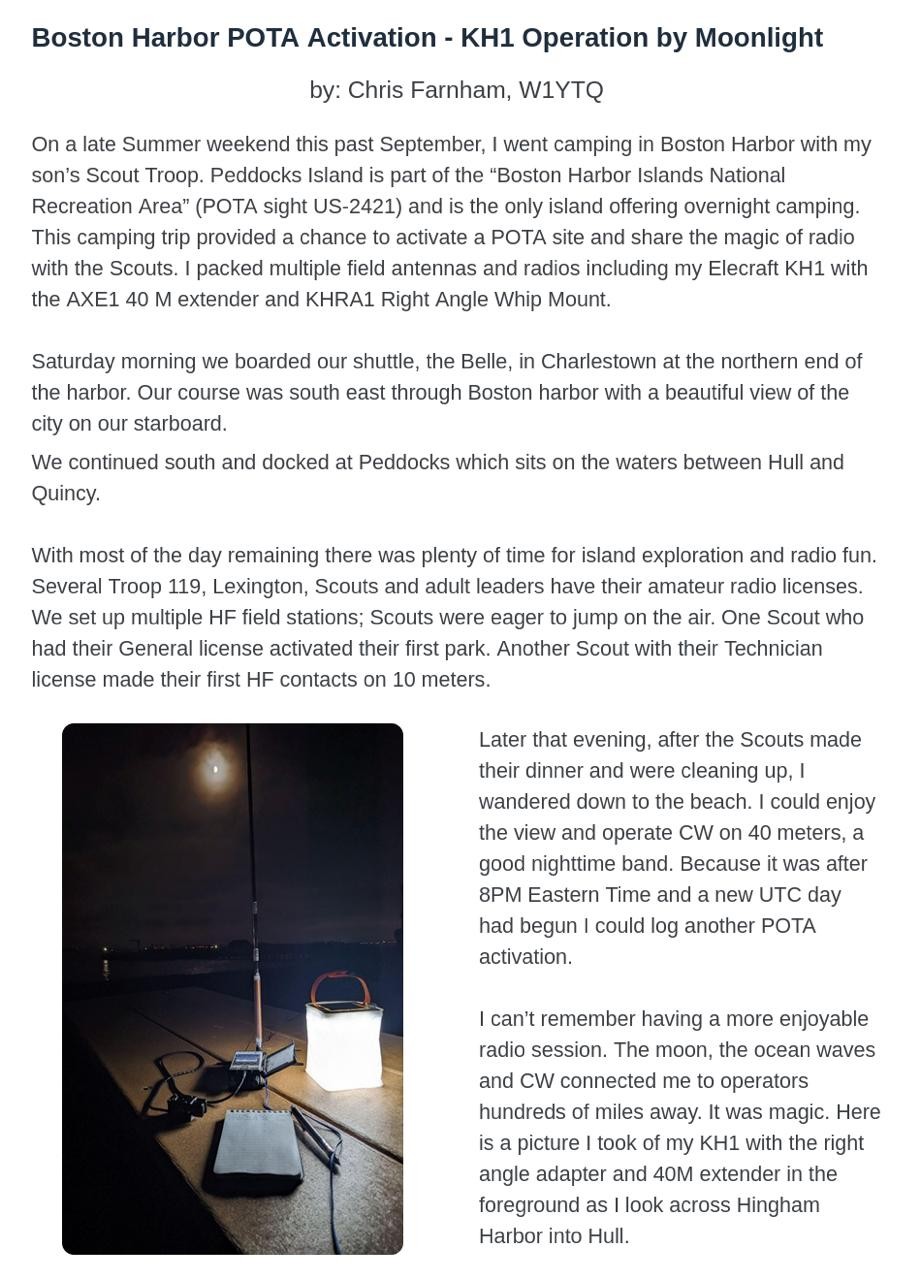

Elecraft asked if I could rewrite this article to be included in their monthly newsletter. Of course I was happy to do so, I love my KH1.

The picture attached is a screenshot of my article in their email newsletter.

#hamradio #kh1 #morsecode #elecraft

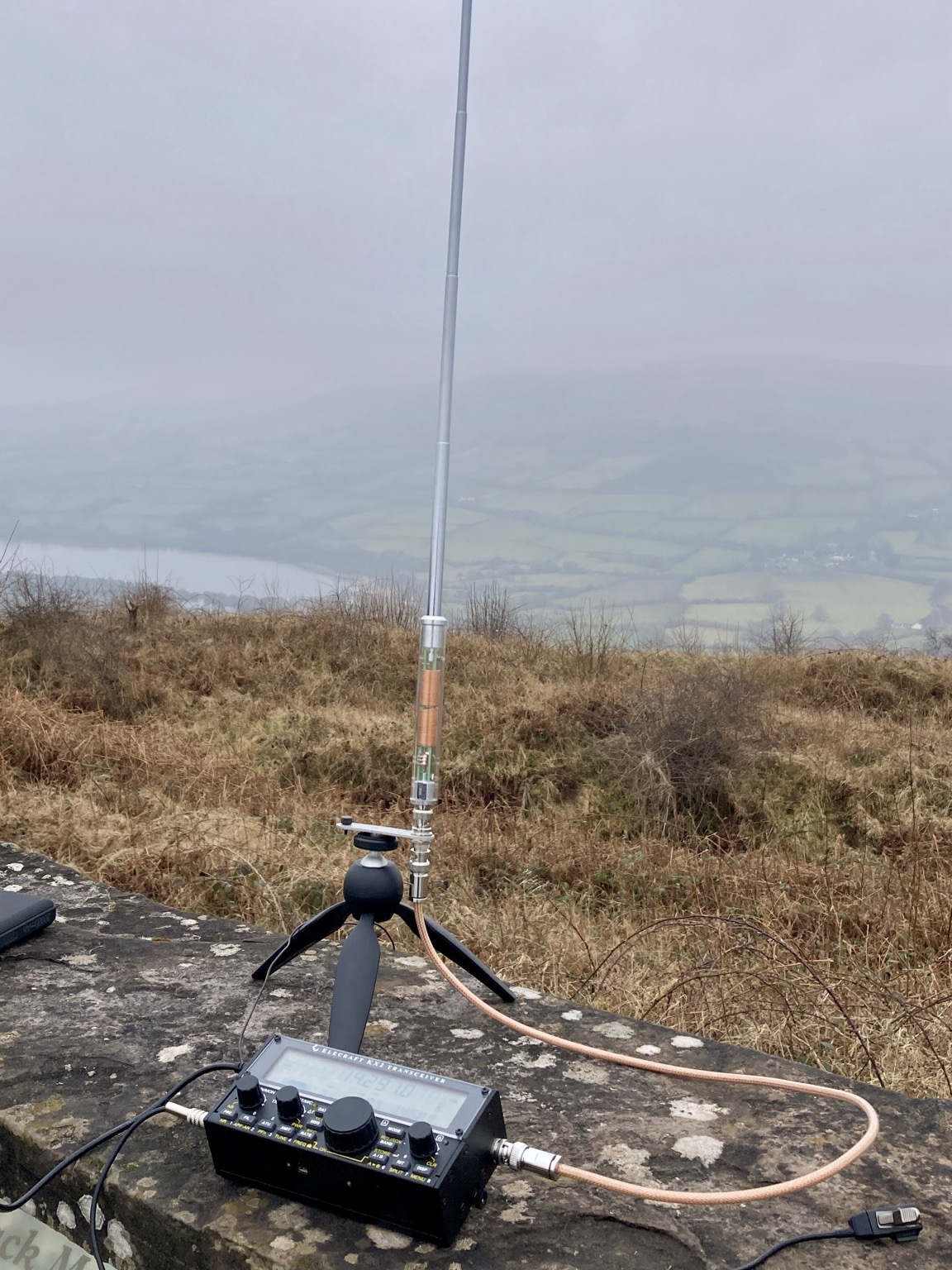

@W1CDN I got started early and took Friday off to head to the Brecon Beacons in Wales for a couple of SOTAs. Pen y Fan and Fan Fawr. Was hoping based on the forecast for an inversion and to end up above the clouds in sunshine. But it’s Wales, so I was damp in the clouds with a cold wind! Used my #Elecraft #KH1 for both, hasn’t seen much action so far due to 10M challenge last year (which it doesn’t have). But it’s going to see a lot of use this year!
