#mSATA

Stuart Longland (VK4MSL)stuartl@longlandclan.id.au
2025-04-15

One thing I'm conscious of is the SSD on this Toughpad.

It's a 128GB mSATA device made by Toshiba (THNSNF12). It's probably seen a few drive writes by now.

Now, back in the day OCZ were early pioneers of SSDs… and I had a work colleague that swore by them at first. He had one in a fire-engine red Dell laptop and loved the speed the thing gave him … until the day it failed (within the warranty period).

Pulled the SSD out, put the HDD back in, RMAed the SSD. A replacement came, he put it in, ran with that for a number of months, then it too, failed. After the third RMAed drive, "sworn by" became "sworn at".

Toshiba bought OCZ in 2016, so I'm a bit leery about this SSD.

That said, mSATA is not a common form factor now, so I guess I'll have to take what I can get. The contenders seem to be Kingston, Advantech, Transcend, ADATA, or some brand I've never heard of.

Kingston RAM runs some of my servers, and I've used their SD cards before. That said, I recall an experiment from 2011 that tested a number of 60GB SSDs to destruction (SSD Endurance Test) and I seem to recall Kingston being one of the early failures … but search engines being what they are today, I can't seem to dig that old site up.

We'll see how this one goes… as I say beggars can't be choosers, and this is a rare form-factor now.

au.rs-online.com/web/p/hard-dr

#SSD #mSATA

2024-09-14

I've not been having much success with CF to IDE adapters in my gorgeous #IBM #Thinkpad760CD, so I'm hoping this #mSATA to #IDE adapter will do the job. Though it seems to be impossible to find mSATA SSDs in sizes smaller than 64GB.

#CompactFlash #IntegratedDriveElectronics

A close-up photo of a 64GB mSATA SSD mounted in an mSATA to 2.5 inch 44-pin IDE adapter. This device will replace the still-functioning spinning IDE disk in my vintage laptop.
2023-12-18

What's a good source for those tiny little screws that hold down #m2 and #msata SSDs? I need the things they screw into as well.

Schenkl | DECT: 2332schenklklopfer@chaos.social
2023-08-28

64 GB #mSATA #SSD: 21,31€
128 GB mSATA SSD: 21,58€

Well...

2023-04-14

之前聊到 #SATADIMM 有提到說其實解決了 M.2、mSATA的一些應用難題

這次來介紹另外一個較多人採用的解決方案 #DOM Disk on Module

DOM 要解決的問題
就是有些裝置它只是需要一個能開機的磁區
但是為此要放置一顆硬碟成本太高
因此有人提出了 Disk on Module 把快閃晶片(Flash) 封裝成 IDE 或是 SATA 的介面
在設備原有的 IDE 或 SATA上
再透過額外的外接供電
就能獲得一個儲存空間

這個在 #mSATA 以及 M.2 ( #NGFF ) 推出前約十年就出現的構想
有段時間廣泛被應用在 POS機、伺服器與工控設備

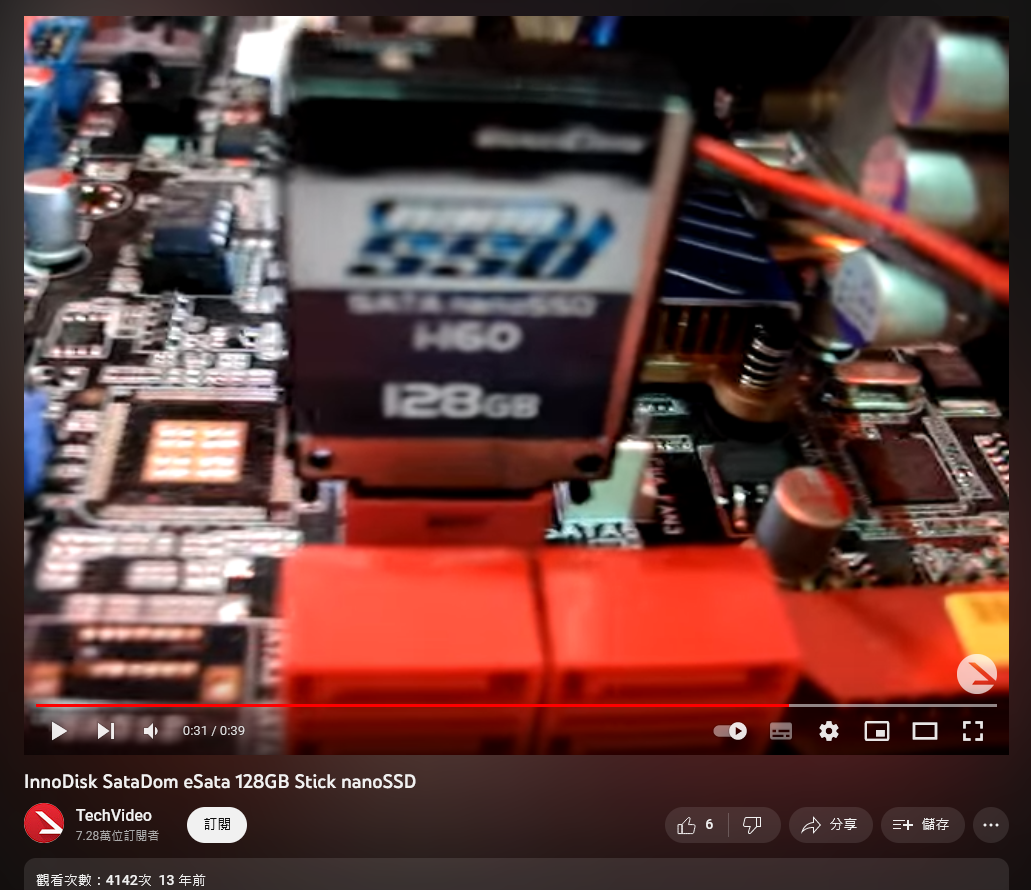

這樣的技術在 #innodisk 稱為 #SATADOM
而在 #Suppermicro 則稱為 #SuperDOM
總得來說都是類似的設備
部分的板卡廠也會推出相應的插座
特化 SATA 插槽的供電能力
讓 DOM 的安裝不需要外接供電

總得來說
DOM 都是一種相對無痛轉移且相當節省空間的方案

#Allen講看看
#台灣Vtuber #Vtubers #Vtuber #Taiwan

2023-03-28

The Windows XP setup music! Not just the first time it's coming out of this laptop since 2004, but possibly the first time ever (at least in the outside world), because it was pre-installed when I had it.

#Nostalgia #Music #Windows #WindowsXP #Kingston #KingstonTechnology #mSATA #SATA #SSD #HardDisk #HardDrive #Retro #RetroTech #Tech #Technology #Computer #Computing #Laptop #Repair #HP #HPPavilion #Workshop #Bench #Stream #Streamer #LiveStream #Twitch #TwitchStream #TwitchStreamer #JoinCombo

2023-03-28

Possibly the fastest #WindowsXP installation of my life! Yes, it's a #Kingston #mSATA drive, so from a reputable brand...SSDs are fast...but still had to operate through an #SSD to #IDE converter and 2004 hardware, so was not expecting it to be this fast!

#Windows #KingstonTechnology #SATA #HardDisk #HardDrive #Retro #RetroTech #Tech #Technology #Computer #Computing #Laptop #Repair #HP #HPPavilion #Workshop #Bench #Stream #Streamer #LiveStream #Twitch #TwitchStream #TwitchStreamer #JoinCombo

Raúl Caro Pastorinoraupulus@mastodon.online
2023-03-09

Probando SSD mSata en carcasa externa para una segunda vida + Rendimiento en Linux y macos

Aprovecho un #SSD #mSata de un equipo viejo que ya no tengo para usarlo como almacenamiento auxiliar en el que probar distribuciones #gnu #linux y os muestro la carcasa Sabrent por la que he optado junto a unas pruebas de rendimiento #linux y #macos

youtu.be/1XIndLfcWto

2023-02-01

I was considering installing #opnsense on a software raid in my #protectli #vault #fw4c. After reading I learned that the #protectli #vault (at least #fw4b and fw4c models) got two #msata ports where one of them is solely for a #wifi module.

omshivaprakashomshivaprakash
2022-12-28

It feels great to keep repurposing all the tech gigs we accumulate all these years!

2022-11-14

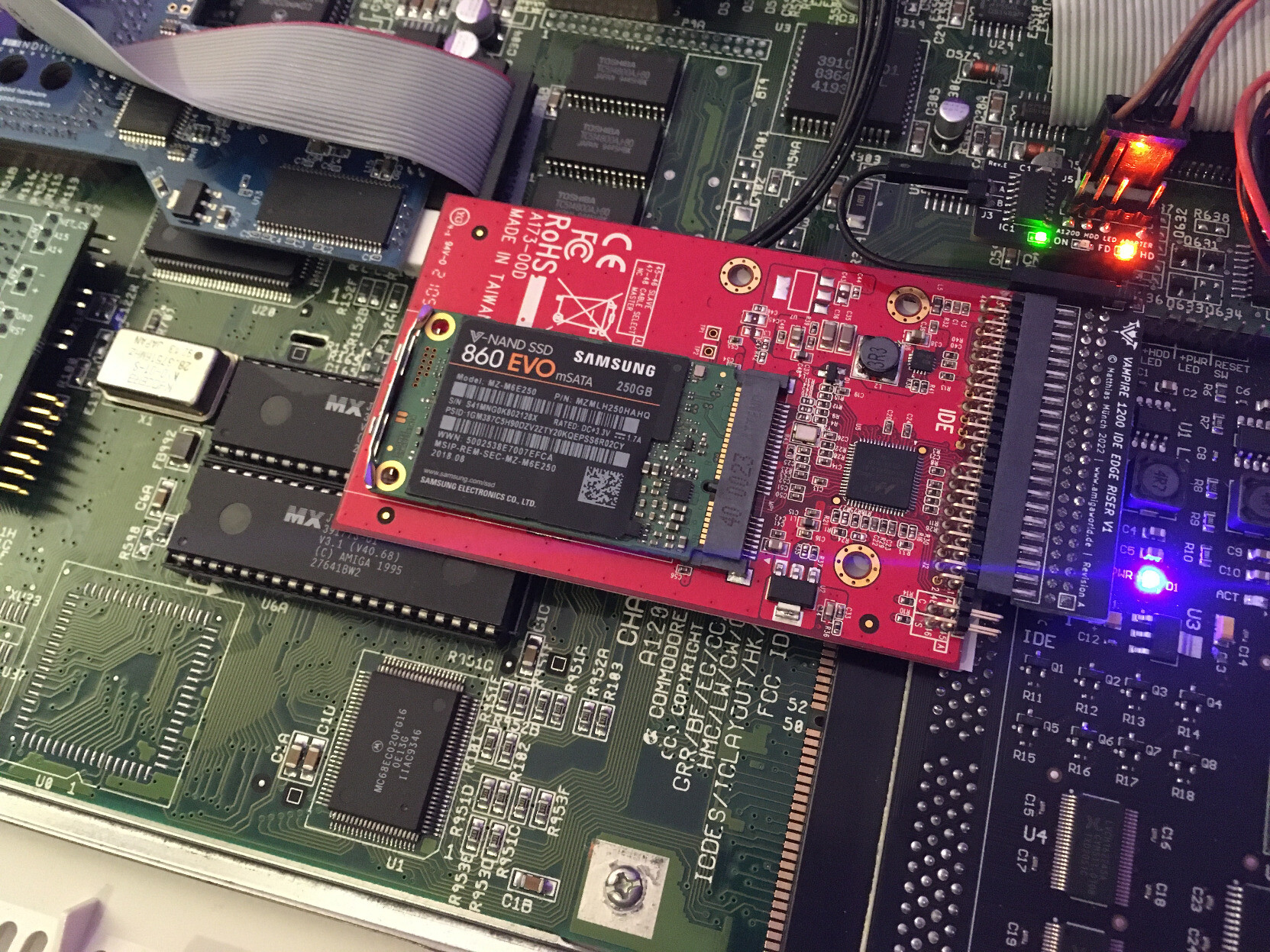

IDE auf mSATA Konverter mit Marvell Chipsatz - ideal für Amiga 600/1200 oder z.B. diverse Vampire Karten - sind wesentlich kompatibler als die üblichen günstigeren Adapter mit JMIcron Chipsatz

#commodore #amiga #amigaos #amigaworld #amiga600 #amiga1200 #vampire #marvell #hardware #ssd #msata #retro

Lucius :archlinux: :flag_be:lucius@mastodon.eric.ovh
2021-01-12

dites, les pros du #ssd : y a une diff de ouf entre en #msata et un #m.2 en 2230/2242/2260/2280 ?

le msata serait moins gourmant en elec ? vrai/faux ?

comme le crucial que j'ai choisi en M.2 2280 bouffe plus de 1.2A sur le port usb... j'ai un project pour lui que le rootfs de mon rpi4 :)

Du coup, je vais le changer :)

merciii
