3x Stereo Mixer with separate L/R controls, that can handle line level and Eurorack signals. (suitable for the Blackbox). Of course the mixer is also suitable for typical instrument level signals and can be interconnected with pedals and preamps. More details in first comment.

#dpFXpedals #dpFX #stereosummingbox #stereodevices #stereopedals #eurorack #1010musicblackbox #stereomixer #boutiquepedals #pedalseffects #mixerpedal #summingbox #handpaintedpedals #handmadeeffects #handmadepedals #handpainted #pedalsandeffects #greekpedals #pedalbuilder

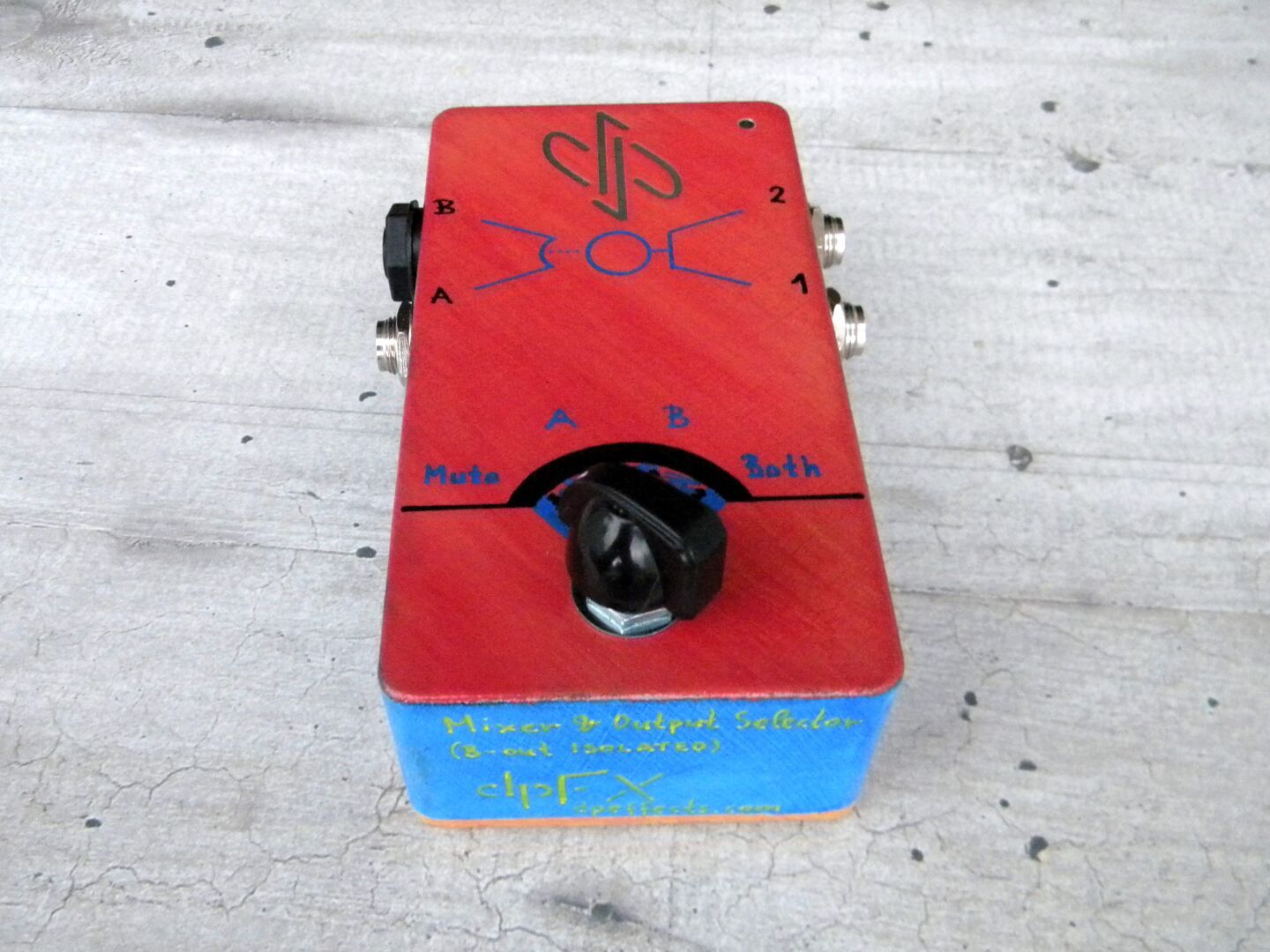

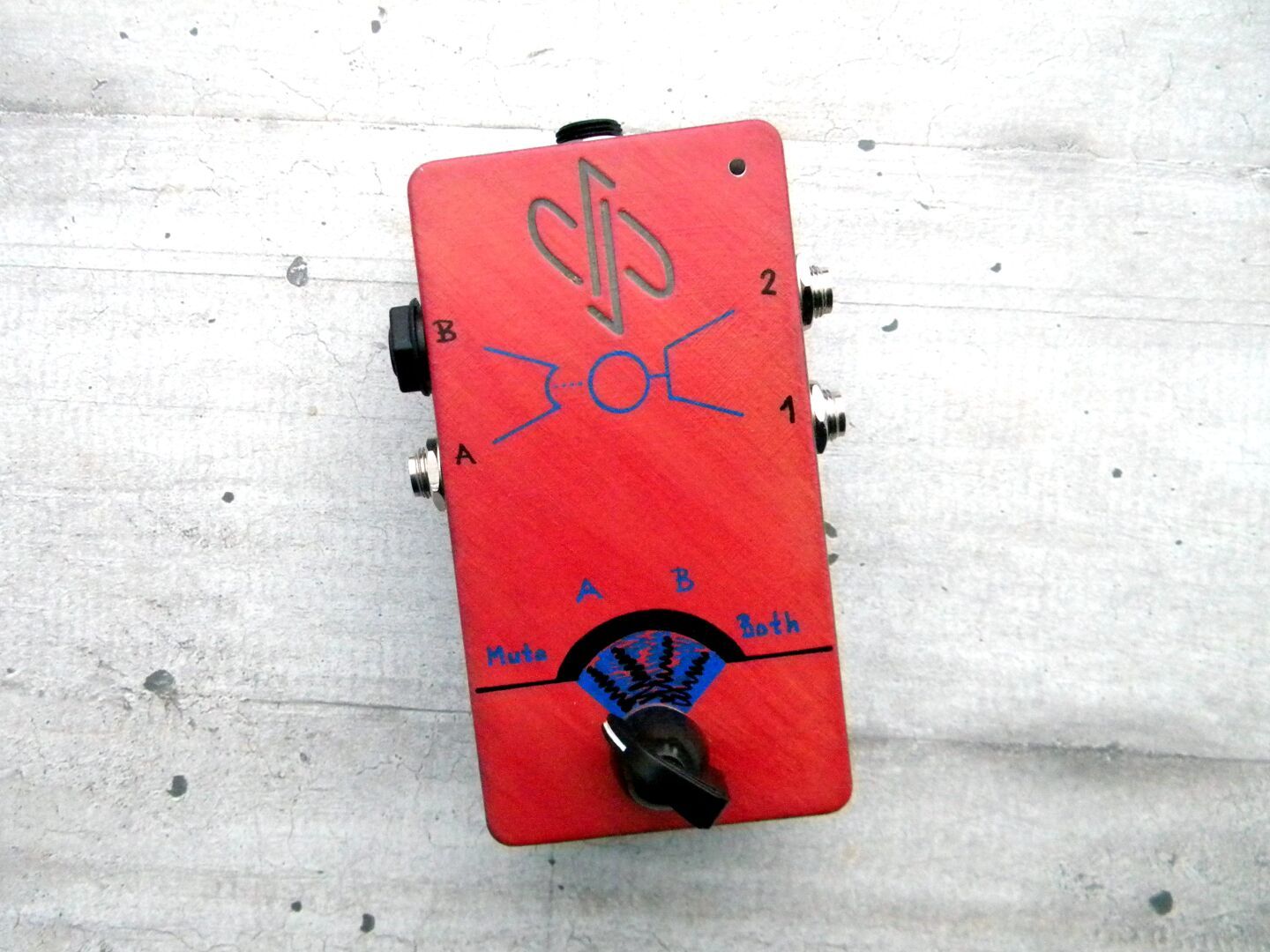

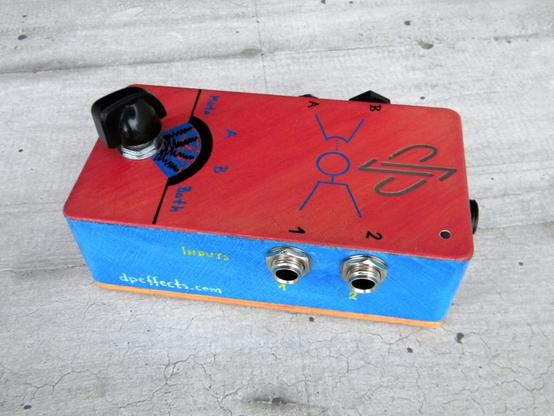

Custom 2 input Mixer with Output selection and isolation. It is equipped with two independent outputs (A,B). Additionally, the B-Output is isolated through an audio transformer in order to avoid any ground loop noise when connecting the outputs into different amps or other devices.

A rotary switch allows you to select which output is active each time and also offers a “mute” position where both outputs are silenced.

The mixer can handle instrument level signals as well as line level signals (unbalanced). If you ever need more headroom you can increase the power supply voltage up to 24V.

*** Specifications:
- Input Impedance: 10MΩ
- Output Impedance: 100Ω
- Inputs 1-2 and output-A have common ground
- B-output is isolated through an audio transformer.
- 4 position Rotary switch: (Mute), (A), (B), (A & B)
- Voltage Required: DC 9-24V
- Polarity: center negative
- Max Current draw: 14mA (@ 9V)
- Headroom vs power supply: ~7Vpp@9V | ~10Vpp@12V | ~22Vpp@24V

#dpFX #dpFXpedals #mixerpedal #isolatedsplitter #outputselector #mixersplitter #isolatedoutput #boutiquepedals #pedalmixer #mixerpedal #handmadeeffects #handmadepedals #handpaintedpedals #2inputmixer #instrumentmixer #pedalseffects #effectspedals #pedalsandeffects #pedalbuilder

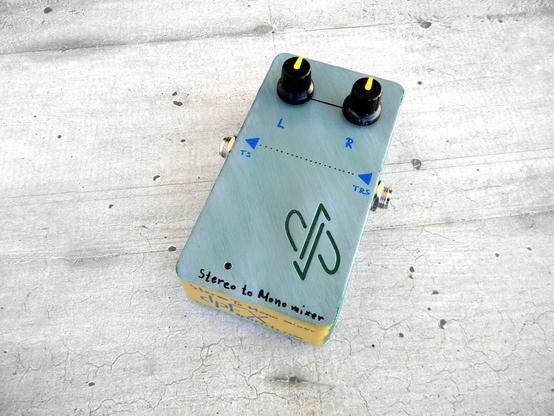

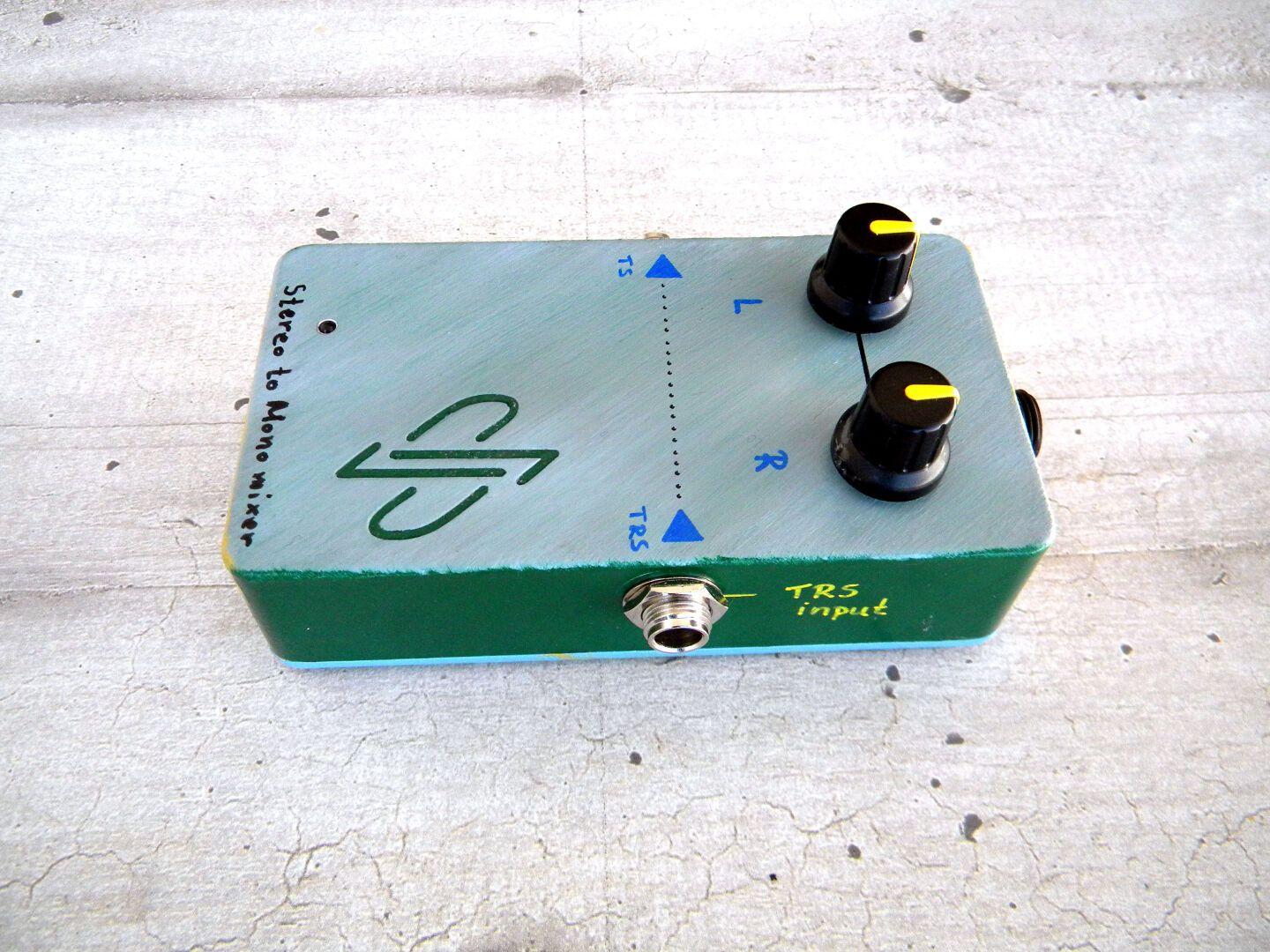

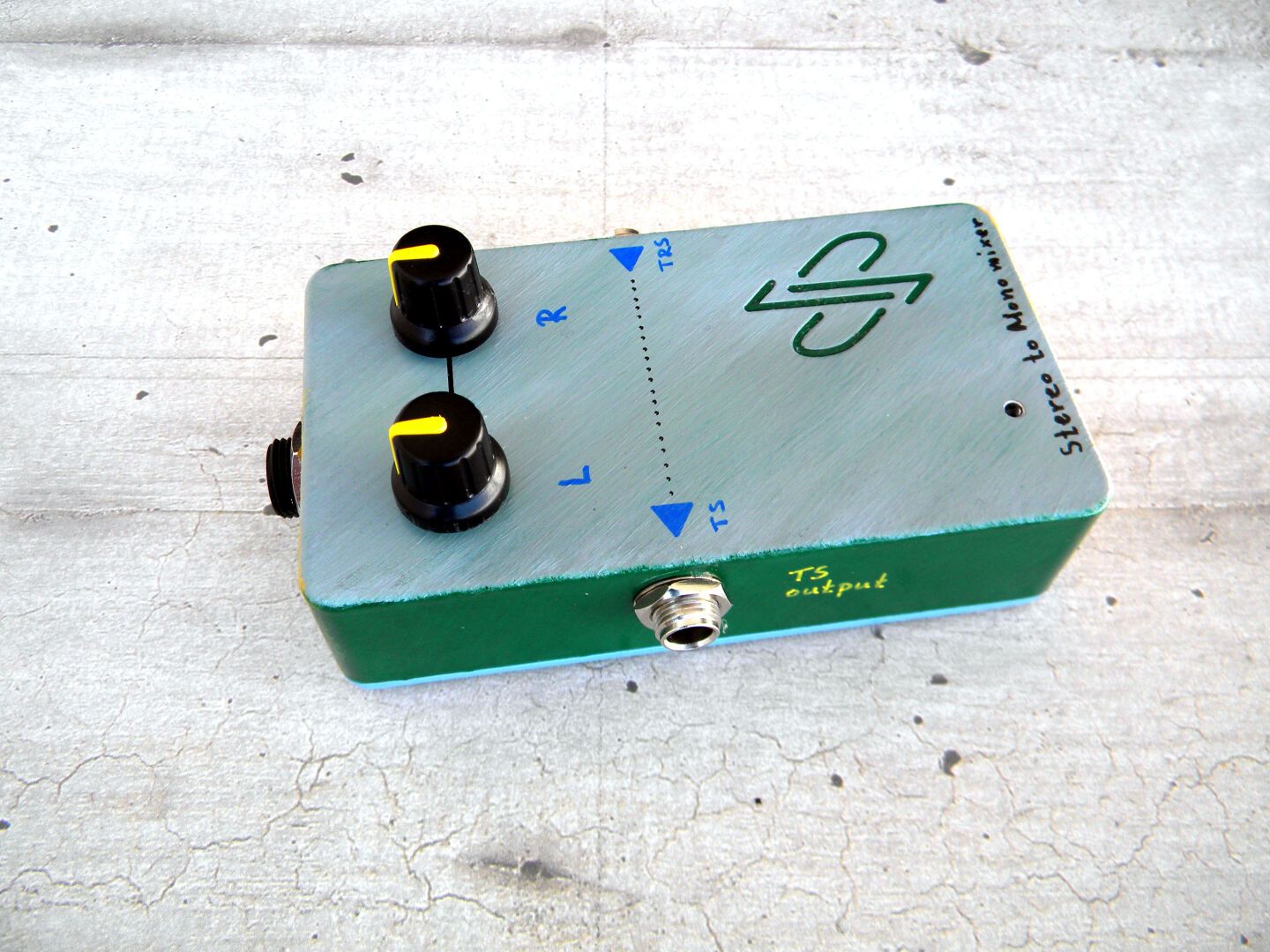

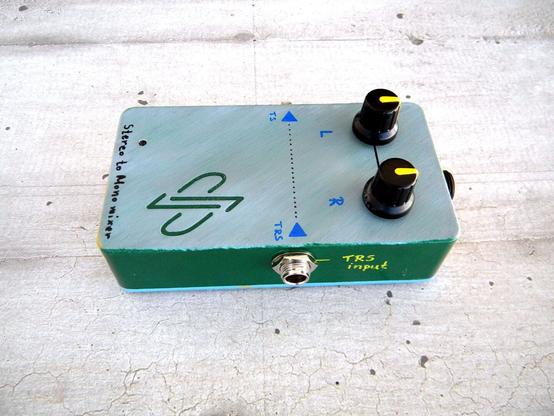

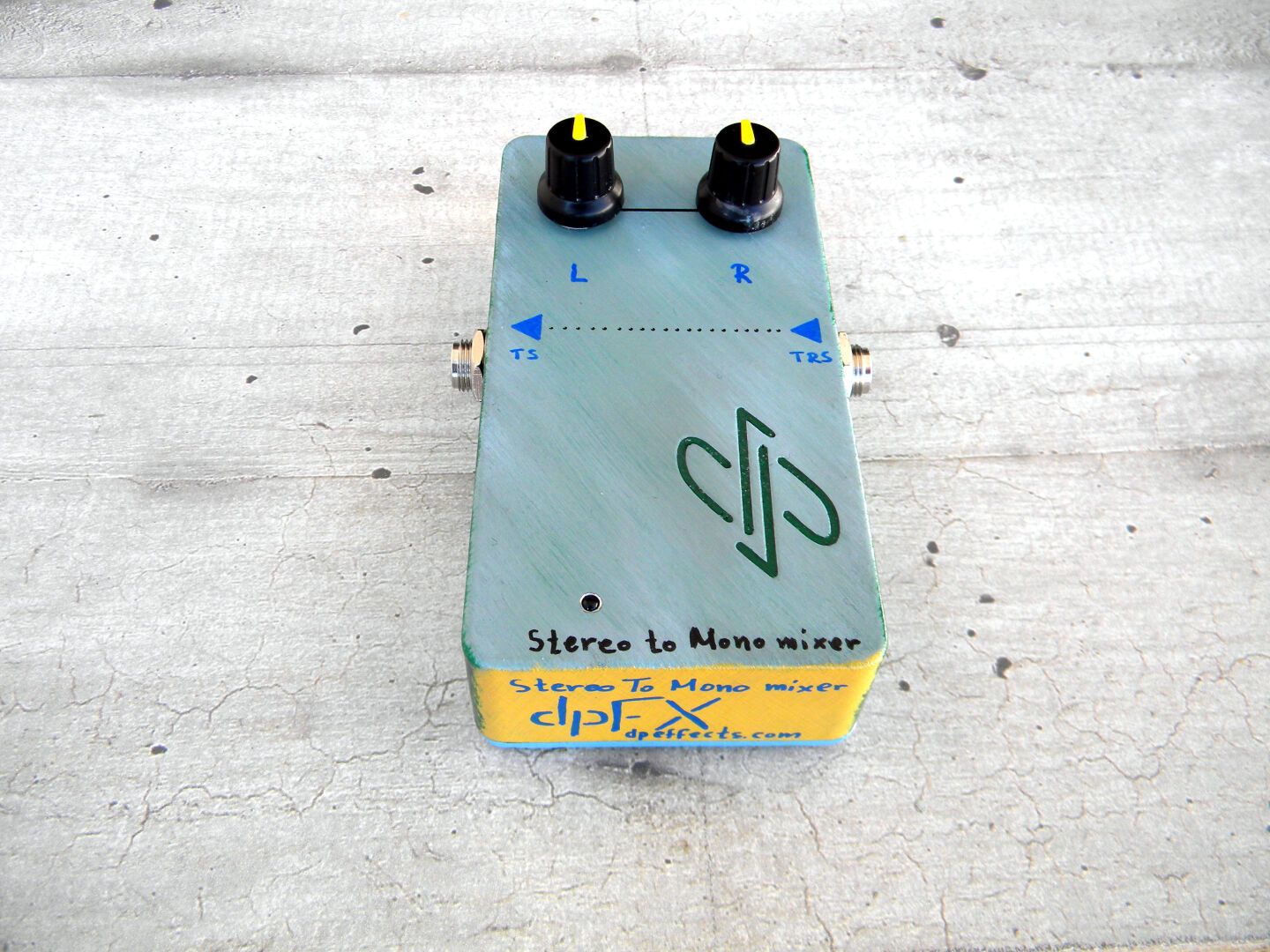

Stereo to Mono mixer (TRS to TS). It combines and mixes the L & R channels of a stereo signal down to a single channel (TS). The levels of the Left & Right channel can be controlled (separately) with the respective knobs

Specifications in brief:
- 1 TRS input / Impedance: 10Mohm
- 1 TS output / Impedance: 100ohm
- Power supply range: 9-24V (polarity: negative tip)
- 2 knobs for separate volume control of the L & R input channels.
- Aluminum Enclosure, dimensions: 115 x 60 x 32 mm

#dpFX #dpfxpedals #handmadepedals #handmadeproducts #handpaintedpedals #handpainted #boutiquepedals #stereotomonomixer #mixerpedal #guitarpedals #basspedals #pedaleffects #pedalsandeffects #trstots #2to1mixer #mixer #2channelmixer
