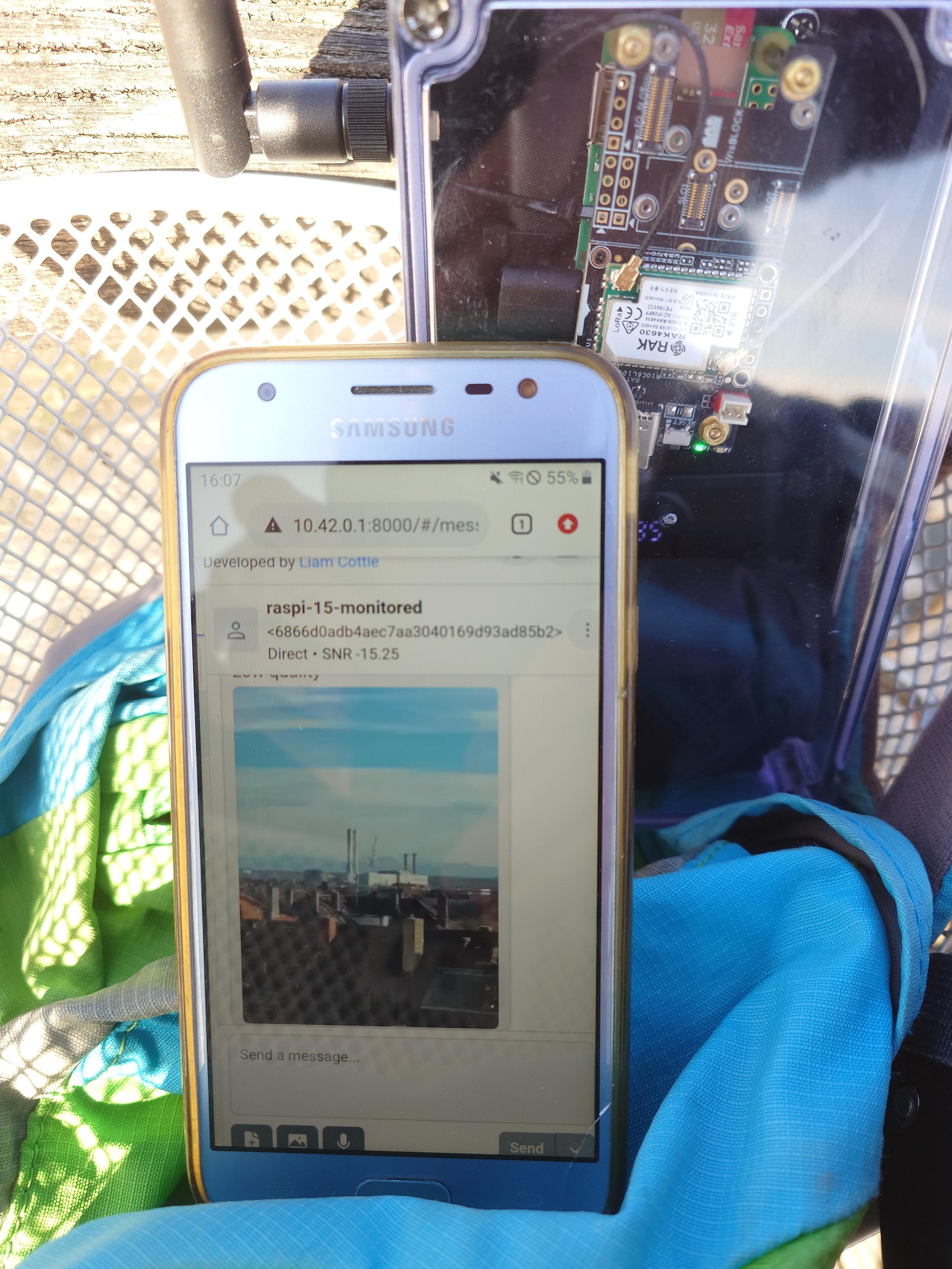

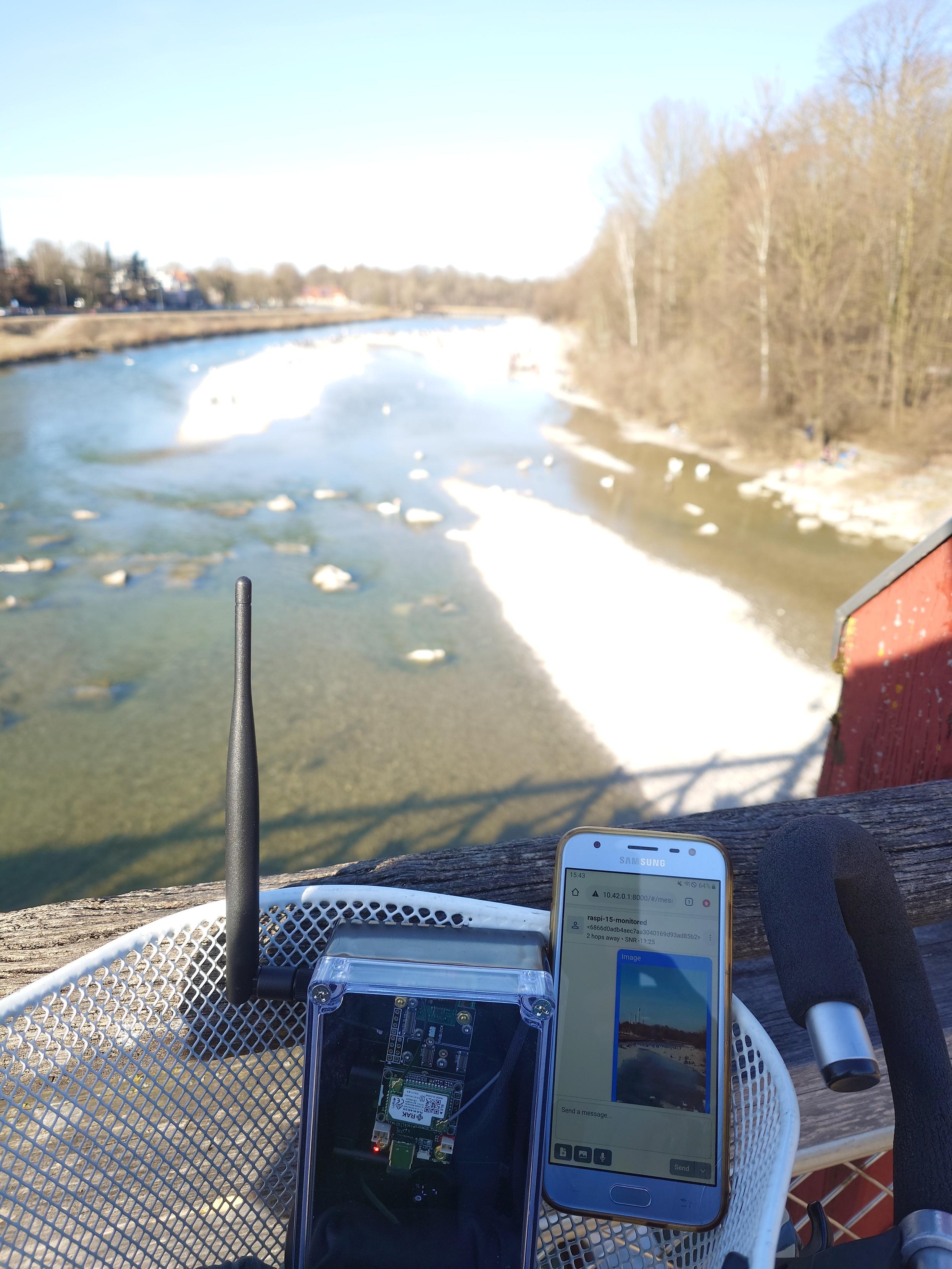

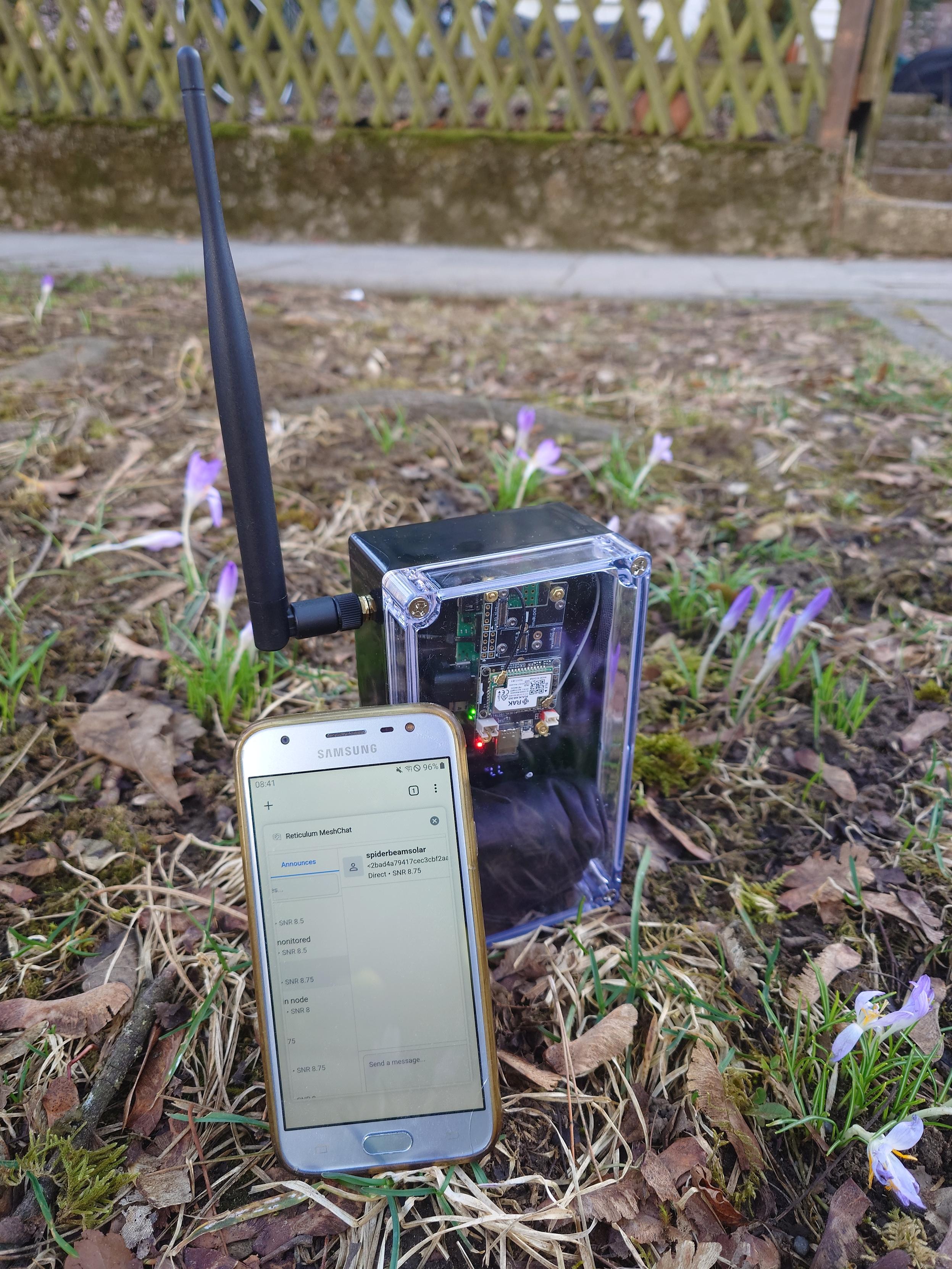

A little #portable #boxed #radio #lora #rnode using a #raspberrypi02w #raspberrypizero2w

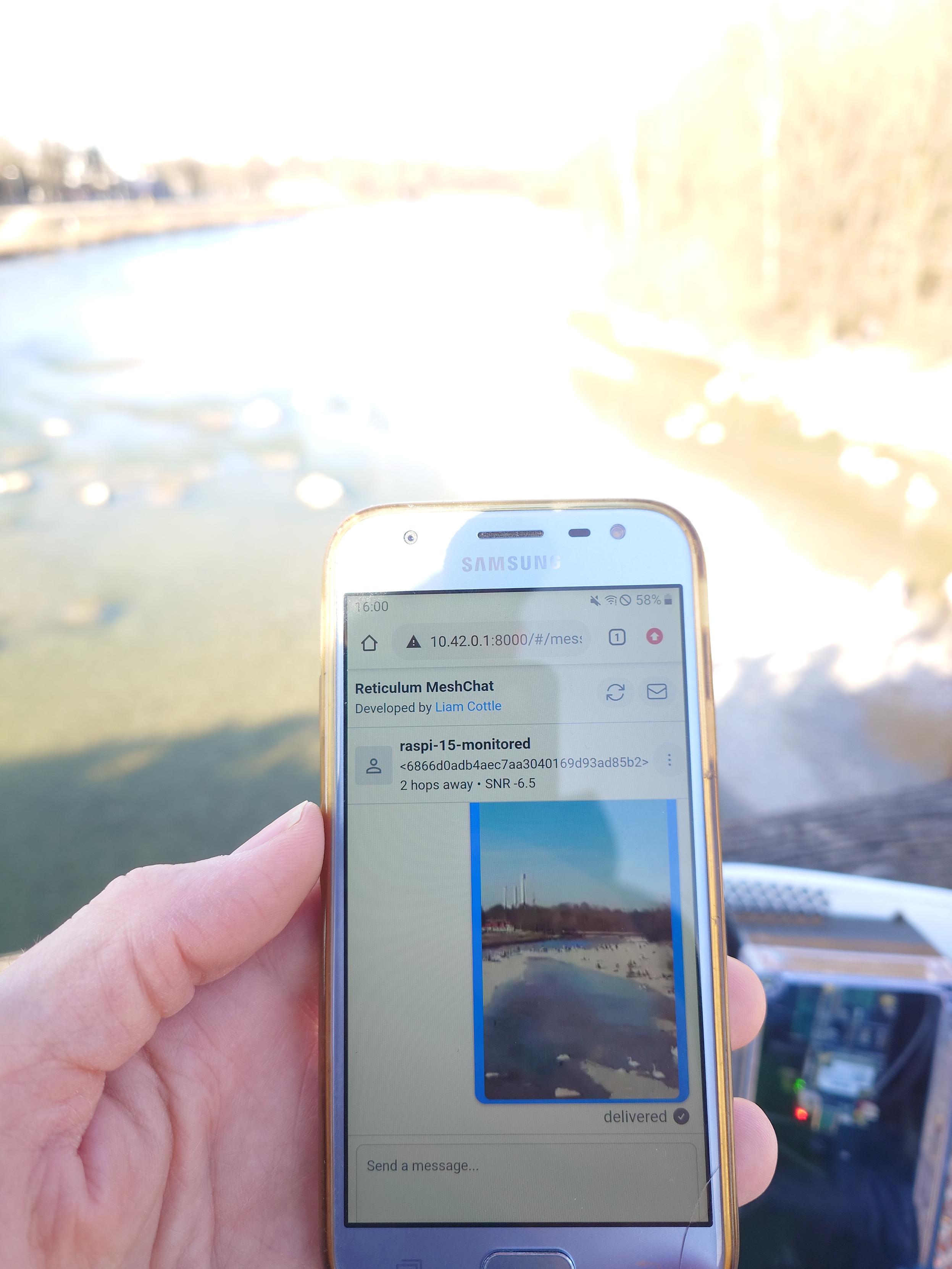

that uses the Pi's #wifi #accesspoint #ap to allow the GUI of #MeshChat to be used on a #smartphone to access the #mesh and #message and send & receive #images #photos on the move using #Reticulum
https://www.loramesh.org/subpages/piboxnode/build_pi_box.html
( https://www.loramesh.org )
#rnode #reticulum #meshchat #reticulummeshchat

On #reticulummeshchat #reticulum #reticulummesh #meshchat you can over #radio
1. run multiple #lora #rnodes on one computer.

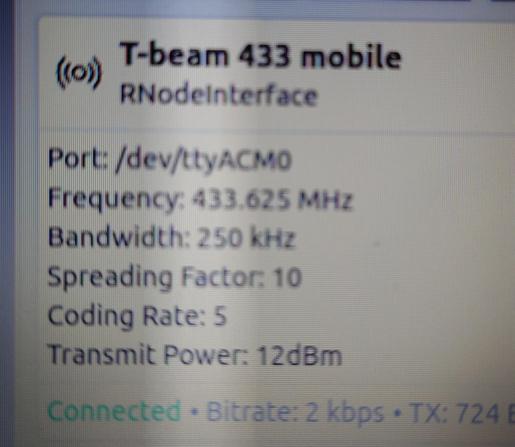

2. make voice calls over #433mhz ( #ism band at low 12dBm power) between two #rnodes , but of course with delay.
I used #heltec #t114 (version 2 ) and two #lilygo #tbeam for
#VoiceCall #telephony
(un/like #meshtastic )
3. image files can also be transferred

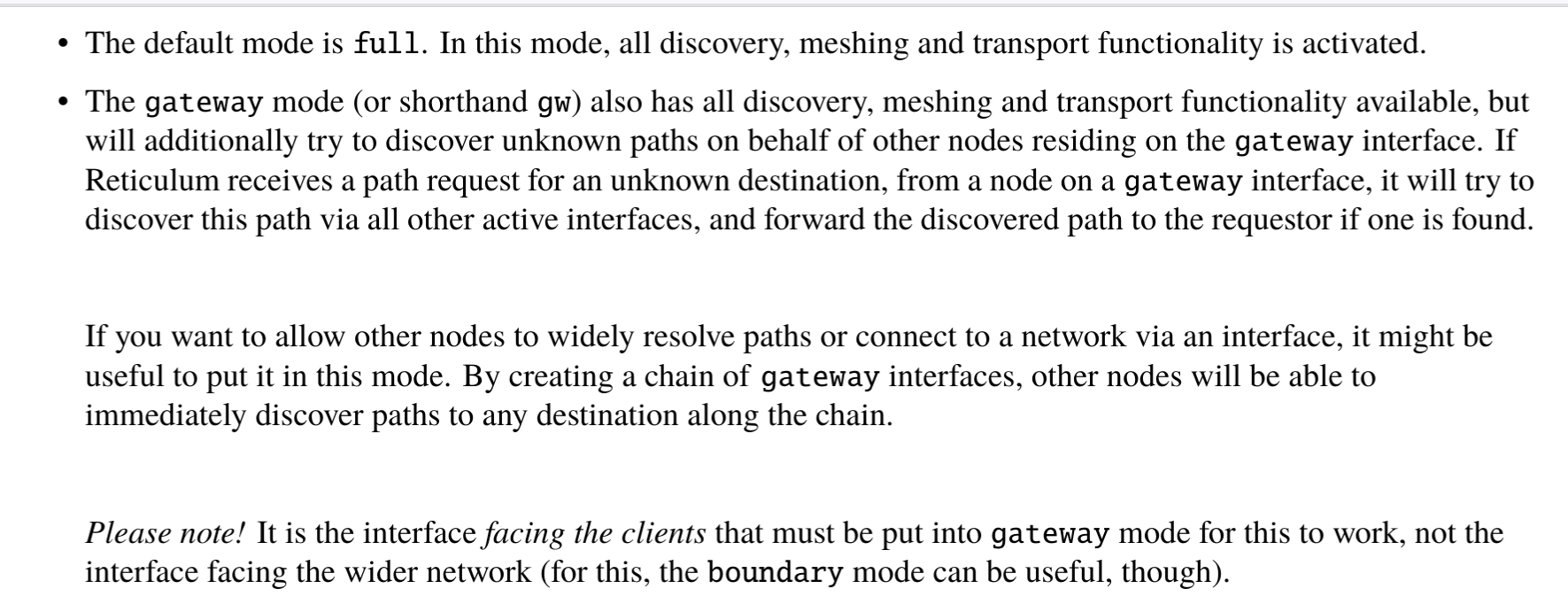

#Settings in #reticulum #meshchat #reticulummeshchat #rns for #lora #radio #mesh Always set your stationary / radio #rnode #rnodes to be #gateway nodes (#interfaces) for effective #routing in your #mesh. See Sect 6.14 of rns #reticumlumnetworkstack manual
https://reticulum.network/manual/Reticulum%20Manual.pdf
(and of course always also as #transport node else message packets from other nodes won't spread) Set the settings in the #configuration file or #update the #meshchat program now & set to gateway in the settings menu.

Link below is for step by step instructions for installing #reticulum #meshchat on #RaspberryPi using #commandline ( e.g. with #remote #headless #ssh ) with automatic #restart of #radio #rnode #service on pi power-on or #reboot . Suitable for restart of pi+rnode after #brownout of #SolarNode following period of little sun, or for rnode in car #carnode to start automatically when car starts, or battery powered node --->
http://loramesh.org/subpages/pi_install.html

#reticulummeshchat
#nodes like #meshtastic nodes

Is its possible to have a #mastodon -like #fediverse #instance that uses #reticulum #meshnetwork #network like #nomadnet ?
( #reticulummeshchat is great but has no #group #chats at the moment )

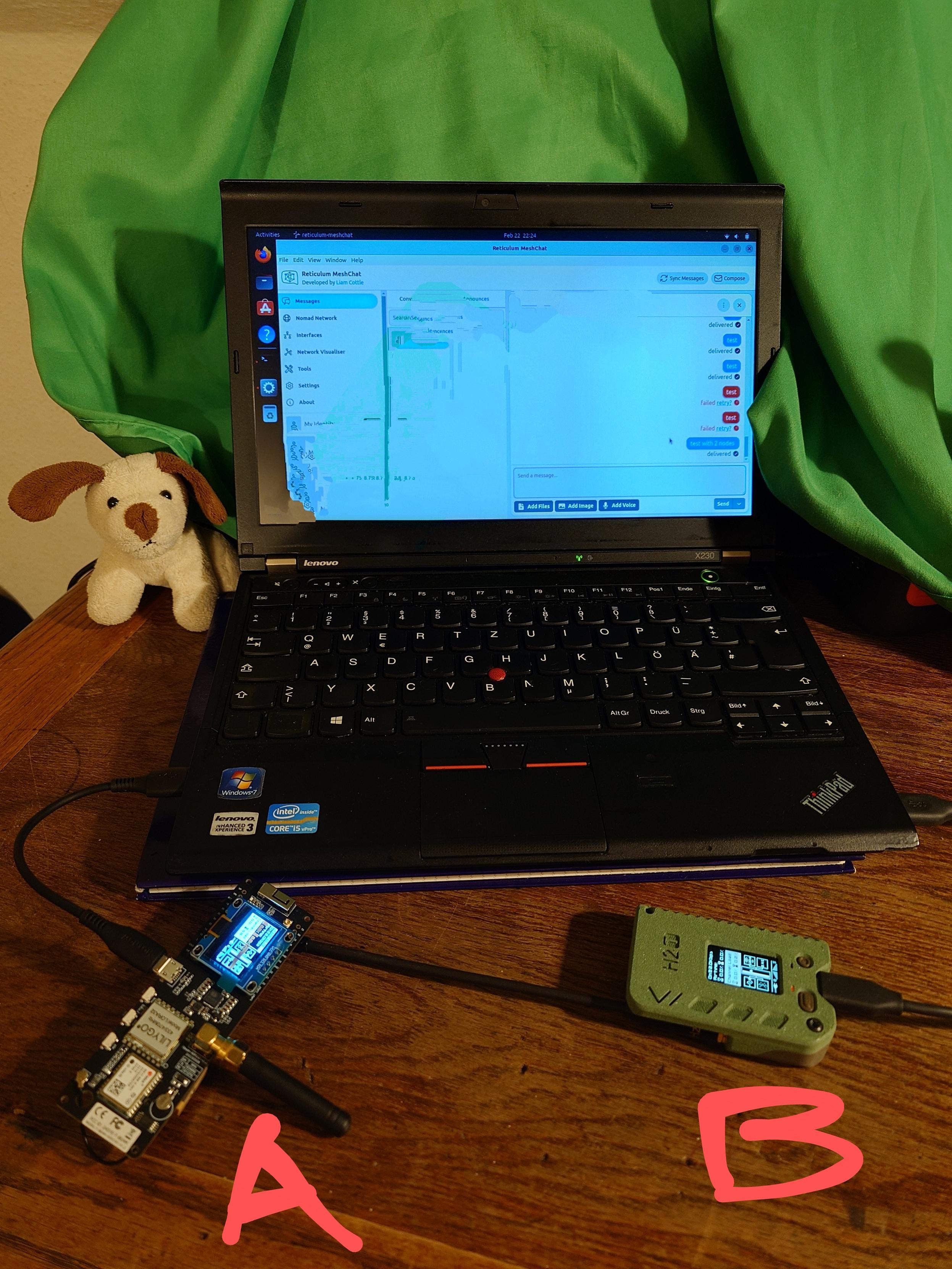

Laptop running #rak3172 #lora radio #reticulum #rnode, linked by lora radio only to a #lilygo #tbeam supreme rnode in loft under roof for connection to local #loramesh for text, image & sound messaging, & hosting webpages

software:
#reticulummeshchat ( #linux #ubuntu )

Parts:
https://muzi.works/products/r1 which uses RAK WisBlock RAK4631 with RAK19007 Baseboard
https://lilygo.cc/en-pl/products/t-beam-supreme?variant=43067944140981 with case https://www.etsy.com/de-en/listing/1718510941/t-beam-supreme-case-meshtastic-molle and with antenna https://www.k-po.com/product/sirio-gp-868-c-n-f

#RNS (see also #meshtastic )

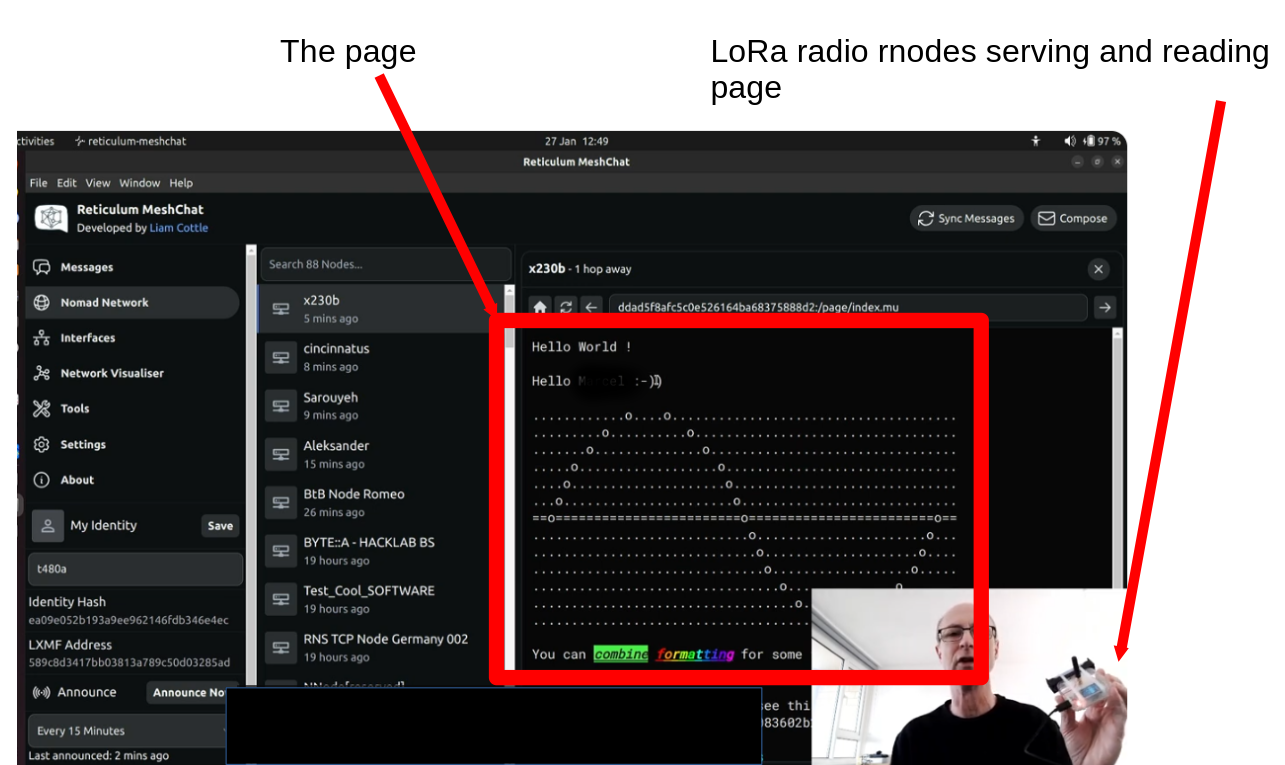

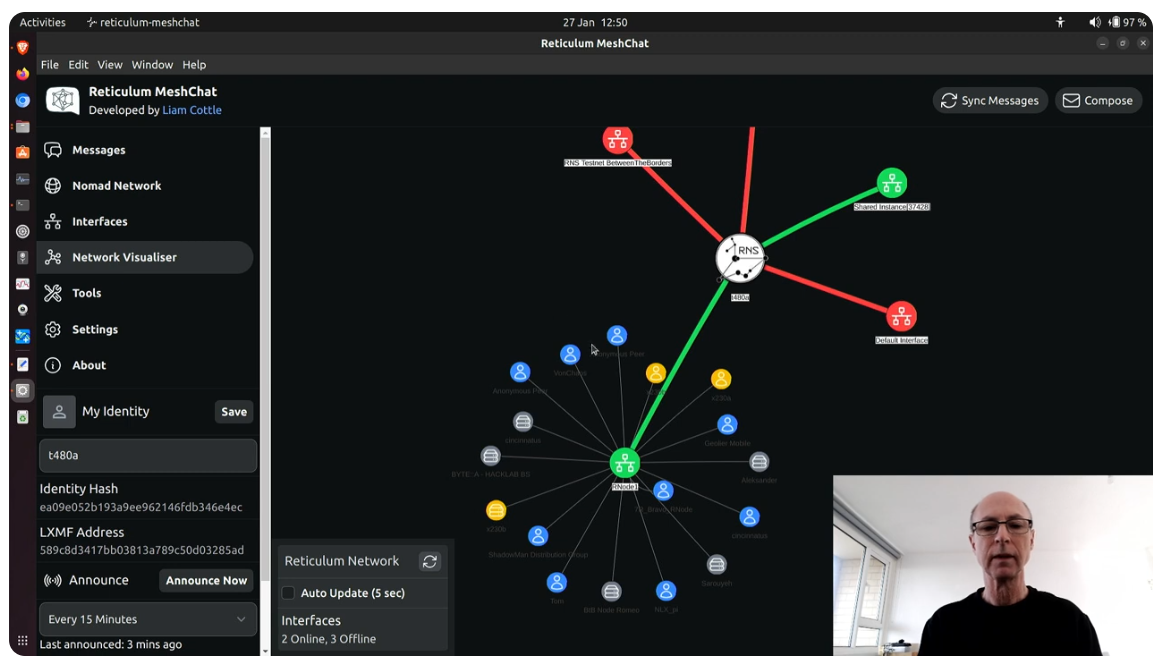

Demonstration of a #lora #radio #mesh with 3 #rnodes using #reticulum
serving webpage-like pages via lora #radio links

https://www.youtube.com/watch?v=Z4giFaW7X9c

Shows the huge potential for resilient & private communication of text, sound, images and page #SelfHosting

#reticulummeshchat #rns #nomadnet #nomadnetwork

(This is an alternative to #meshtastic )

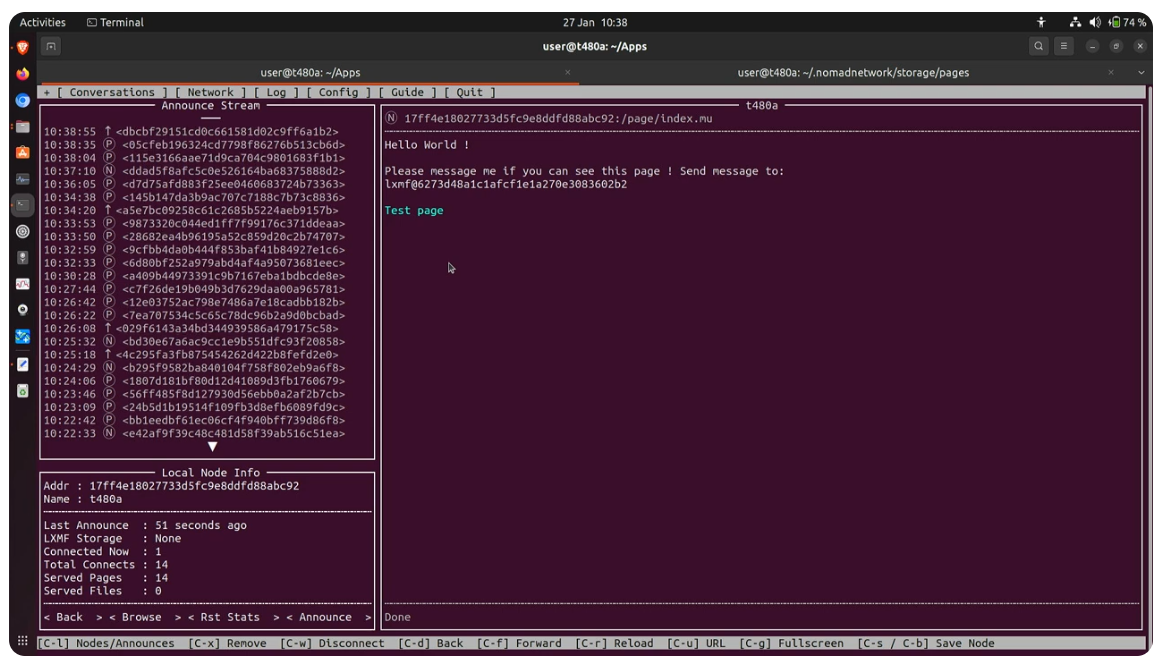

(1) Video on making pages (#webpages), using #nomadnet software. Pages are for being served over the #nomadnetwork using #reticulum #RNŚ
https://www.youtube.com/watch?v=8kuKqhP85qk

(2 Video showing how then to read the pages (like webpages) using #reticulummeshchat & using #lora #radio #rnodes to connect to the #nomadnetwork #mesh & also to retrieve the data from the serving node on the #nomadnetwork

https://www.youtube.com/watch?v=5Fgr1WBktQw

Like #meshtastic mesh but ... provides resilient #lora #internet #rnode

"Nomad Network allows you to build private and resilient communications platforms that are in complete control and ownership of the people that use them. No signups, no agreements, no handover of any data, no permissions and gatekeepers."
https://github.com/markqvist/NomadNet
and can be used via #reticulummeshchat
using radio nodes #rnodes similarly to #meshtastic as well as via the internet
#nomadnet #reticulum #sideband

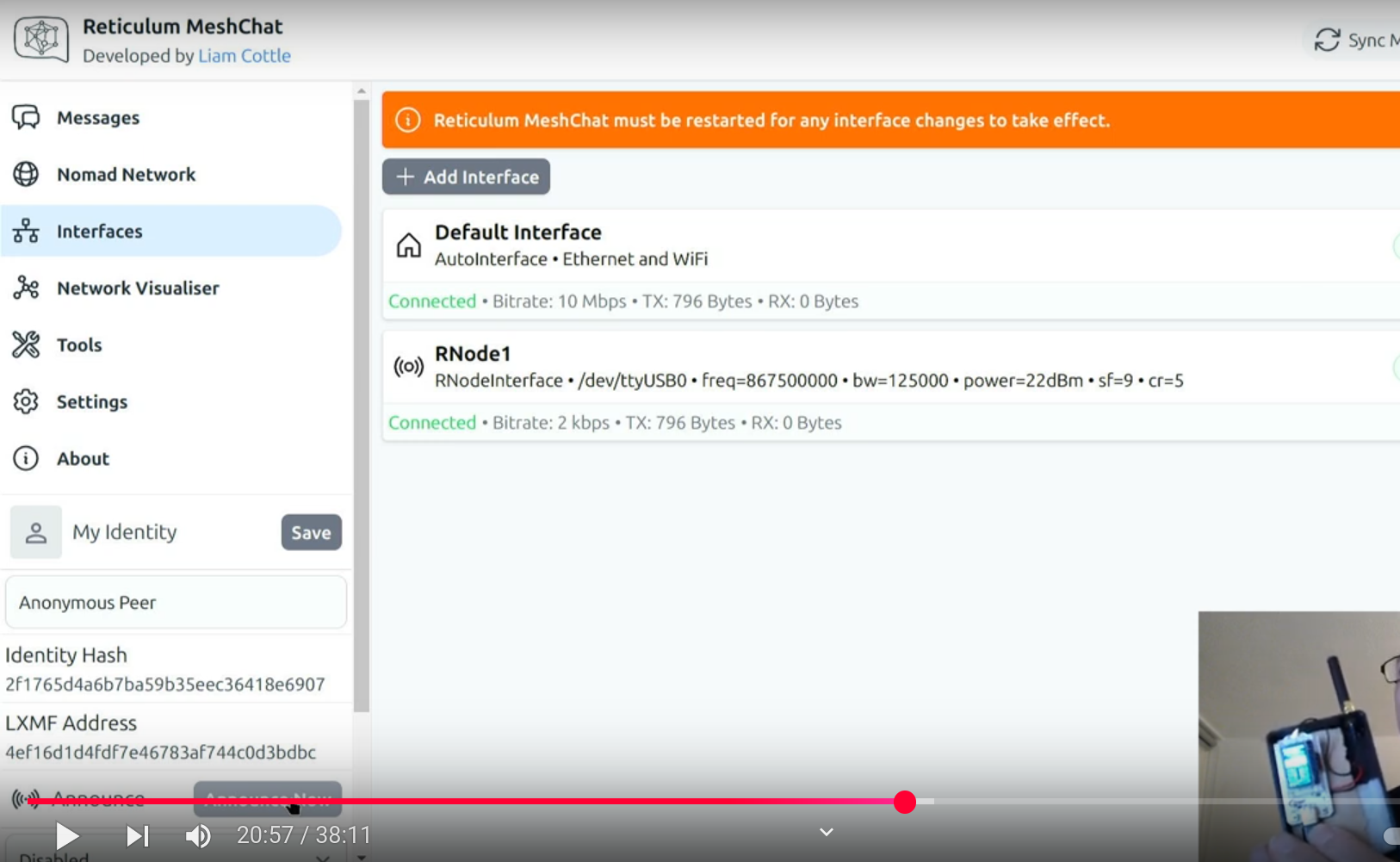

How to #flash and use a #lora #heltecv3 #rnode and #reticulum using #reticulummeshchat on #linux #linuxmint to send #textmessages and #voicemessages

https://www.youtube.com/watch?v=lNtQsykD0NA

The video is long but does show you how to do it and what to avoid. Highly recommended.

#chromium #DeviceFlasher

#meshtastic - like device and software BTW

Distributed internet by any hardware means
#peertopeer #networks
#Cryptography
#endpointaddress
introductory talk: https://youtu.be/pnyuSWy66cI
#reticulum #reticulummesh #reticulumnetwork #reticulummeshchat #sideband #LoRa #lorawan #radio #WiFi #packetradio
see https://github.com/markqvist/Reticulum

Anyone have a #solar #lora #radio #rnode using #reticulum ?

* Reticulum info https://www.youtube.com/watch?v=q8ltLt5SK6A & https://markqvist.github.io/Reticulum/manual/gettingstartedfast.html

* rnode e.g. https://youtu.be/GS5HWSzQwqQ?si=0cUvdQJQ_XpD3Q16 on #EndeavourOSLinux #endeavour cites https://www.youtube.com/watch?v=aBt56UpaQ0E

* #solarpower #raspberrypi https://www.zdnet.com/home-and-office/run-your-raspberry-pi-off-grid-with-solar-power-heres-what-you-need/
https://www.reddit.com/r/raspberry_pi/comments/4k25rg/ive_created_a_100_solar_powered_rpi_web_server/

#solarnode #lora #radio #sideband #nomadnet #offlinecommunication #mesh_network #networkstack #meshchat #reticulummeshchat #raspberry #brownout #meshtastic #rak #wisblock #heltecv3 #t114
