#gutterLipo

FacelesstechFacelesstech
2025-09-17

To survive on the streets you need to able to strip a disposable vape down in under 10 seconds or risk discovery

FacelesstechFacelesstech
2025-03-01

Found a new vape on my commute home last night. A reusable one this time. Usb c charging with the PD resistors which is nice. Pulls quite alot of current while charging

A reusable vape that looks like a over sized flash drive. A long thin rectangle The vape held in front of a charger with a screen reading out 5v 1amp charging rate
FacelesstechFacelesstech
2024-09-04

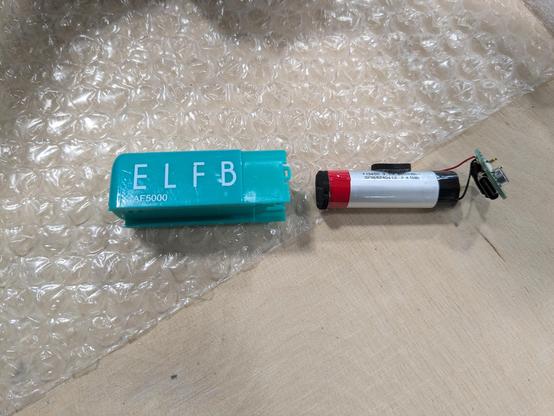

Found a new vape Elfbar AF5000, not sure why someone ditched this one because it's refillable and rechargeable. Comes apart in 3 peices. Ones the refill cartridge then there is the electronics then there's the main vape with the wicks in it. I see alot of them have due wicks in them these days

Elfbar AF5000 held in a gloved hand. Remember to wear gloves kidsThe 3 parts of the vape. Left contains the due wicks. On the right top is the electronics part and the buttom right is the refill cartridge. Really nicely put together reallyThis is the electronics part. Contains the charging and powers the wicks. It had a 650mAh battery
FacelesstechFacelesstech
2024-07-22

I found a very interesting vape on my commute this morning. Looks like it's a dual flavour one with 2 different "cartridges" and 2 different pressure sensor and coils. It's not a disposable one because the cartridge can be changed and it can be charged

A half dismantled vape plugged into a USB C charger charging showing a battery level display On the left is the left over coil from a broken cartridge and on the right an empty space where a cartridge wasThe cartridge adaptor removed exposing the 2 pressure sensor and pins to power the coilI originally thought it had vape juice on the board but it turns out it's conformal coating. Also showing the lipo which is bigger then standard disposable but smaller then the larger ones
FacelesstechFacelesstech
2024-04-28

Is this the disposable vapes final form.... I think so, I want one to play with but they dont seam to sell them in the UK ripitapart.com/2024/04/20/disp

A disposal vape with a small LCD screen on the outside
FacelesstechFacelesstech
2024-01-25

New gutter lipo update. So I found some interesting vapes this morning, I thought they were reusable but turns out they are not. They do have a USB C charging, my thinking is normally these bigger vapes have 1500mAh battery's in them but these only have 600mAh so they can get away with a smaller battery and letting you charge it when it runs out vapekituk.co.uk/products/randm

A vape that's pink and green with logo "randm tornado 9000" on the sideShowing the bottom of the vape showing the charger port that has the CC resistors and a few LED's that light up when puffingThe lipo battery that's like a really short 18650, it's marked 18250 that's attached to the charging circuit
FacelesstechFacelesstech
2023-11-18

Ah so big Clive has done a tear down of the new elf bar vapes. He always does a great job and very educational youtu.be/aPm_Sd0fCrA?si=mggRFj

FacelesstechFacelesstech
2023-10-18

Not had any developments in the gutter lipos I've been finding, that is until today. So the Elfbar V2 600 they have changed the battery style and also the body of the E-cig. Firstly the battery now comes in this metal can kinda like a capacitor, also still the 360mah but with both leads coming out the top. The body had changed and they are now more difficult to remove the battery, probably the best way is to push everything out from the bottom to the top

Elfbar V2 600 egcig bottom after I removed the end cap. The body of the E-cig is curved over slightly so it's smaller then the inner tube diameter. Battery and E-cig burner now come as a unit without wires going everywhere
FacelesstechFacelesstech
2023-06-07

Looks like I was ahead of the curve for once. It makes me so sad that we are throwing away precious lithium batteries hackaday.com/2023/06/07/harves

FacelesstechFacelesstech
2023-04-19

So I've got a theory as to why I'm finding so many discarded e-cigs. I live near a high school and my commute takes me past the gates, I'm thinking the kids are vaping in the way to school and ditching them before they go in. They have been off for the past 2 weeks and I've not seen any in the area. They were back in yesterday and I found this one not far from the school gates

E-cig held in a black gloved hand
FacelesstechFacelesstech
2023-02-22

I'm always looking for ways to make makes new torches to use in work. My latest idea uses a custom replacement PCB I made for the 134n3p power bank board. It also used a gutter lipo and a USB LED strip. I printed it battery side down and relied on bridging. I then printed a outer sleeve to cover it all up. Not sure what the battery life will be like but it's small and lite

The guts of my torch. 134n3p pcb a lipo and a switch The other side of the torch guts. This side The LED strip slides into the channel Outer sleeve on the torch to hide the guts
FacelesstechFacelesstech
2023-02-10

OMG I found another gutter lipo on the way home, this one's a beast and it was literally on the ground like this. Still holds a charge so should be OK

1500mah lipo battery from a disposable ecig/vape
