This weekend's fustration:

I placed my new milling machine on it's table. I can now it out and do a few test cuts. However I forgot that the first owner of the machine (the second owner never used it) was terrible in machine skills and maintance.

So que me wanting to do a test cut and discover that the clutch for the worm-gear lowering mechanism was slipping. Taking the clutch out I discovered someone coated it with way-oil that turned into a sticky but slippery mess. So before i could do a test cut; I had to take the whole stock lowering mechanism appart to clean it and re lube the parts that need oil.

Explanation of how this system works is in the alt text of the photos.

Also if someone knows better tags for this type of post let me know! I am struggling to find the right community for machine shop toots.

#engineering #hobby_machineshop #mechanic #DIY #HomeShop #HobbyMachineshop #machineshop #MechanicalEngineering use

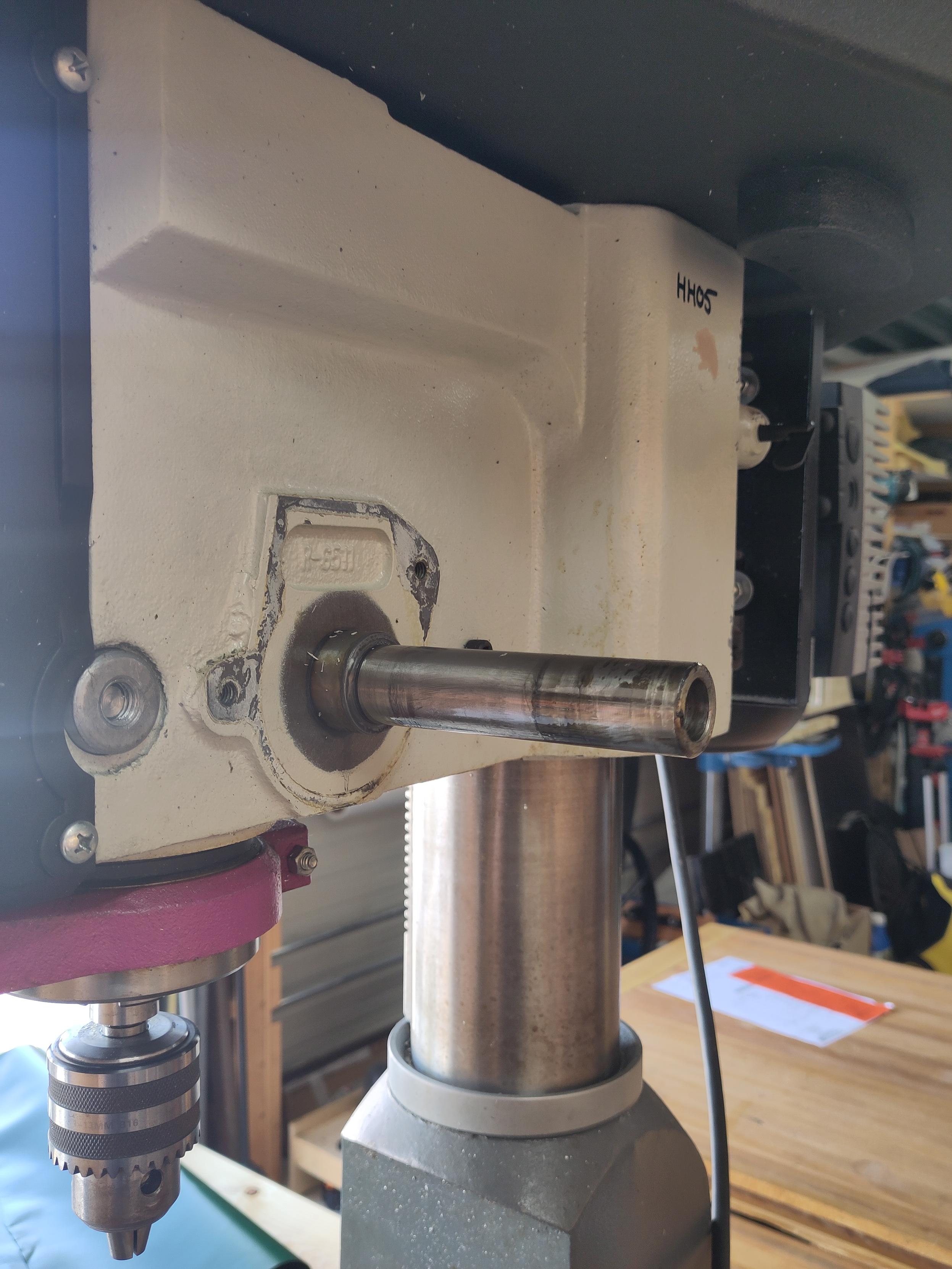

Close up of the quill feed axle. This axle holds both the Fine quill feed (works via an worm gearing) and the large course guill feed that is mounted dirrectly on the axle.

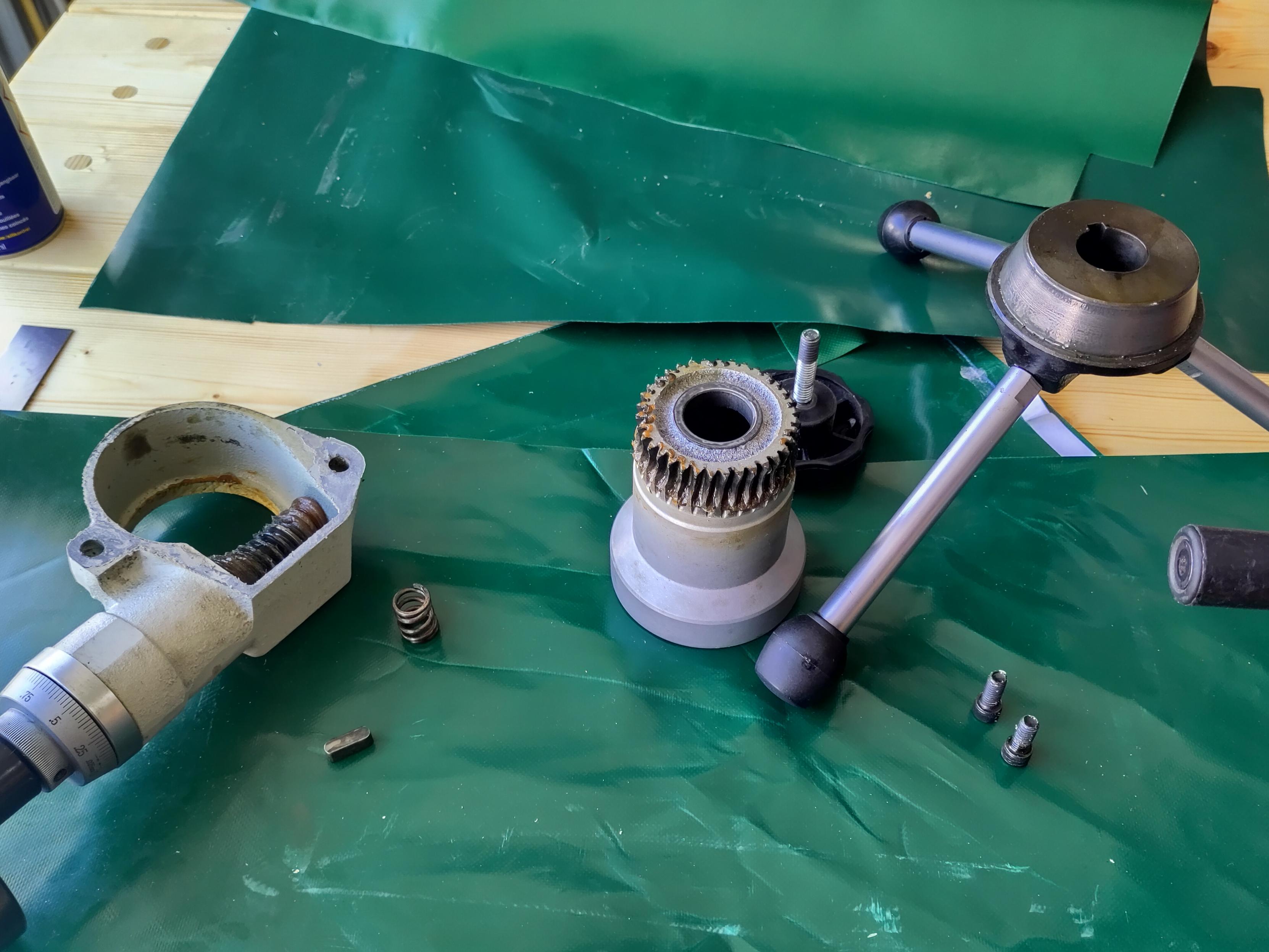

The quill feed mechanism disassembled for cleaning. Shown to the right is the course quill feed with the three handles and the first part of the conical clutch. This handle dirrectly drives quill axle dirrectly via an key drive. In the middle is the worm-gear sproket that is driven by the worm gear and moves freely over the quill axle. This sproket has the second part of the conical clutch. To the left is the fine quil feed housing with wormgearing. This drives the sproket and holds it in place.

The way the fine quill feed works: The course quill feed (on the right) drives the quill. With an hand screw you force the course quill feed handle into the sproket of the worm-gear. This enables to clutch with friction. Now you can drive the quill with the fine adjustment. To drive the quill with the course adjustment you need to unscrew the clutch. This way the sproket rotates freely over the quill axle/shaft and the course wheel is no longer linked to the fine feed mechanism.

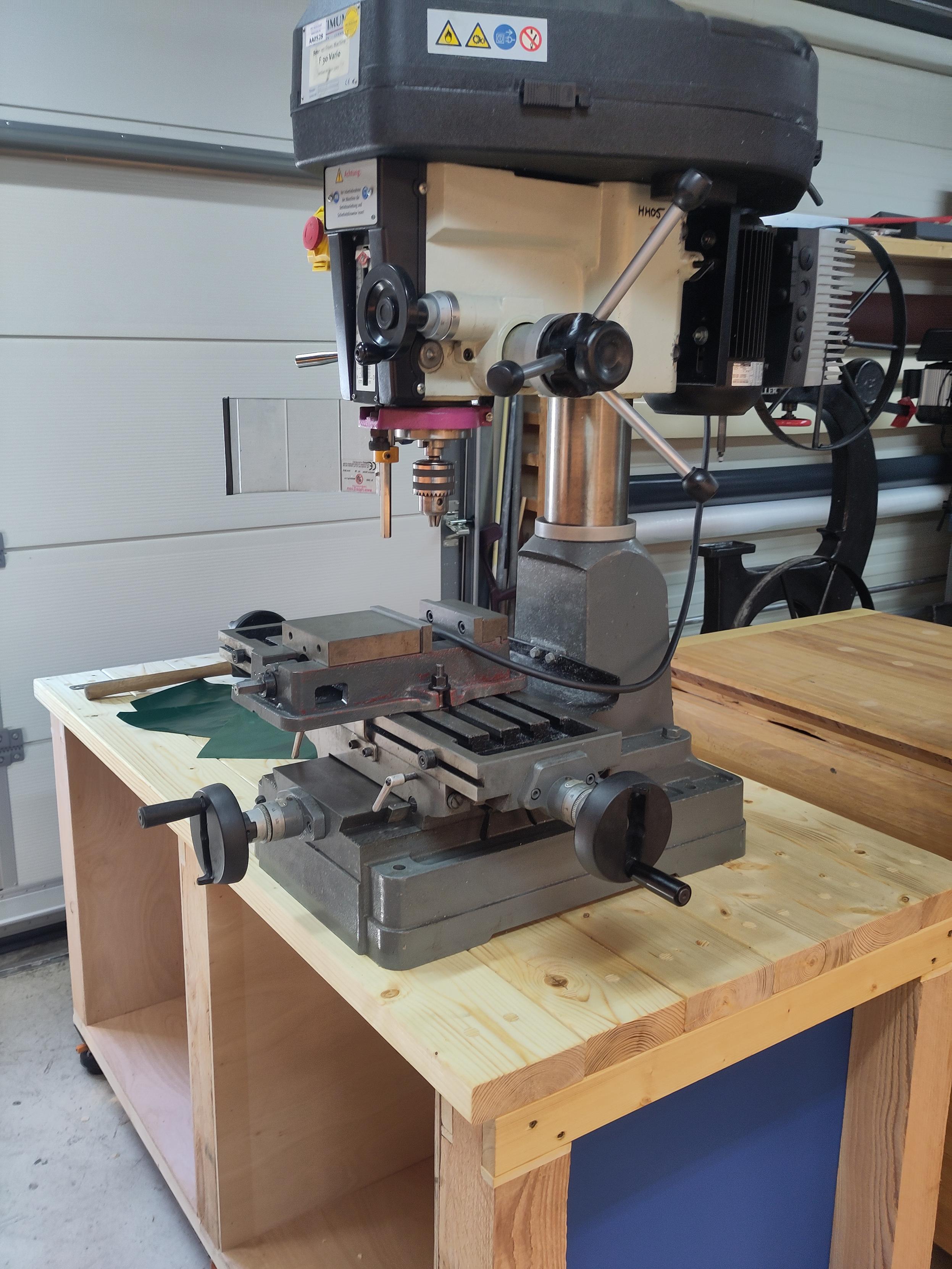

Photo of a table top mill standing on a woden table. The mill has an grey cast iron base where the X-Y table is placed up on. The top of the machine is resting on a bare metal cylinder that allows it to move up and down. The top of the machine is white and has an drill holder. The motor of the mill is behind the mill and the top of the mill is a plastic protection for the belt drive mechanism. The mill has both a drill press style quill feed handle (placed on the right side of the machine) and an fine adjustment quill handle that works via a worm-gear (placed on the normal quill feed and reachable via a wheel at the front of the machine, next to the depth gauge)
