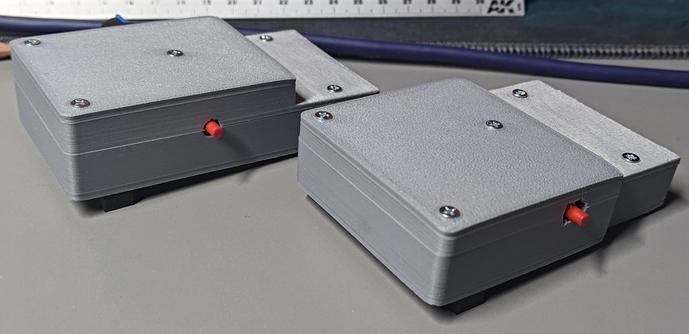

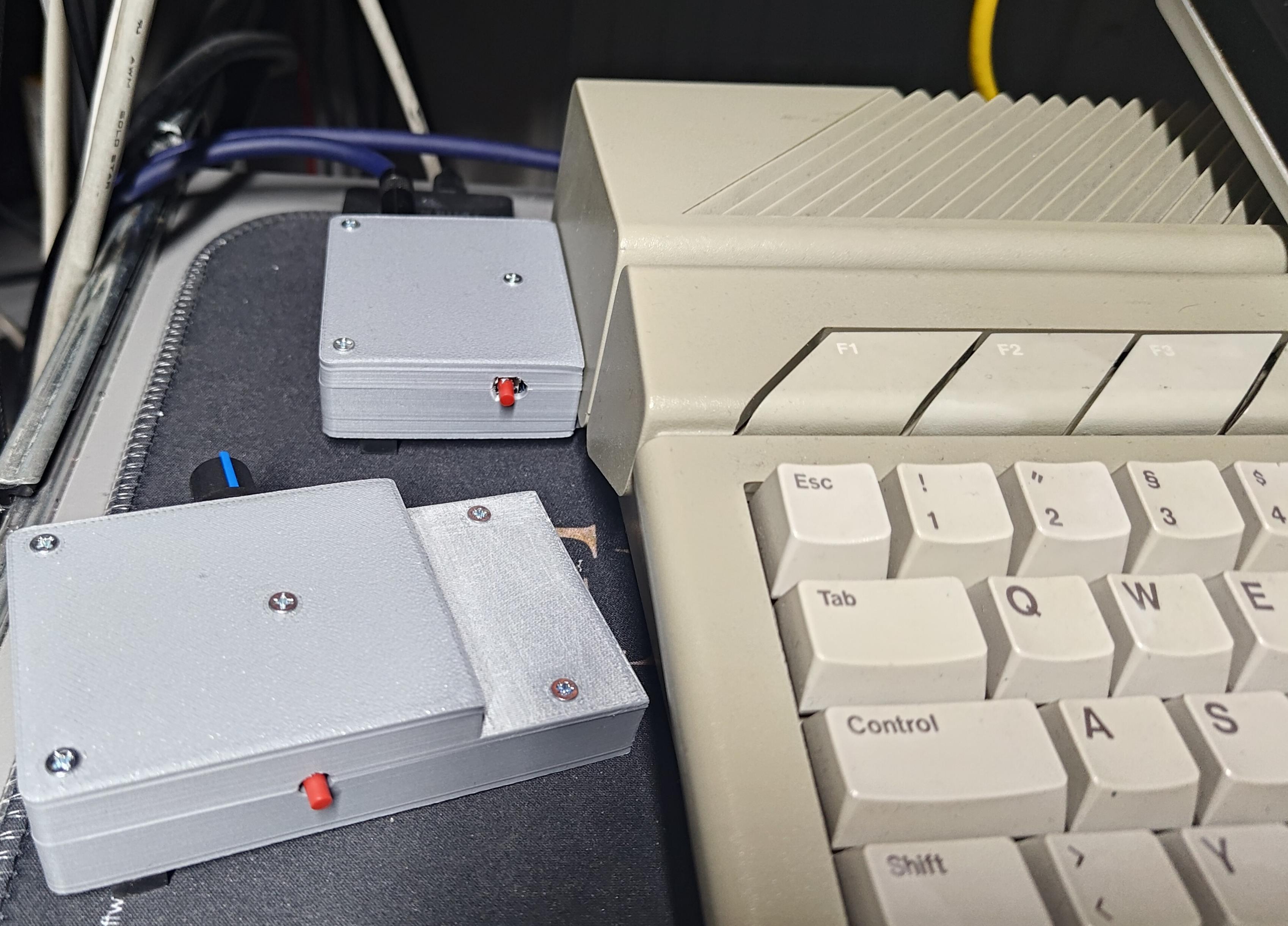

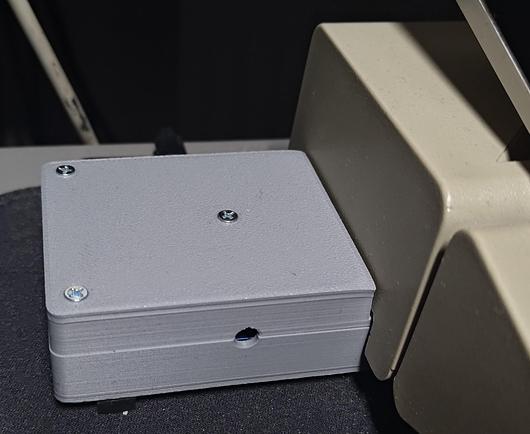

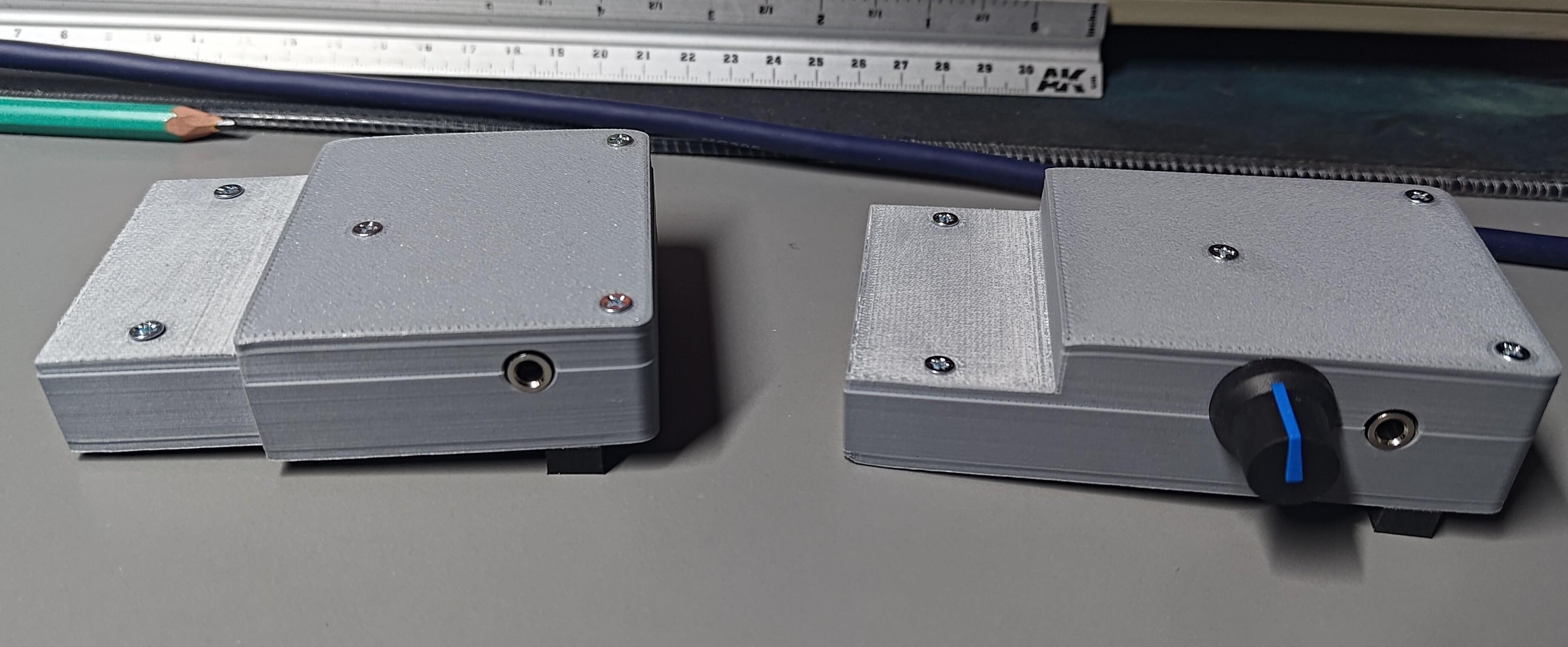

#nokturnfm2 #nokturnfm3 #opl2 #opl3 #atarist i've assembled new pcbs and put them into shells for a first time. I've misplaced reset button hole in opl3 version of course, will fix it in next iteration. Several screws are too long in fm3 version, need to trim them down few millimeters, but it's not visible..
#OPL2

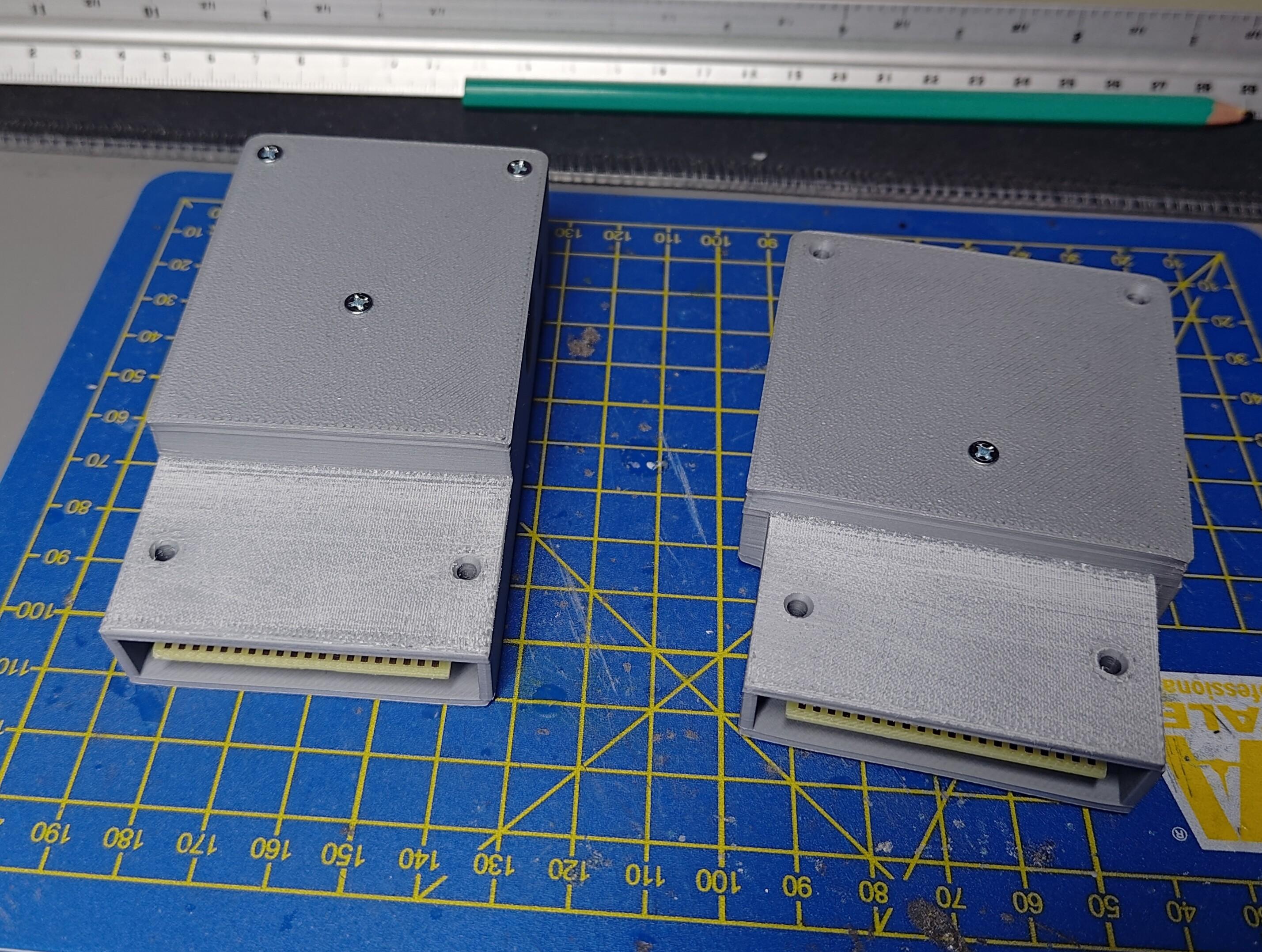

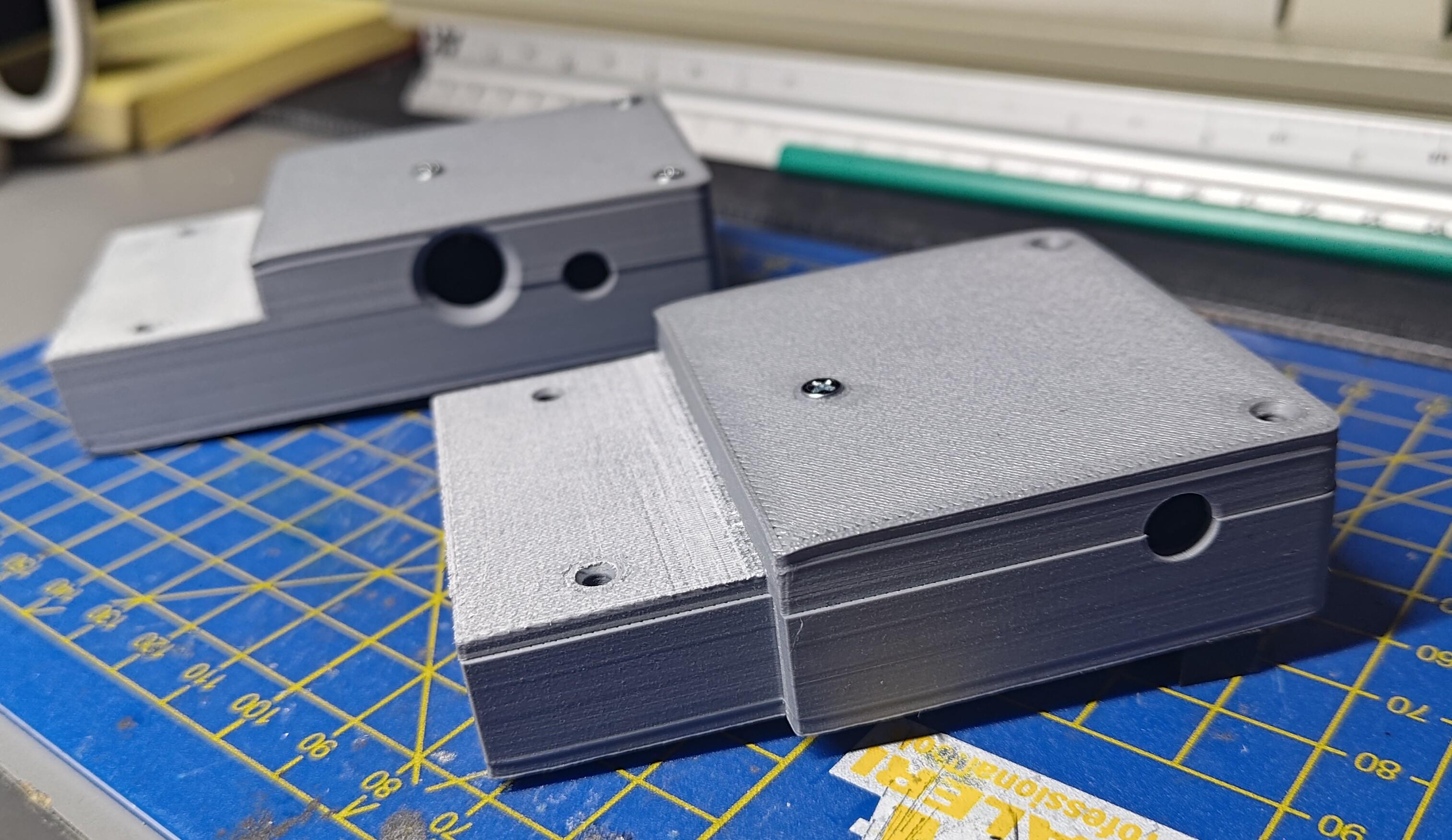

#nokturnfm2 #nokturnfm3 #opl2 #opl3 #atarist i've finished cartridge shells. And i've made some tests with pcbs and screws to see if everything fits. I will probably add either label and/or bezel cart name on top, maybe some minor tweaks will be needed. So, now i need to solder new pcb versions and assemble the whole thing.. 😛

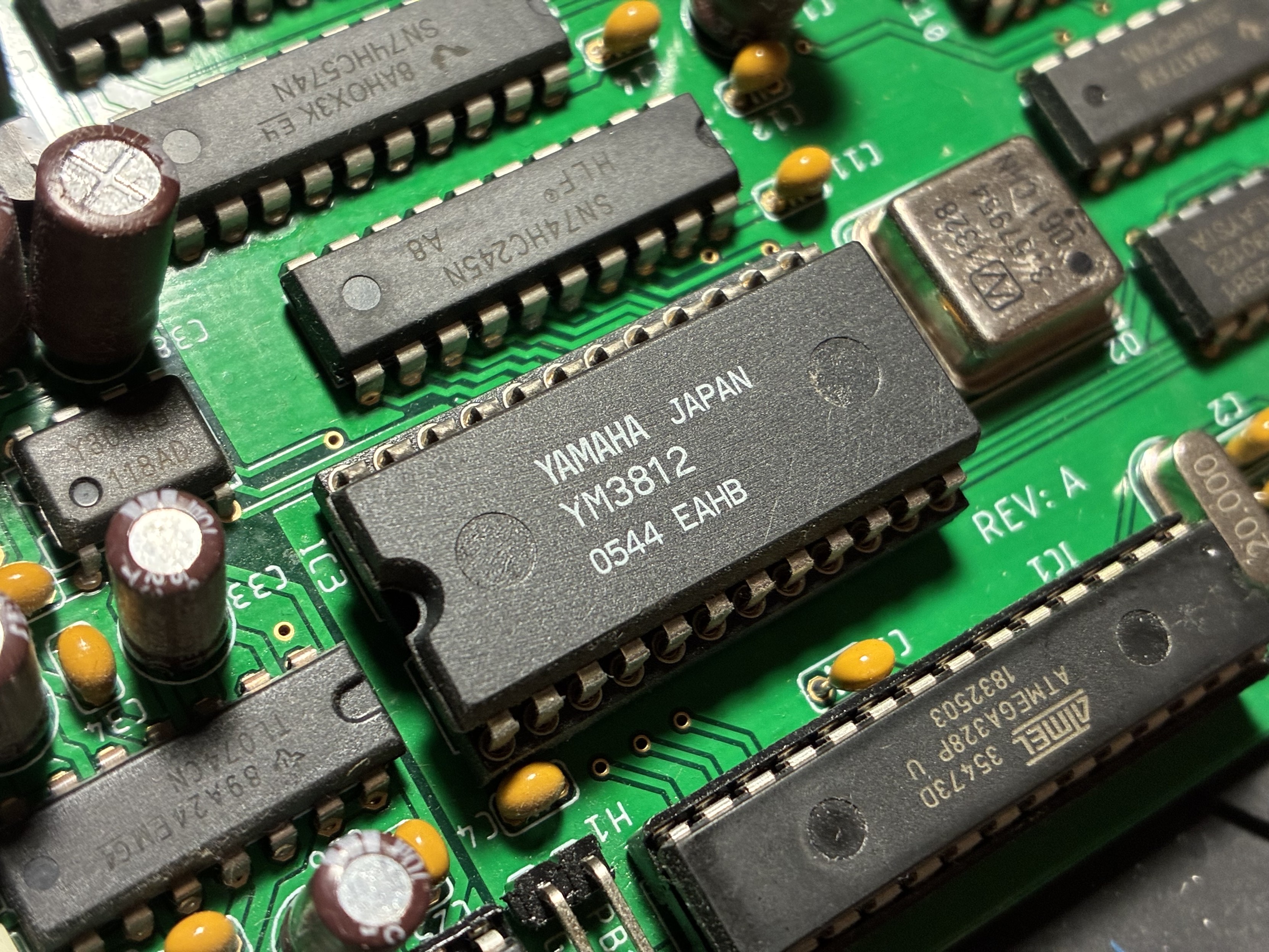

This is a Yamaha OPL2. Sanded down and relabeled with a bogus datecode! Why do they do this...? So annoying. It works, but the original markings would have been much more useful.
#retrocomputing #opl2
The OPL Archive - Release 10 is live!
This nice little update adds 69 songs, including the EMS Music System, covers by unknown authors of the Korean AdLib scene, and the oldest OPL2 songs yet - the demos from the Yamaha PSR-11 keyboard (1986).
Check it out!
https://opl.wafflenet.com/
#chiptune #opl2 #opl3

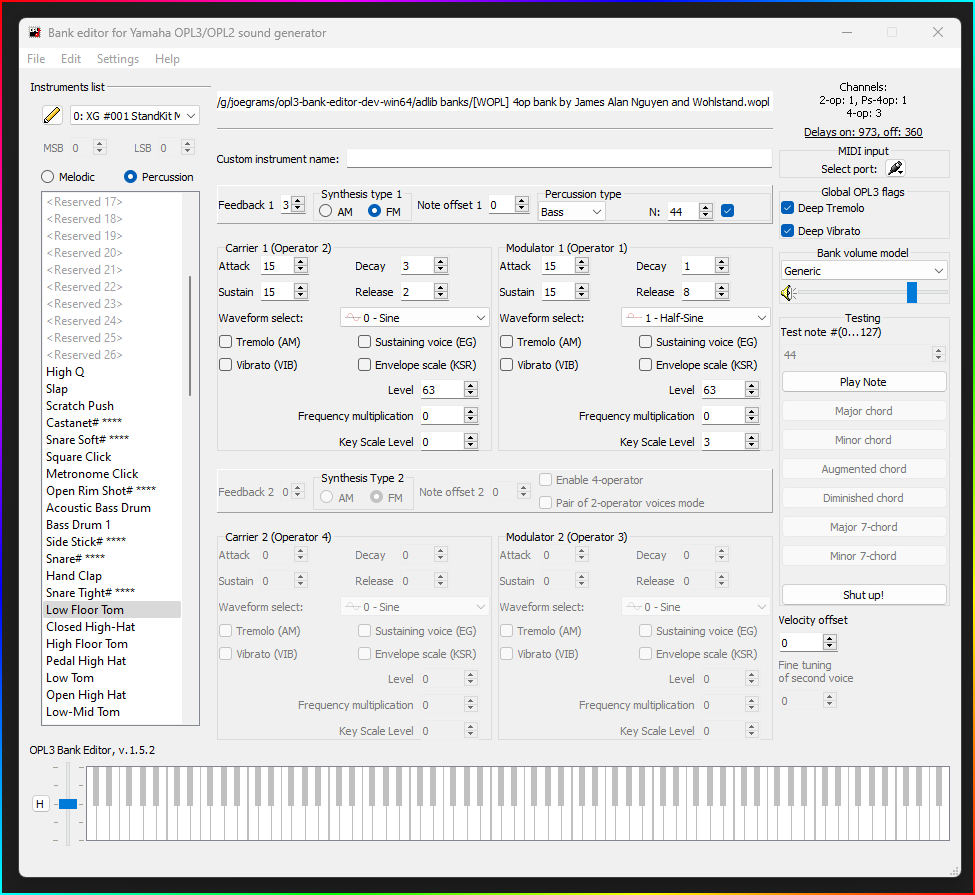

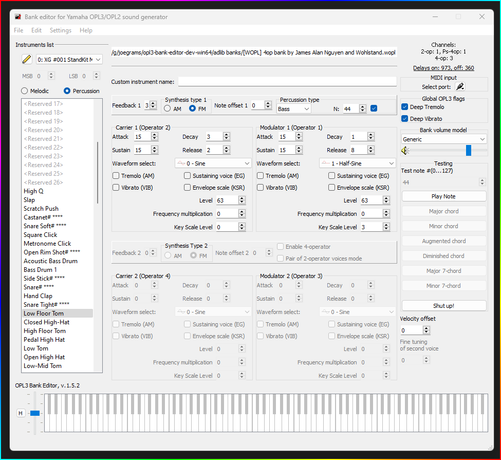

looking for tips on how to give #opl3 #opl2 #adlib #ymf262 kick drums more utility. I can also dedicate a channel to kick rather than the kit so it may be played chromatically, primarily, how could I get a downward sweep in pitch w/ this basic fm synthesis?
#atarist #opl2 #opl3 #nokturnfm I've published official webpage containing info related to NokturnFM2 / 3 cartridges, which allow use of Yamaha OPL2 / 3 soundchips with Atari ST and up. Right now is rather short project description, some programming info and NokturnFM.play, which allows music replay with various devices. Not everything is there yet, lot's of work, not much time, so stay tuned. https://nokturnal.pl/home/atari/nokturnfm

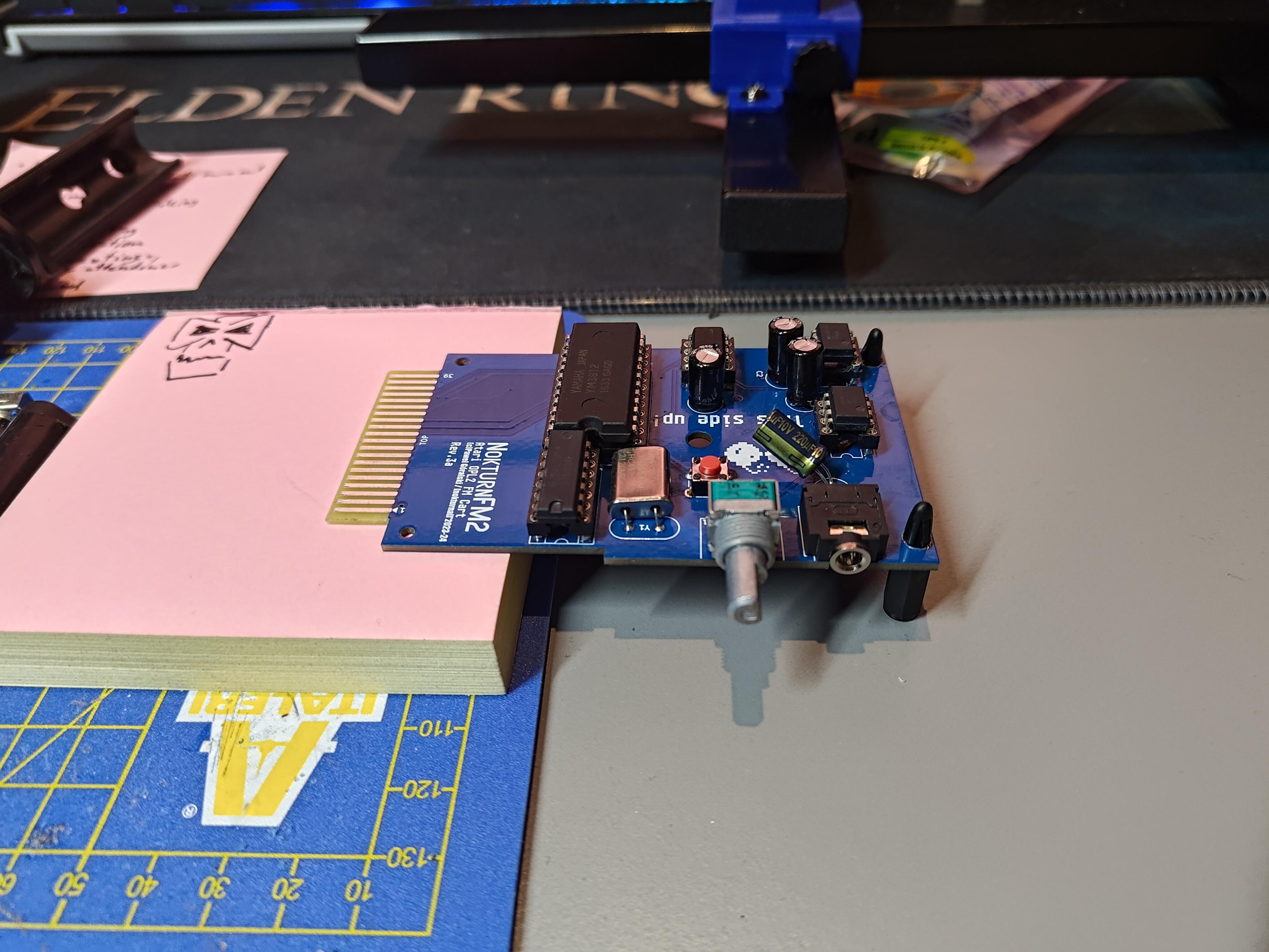

I've improved NokturnFM2/3 carts a little, I've added plastic spacers, so they will not hang on rom port (got to drill bigger holes in pcb, due M2,5 spacers) and I've changed old linear potentiometer to logarythmic in NokturnFM2, which was good choice, because on old one in the middle of the range i've got audio distortions (no surprise). I also experiment with alternative opamps on both cart types. #atarist #nokturnfm #opl2 #opl3
I've just ordered parts for small batch of NokturnFM2, NokturnFM3 carts (10pcs each). Ordering parts is exhausting.. Took me like 5h today. Hopefully I had BOM list with links to parts, which halved the amount of work needed to assembly everything. Worst thing is syncing order with existing electronic parts inventory (to not end up with alot of unused parts). #atarist #opl2 #opl3 #nokturnfm I've also decided to give up cartridge case for now.
Finally finished rebuilding my #chiptune and video workflow on Linux, so now for some new covers! This one is JCH's "Commercial Rhythm", originally a FastTracker module, now on Yamaha #YM3812 (#OPL2).
‘Warlord - A Blib’ - a silly little Adlib / OPL2 track from 2009 now available on Soundcloud. Written with Amusic tracker and originally for BOTB's Winter Chip IV compo. |
https://on.soundcloud.com/An4kz #chiptune #adlib #OPL2
"Warlord - Wintersports 2052 (2011, Adlib / OPL2)" -now available in Youtube: https://youtu.be/3EEu6_7dHyY?si=-KIiGjhMGUYYVygh #chiptune #adlib #OPL2
"Warlord - The Final Hour (2012, Adlib / OPL2)" now available on Youtube: https://youtu.be/ivClRajY0bg?si=eB5KELvAlVVWweUs #chiptune #adlib #opl2
Blast from the past that I re-visited today: DOSTECH by Chip Champion (2017). I concur with the description: "These tunes are guaranteed to have made you crap your pants in 1990." 😄 Check it out if you dig #Adlib tunes 👌 https://chipchampion.bandcamp.com/album/dostech #chiptune #OPL2 #MSDOS
The OPL Archive - Release 9!
87 new songs! A variety of artists make up today's update - 31 of them are newly added!
We're up to 1272 songs by 207 artists.
I have just released VGMSlap R3! MS-DOS's most visually stimulating VGM player is better than ever!
https://github.com/MrKsoft/vgmslap
New channel level bars to stare at! Percussion/rhythm mode works! Bug fixes! And the source code is more readable!
#atarist #opl2 #opl3 just received new pcb's with fixed 'reverted' data bus.I've submitted also final version of pcbs to production.Probably i will test them next week. If they will be ok, then i guess it will be end of this journey. The only thing will be improving software. I've also got name for both cartridges: NokturnFM3 and NokturnFM2.FM for frequency modulation synthesis,2 or 3 stands for OPL type, nokturn - has musical meaning, development was during late nights and my site is nokturnal.
#atarist #opl2 #opl3 #cart I've recorded several video/audio captures of 520ST+ equipped with my two OPL2 and OPL3 cart prototypes and replayed standard OPL3/OPL2 tune playlists which I've used on other devices. https://youtu.be/pXyDYWVE5iQ?feature=shared, https://youtu.be/9DJk52oY7KA?feature=shared, https://youtu.be/WzHFSJ29N9A?feature=shared, https://youtu.be/jSGr0RvY1C8?feature=shared
#atarist #opl2 #opl3 I've posted two samples recorded from opl2/carts plugged into Atari 520ST+ on Atari Forum (https://www.atari-forum.com/viewtopic.php?f=15&t=41814&p=466110#p466110).
#atarist #opl2 so my secret opl2 cartridge works. Turns out if you connect address lines not in reverse order things start to work 🤣. I've made similar mistake in opl3 version. Stared on this error for months on schematics without noticing.. What a relief. Fortunately i could patch it on driver level, but still pcb needs to be fixed. Funny thing is that i've looked at schematics by accident briefly today and i thought after looking at cart interface wtf i was thinking then...
VGMSlap R2 is ready!
https://github.com/MrKsoft/vgmslap/releases/tag/r2
Improved screen drawing code and a whole load of little fixes to make your experience better.
