#dancingtransistors

2024-03-14

More #soldering done. All components are placed now, only have to do a few connections and jumper wires. I really notice how I'm improving.
Also, the return of the dancing #transistors, this time two #JFET.
#diysynth #perfboard #dancingtransistors

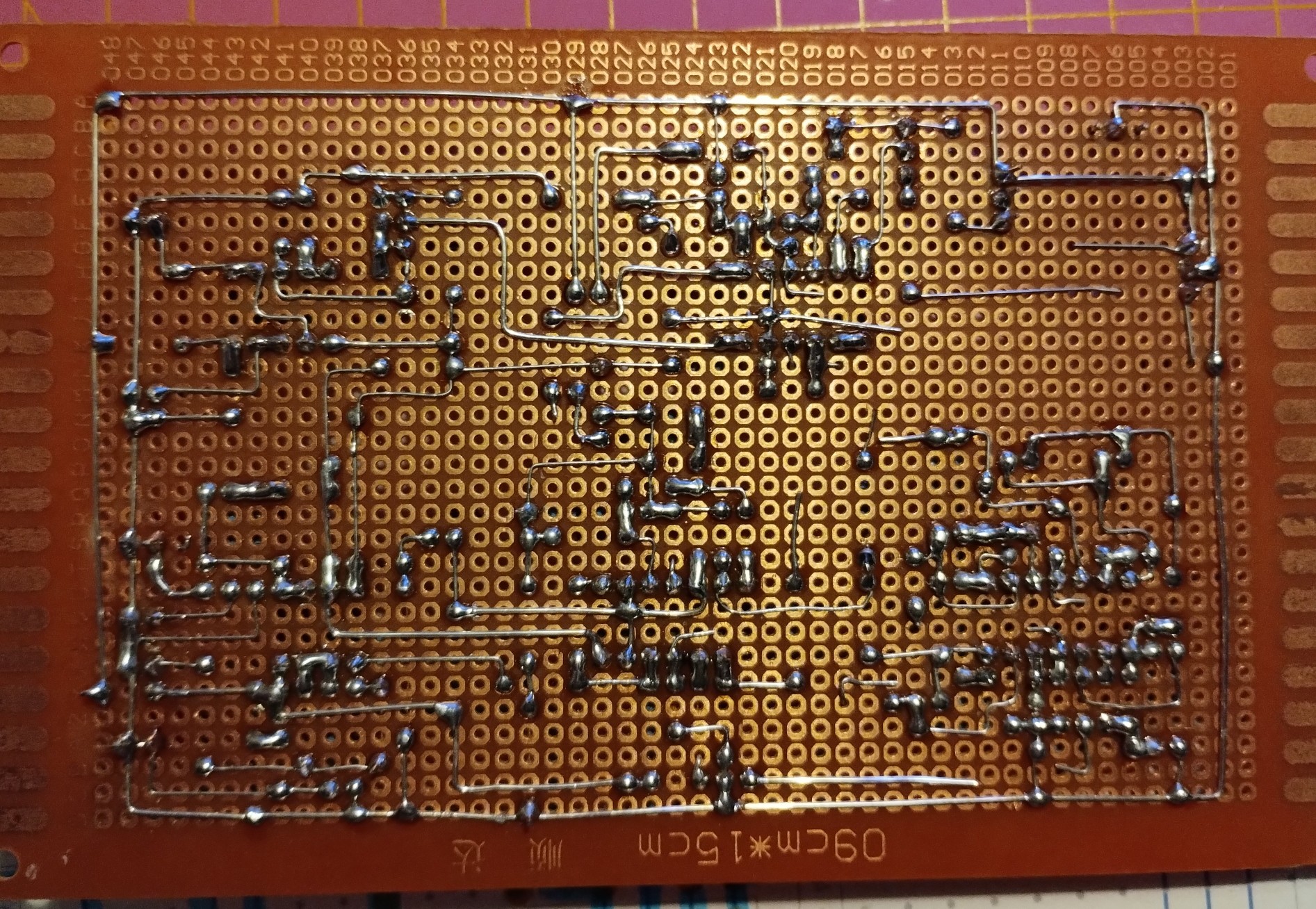

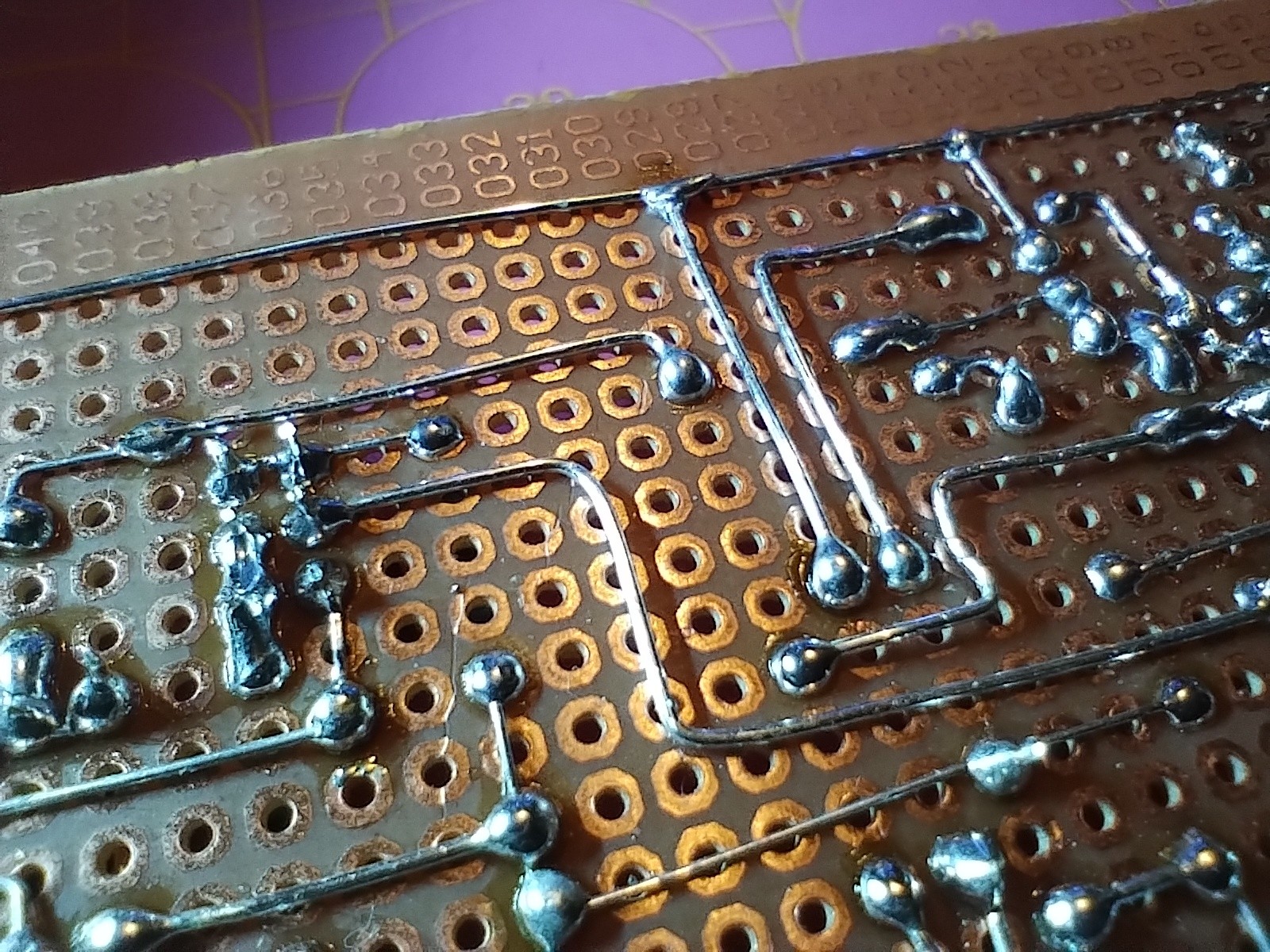

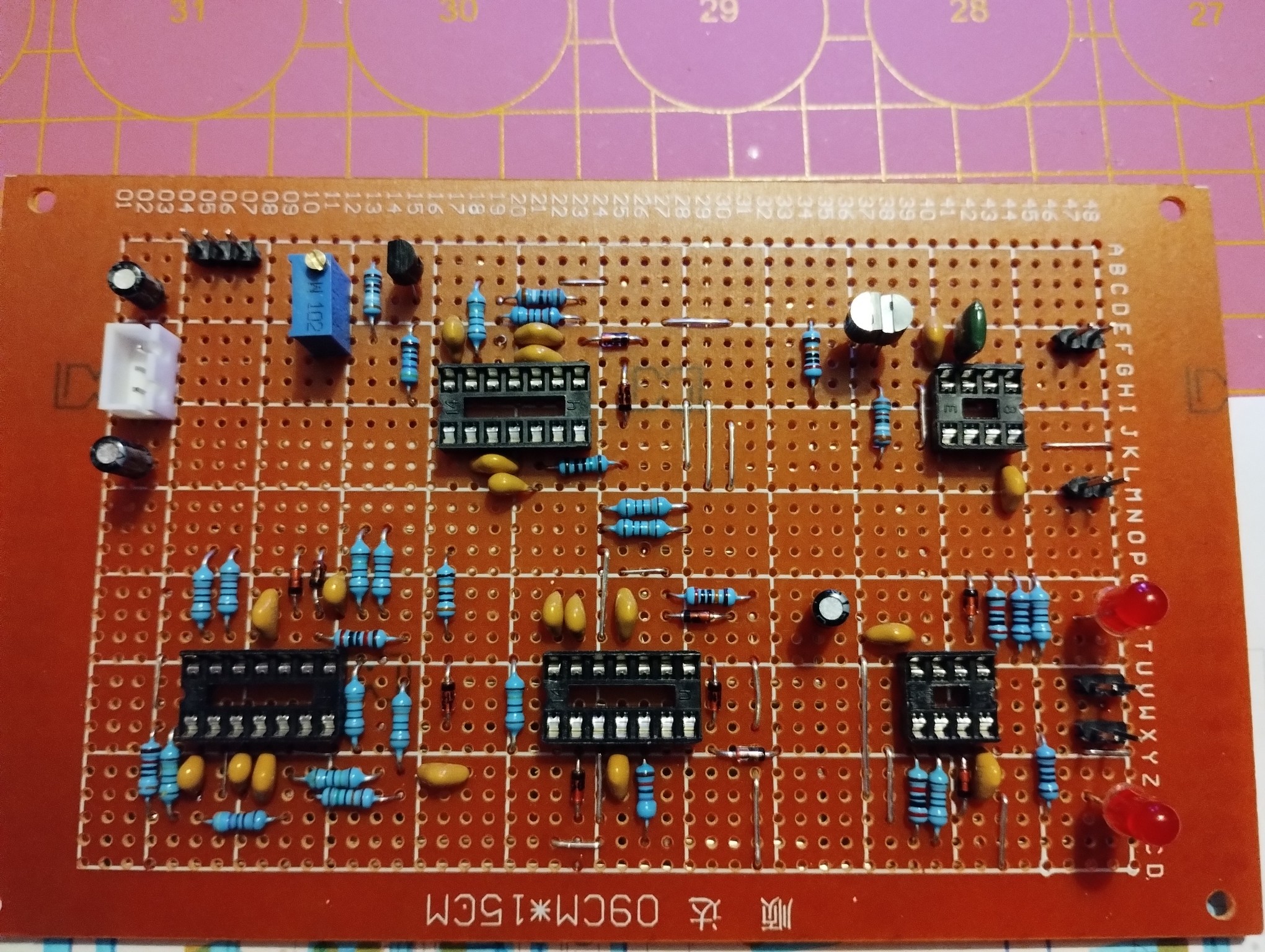

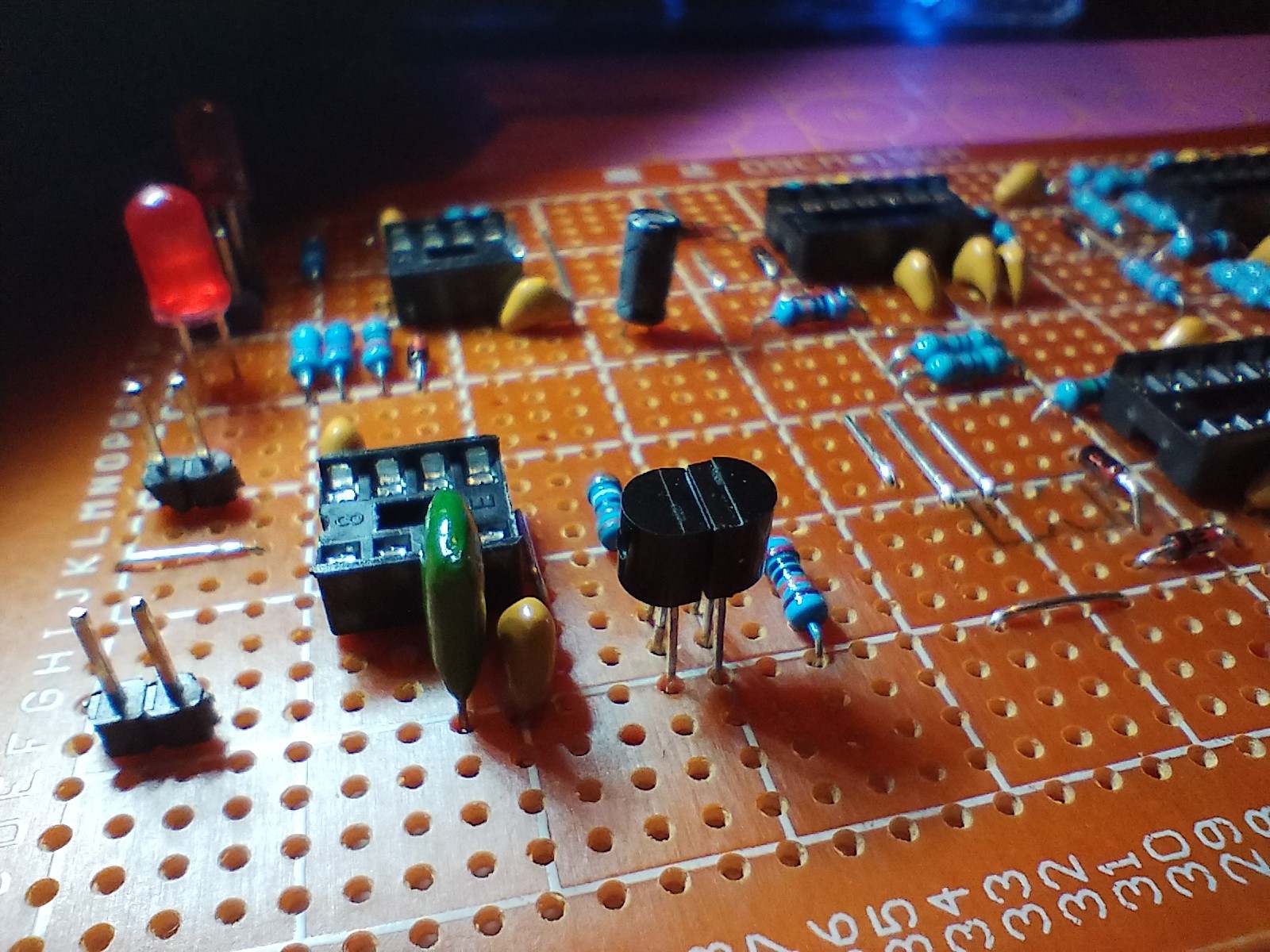

top side of the fully populated perfboard. power connector is at the left, key board connector top left, CV outputs on the right side, and the gate and trigger outputs with LEDs to the bottom rightbottom view of the perfboard showing the solderingcloseup of the dancing JFETs, not glued together this timecloseup detail of the bottom side showing some of the soldering
