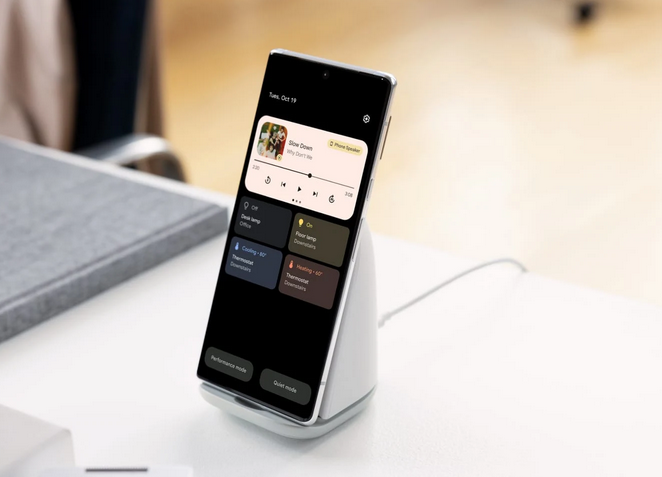

Google Pixel Stand (2nd Gen) is now available for $79 and ships in December.

-Up to 23W for compatible Pixel phones.
-Supports up to 15W (EPP) for Qi Certified devices.

#pixelstand #googlepixel #qicharger #google #wirelesscharging

Adding Wireless Charging to the Switch Lite

The Nintendo Switch is a monstrously popular machine, and it's had no difficulty raking in the bucks for the Japanese gaming giant, but there's no denying that it's technologically a bit behind the curve. Until the long-rumored "Pro" version of the Switch materializes, industrious gamers like [Robotanv] will simply have to make up for Nintendo's Luddite ways by hacking in their own upgraded hardware.

In this case, [Robotanv] wanted to add Qi wireless charging to his Switch Lite. He figured that if all of his other mobile devices supported the convenient charging standard, why not his portable gaming system? Luckily, the system already supports the increasingly ubiquitous USB-C, so finding an aftermarket Qi receiver that would connect to it was no problem. He just needed to install it into the handheld's case.

After liberating the Qi receiver from its protective pouch enclosure to get it a bit thinner, [Robotanv] taped it to the inside of the system's case and ran thin wires to the rear of the USB-C port. As luck would have it, Nintendo was kind enough to put some test pads for the power pins right behind the port, which made for an ideal spot to connect the charger.

At first he only connected the positive and negative lines from the charger, but quickly realized he also had to connect the CC pin to get the juice flowing. After that, it was just a matter of buttoning the system back up. All told, it looks like a pretty simple modification for anyone who's not bashful about taking a soldering iron to their $199 console.

We've seen these Qi receivers retrofitted into devices before, and it remains an excellent way to add the feature not only to commercial products, but to your own projects.

#nintendohacks #nintendoswitch #qi #qicharger #retrofit #usbc #wirelesscharging #wirelesscharginghack

Gaming Headset Gets Simple Wireless Charging

Despite the technology itself being widely available and relatively cheap, devices that offer wireless charging as a feature still aren't as common as many would like. Sure it can't deliver as much power as something like USB-C, but for low-draw devices that don't necessarily need to be recharged in a hurry, the convenience is undeniable.

Sick of having to plug it in after each session, [Taylor Burley] decided to take matters into his own hands and add wireless charging capability to his Turtle Beach Recon 200 headset. But ultimately, there's nothing about this project that couldn't be adapted to your own particular headset of choice. Or any other device that charges via USB, for that matter.

To keep things simple, [Taylor] used an off-the-shelf wireless charging transmitter and receiver pair. The transmitter is housed in a 3D printed mount that the headset hangs from, and the receiver was simply glued to the top of the headset. The receiver is covered with a thin 3D printed plate, but a couple turns of electrical tape would work just as well if you didn't want to design a whole new part.

Once everything was in place, he then ran a wire down the side of the headset and tapped into the five volt trace coming from the USB port. So now long as [Taylor] remembers to hang the headset up after he's done playing, the battery will always be topped off the next time he reaches for it.

Considering how many projects we've seen that add wireless charging to consumer devices, it's honestly kind of surprising that it's still not a standard feature in 2021. Until manufacturers figure out what they want to do with the technology, it seems like hackers will just have to keep doing it themselves.

#digitalaudiohacks #wirelesshacks #3dprintedparts #headset #qicharger #wirelesscharging
