How 3D Printing Works: The Revolutionary Layer-by-Layer Manufacturing Process Explained

1,987 words, 11 minutes read time.

HELLO3D 3D Printer Filament,PLA Plus Filament 1.75mm
Amazon Affiliate Link

The world of manufacturing has undergone a revolutionary transformation with the advent of 3D printing. Once thought to be the realm of high-tech laboratories and research institutions, 3D printing has become an accessible and practical tool used by hobbyists, engineers, designers, and manufacturers alike. But how does this fascinating technology actually work? Why has it garnered so much attention and what makes it so appealing? In this article, we’ll explore the science behind 3D printing, break down the layer-by-layer manufacturing process, and look at how 3D printing is changing industries from healthcare to aerospace.

What is 3D Printing?

3D printing, also known as additive manufacturing, is the process of creating three-dimensional objects from a digital file. Unlike traditional manufacturing methods, which typically involve cutting or shaping material, 3D printing adds material layer by layer to build up an object. This method allows for incredible flexibility in design, as the process can create intricate and complex structures that would be impossible or too expensive to produce using conventional techniques.

At the core of 3D printing is a digital model. Using specialized software, designers create a virtual representation of an object, which is then converted into instructions that a 3D printer can follow. These instructions dictate the exact movements and material deposition required to fabricate the object. The printer follows these commands, laying down layers of material that harden or fuse together to create a solid piece.

The Science Behind 3D Printing

The beauty of 3D printing lies in its simplicity and precision. The process begins with a digital 3D model, often created using Computer-Aided Design (CAD) software. This model is then “sliced” into thin horizontal layers by slicing software, each representing a thin cross-section of the final object. The printer follows these slices to build the object layer by layer.

When a 3D printer is turned on, it uses specific materials (such as plastic, metal, or resin) to create an object. For most common desktop 3D printers, materials like PLA (Polylactic Acid) and ABS (Acrylonitrile Butadiene Styrene) are used. These thermoplastics are heated to a molten state and extruded through a nozzle. The nozzle moves according to the instructions provided by the software, precisely depositing material layer by layer. As each layer cools, it bonds to the previous layer, eventually creating a solid object.

The concept of “additive manufacturing” means that material is only added where it’s needed, rather than being removed like in traditional subtractive manufacturing (think CNC machines or milling). This results in less material waste, making 3D printing more environmentally friendly compared to conventional methods.

Types of 3D Printing Technologies

There are several different 3D printing technologies, each with its own unique process for creating objects. These technologies vary in terms of the materials they use, the speed of printing, and the level of detail they can achieve.

Fused Deposition Modeling (FDM) is perhaps the most well-known and widely used 3D printing technology. It works by extruding molten thermoplastic filament through a heated nozzle, which builds up the object layer by layer. FDM is commonly used for prototypes and small-scale production of plastic parts.

Stereolithography (SLA) is another popular 3D printing method that uses ultraviolet (UV) light to cure liquid resin, layer by layer. SLA is capable of producing highly detailed prints with smooth surfaces, making it ideal for creating intricate models and parts that require fine details.

Selective Laser Sintering (SLS) is a 3D printing method that uses a high-powered laser to fuse particles of powder (often nylon, metal, or ceramic) together. SLS printers can create complex and durable parts, especially in industries like aerospace and automotive manufacturing.

Other technologies, such as Digital Light Processing (DLP) and Electron Beam Melting (EBM), work in similar ways but use different light sources or methods for material fusion. Each of these methods offers advantages depending on the specific application and material requirements.

Materials Used in 3D Printing

The choice of material plays a crucial role in the success of a 3D printed object. While plastic materials like PLA and ABS dominate the market, there is an ever-growing range of materials being developed to cater to different industries and applications.

Thermoplastics are the most commonly used materials in 3D printing. PLA, a biodegradable plastic made from renewable resources, is often used for prototypes and educational projects. ABS, on the other hand, is a more durable and heat-resistant plastic commonly used for more robust applications, such as automotive or consumer goods.

For industrial applications, metal 3D printing has seen rapid growth. Materials like titanium, stainless steel, and aluminum are used in additive manufacturing to produce strong, lightweight parts. This is particularly useful in industries such as aerospace, where the demand for strong but lightweight components is high.

Resins are another material category in 3D printing. These materials are used with SLA and DLP printers and can be tailored for specific properties like flexibility, strength, or transparency. In medical and dental applications, biocompatible resins are used to create implants, dental crowns, and prosthetics.

One of the most exciting advances in 3D printing is the use of bio-printing, where living cells are used as the “ink” to print tissues and organs. While this field is still in its early stages, researchers are hopeful that 3D printing could revolutionize medicine by allowing for the creation of custom tissues and, eventually, organs for transplantation.

The Layer-by-Layer Process

The process of creating a 3D printed object starts with the creation of a digital file. Once the model is ready, slicing software divides it into thin horizontal layers. These layers are the key to how 3D printing works: the printer builds each layer on top of the one beneath it, gradually forming the complete object.

The key to the layer-by-layer process is precision. As the 3D printer deposits material, it does so with incredible accuracy, ensuring that each layer adheres perfectly to the one before it. This precision allows for the creation of highly detailed objects with complex geometries that would be impossible to achieve through traditional manufacturing.

In addition to precision, the layer-by-layer process also offers flexibility. Since the printer builds up an object from the bottom up, it can create intricate internal structures that are impossible to achieve through traditional molding or casting techniques. This is particularly useful for industries that require lightweight yet strong components, such as aerospace or automotive manufacturing.

The Role of Software in 3D Printing

The software used in 3D printing is just as important as the hardware. Computer-Aided Design (CAD) software is used to create the 3D model of the object, while slicing software breaks that model down into layers that the 3D printer can understand. These files are then sent to the printer, which interprets the instructions and begins the manufacturing process.

In addition to CAD and slicing software, calibration and print settings play a significant role in the final quality of the 3D print. Factors such as print speed, temperature, and layer height all need to be fine-tuned to achieve the best results. For example, a higher layer height will speed up the printing process but can result in less detail and rougher surfaces. A lower layer height, on the other hand, will produce finer detail but can significantly slow down the process.

The advancements in software also include the development of specialized programs that cater to specific industries. For example, in the medical field, software has been developed to help doctors design custom prosthetics and implants based on a patient’s unique anatomy.

Advantages of 3D Printing

One of the biggest advantages of 3D printing is its ability to create custom, one-of-a-kind objects. Since 3D printing is based on digital files, it’s easy to modify designs and produce a single item without the need for expensive molds or tooling. This flexibility makes 3D printing an ideal choice for rapid prototyping and custom manufacturing.

Another key advantage is the speed of production. In many cases, 3D printing can produce objects faster than traditional manufacturing methods. This is particularly important in industries where time-to-market is critical. 3D printing can also reduce the cost of producing small batches of parts, which is often too expensive using traditional methods like injection molding.

The precision and accuracy of 3D printing also open up new possibilities in design. Complex geometries that would be difficult or impossible to create using traditional manufacturing techniques can be produced easily with 3D printing. This has been a game-changer in fields like aerospace, where lightweight, strong, and intricate components are essential.

Challenges and Limitations of 3D Printing

Despite its many advantages, 3D printing does have some challenges. One of the most significant limitations is the materials that can be used. While there has been tremendous growth in the variety of materials available for 3D printing, it is still not possible to print every material in every application. For example, 3D printed metal parts, while incredibly strong, can be expensive and may not be suitable for all industrial applications.

Another challenge is the size of objects that can be printed. Most consumer-grade 3D printers are limited in terms of print size, making it difficult to produce large parts or objects. However, industrial 3D printers are capable of printing much larger objects, although these machines can be costly.

Finally, print speed and accuracy can also pose challenges. While 3D printing can be faster than traditional manufacturing in some cases, the process is still slower than other methods for mass production. Additionally, the layer-by-layer approach may result in visible lines or imperfections, depending on the quality of the printer and settings used.

The Future of 3D Printing

Looking ahead, the future of 3D printing is incredibly exciting. As technology continues to improve, 3D printers will become faster, more accurate, and more versatile. The development of new materials, including more advanced metals and even bio-materials, will expand the possibilities for 3D printing across industries.

In the medical field, we may see the ability to print functional organs and tissues in the not-too-distant future. In aerospace and automotive manufacturing, 3D printing will continue to play a major role in reducing weight and increasing efficiency. And in the consumer world, 3D printing will increasingly become a tool for creating custom products and parts.

With the rise of artificial intelligence and machine learning, 3D printing will become even more advanced. We may soon see 3D printers that can autonomously adjust settings or improve their own accuracy over time, further improving the process.

Conclusion

In conclusion, 3D printing is changing the way we think about manufacturing. By using a layer-by-layer approach to building objects, 3D printers offer unparalleled flexibility, precision, and customization. While there are still challenges to overcome, the possibilities for 3D printing are endless. Whether you’re a hobbyist, a designer, or an engineer, the impact of 3D printing will continue to grow, revolutionizing industries and everyday life.

If you’re passionate about 3D printing and want to stay updated on the latest advancements and insights, be sure to subscribe to our newsletter or leave a comment to join the conversation. Let’s keep exploring the world of 3D printing together!

D. Bryan King

Sources

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

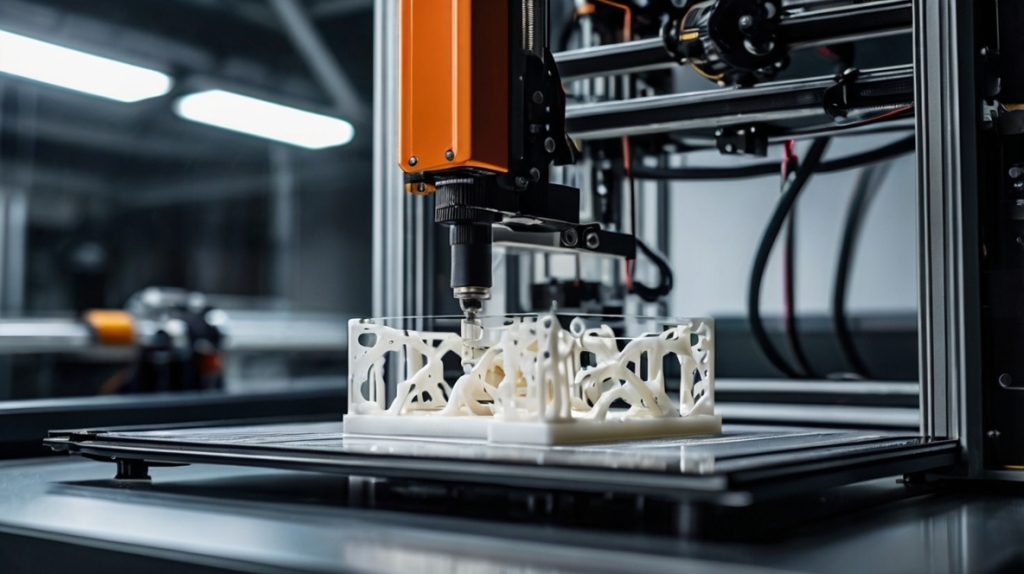

An AI-generated image depicting the intricate process of 3D printing, where precision meets innovation. 🌟

🛻 Why the Ford Maverick Makes Sense
The Ford Maverick is low, light, comfy — and even offers 3D printable accessories for customization. It’s the sensible truck for people who miss the pickups of the 70s and 80s.
Watch more at www.AwesomeCast.com & www.SorgatronMedia.com!
#FordMaverick #SensibleTruck #3DPrintedParts #ModernPickup #AwesomeCast

Multi-Material Printing Enables Low Cost Silicone Prototypes https://hackaday.com/2024/09/04/multi-material-printing-enables-low-cost-silicone-prototypes/ #injectionmolding #3Dprintedparts #prototype #silicone #Parts #mold

Just ordered a #elegoo #saturn3ultra to enhance my hobby builds etc. looking forward to getting to grips with this bit of kit when it arrives. #3dprinting #3dprinter #3dprintedminiature #3dprintedparts #hobby #warhammer #warhammer40k #scalemodels #kingsofwar #walkingdead #xwing #dnd #dungeonsanddragons

2023 Cyberdeck Challenge: Modular Cyberdeck Creation Kit https://hackaday.com/2023/08/22/2023-cyberdeck-challenge-modular-cyberdeck-creation-kit/ #2023CyberdeckChallenge #3Dprintedparts #offtheshelf #Cyberdecks #cyberdeck #steamdeck #contests #OTS

After a few revisions, we have a winner! Needs some sanding and cleaning, but is fully functional. Just need #Polymaker to help matching color.
#macintosh #apple #powerbook #3Dprintedparts

Skip the Shipping, Print Your Own Cable Chains

CNC machines and 3D printers tend to have plenty of cabling which must be neatly managed while the machine moves. If not properly taken care of, wires can easily end up tangled in the moving bits leading to a dead machine at best, and some kind of raucous fire at worst. [Nikodem Bartnik] decided to create his own cable chains for his CNC build to keep everything in check.

The benefit of cable chains is that they stop cables splaying everywhere while still allowing them to move as needed with the axes of the machine. [Nikodem] created 20mm and 40mm chains for his build, affixed into the aluminium extrusion with bolts and T-nuts for easy assembly. The chains are assembled by hand, with 3D printed clips that hammer in place to hold the cables inside once inserted.

Of course, there's nothing stopping you from buying cable chains off the shelf. But if you don't want to wait for shipping in this era of cursed supply chains, or you want a cable chain you can customize to perfectly suit your machine, making your own could be the way to go.

#parts #3dprintedparts #cablechain

3D Printing A Guitar Neck

A lot of first-time guitar builders focus on making the body and skip the neck, which has lots of tricky dimensions to get right to if you want a nicely playable instrument. However, [Jón Schone] of Proper Printing wanted to start with the hard part on his guitar building journey, and set about 3D printing a guitar neck in one piece.

Designing a neck might sound difficult on the surface of it, but the Marz Guitar Designer plugin for FreeCAD helps make whipping one up a cinch. Once imported into Fusion 360, the geometry is tweaked for 3D printing, particularly to fit the truss rod inside. Printed on a Creality CF30 belt printer (which interestingly enough, has been mounted to the wall) in green PLA, the resulting neck can be spotted as a non-traditional design from a mile away. With a truss rod hammered in, frets installed, and hardware attached, it's mounted up to a cheap kit guitar for testing.

The printed neck works, and it's given a proper shakedown with some appropriate riffs to put it through its paces. It's reportedly a bit on the flexible side, but remains playable and is surprisingly normal in its performance. [Jón] now plans to continue the project by 3D printing the rest of the guitar.

Meanwhile, if you're sick of tuning your own guitar, consider building a robot tuner to help out. Video after the break.

[Thanks to Zane Atkins for the tip!]

#musicalhacks #3dprintedparts #beltprinter #guitar #infinitebuildvolumeprinter

3D Printed Radiation Shields Get Put to the Test

Don't get too excited, a 3D printed radiation shield won't keep you from getting irradiated during WWIII. But until the Doomsday Clock starts clanging its midnight bell, you can use one to improve the accuracy of your homebrew weather monitoring station by keeping the sun from heating up your temperature sensor. But how much does it help, and what material should you load up in your extruder to make one? Those questions, and more, are the topic of a fascinating whitepaper included in the upcoming volume of HardwareX.

Design and Implementation of 3-D Printed Radiation Shields for Environmental Sensors not only tests how effective these low-cost shields are when compared to an uncovered sensor, but addresses specific concerns in regards to leaving 3D printed parts out in the elements. Readers who've squirted out a few rolls worth of the stuff will know that common polylactic acid (PLA) filament, while easy to work with and affordable, isn't known for its resilience. In fact, one of the advertised properties of the renewable plastic is that it's biodegradable (theoretically, at least), so leaving it outside for any length of time sounds like it's bound to go poorly.

PLA's mechanical strength dropped rapidly.

To make a long story short, it does. While the team demonstrated that the PLA printed radiation shield absolutely helped preserve the accuracy of the temperature and humidity sensors mounted inside of it, the structure itself began to deform rapidly from UV exposure. Further tests determined that the mechanical strength of the PLA showed a notable reduction in as little as 30 days, and a sharp decline after 90 days.

Luckily, there was more than one plastic horse in the race. In addition to the PLA printed shield, the team also tested a version printed in acrylonitrile styrene acrylate (ASA) which fared far better. There was no visible deformation of the shield, and after 90 days, the reduction in mechanical strength was negligible. It even performed a bit better when it came to shielding the temperature sensor, which the team believes may be due to the material's optical transmission properties.

So there you have it: a 3D printed radiation shield will absolutely improve the accuracy of your weather sensors, but if you want it to last outside, PLA just isn't going to cut it. On the other hand, you could also save yourself a whole lot of time by just using a stack of plant saucers. Whatever works.

Thanks to [tahnok] for the tip.

#engineering #science #3dprintedparts #radiationshield #sensor #weatherstation

Refining the Greatest Joystick of the 1980s

The Competition Pro joystick is often considered to be the pinnacle of input devices, at least as far as the 1980s gaming goes. But the design isn't perfect, and time hasn't been kind to certain aspects of its mechanism. For example, the large rubber disc used to keep the stick centered on early generations of the hardware will invariably be hardened up on any surviving specimens. Looking to return these classic controllers to their former glory, and then some, [mageb] has released a number of 3D printed modifications for the Competition Pro that should be of great interest to the vintage gamer.

The new microswitches

First and foremost is the deletion of the original rubber disc for a new spring mechanism. Even if this is the only modification you do, [mageb] says you'll already have a better and longer-lasting joystick to show for it. But if you want to continue with the full rebuild, be aware that there's no going back to stock. Once you start cutting the original parts, you're committed to taking it all the way.

Assuming you're not afraid to get your hands dirty, the next step is cutting the metal contacts from the bottom of the face buttons so they'll work with the new microswitch array he's designed. Each button gets its switch, and four handle movement of the joystick. You can try out different switches to adjust the feel of the joystick, but [mageb] assures us that he's already done the research and put the best quality switches in the bill of materials.

The end result is a Competition Pro joystick that looks more or less the same from the outside, but is considerably improved internally. That's always a win in our books, though we're sure somebody out there is going to get mad that the brittle old rubber disc wasn't sent to the Smithsonian.

#classichacks #peripheralshacks #3dprintedparts #joystick #retrocomputing #retrogaming

Gaming Headset Gets Simple Wireless Charging

Despite the technology itself being widely available and relatively cheap, devices that offer wireless charging as a feature still aren't as common as many would like. Sure it can't deliver as much power as something like USB-C, but for low-draw devices that don't necessarily need to be recharged in a hurry, the convenience is undeniable.

Sick of having to plug it in after each session, [Taylor Burley] decided to take matters into his own hands and add wireless charging capability to his Turtle Beach Recon 200 headset. But ultimately, there's nothing about this project that couldn't be adapted to your own particular headset of choice. Or any other device that charges via USB, for that matter.

To keep things simple, [Taylor] used an off-the-shelf wireless charging transmitter and receiver pair. The transmitter is housed in a 3D printed mount that the headset hangs from, and the receiver was simply glued to the top of the headset. The receiver is covered with a thin 3D printed plate, but a couple turns of electrical tape would work just as well if you didn't want to design a whole new part.

Once everything was in place, he then ran a wire down the side of the headset and tapped into the five volt trace coming from the USB port. So now long as [Taylor] remembers to hang the headset up after he's done playing, the battery will always be topped off the next time he reaches for it.

Considering how many projects we've seen that add wireless charging to consumer devices, it's honestly kind of surprising that it's still not a standard feature in 2021. Until manufacturers figure out what they want to do with the technology, it seems like hackers will just have to keep doing it themselves.

#digitalaudiohacks #wirelesshacks #3dprintedparts #headset #qicharger #wirelesscharging

3D Printed Tank Takes On The Elements

Commercially available radio control tanks are fun and all, but sometimes you've just got to build your own. [Let's Print] did just that, whipping up a tank on his 3D printer before taking it out in the snow.

The tank is a fairly straightforward build, relying on a pair of brushed motors for propulsion, controlled by twin speed controllers hooked up to standard radio control hardware. Everything else is bespoke, however, from the 3D printed gearboxes, to the chassis and the rather aggressive-looking tracks. The pointed teeth of the latter leave deep indentations when the tank cruises around on mud, though weren't quite enough to stop the little tank from getting high-centered in deep snow.

The build isn't for the impatient, however. [Let's Print] notes that the tracks alone took over 80 hours to run off in PETG, let alone the rest of the frame and gearboxes. However, we're sure it was a great learning experience, and great fun to drive outside. Now the next step is surely to go bigger. Video after the break.

#robotshacks #toyhacks #3dprintedparts #remotecontrol #tank #tanktrack #tanktread

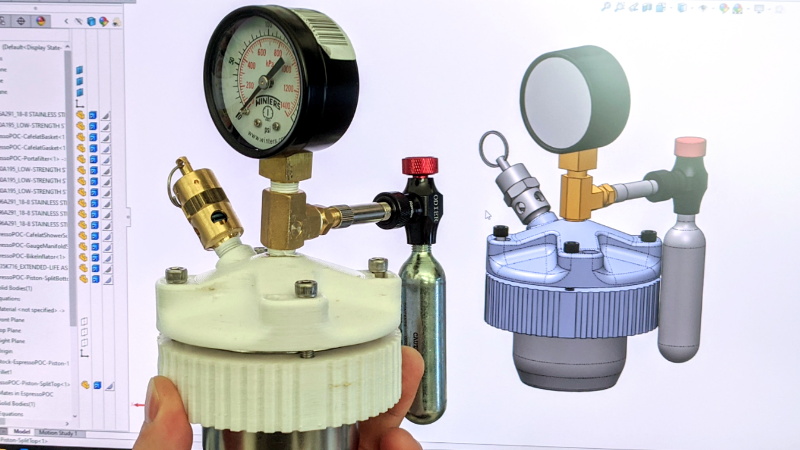

3D Printing Espresso Parts
