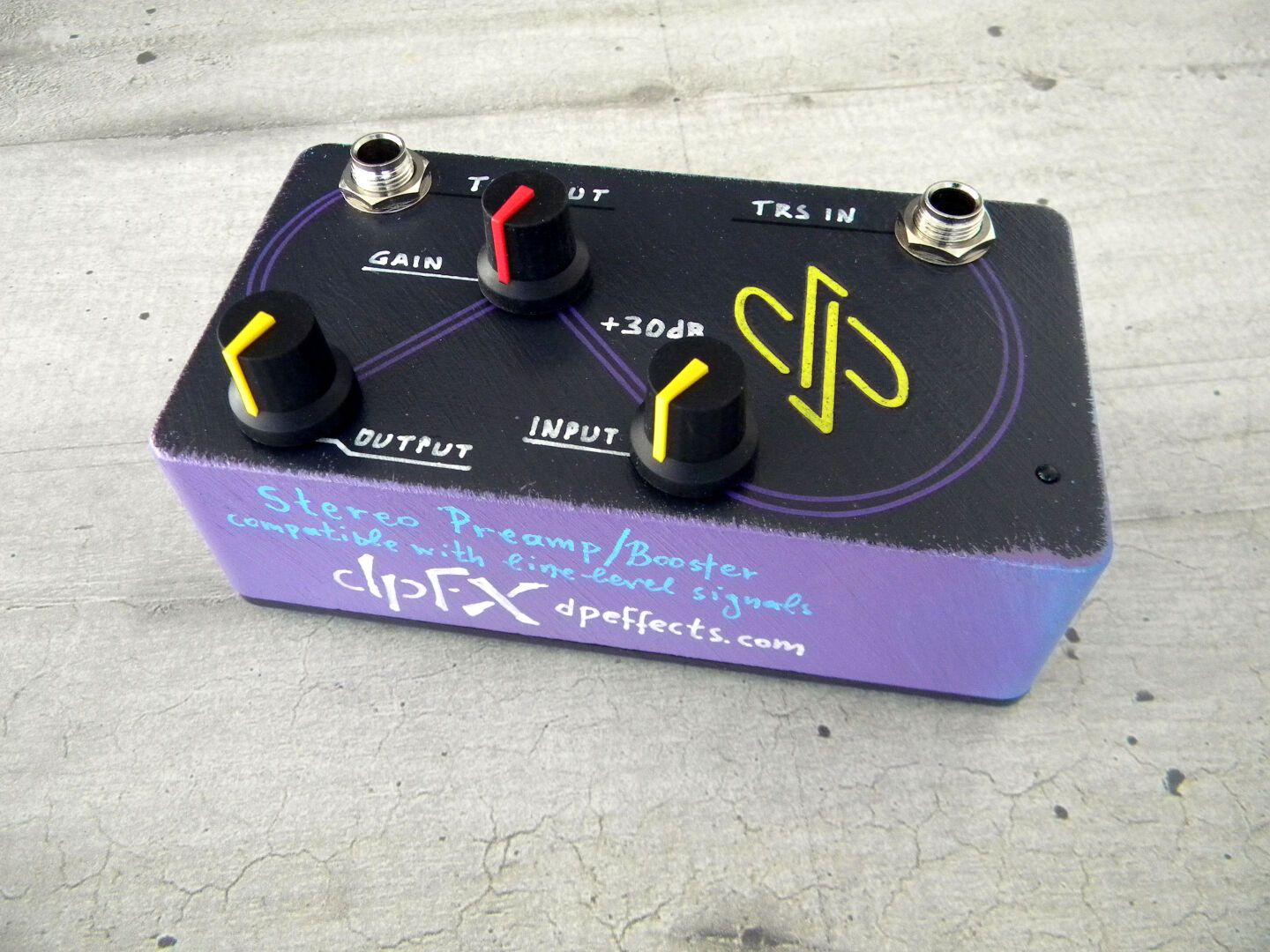

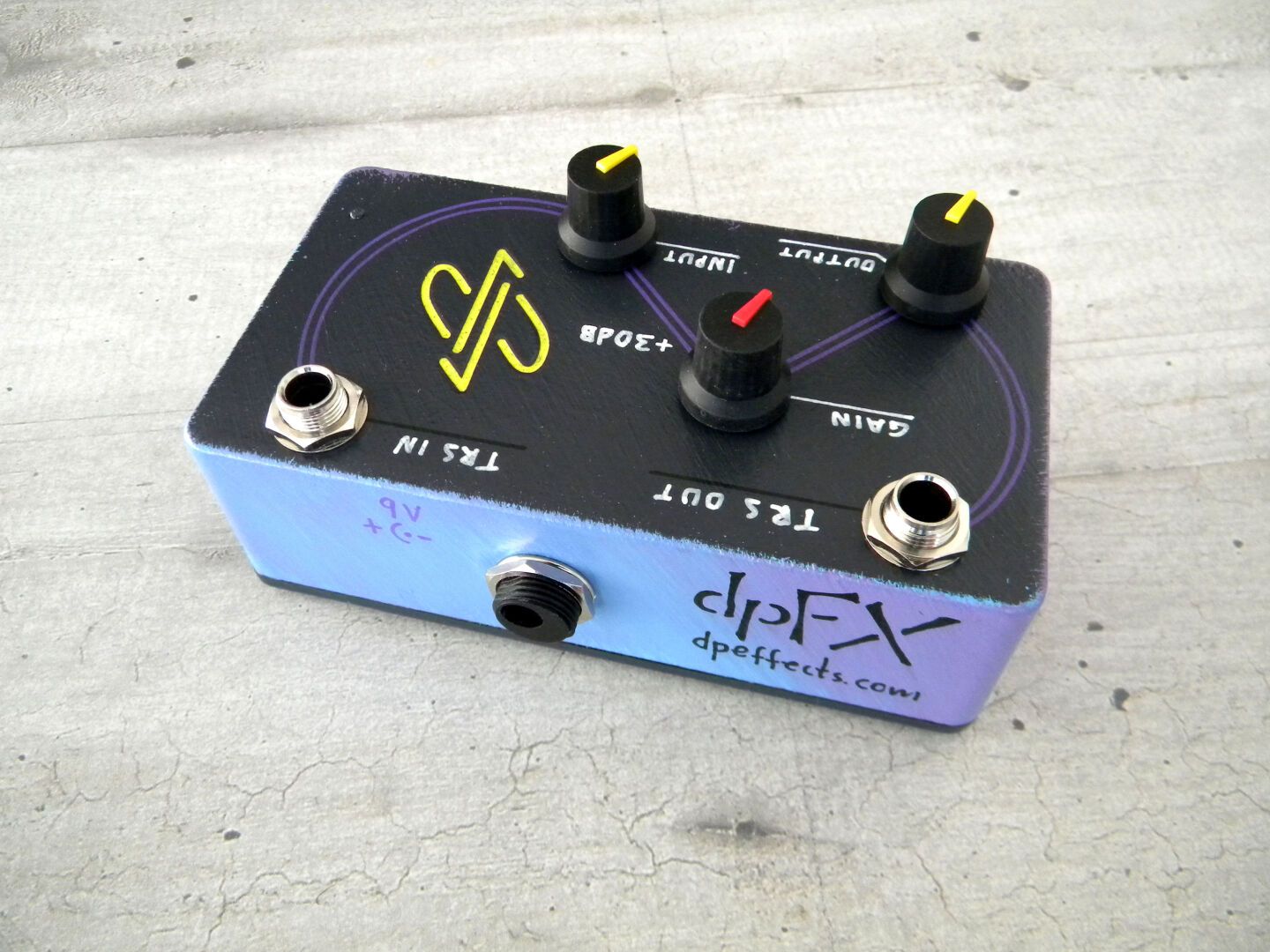

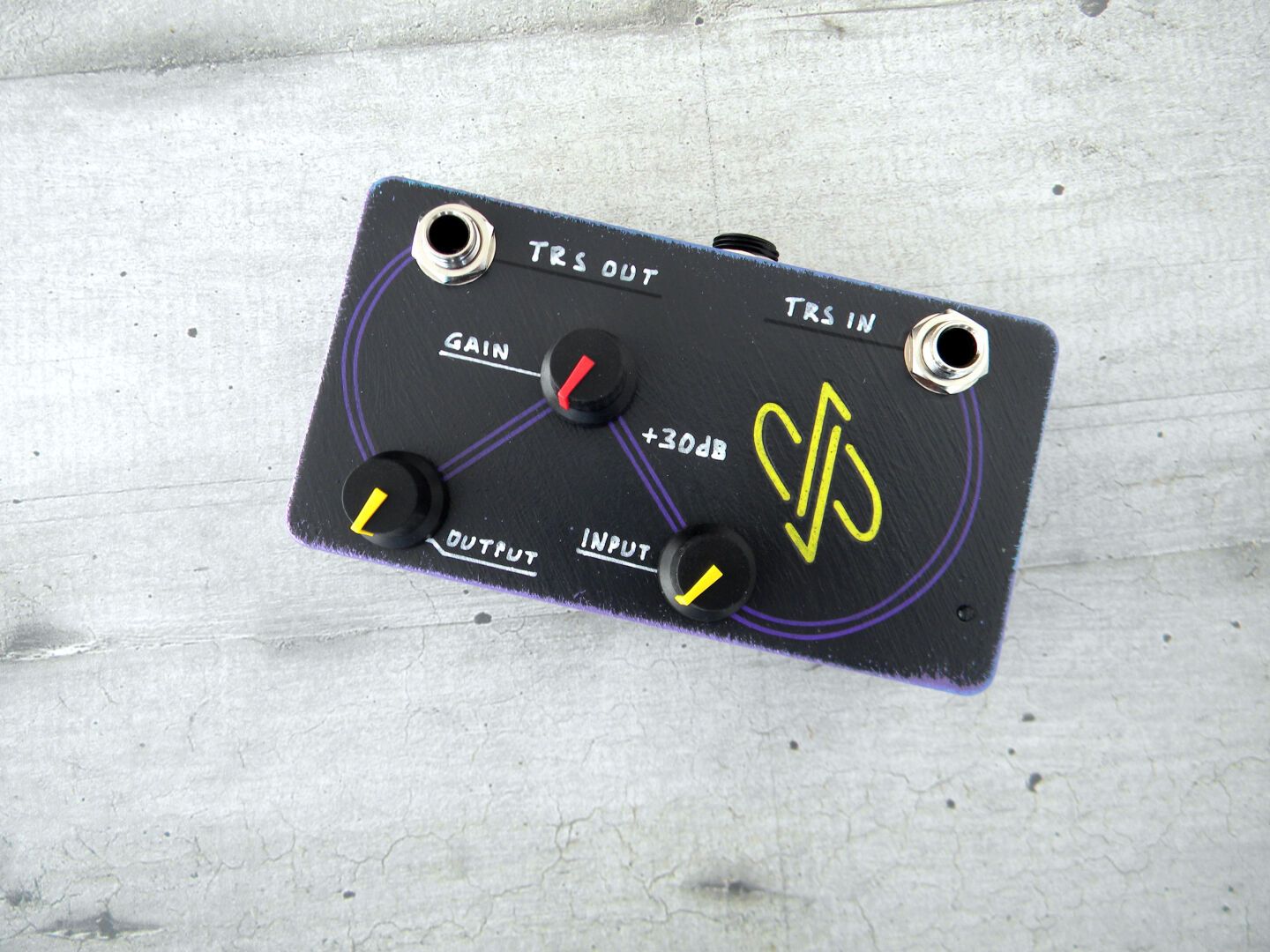

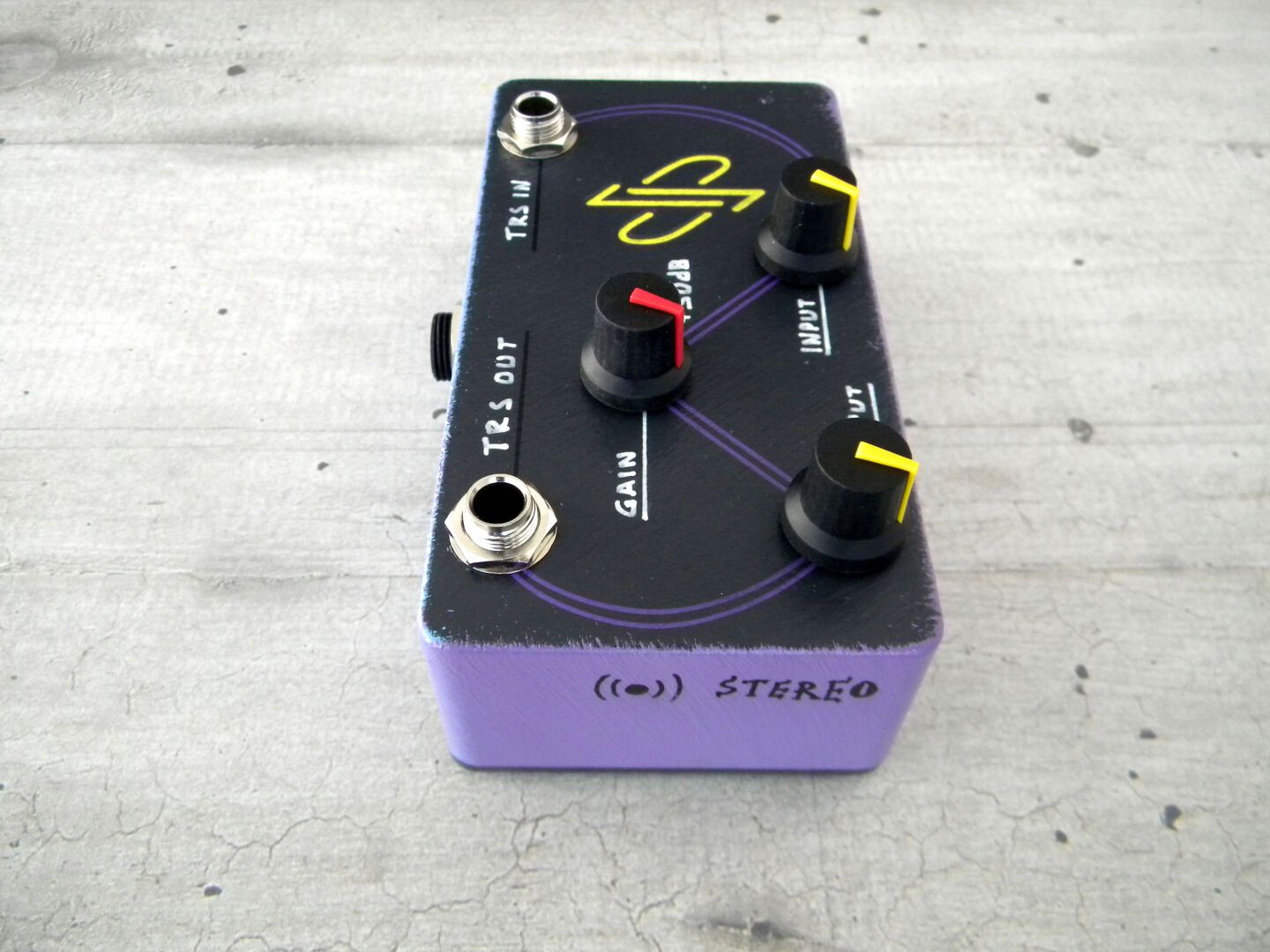

This is a Stereo Preamp capable of handling Instrument Level signals and Line Level signals as well. It can take an instrument level signal and boost it up to line level, and even further.

Specifications:
▹ Input impedance: 10MΩ
▹ Output impedance: 100Ω
▹ Boost up to +30dB
▹ Max input voltage swing: ~7.5Vpp (Input/Output knobs at max. Boost at min.)
▹ Max output voltage swing: ~24Vpp
▹ Standard TRS jacks (6.35mm, 1/4")
▹ Supply required: 9V DC (negative tip)
▹ A dedicated internal circuit takes the 9V supply and converts it to dual rail supply (+15V, 0, -15V) in order to provide the maximum possible headroom.
▹ Current draw: 45mA
▹ RF filters at the input prevent any unwanted wireless interference (e.g. radio signals etc) from entering to the audio path.
