Auf meiner #Modellbahn gehts endlich wieder weiter.

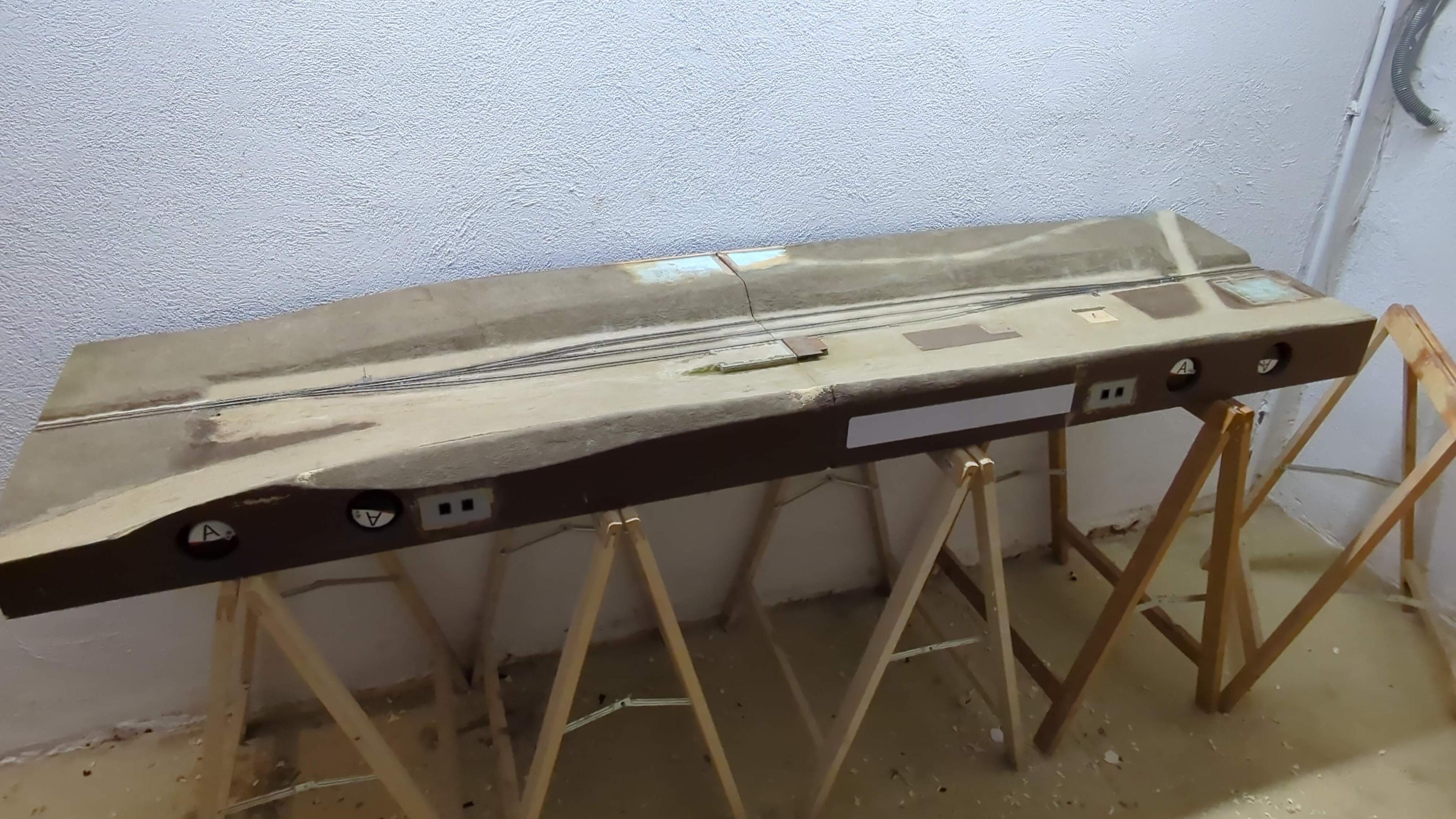

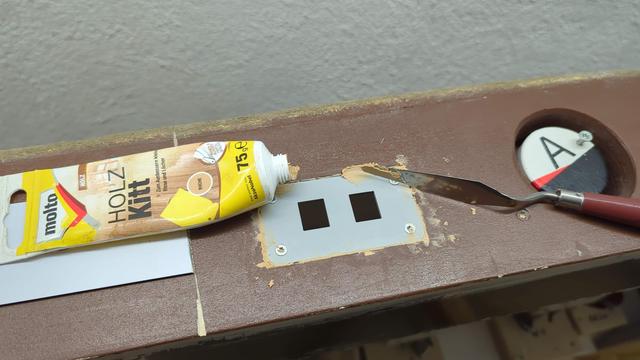

Mit neuem Licht und Elan hab ich letzte Nacht die #Stöpselbuchsen für das #Loconet in meinen Modulen des #Bahnhof #Agonitz eingebaut.

In den nächsten Tagen sollen noch die Kabel, Stecker und Kabelprüfer kommen, dann steht der Fertigstellung der Elektrik nix mehr im Weg.

Noch ein paar Bäume drehen und schon kanns grün werden in Agonitz.

(Posting enthält 6 Bilder)

Making a #Digitrax #LocoNet cable.

https://dccwiki.com/LocoNet/Making_a_LocoNet_Cable

It is critical that the type of RJ connectors match the type of wire it will be crimped on to. Stranded wire needs a plug meant for stranded wire.

Plus a good set of crimpers. Cheap ones often don't work well.

Read more about LocoNet and Throttle Networks on the DCCWiki.

Have fun with your DCC #ModelRailway .

#NMRA #NMRADCC #ModelRailways #modelrailroad

Quick Guide to #NMRADCC Consisting:

Basic: Multifunction Decoders share a Primary or Extended Address.

Advanced: Consist Address created by command station and written to CV19 in each multifunction decoder in the consist.

Command Station: Consist managed by the command station. It keeps track of which locomotives are part of the consist.

http://dcc.wiki/ZrHZo

#LocoNet
#modelrailroading #DCCModelrailroad #NMRA #ModelRailway #modelrailroad

Quick Guide to DCC Consisting:

Basic: Decoders share a Primary or Extended Address.

Advanced: Consist Address in created by command station and written to CV19 in each decoder in the consist.

Command Station: Consist managed by the command station. It keeps track of which locomotives are part of the consist.

Multiple Unit Consisting isn't that complicated, is it?

http://dcc.wiki/ZrHZo

#LocoNet
#modelrailroading #DCCModelrailroad #NMRADCC #NMRA

#LocoNet should not be arranged into a loop, as it is very important to make sure the RAIL SYNC signals are connected correctly and in sync. Otherwise they will cancel out. For this reason #Digitrax does not recommend wiring LocoNet in a loop.
