#Tofu60

Olivier Mehanishtrom@piaille.fr
2024-12-17

Keycap report for my #Promenade #Tofu60 #keyboard.

It was a bit of a battle, and I had to go down the AliExpress path as I couldn't justify the 10x price tag from Etsy and other shops (they did looks nice!).

I used 1u Cherry R4s for the bottom row, to match the WoB caps profile. I chose transparent ones in the hope of getting some RGB glow. That didn't really work. Under-PCB RGB in a solid case is meh.

For side and middle columns, try as I might, I could not find 1.5us for all rows (only R2 and R4s), or in the price range. I resorted to DSAs. They aren't too bad. I had the same issue for the 2u space bar, which is also a concave DSA.

Promenade PCB in Tofu60 case with mostly White-on-Black keycaps (except for the bottom row, which is mostly transparent caps, and the Escape key in the top-middle, which is Black-on-White). The keyboard uses an ortholinear layout, with two columns of vertical 1.5u keys in the middle, and symmetrically-arranged horizontal 1.5u keys on either side of the keyboard (for modifiers).

スイッチプレートをケースに載っけて、カバーを被せて、キーキャップをつけて完成。

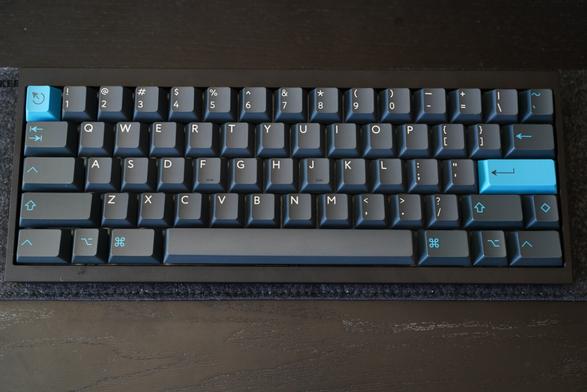

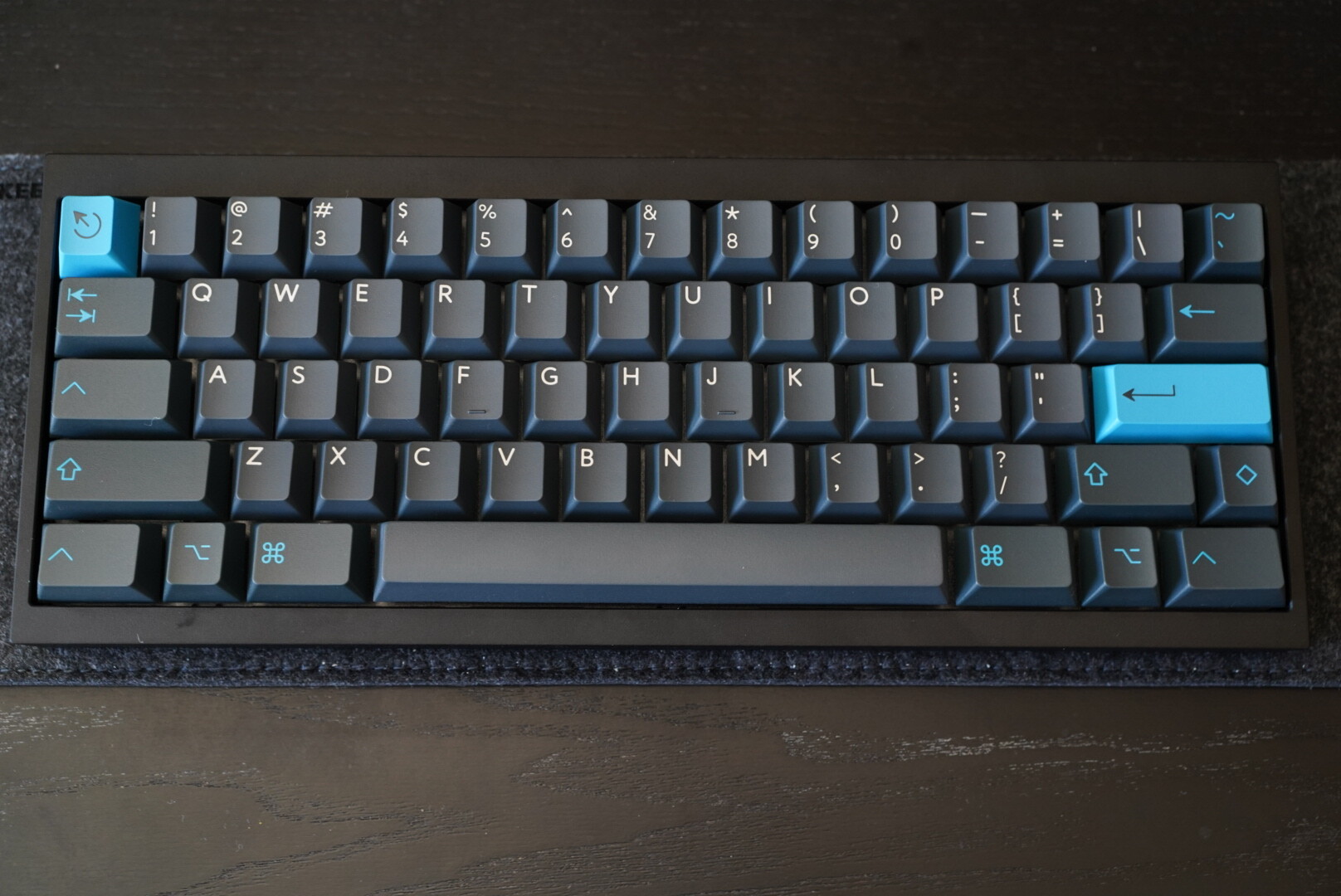

#Tofu60 2.0 & #NuPhy Polaris & #PBTfans Umbra

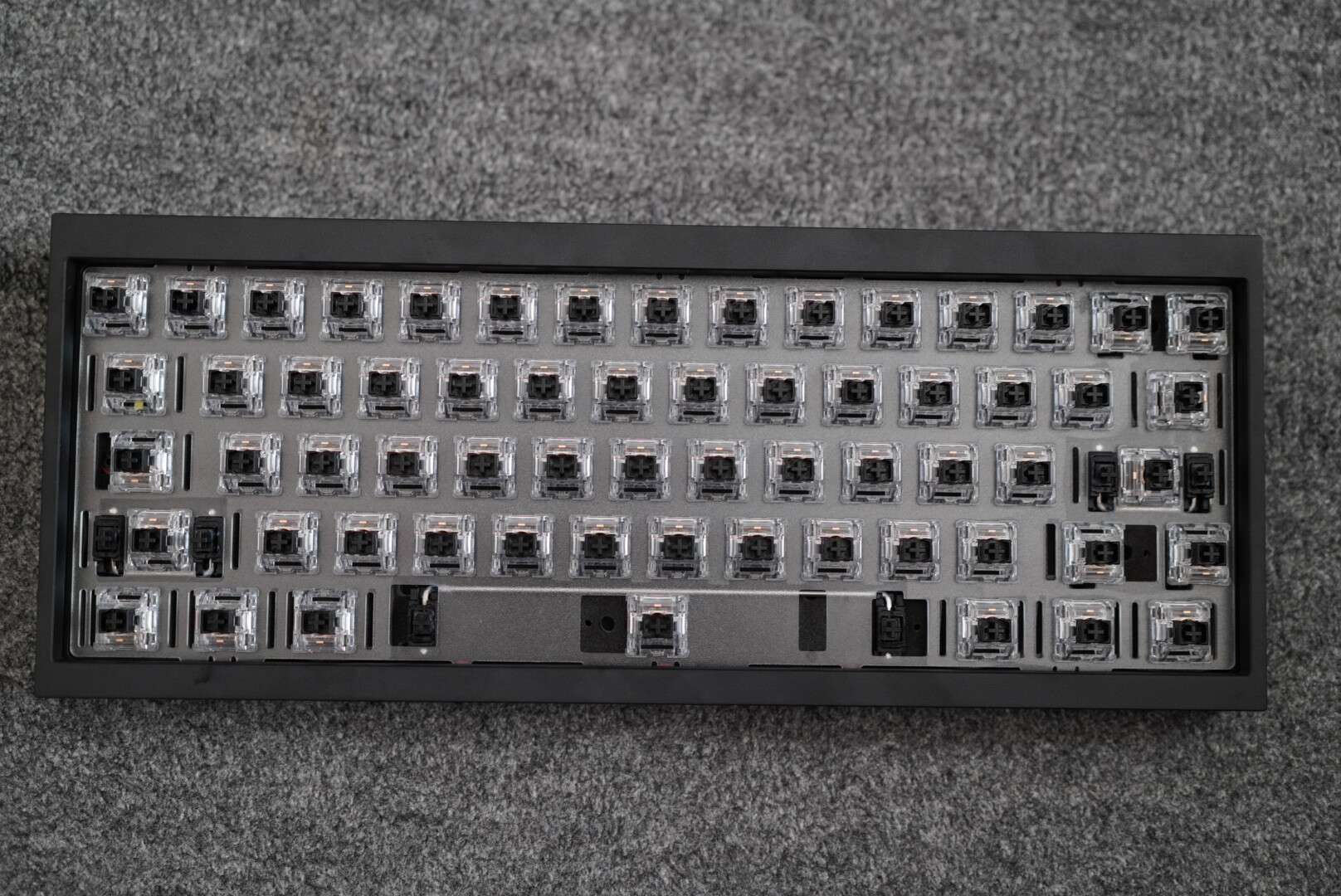

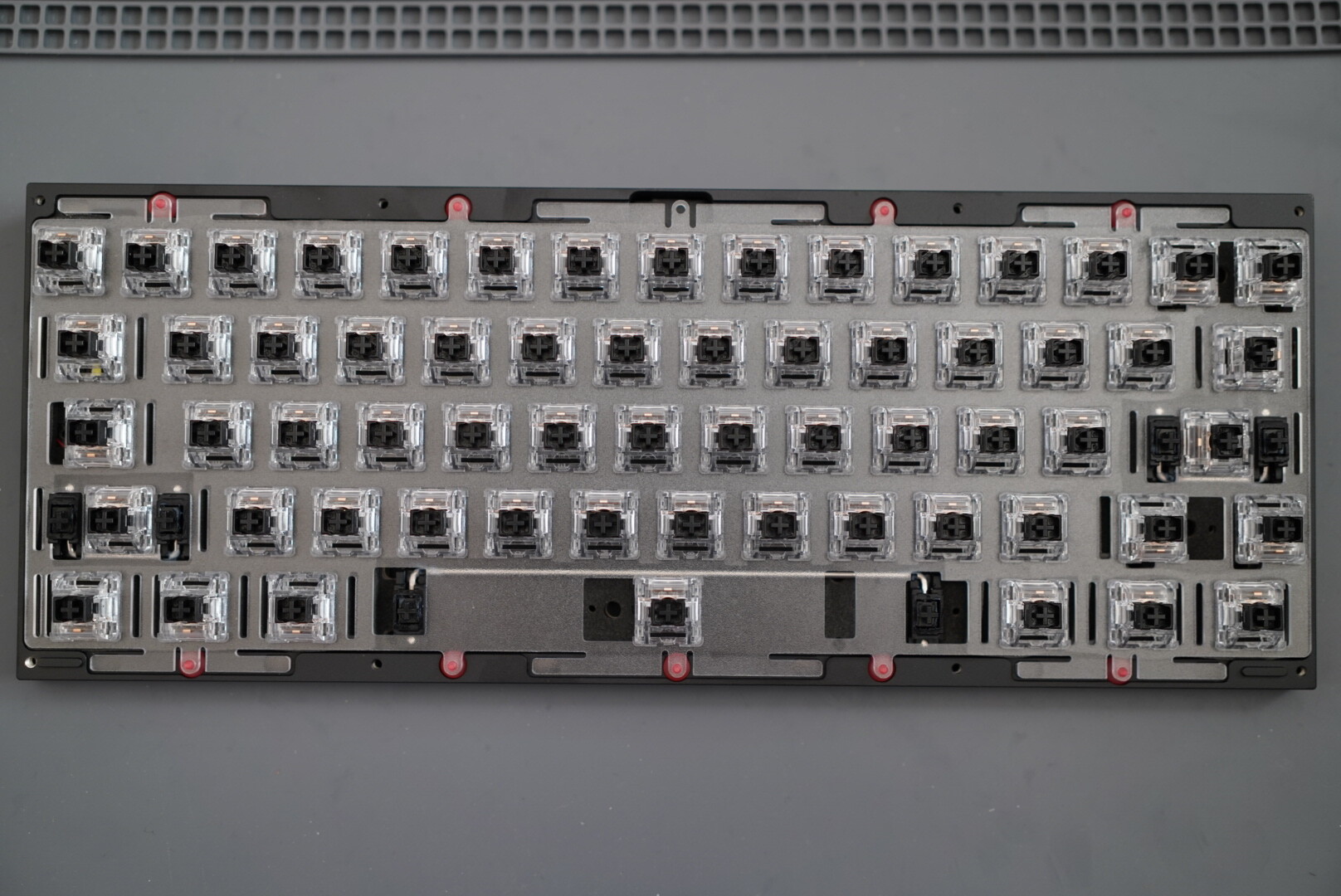

スイッチパッド載せてルブったスタビライザーを取り付けて、プレートフォーム載せてスイッチプレート載せてスイッチをはめた。あともうちょい。 #tofu60 #カスタムキーボード

会社に持っていく用のTofu60 2.0を作る。2度目だからサクッと済むはず。 #tofu60 #カスタムキーボード

2023-04-30
As it's a long weekend, I thought I'd take the time to clean up my keyboard and install the new keycaps I bought recently. I adjusted the underglow LEDs to match. I'm quite happy with the results!

I've also included a pic of Benny judging me while I was taking photos of this keyboard on the kitchen countertop!

#MechanicalKeyboard #Keyboard #Tofu60
A 60% form-factor keyboard with with greyish keycaps and blue escape and return keys. The keys are labelled with white text, and blue text for the modifier keys. The case is made out of frosted acrylic and is being lit by blue underglow LEDs.A close-up photo of the same keyboard from the left side, just under half of the keyboard is shown in this image.A grey and white miniature schnauzer dog peering around a doorway.
