Black series is SOLD OUT. Here comes the RED series of ACHERON Bass Preamp/Overdrive.
#boutiquepedals #dpFXpedals #dpFX #dpeffects #pedalbuilder #basseffects #basspreamp #bassoverdrive #acheron #handpaintedpedals #handmadepedals #baxandall #b15 #ampegb15 #basspedals #effectspedals #greekpedals #pedalsandeffects #pedaleffects #basspedal #bassdriver

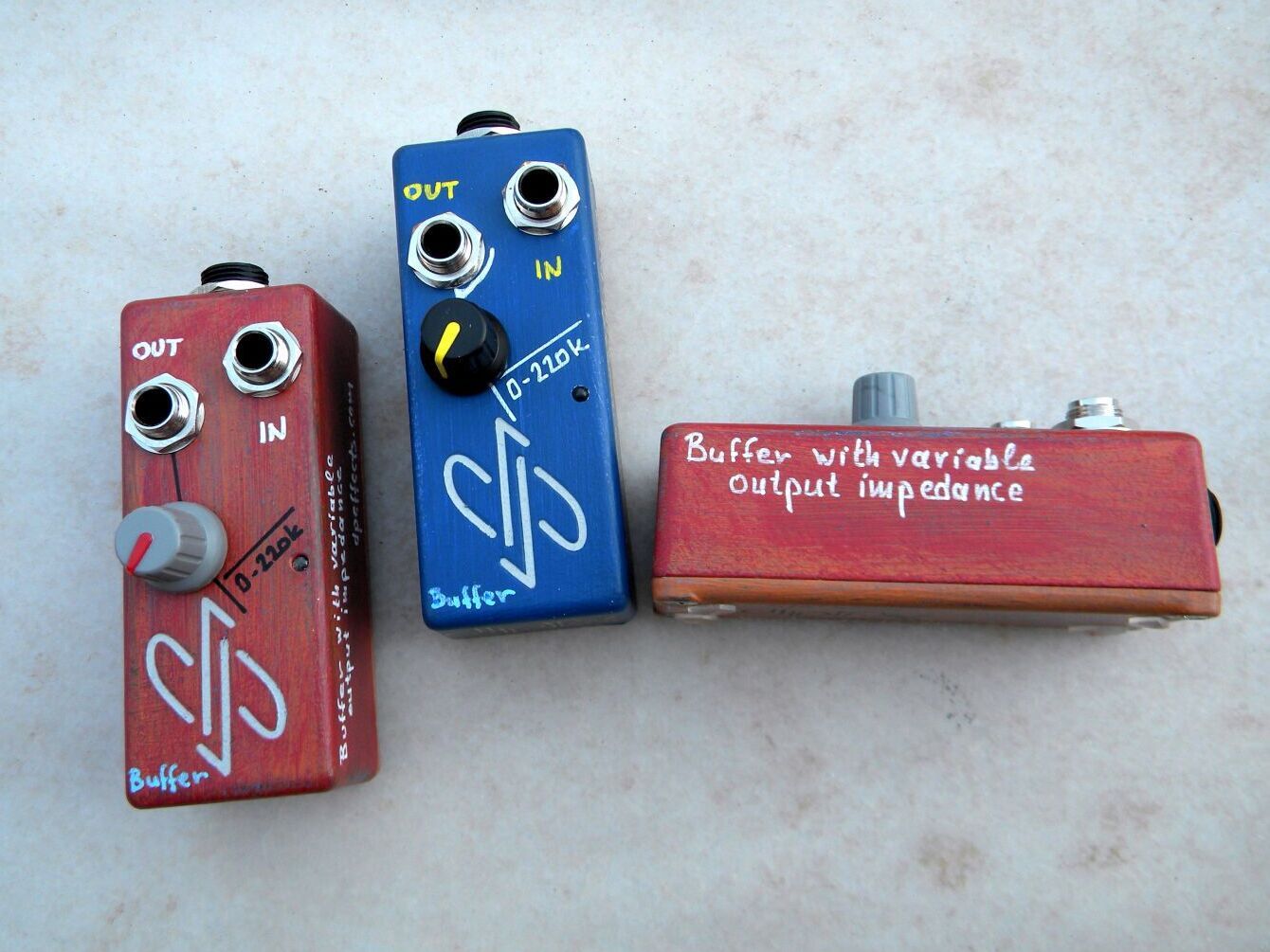

This is the mini Buffer with variable output Impedance and it's suitable for use with a guitar, bass and any other instrument with similar pickups.
A buffer is a circuit where the output is the same as the input. The "secret" is that this particular buffer circuit has a very high input impedance (10Mohm) and variable output impedance (0~220kohm).

Without getting into many details this eventually means that it improves the high frequency response of your overall pedal chain so that you don't lose your tone as your highs aren't getting sucked up.

Additionally, through its single knob you can adjust its output impedance to match the output impedance of your guitar pickups so that any pedal (e.g. a vintage fuzz, or any low input impedance pedal) that comes after the buffer behaves in the same manner as when you connect the guitar directly to it.

A buffer can also help you run long cords without risking losing tone or making your sound bassy and muffled

- Input impedance: 10Mohm (constant)
- Output Impedance: variable 0~220kohm
- Voltage Required: DC 9-24 Volt (Use 12-24V for more headroom)
- Max Current draw: 4mA @ 9 volts
- Aluminum Enclosure, dimensions: 93 x 38 x 32mm (3.66 x 1.49 x 1.26in)

#buffer #dpFX #dpFXpedals #dpeffects #boutiquepedals #boutiqueeffects #handmadeeffects #handpaintedpedals #handpainted #guitarpedals #basspedals #pedalseffects #pedaldandeffects #custompedals #variablebuffer #variableimpedance #bufferpedal #bassbuffer #guitarbuffer #basseffects #エフェクター

OLETHROS II: Beta Bass & Beta Lead preamp, separately selectable for each channel, plus a 3-setting mids-shift function: 550Hz, 850Hz, 1200Hz. (more specs in first comment)

#sunnamplifiers #sunnamps #betalead #betabass #dpFX #dpFXpedals #betapreamp #sunnbetalead #sunnbetabass #boutiquepedals #handpaintedpedals #handmadepedals #sunnpreamp #sunn
#pedalseffects #pedalsandeffects #basseffects #basspreamp
#stonerrock #sludgemetal #doom #dpeffects #エフェクター #greekpedals
#olethros #olethrosPreamp #guitarpedals #basspedals

Are you searching for something that will help you "clean up" the low end? This is it! An active, variable HPF that offers you the ability to select a cut-off frequency anywhere inside the range 200Hz-20Hz by using the respective knob. (more specs in first comment)

#dpFX #dpFXpedals #boutiquepedals #handmadepedals #HPF #highPassFilter #guitarpedals #pedalsandeffects #pedaleffects #basspedals #basseffects #bassfilter #handpaintedpedals #greekpedals #pedalbuilder

ECHIDNA Bass Overdrive with Dry Blend. Based on FET technology, capable of reaching up-to slight distortion levels. (more specs in first comment)

#basspedals #bassoverdrive #bassdistortion #dryblend #basseffects #dpFXpedals #dpFX #dpeffects #boutiquepedals #pedalbuilder
#pedalseffects #handpaintedpedals #handmadepedals #echidna #effectspedals

ACHERON V2.0. The evolution of our classic ACHERON Bass Preamp. The frequency response of the circuit (regarding WET signal only) borrows elements from the SansAmp BD combined with an Ampeg B15 Baxandall EQ. More info in the first comment.

#boutiquepedals #dpFXpedals #dpfx #dpeffects #pedalbuilder #basseffects #basspreamp #bassoverdrive #acheron #handpaintedpedals #handmadepedals #baxandall #b15 #ampegb15 #basspedals #effectspedals

"FuzZ-2 Bass" is a massive FuzZ specially designed for bass, with a unique character that squeezes growling dirt out of your amp. It delivers a tasty and massive fuzz effect and can produce a great variety of sounds and tones by just adjusting a couple of knobs.
Its blend circuit ensures that you’ll never miss your low end. An octave-up (fuzzed) function is also available in order to achieve a fuller spectrum and more massive fuzz effect. The Mids-EQ can be completely bypassed in case you want a different mids response.

(controls explained in first comment)

#dpFX #dpFXpedals #basspedals #bassfuzz #octavefuzz #boutiquepedals #handmadeeffects #handmadepedals #basseffects #pedalseffects #greekpedals #bass #pedalsandeffects #fuzz

This is the evolution [V2.0] of our classic FuzZ-2 Bass.
"FuzZ-2 Bass" is a massive FuzZ specially designed for bass, with a unique character that squeezes growling dirt out of your amp. It delivers a tasty and massive fuzz effect and can produce a great variety
of sounds and tones by just adjusting a couple of knobs.

Its blend circuit ensures that you’ll never miss your low end. An octave-up (fuzzed) function is also available in order to achieve a fuller spectrum and more massive fuzz effect. The Mids-EQ can be completely bypassed in case you want a different mids response.

Controls explained:
- DRY: adjusts the level of DRY signal that reaches the output. The dry signal goes through the pedal unchanged and is not affected by any other of the pedal’s knobs.
- WET: adjusts the level of the fuzzed signal.
- TONE: adjusts the tone of the fuzzed signal, ranging from crunchy to totally dark.
- MIDS EQ: This s actually a sort of sweepable notch filter. At minimum position the notch is at 214Hz and as you turn it clockwise it moves higher in spectrum while smoothing out gradually. At maximum position the notch is almost completely smoothed out with a slight dent at about 500Hz.
- Toggle switch "bypass": If you want to completely bypass the above MIDS-filter just turn this switch to the "bypass" position.
- COMPRESS: This knob adjusts the amount of compression caused by the fuzz circuit. Increasing compression also increases the depth of the fuzz effect.
- GAIN: Sets the intensity of the fuzz. At lower settings it might sound close to an overdrive.
- OCT. foot-switch: when engaged it adds the fuzzed octave to the output producing a more massive result and a fuller spectrum. A slight
boost to the volume is to be expected.
- Toggle switch “Guitar”: If you ever want to use this pedal with a guitar this switch may help you make the pedal a little more “guitar friendly”. Additionally, turning the EQ toggle switch to the bypass position may also help.

#dpFX #dpFXpedals #basspedals #bassfuzz #octavefuzz #boutiquepedals #handmadeeffects #handmadepedals #basseffects #pedalseffects #greekpedals #bass #pedalsandeffects #fuzz

KONSERT. A preamp in a pedal, based on the preamp of the Sunn Concert amplifier (Lead / Bass).
The circuit of this pedal is a replica of the preamp used by Sunn for the Concert Lead and Concert Bass amplifier.
The original schematics were used and a couple of more features were added to make it more versatile.
Volume, Boost and Distort and EQ functions are exactly set (circuitwise) as in the original circuit.
Internally, an extra power supply circuit was added in order to provide the necessary dual rail supply voltages that the original premp was using. All you need is the typical 9V power supply you use for your pedals.

**** Added features:
- Instrument Out. Use this output to connect the preamp to your pedals.
- Line Out. Use this output to connect the preamp directly to a power amp.
- XLR Out. Balanced output for connection with audio consoles etc.

Knobs & switches:
- D: Drive gain (works anti-clockwise)
- V: Volume
- B: Bass
- M: Mids
- T: Treble
- Brite toggle switch: Change the input setting Normal/Brite.
- Treble Boost toggle switch: Brighten your sound even more.
- Left footswitch: It acts as a bypass for the Instr.-Out and as a mute
for the Line-Out and the XLR-out.
- Middle footswitch: Boost ON/OFF
- Right footswitch: Distort ON/OFF

▹ Voltage Required: DC 9 Volt
▹ Polarity: Negative tip
▹ Current consumption: 65mA
▹ Weight: ~450gr
▹ Enclosure dimensions: 95 x 151 x 35 mm (3.74 x 5.95 x 1.38 in)

#dpFXpedals #dpFX #dpeffects #concertlead #concertbass #concertleadpreamp #concertbasspreamp #sunnamps #sunnpreamp #sunnconcertbass #sunnconcertlead #preamppedal #boutiquepedals #pedalbuilder #distortionpedal #overdrivepedal #handmadepedals #handpaintedpedals #guitareffects #basseffects #guitarpedals #basspedals #preamp #guitarpreamp #basspreamp #konsert #greekpedals #pedalsandeffects

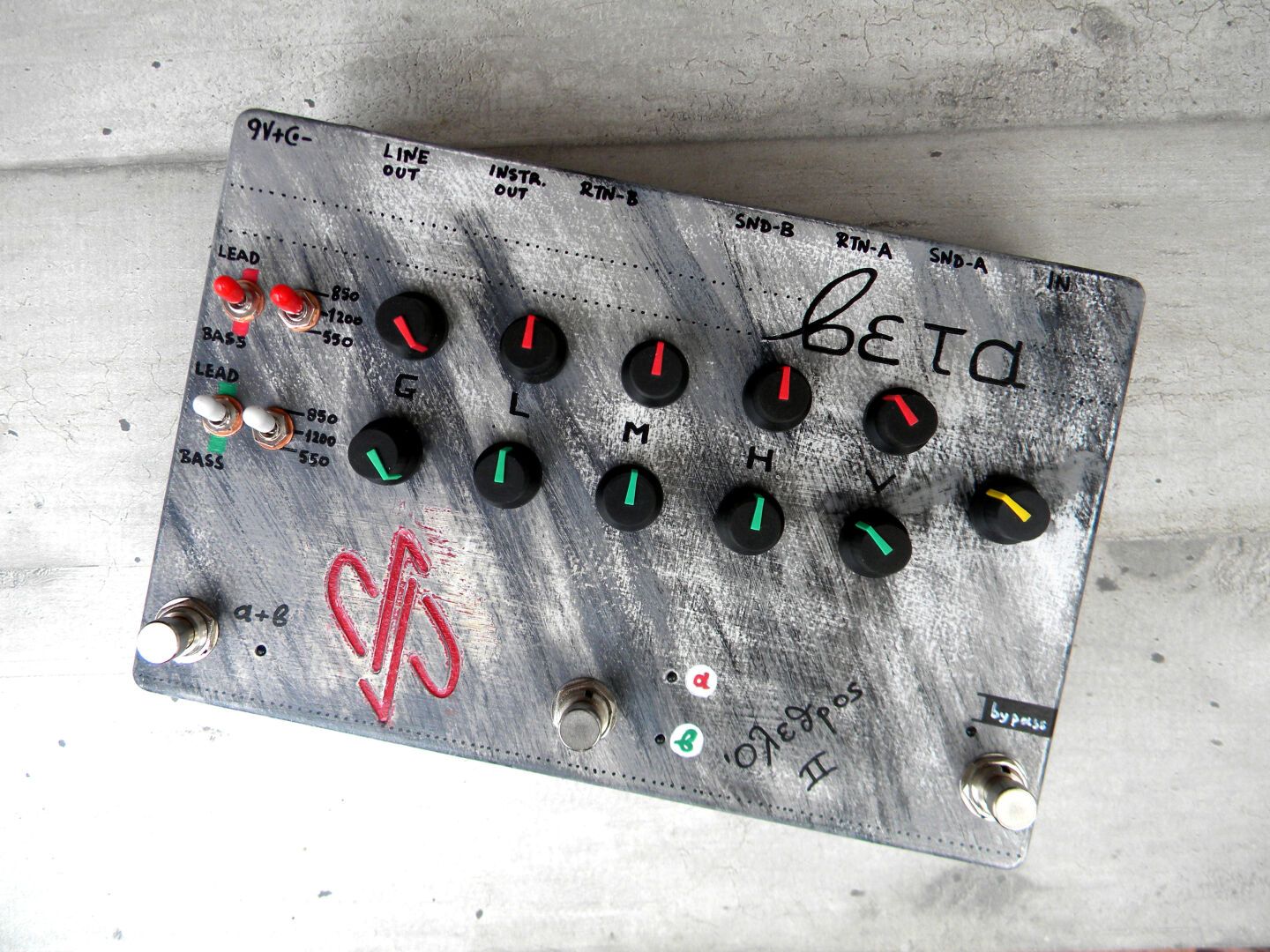

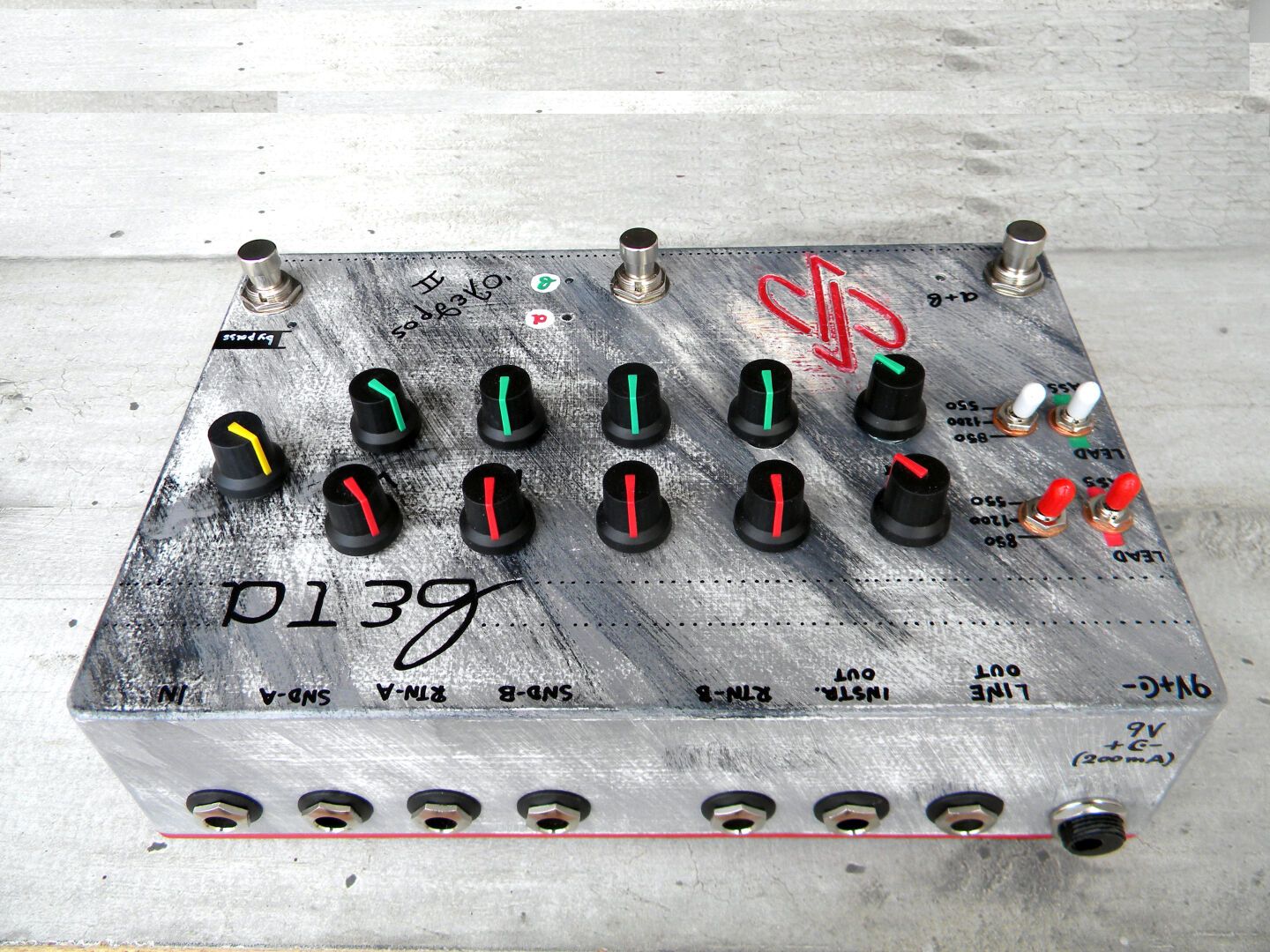

"OLETHROS II" Beta Bass & Beta Lead preamp (separately selectable for each channel), plus a 3-setting mids-shift function.

What's new:
• a toggle switch for each channel lets you select between the Beta Lead and the Beta Bass version.
• a 3-position toggle switch lets you shift the mids in a different
point of the spectrum: 550Hz, 850Hz, 1200Hz.
• Besides the LINE out which is used to connect the OLETHROS with a power amp an INSTRUMENT output has been added so that you can easily use it as a pedal.

- Alternatively an INSTRUMENT output is also available in case you need to use the preamp as a pedal.
- A balanced output has been added and it's accessible through an XLR connector. The balanced output's level is not affected by the Master knob.

#sunnamps #betalead #betabass #dpFX #dpFXpedals #betapreamp #sunnbetalead #sunnbetabass #boutiquepedals #handpaintedpedals #handmadepedals #sunnpreamp #sunn #pedalseffects #pedalsandeffects #basseffects #basspreamp #stonerock #doom #dpeffects

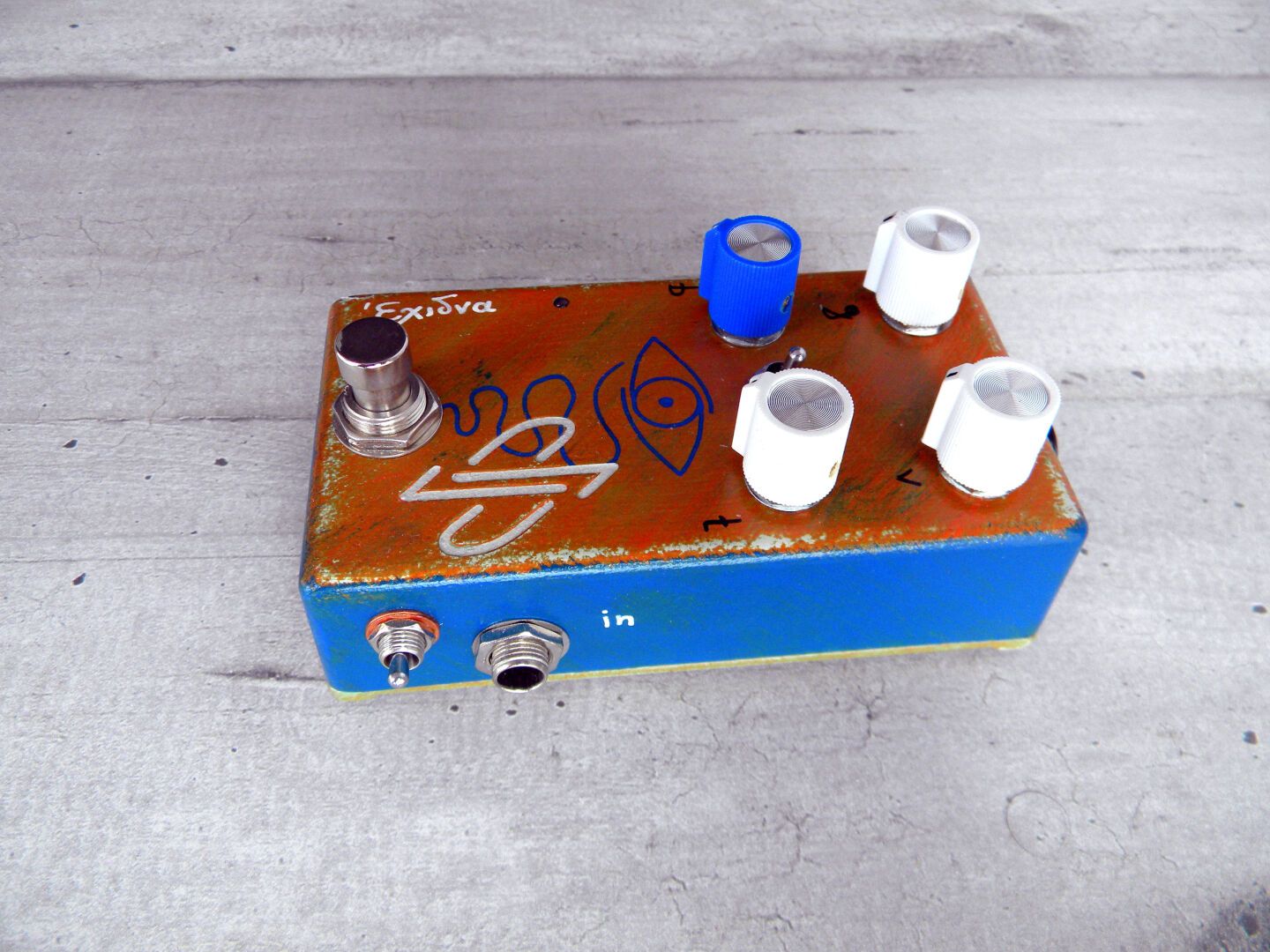

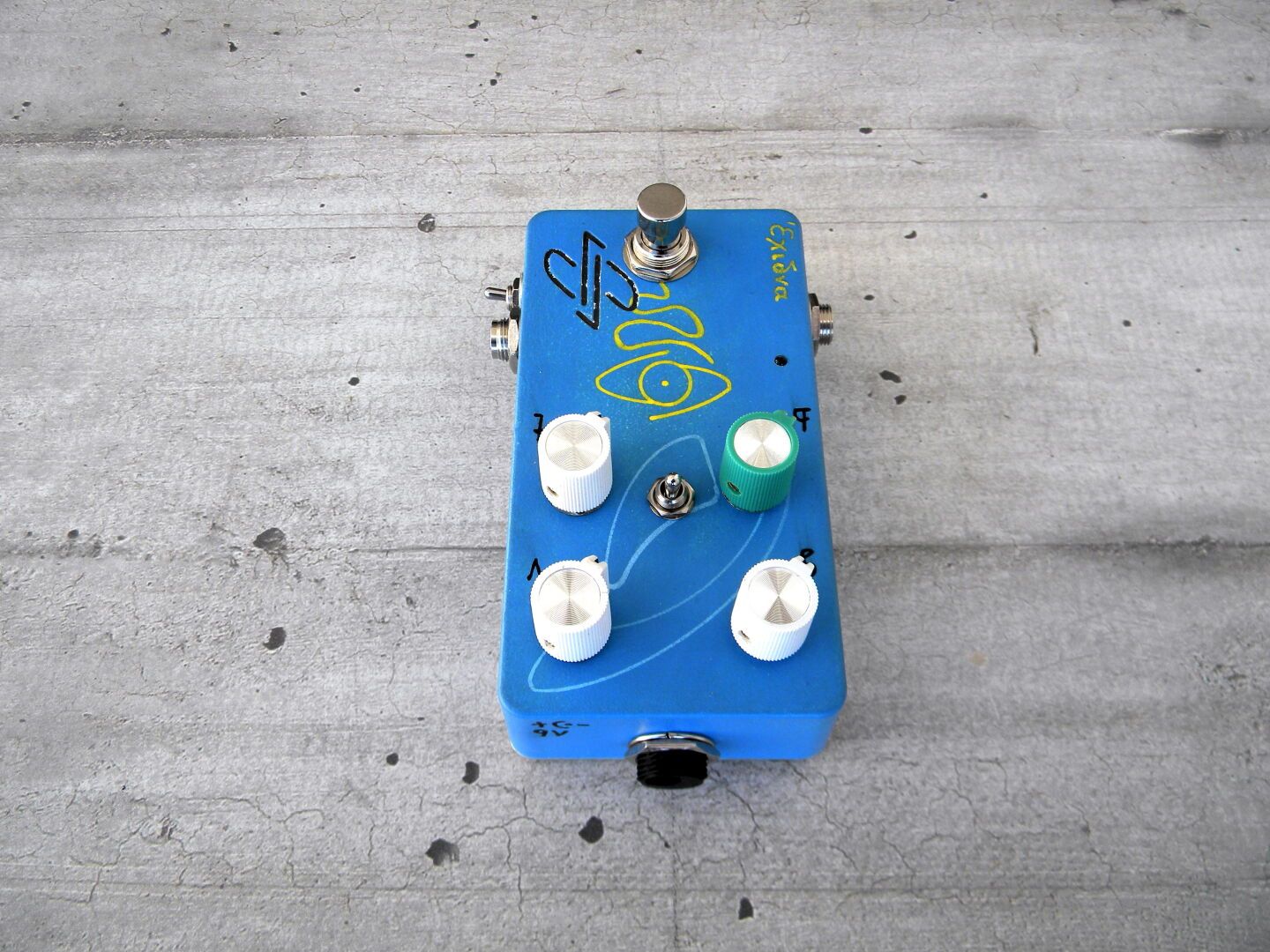

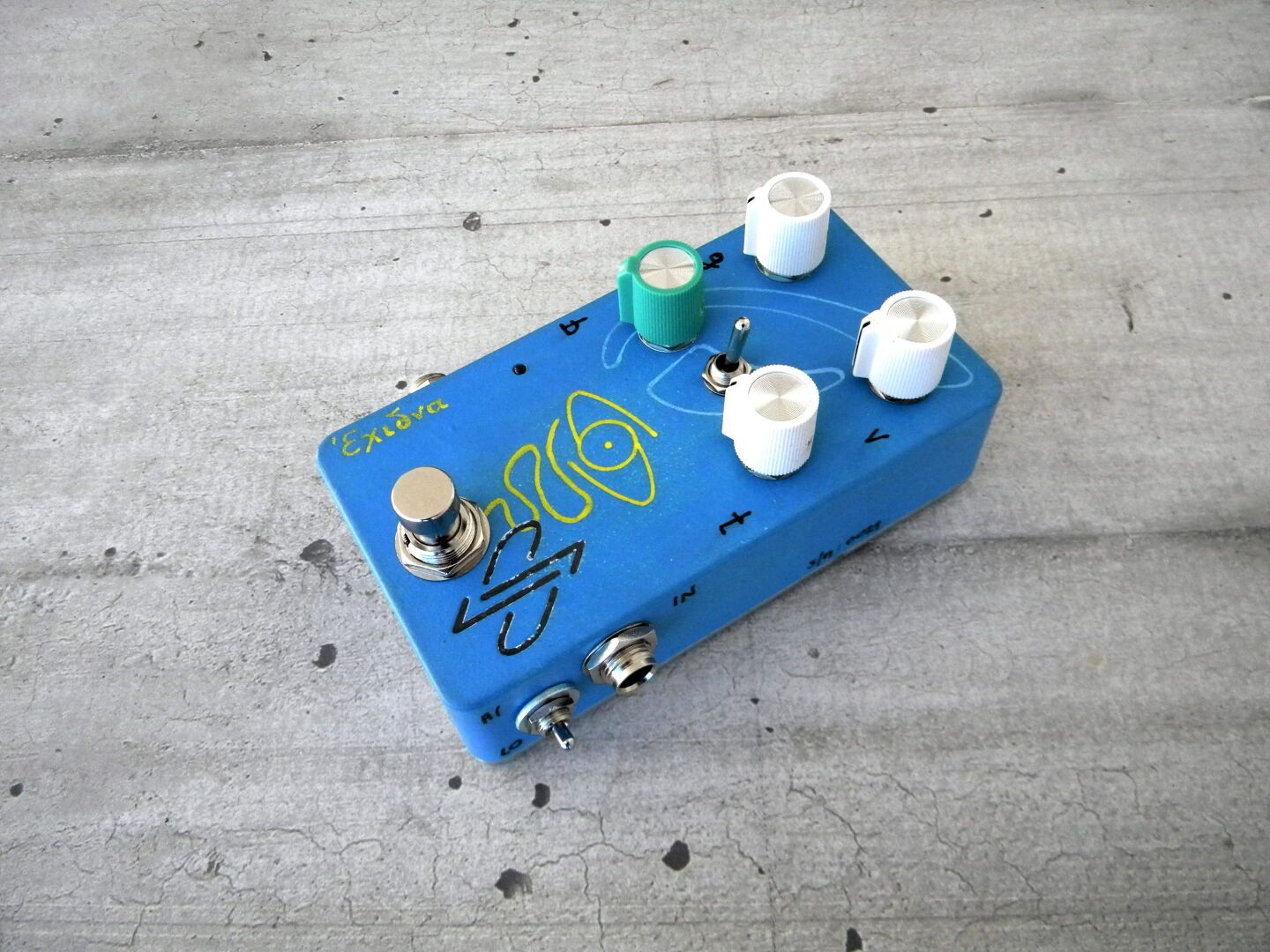

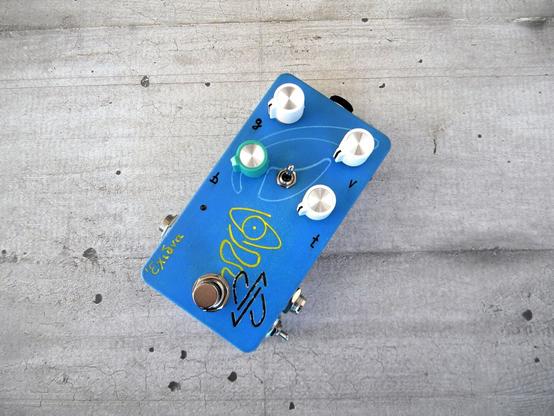

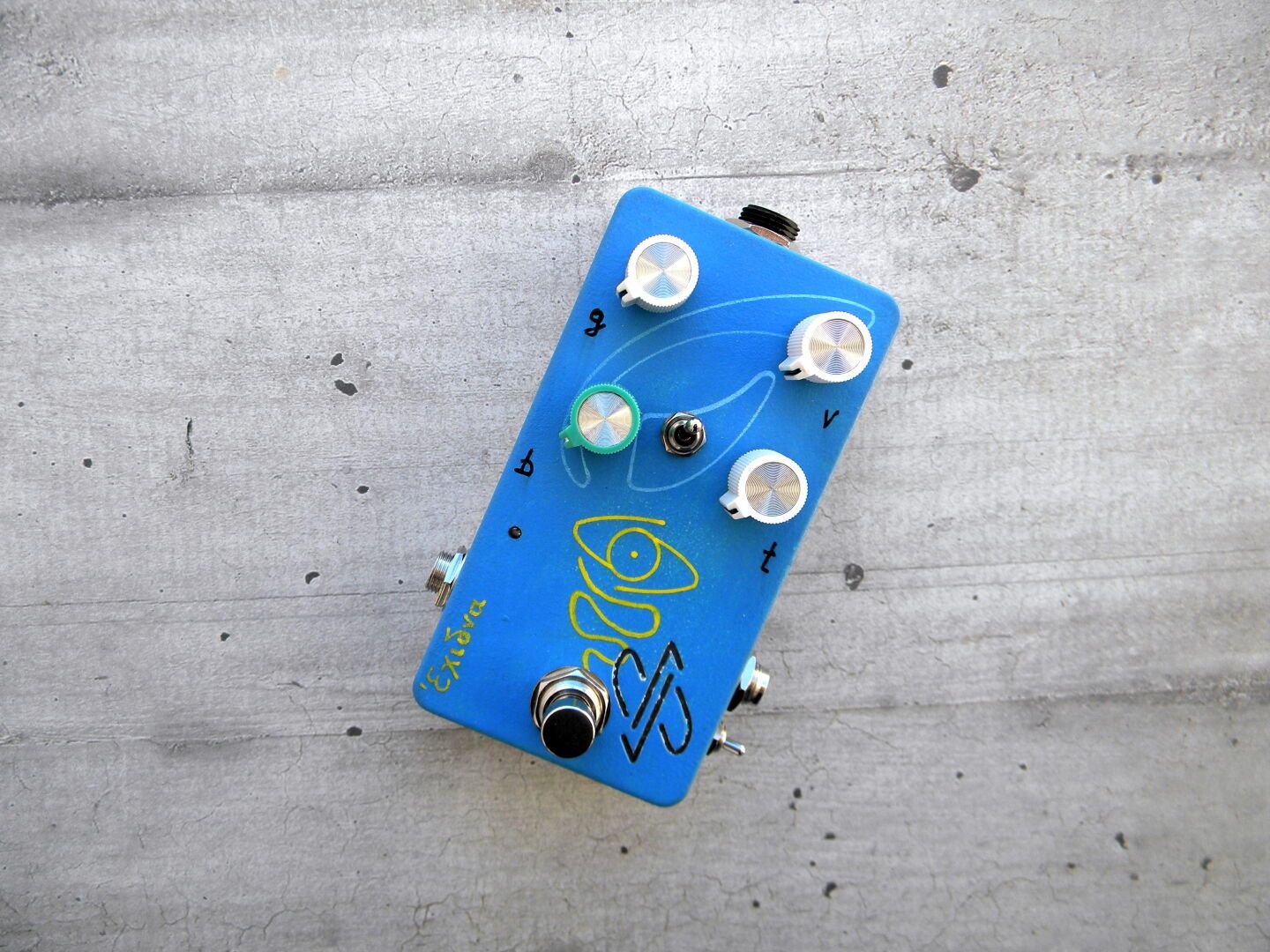

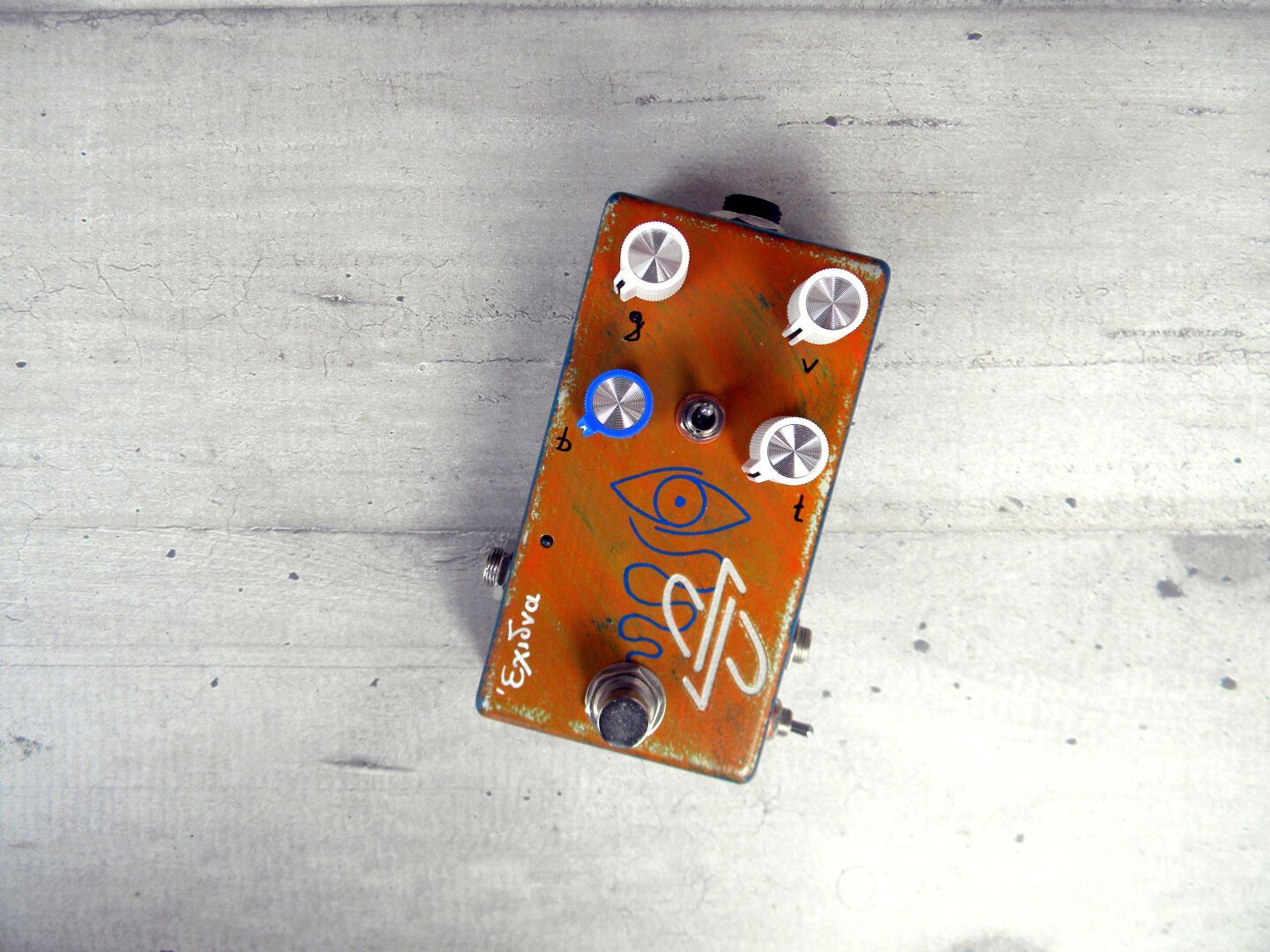

ECHIDNA Bass Overdrive with Dry Blend.

Compact, yet aggressive. Aggressive yet mild. ECHIDNA makes use exclusively of FET technology to produce a smooth drive effect with a tasty tube-like harmonic content.
The absence of clipping diodes and the use of cascading JFET & MOSFET stages ensure a quite dynamic behaviour and crystal clear tone. Gain control varies from a clean 'biting' to heavier overdrive and if you crank it up it can reach up to slight distortion levels.
Blend control allows you to mix the clean signal preserving your tone and low end.

- g : gain.
- t: tone of the overdriven signal
- b : Blend control.
- v: volume
- toggle switch one the side: LO=low gain, HI=hi gain
- toggle switch on top: Flip it down for some extra mids and presence.

#basspedals #bassoverdrive #bassdistortion #dryblend #basseffects #dpFXpedals #dpFX #dpeffects #boutiquepedals #pedalbuilder #pedalseffects #handpaintedpedals #handmadepedals #echidna #effectspedals
