Samstag Löt Projekt, Umbau eines N64 NTSC SVideo Kabel zu ein PAL SVideo Kabel. Einlöten von 75Ohm Widerstände und 220uF und 68nF Kondensatoren. SVideo ist leider das beste, was man aus einer N64 PAL Konsole bekommt, Konsole kann kein RGB. Das analoge SVideo Signal wird mittels GBS-Control Pro Upscaler auf HDMI gewandelt, und dann am TV dargestellt.

#nintendo #n64 #Nintendo64 #retro #gbscpro #gbscontrol #sVideoMod #SVideo #DenshaDeGo #retrogaming

Nintendo Video Stecker mit bestückten Bauteilen.

Densha de Go 64 auf einen LG B4 OLED Fernseher.

Initial tests are going quite well 😄
#electronics #gbscontrol

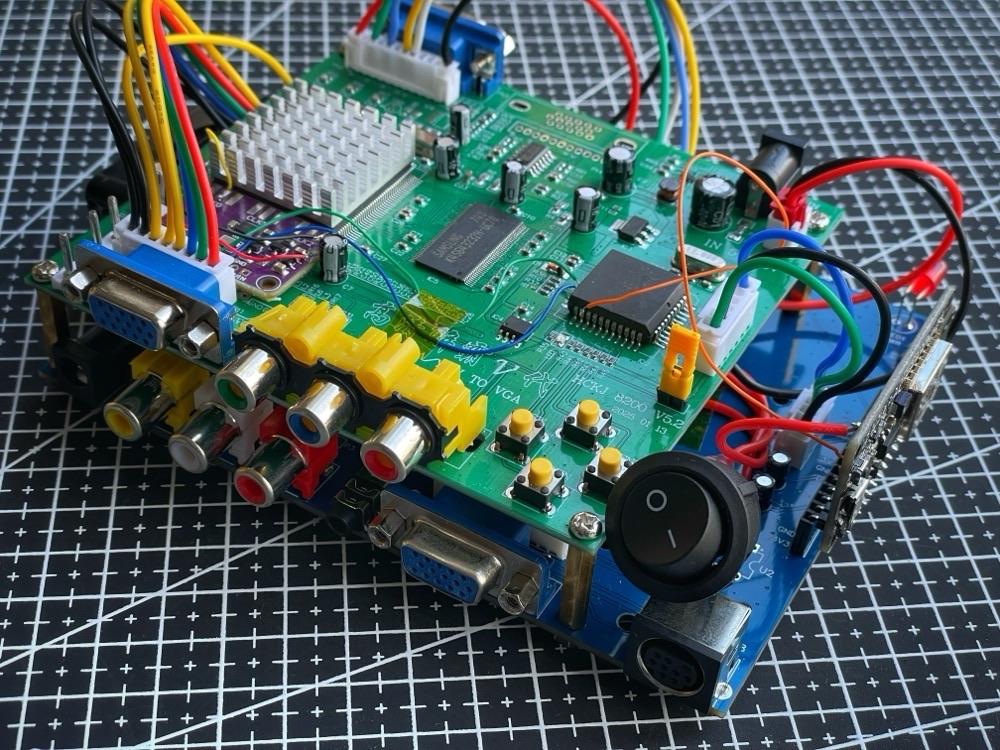

A close-up view of a green printed circuit board (PCB) with various electronic components, including multiple connectors, a heat sink, and colorful wires. The board features input/output ports, buttons, and capacitors, all positioned on a grid-patterned

I went back to my 3D-printed case for my GBS-C upscaler (https://mastodon.social/@GamesMissed/113868263987800911). I wasn't entirely happy with the top plate. It was fine, but looked too much like brown PLA and didn't have much of the wooden appearance that I had hoped for.

Staining it really reinforced that. Anywhere the layers are exposed, staining brings out an attractive "wood grain" appearance. Since the top plate surface is almost entirely one layer, it wasn't getting the same look.

#3DPrinting #GBSControl

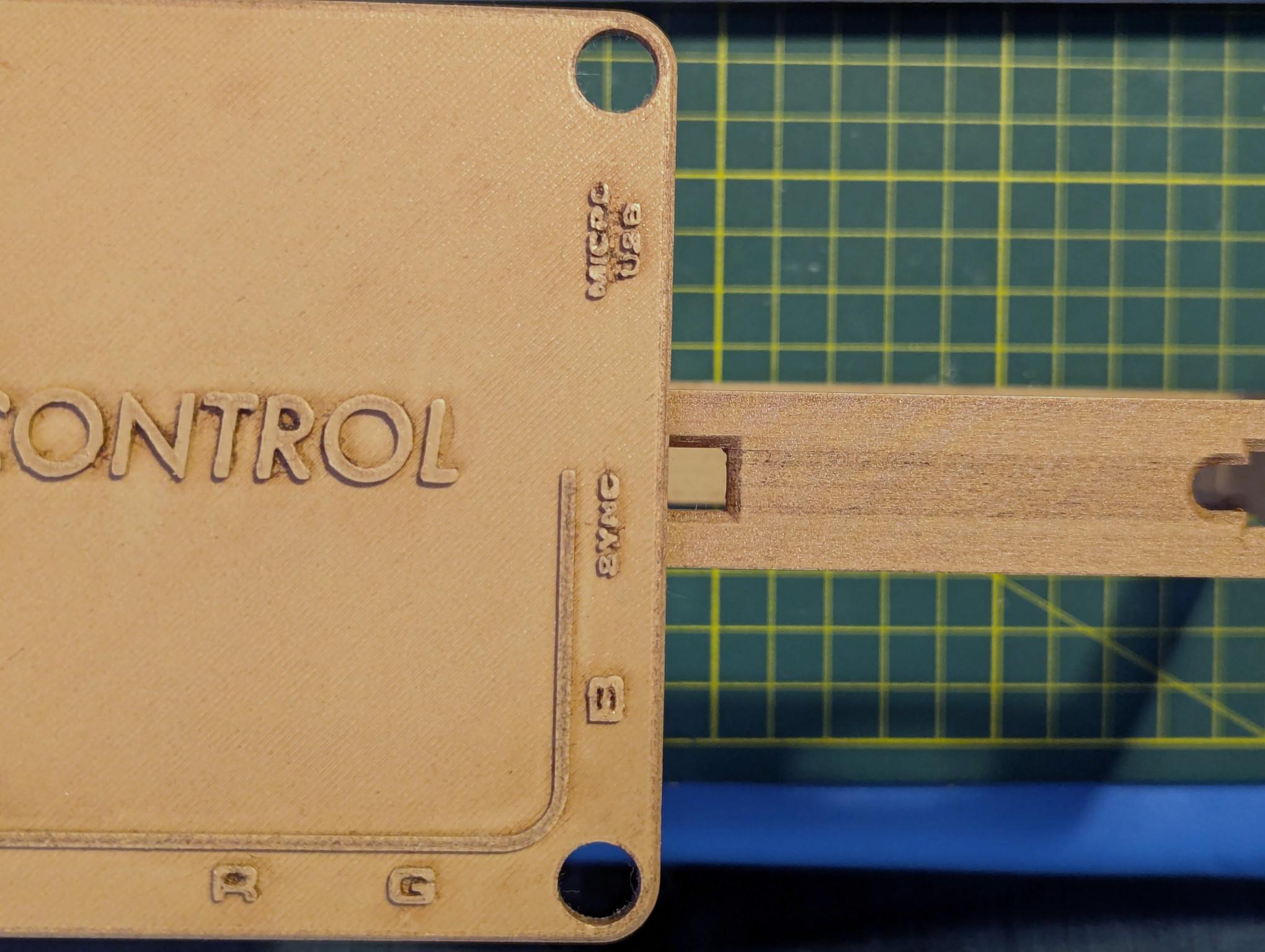

A photograph of two 3D printed parts, both printed with the same plastic filament incorporating sawdust to impart a "wood grain" appearance and, to some extent, texture. Both parts have been stained. The part on the left is a flat plate that still looks more like tan plastic. The part on the right is a frame that, after staining, has much more of the appearance of wood.

I built a GBS-C upscaler (https://ramapcsx2.github.io/gbs-control/)!

This is going to be a long thread, so I'm going to wait a few minutes before continuing to post, to give anyone who wants a chance to mute me.

🧵 1/24

#Retrocomputing #GBS-C #GBSControl #GBSC

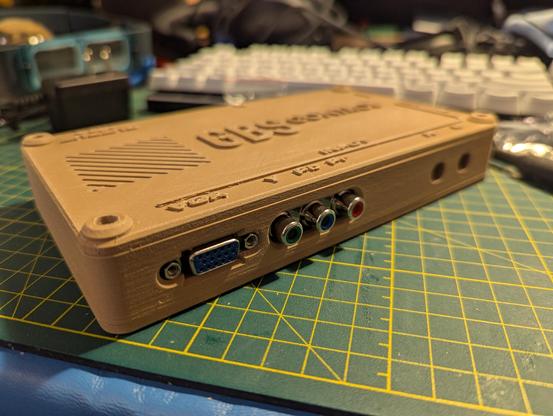

A photograph of a GBS-Control scaler device. The electronics are installed in a 3D-printed box the color of peanut butter, with legends for the inputs and outputs printed standing out from the surface of the top of the box. Inputs for VGA and component video are facing the viewer.

I wrote a little more about the ODV-GBS-C scanline converter and the ODV-II Composite/CVBS/S-Video adapter here: https://neongod.neocities.org/odv-gbs-c #retrocomputing #retrogaming #upscaling #gbsc #gbscontrol

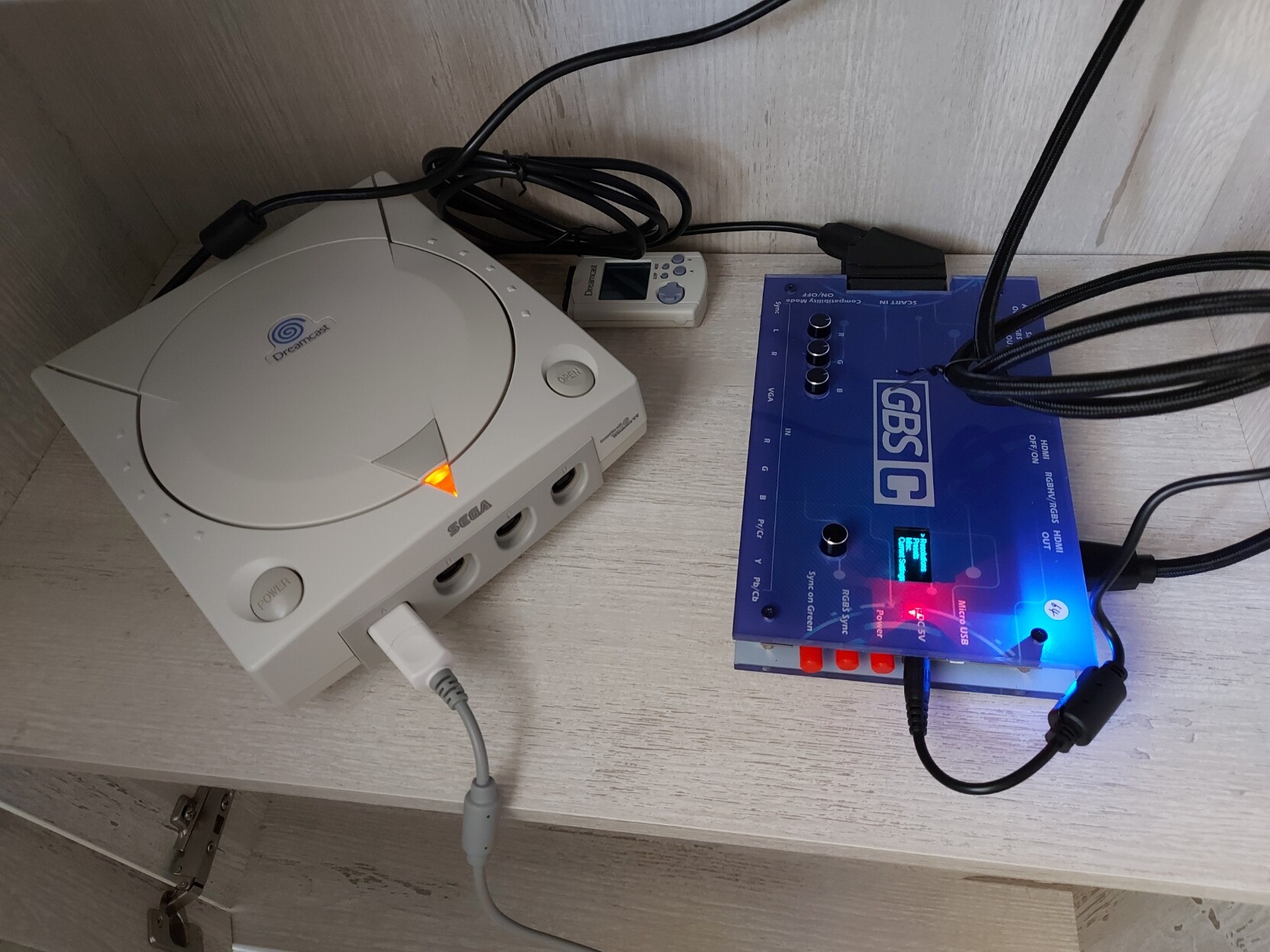

I got an ODV-GBS-C upscaler with an ODV-II composite/s-video adapter. After a brief testing I have to say I’m pretty impressed so far. Tried it with a MegaDrive, GameCube, Amiga500 and C64 on a 65” Samsung TV. Low lag, motion adaptive deinterlacing, scanline emulation and upscaling to 1080p, for a quite reasonable price. #retrogaming #retrocomputing #gbscontrol #gbsc #odvgbsc
