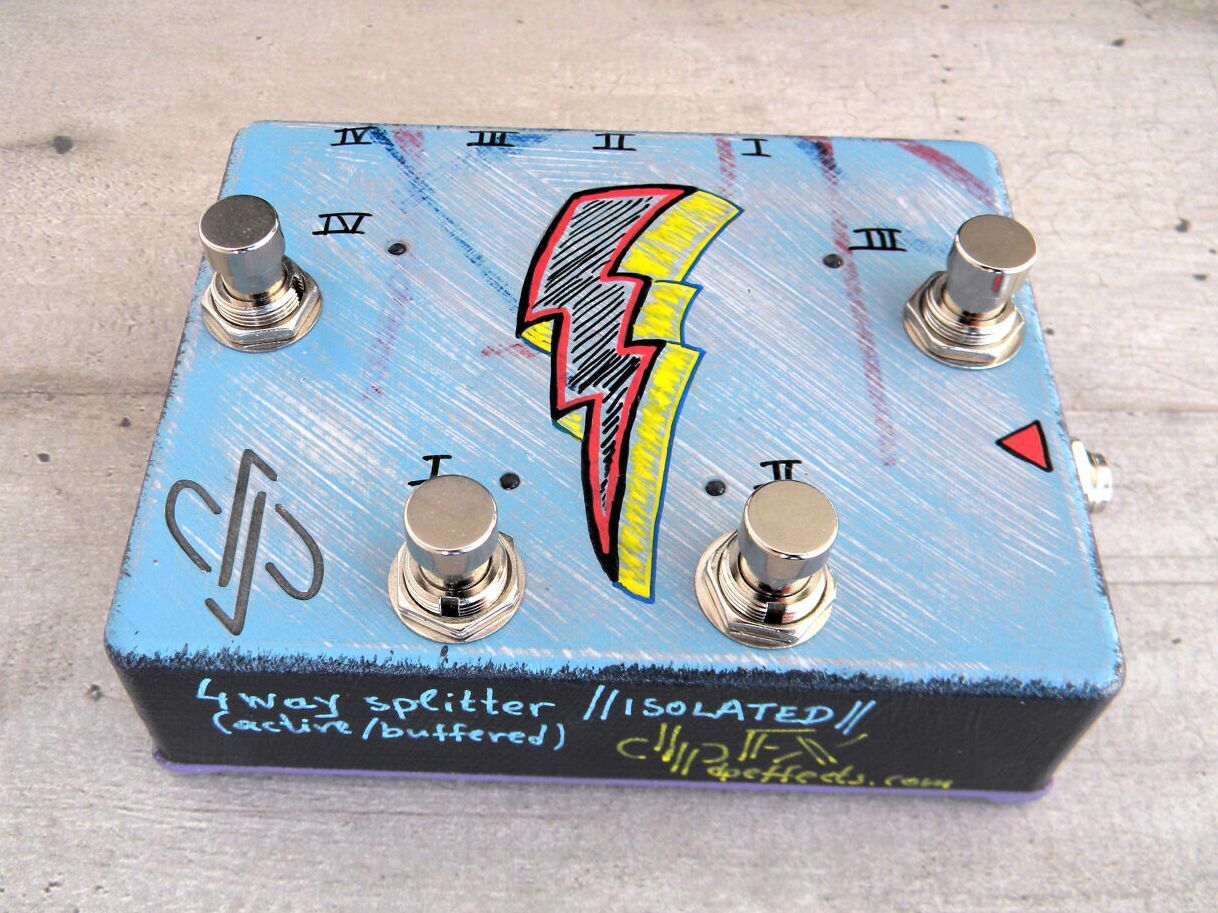

4-way splitter/switcher with ALL Outputs ISOLATED.
Active, buffered, suitable both for bass & guitar or any other instrument with similar pickups.
It features high input impedance and very low output impedance in order to preserve your tone and to not degrade your signal.

Every output is equal to the input (zero volume drop) and is isolated each with a dedicated audio transformer. Each output has a dedicated foot-switch (+ LED) so that you can turn them ON/OFF on the fly.

The splitter can be powered with a variety of voltages ranging from 9V up to 24V max. Larger voltages offer you more headroom so that you can
also use it with higher line level signals.

All output jacks, including the DC-jack are placed at the top-side of the enclosure and the input jack on the right side.

▹ Input impedance: ~3.3MΩ
▹ Output impedance: ~330Ω
▹ Voltage required: 9-24V DC
▹ Polarity: Center negative
▹ Current consumption: 10mA @ 9V
▹ Enclosure dimensions: 120 x 95 x 35mm (4.72 x 3.74 x 1.37in)
▹ Weight: 440gr

#dpFX #dpFXpedals #splitterpedal #boutiquepedals #handmadepedals
#handmadeeffects #basssplitter #guitarsplitter #handpaintedpedals #isolatedsplitter #splitterswitcher #switcherpedal #4waysplitter
#pedalseffects #pedalsandeffects #guitarpedals #basspedals

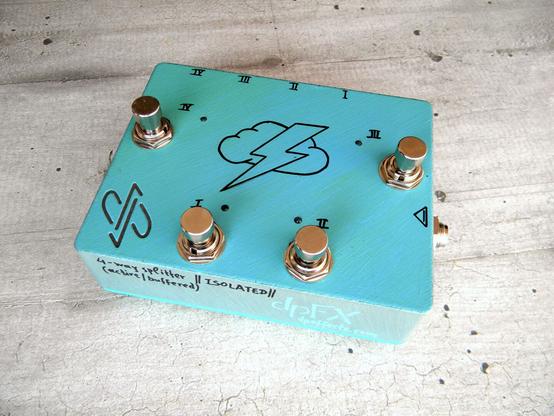

4-way splitter/switcher with ALL Outputs ISOLATED. Active, buffered, suitable both for bass & guitar or any other instrument with similar pickups. (detailed specs in the first comment)
#dpFX #dpFXpedals #splitterpedal #boutiquepedals #handmadepedals #handmadeeffects #basssplitter #guitarsplitter #handpaintedpedals #isolatedsplitter #splitterswitcher #switcherpedal #4waysplitter #pedalseffects #pedalsandeffects #guitarpedals #basspedals

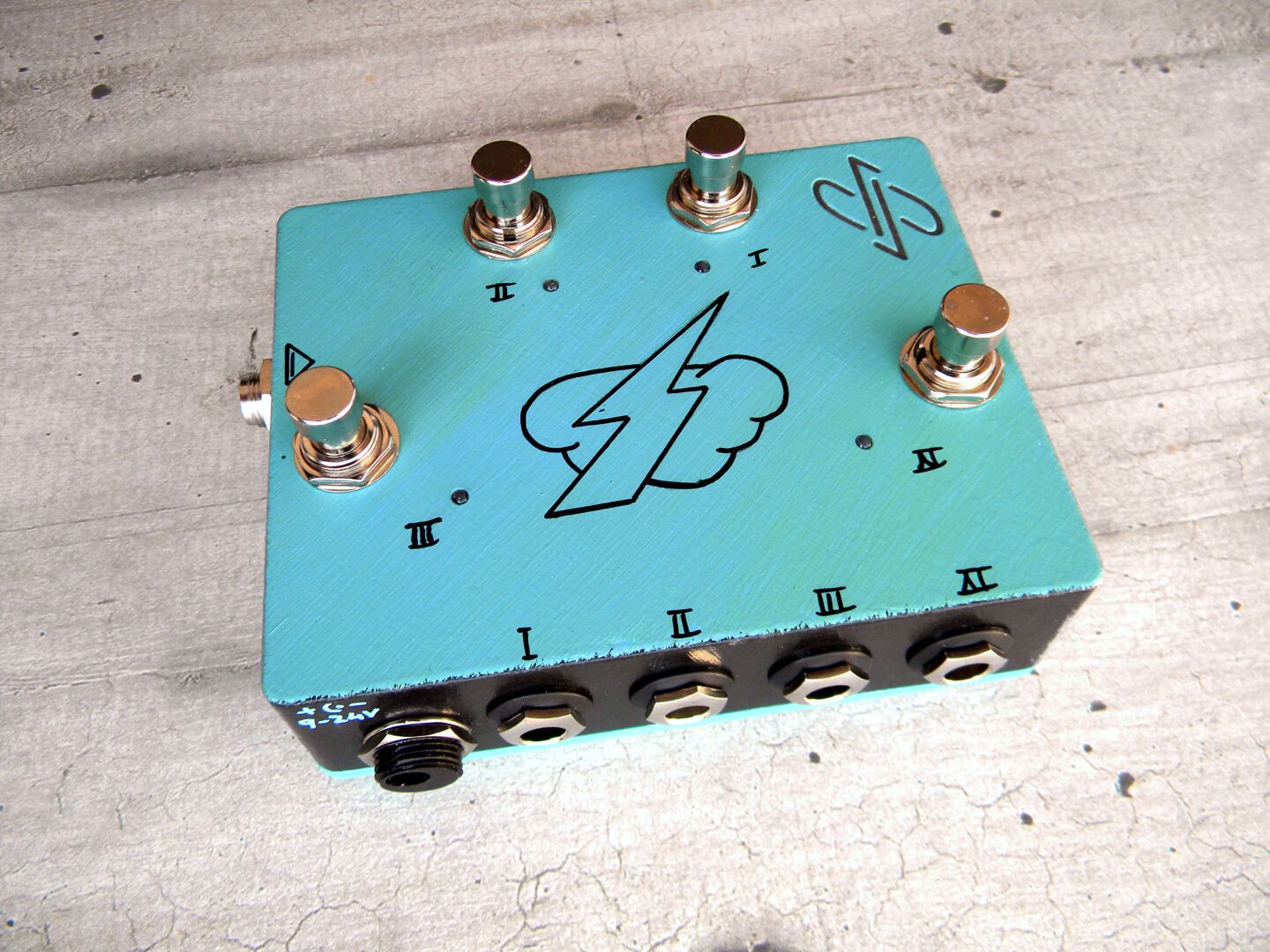

4-way splitter with all four outputs isolated. This active, buffered, 4-way Splitter is suitable both for bass & guitar or any other instrument with similar pickups. More info/specs in first comment.

#dpFXpedals #dpFX #splitterpedal #4waysplitter #guitarsplitter
#basssplitter #boutiquepedals #handmadepedals #handpaintedpedals
#greekpedals #effectspedals #splitter #splittersthatdontsuck
#bufferedsplitter #bufferpedal #custompedals #splitterswitcher #switcherpedal #footswitchsplitter #isolatedsplitter #isolatedoutputs #pedalbuilder #pedalsandeffects

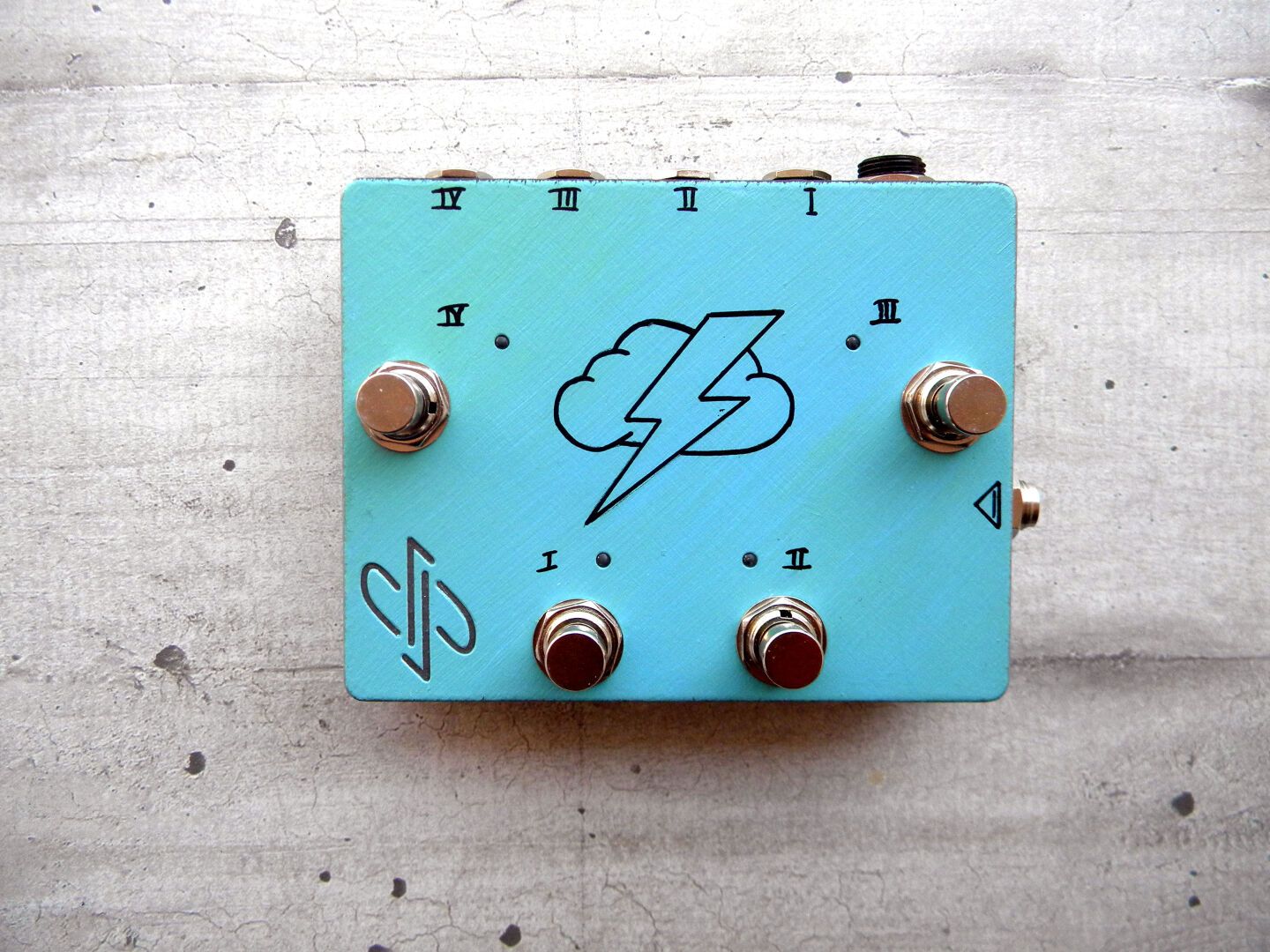

4-way splitter with all four outputs isolated.
This is an active, buffered, 4-way Splitter suitable both for bass & guitar or any other instrument with similar pickups. It features high input impedance and very low output impedance in order to preserve your tone and to not degrade your signal.

Every output is equal to the input (zero volume drop) and is isolated each with a dedicated audio transformer. Each output has a dedicated footswitch (and a LED) so that you can turn them ON/OFF on the fly.

The splitter can be powered with a variery of voltages ranging from 9V up to 18V max. Larger voltages offer you more headroom (DO NOT EXCEED 18V) so that you can also use it for line level signals.

All output jacks, including the DC-jack are placed at the top-side of the enclosure and the input jack on the right side.

▹ Input impedance: 10MΩ
▹ Output impedance: 100Ω
▹ Voltage required: 9-18V DC [Do not exceed recommended voltage! It may damage the circuit.]
▹ Polarity: Center negative
▹ Current consumption: 10mA @ 9V || 15mA @ 18V
▹ Enclosure dimensions: 120 x 95 x 35mm (4.72 x 3.74 x 1.37in)
▹ Weight: 435gr

#dpFXpedals #dpFX #splitterpedal #4waysplitter #guitarsplitter
#basssplitter #boutiquepedals #handmadepedals #handpaintedpedals
#greekpedals #effectspedals #splitter #splittersthatdontsuck
#bufferedsplitter #bufferpedal #custompedals #splitterswitcher #switcherpedal #footswitchsplitter #isolatedsplitter #isolatedoutputs #pedalbuilder

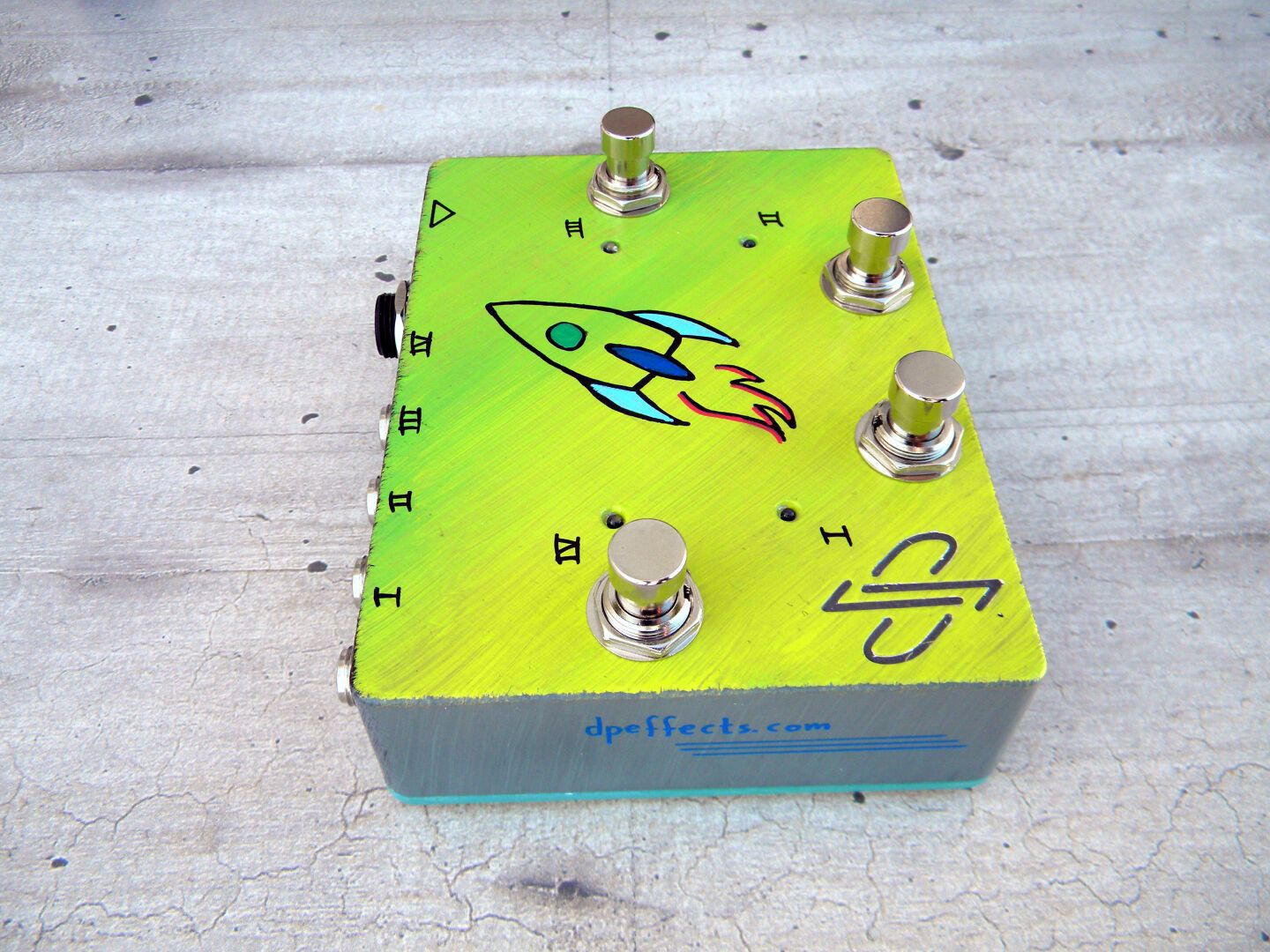

4-way Buffered-Splitter, suitable both for bass & guitar or any other instrument with similar pickups. It features high input impedance and very low output impedance in order to preserve your tone and to not degrade your signal.
Every output is buffered and equal to the input (zero volume drop) and each one has a dedicated footswitch (and a LED) so that you can turn them ON/OFF on the fly.
The splitter can be powered with a variery of voltages ranging from 9V up to 24V max. Larger voltages offer you more headroom

▹ Input impedance: 10MΩ
▹ Output impedance: 100Ω
▹ Voltage required: 9-24V DC (Polarity: Center negative)
▹ Current consumption: 10mA @ 9V
▹ Enclosure dimensions: 120 x 95 x 35 mm
