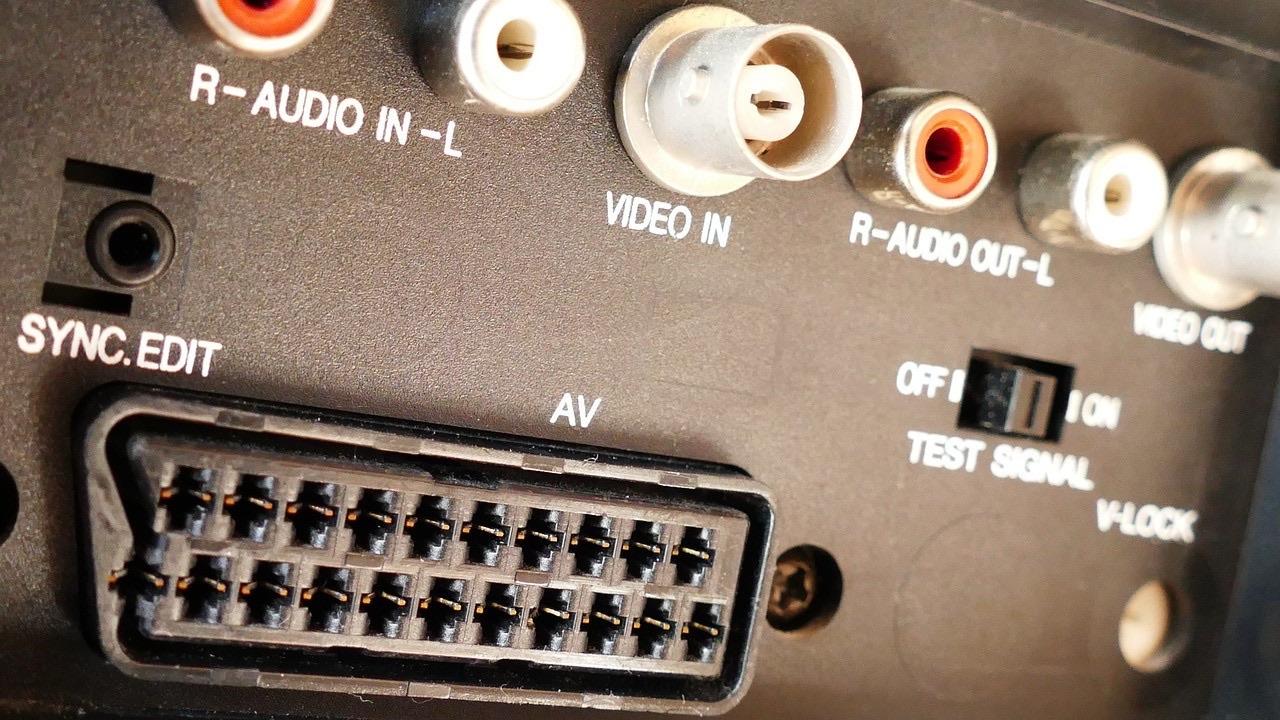

Conectar un magnetoscopio VHS al televisor era toda una "aventura" hasta que llegó el euroconector que hizo todo más fácil... 👍📼📺 #vhs #video #tv #scart #euroconector
#SCART
https://youtube.com/shorts/GFHZU-xujKI?si=FathjJbiq3elG9E9
Breve video dove ho provato al volo la
Ciabatta scart con 10 ingressi .
Veramente soddisfacente
@computer #scart

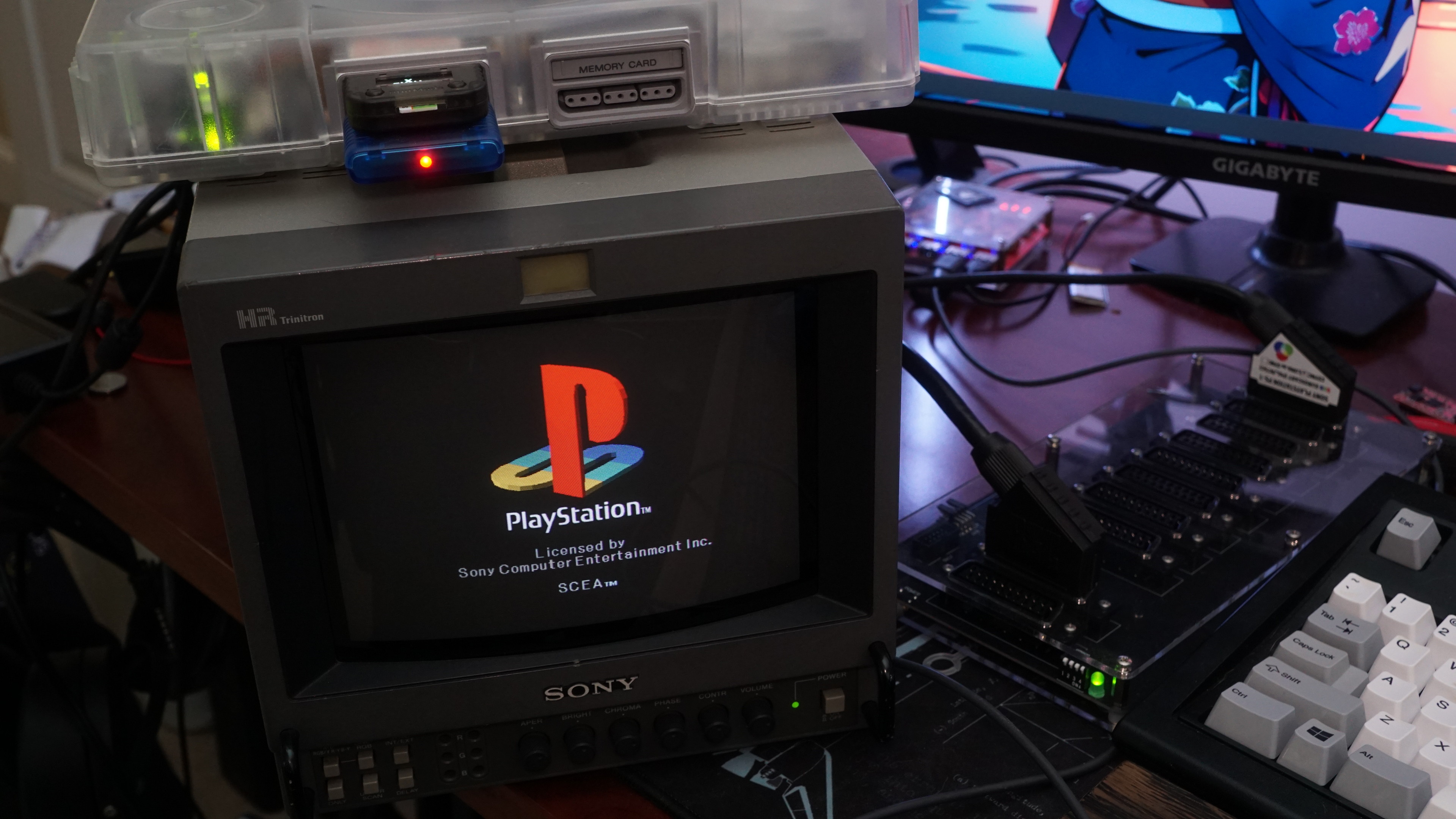

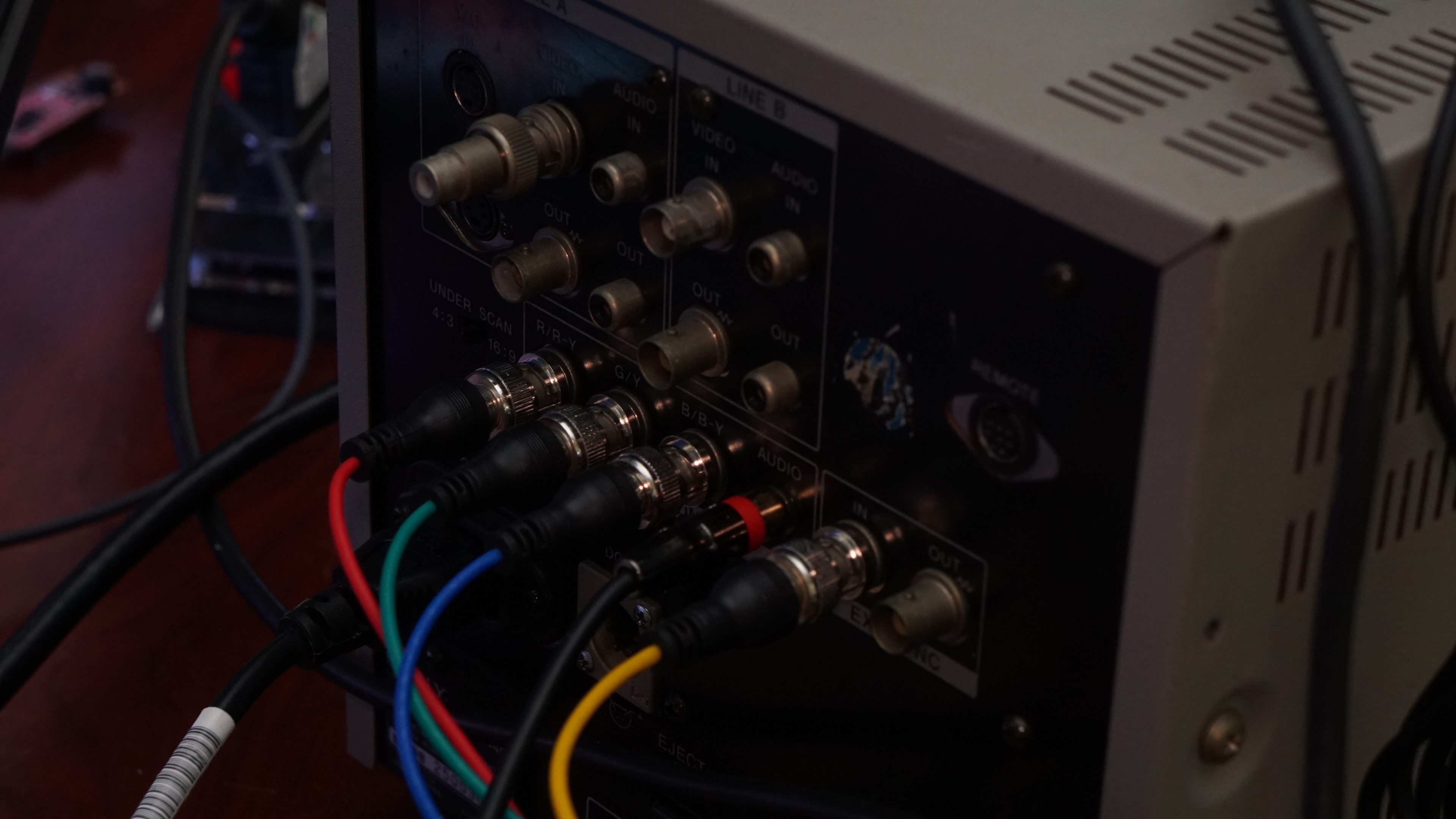

Got the modded PS1 (SCPH-5501) connected to the PVM via a gwscart switch using RGB (CSYNC). The switch doesn't seem to have any issues with the signal coming in from the PS1, and the Retro Gaming Cables cable (EuroSCART -> RGB+Sync+Audio) is absolute quality. If it weren't for Silksong at the moment, I'd be jumping into some retro games.
SCART LIVE (HOMEWARD TOUR) @ The Eagle Inn - 07 Sep feat. SCART
If someone wants to make similar SCART cables and keep things standardized, here is the pinout I used. The connectors are GX12/GX16/GX20 (10-pin). If you use a thin cable GX16 should be fine, if the cable is thicker like mine I would recommend GX20 (20-20 hind sight). #scart #retrogaming
In 1st image there are small dark dots (zoomed in image of the jailbar fixed image). Just tested the Duo connected directly to the TV and the picture has no more dark dots. The culprit was the SCART coupler I had in between. Quite satisfied with the picture quality now. #scart #pcengine
Done! Let's hope it works, really don't want to open it up and redo it. If this works I will have a (dubious) high quality individually shielded RGB SCART cable for my PC-Engine. #rgb #scart #retromodding #pcengine #PCエンジン
Let's continue and make a lead for the RGB modded PC-Engine Duo. Then I can also finally finish that. Need a proper working RGB cable to test the RGB mod and see if I need to do a jailbar fix. #scart #rgb #pcengine
Finished (half) of my modular SCART cable project that I started halfway through repairing/modding my PC-Engine Duo. Finished the SCART end that has an aviation grade 10-pin connector. Now to make the ends that connect to the consoles. #scart #rgb #retrogaming #retromodding
The SCART casing now closes. Yay! Screwed on the custom 3D printed cable gland my buddy printed for me and it is done! Finally after months. I now have half a RGB SCART cable... Colour coded gland will help me easily distinguish the cables once I have made more. #dekita #rgb #scart #retrogaming
Decided to standardize on this pinout. 1 pin short to add s-video, but that's ok, coz you don't have luma and chroma in SCART, so when making an s-video cable I can repurpose the sync pin. #rgb #scart #retrogaming
Finally made some progress with this. I was a bit stuck, the 12V booster circuit was not working. Tried to find the problem on and off during evenings. Got help from screwbreaker himself via the GitHub (thanks!). Turns out I forgot to solder a cap on the backside... #retrogaming #rgb #scart
Adding SCART to a Non-SCART Commodore 1084 with Full Sync Support
#Commodore1084 #SCART #SCARTMod #RetroTech #CSync #RetroHardware
https://theoasisbbs.com/adding-scart-to-a-non-scart-commodore-1084-with-full-sync-support/?feed_id=1465&_unique_id=67a22bb53b6ef
@Grantscheam Hach, nur ein USB-Zimmer. Du Amateur! 😎😉
Ich muss wohl irgendwann eine Abrisbude, Resthof oder irgendwas ankaufen, um mein Gedöns unterzubringen. #Chinch, #Klinke, #SCART, #Würfelstecker, #Diodenkabel 3-7 polig, Koax 60/75 Ohm und, und, und...
Grad erst noch nen Karton unterm Bett im Schlafzimmer gefunden... und es nimmt kein Ende. :smile:
In #Europe we didn't use #Chinch / #RCA but #SCART and those were almost never on the front...
@Ninji Was there any connector with worse plug/unplug user experience than #SCART? Maybe unplugging #Displayport is quite a candidate.
@Ninji actually, no because #SCART cables don't necessarily have sufficient shielding and are mechanically too imprecise for highspeed data transfer even considering #Thunderbolt 1.0.and #USB 3.0...
