New MFT Global Shutter Sensor Can Shoot 4K at 2,000 FPS

Gpixel has developed a new global shutter 4/3-inch 10-megapixel sensor that it claims will be capable of shooting 4K video at up to 2,000 frames per second.

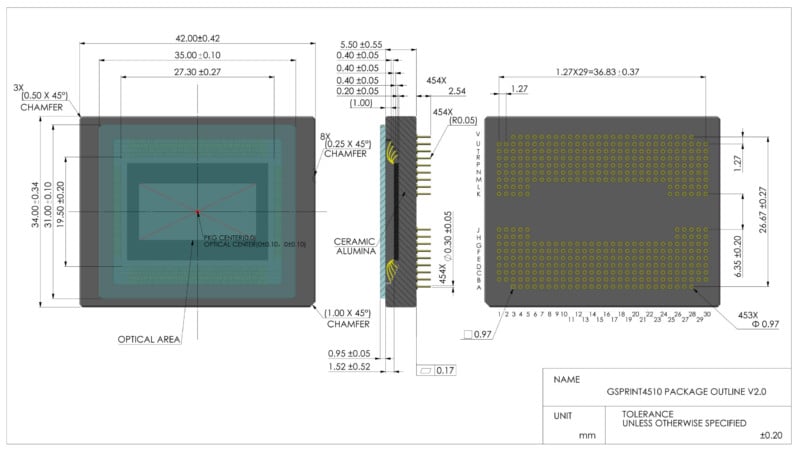

As spotted by Image Sensors World, the 10-megapixel (4608 x 2176) 4/3-inch sensor GSPRINT 4510 is part of the company's high-speed series. The dimensions aren't a perfect fit for what most photographers are used to seeing, as it is a bit wider and shorter than consumer camera Micro Four-Thirds sensors: those are 18mm x 13.5mm while Gpixel's new sensor is 20.74mm x 9.9mm. Still, it's enough for specifically widescreen video applications and is still larger than the required 2840 x 2160 pixels that are required for Ultra High Definition (UHD) productions.

This new sensor is designed with what Gpixel describes as a 4.5 µm charge domain global shutter pixel that offers four times the framerate of its previous global shutter sensors.

It achieves more than 30 ke- charge capacity and less than 3 e- rms read noise. Using an advanced 65 nm CIS process with light pipe technology, the sensor achieves >65% QE and more than 1/40,000 shutter efficiency. With on-chip charge binning, full well capacity can be further increased and frame rate is almost quadrupled.

The company is releasing the sensor in two variants for different use cases. One will be dedicated to 3D laser profiling, while the other is arguably more interesting to creative professionals and is designed to work for 4K video applications. In this second variant, it will be available in both monochrome and color options and can achieve 500 frames per second in 12-bit, 1,008 frames per second in 10-bit, and 1,928 frames per second in 8-bit, all at full resolution.

On-chip 2×2 charge binning can boost frame rates more than x3 with a full well charge increase to 120 ke-. Flexible output channel multiplex modes make it possible to reduce frame and data rate to make it compatible with all available camera interface options. This version of the sensor incorporates micro lenses on top of the pixels and a sealed glass lid making GSPRINT4510 the ultimate choice for many applications such as 4/3”(Micro Four Thirds) format global shutter cameras in slow motion capture or drone-mounted videography.

Gpixel is a Chinese-based company that was founded in 2012 and markets itself as having an experienced team of CMOS image designers and semiconductor physicists. It isn't clear who Gpixel's current customers are, but the development of highly performant sensors by smaller companies is only beneficial in an industry that is dominated by Sony and Samsung. Creators looking to harness the benefits of high framerate and a global shutter can cross their fingers that this kind of video capture tech will find its way into consumer cameras sooner rather than later.

#equipment #news #2000fps #4k #globalshutter #globalshuttersensor #gpixel #gsprint4510 #m43 #microfourthirds #newsensor #samsung #sensors #sony #uhd

Engineer Develops Eyeball-Like Image Sensor Based on Art of Kirigami

A mechanical engineer has developed a camera with what is described as a "curvy" and eyeball-like adaptable imaging sensor that is based on the Japanese art of cutting and folding paper (kirigami) that he claims could improve the quality of some types of cameras.

Modern image sensors use a conventional rigid and flat surface to record light and translate that into images and use glass or plastic elements in lenses of varying sizes to correct for visual aberrations. But University of Houston Professor of Mechanical Engineering Cunjian Yu has developed a sensor that can curve like a human eye and work with a single lens while still correcting for visual aberrations, while also offering other advantages such as a wide angle of view and compact size.

“Existing curvy imagers are either flexible but not compatible with tunable focal surfaces, or stretchable but with low pixel density and pixel fill factors,” Yu writes in Nature Electronics. “The new imager with kirigami design has a high pixel fill factor, before stretching, of 78% and can retain its optoelectronic performance while being biaxially stretched by 30%.”

Yu curves sensors by using an array of extremely thin silicon pixels with a kirigami design by using what is called a conformal additive stamp printing process (CAS), a manufacturing technology that was invented in his lab. The University of Houston describes the process of CAS printing as one where an "elastomeric" -- or stretchy -- balloon with a sticky coating is inflated and used as a stamping medium to push down on a prefabricated device to pick up the electronics and print them on curved surfaces.

Kirigami is a Japanese paper art method that differs from origami in that cutting is integrated rather than just folding paper. The same principles are used in Yu's process which makes thin cuts in the sensor sheet in order to allow it to stretch and curve. The thin cuts form a sort of "mesh" that gains flexibility without sacrificing pixel density.

"The new adaptive imager can achieve focused views of objects at different distances by combining a concave-shaped camera printed on a magnetic rubber sheet with a tunable lens," Yu explains. "Adaptive optical focus is achieved by tuning both the focal length of the lens and the curvature of the imager, allowing far and near objects to be imaged clearly with low aberration.”

Yu believes that the sensor design will particularly useful for endoscopes, night-vision goggles, artificial compound eyes, or fish-eye cameras. The full article on the optoelectronic pixels with a kirigami design is published on Nature Electronics.
