Postman brought me a boat-load of bus bars for the low voltage wiring in the #EV #Mustang this morning. (I may have gone overboard). There’s three for the engine bay, three for under the dash, and three to go in the boot (permanent 12v, ignition switched 12v, and ground).

They’re much chunkier than I thought. They feel good and solid though.

#WeirdCarMastodon #classiccars #EVconversion #openinverter #opensource

An open hand with a black/silver/clear bus bar on it. In the background there are many others still in their bags.

Oh, and I also started making little brackets to hold the battery modules from the top. Just a piece of flat bar, put in the vice and bend it by hand.

#openinverter #opensource #classiccar #EVconversion #WeirdCarMastodon

S-shaped piece of metal reaching from the top of the battery box to a stud holding the battery module in place.

Still trying to decide how to bolt the side panels on. I could just drill a hole and weld a nut to the inside. I’d kind of like to use rivnuts though. But I’d need to countersink them so they were flush.

#openinverter #opensource #classiccar #EVconversion #WeirdCarMastodon

I think I’m going to use the old fuel tank after all. I changed my mind about putting the batteries in the fuel tank spot. It’ll help to preserve the outside appearance of the car being unchanged.

Here I’ve just dumped 5L of evaporust in there. I’ve been rotating it every day or so to get a different corner. Should make cleaning it up much less labour intensive.

#openinverter #opensource #classiccar #EVconversion #WeirdCarMastodon

Fuel tank with top cut off. Brown murky liquid in the bottom. It’s tipped over slight to one side to the liquid reaches up the walls on one side. The exposed areas are green/yellow.

There’s plenty of room for everything - contactors, mid pack disconnect, fuse, HV socket, vent, and LV socket.

I’ll put the sockets on the side I think. Possibly will weld in a little bracket to hold them. The side panels (and top) will be 1mm sheet that will bolt on. They’ll just go around the sockets.

There will be a high voltage junction box sitting on top of the battery box so will leave the top relatively clear.

#openinverter #opensource #classiccar #EVconversion #WeirdCarMastodon

View of the battery box with all of the components in their approximate home.

This morning I did the first test stack up to see if everything fit. There’s always that worry in the back of your head that you’ve not left enough room somewhere and while everything might be able to fit actually getting it in might be impossible.

#openinverter #opensource #classiccar #EVconversion #WeirdCarMastodon

Looking down into the battery box. One of three modules in the bottom layer is in place. The posts to hold the next one are in place.

View of the battery box with all three modules in the bottom layer in place. One of the modules in the top layer is in place. Orange high voltage cables can also be seen snaking around the box.

Over the Christmas break I turned my battery ‘tray’ into a battery box. Well, something that more resembles a box. It has three dimensions now at least. It’s not perfect, but it’s reasonably square.

#openinverter #opensource #classiccar #EVconversion #WeirdCarMastodon

Pieces of angle iron form the frame of a box. Some edges have been welded while others are just clamped temporarily. A workbench is to the right and the side of a car to the left.

Brought the #Mustang to #DublinMaker over the weekend to exhibit it as part of the #OpenInverter stand. Loads of interest in #EVConversion from adults and kids alike. It was a wonderful event. There were five of us on the stand and we were swamped for the whole two days. It was great fun!

#WeirdCarMastodon #EV #classiccar #classiccars

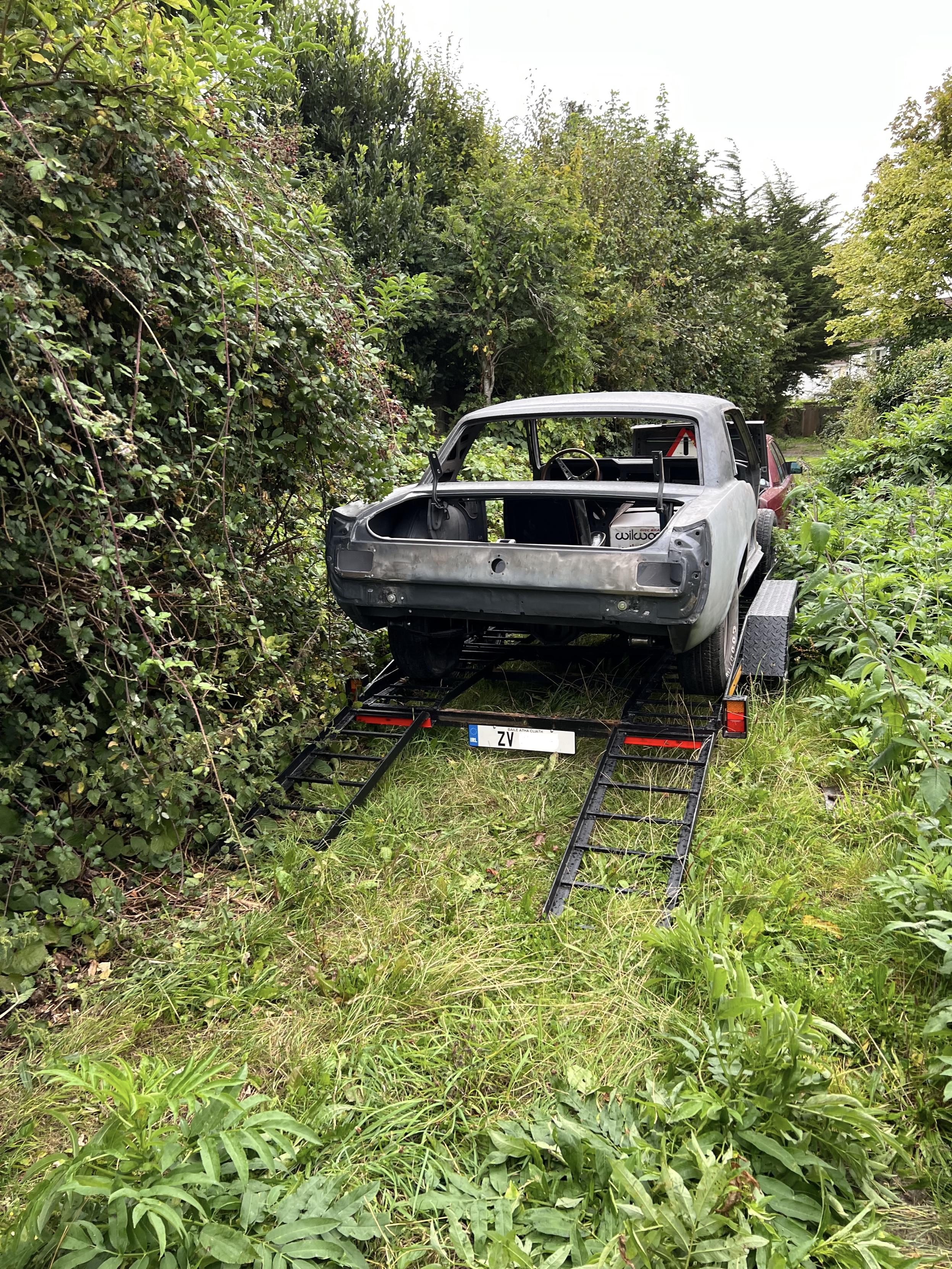

View from the rear of 1965 Ford Mustang stripped down to just shell and wheels sitting on the back of a trailer. The ramps are still in place on the trailer. The setting is a laneway that is very overgrown with brambles and other vegetation.

View of open air area under a roof. On the right is an Audi 80. The bonnet is open and you can see in the engine bay. People are standing around looking at the car and other vehicles in the background.

View of an open air area with a roof overhead. A 1965 Ford Mustang is in the foreground facing away from us. Lots of people are standing around looking at the car. Kids are climbing around inside.

My talk on solar sailing Serendiep is now online: https://media.ccc.de/v/why2025-271-solar-sailing-serendiep
#why2025 #serendiep #ev #openinverter

In all my excitement arranging things in the engine bay, I forgot to check out how things line up on the underside of the car. Took a few snaps this morning and it's looking really well. The rib which supported the old transmission lines up perfectly with the rear mount on the gs300h CVT. I still need to move it back a little to clear the steering parts on the front, but it's still basically bang on.

#WeirdCarMastodon #EV #classiccars #restoration #evconversion #openinverter

Looking up at the underside of the transmission tunnel on a 1965 Ford Mustang. A CVT from a Lexus gs300h is in the transmission tunnel, sitting atop a wheely trolley and a stack of wood. There is a rib running from one frame rail up and around the inside of the transmission tunnel and over to the other frame rail. The rear mounting point of the CVT lines up perfectly with this rib.

#Mustang sitting down on its wheels for the first time in 6 years (!?!?!).

Still no steering or brakes. ... or anything else really. But it's a symbolic milestone.

#WeirdCarMastodon #EVconversion #classiccar #restoration #EV #openinverter

Interior of a home garage. Shelves line the walls, packed with all sort of stuff. The bare chassis of a 1965 Ford Mustang sits in the middle of the garage. It is missing its engine, fenders, glass, doors and so on. Its sitting on four crumbly old tires.

I finally managed to find the old brake master from the mustang. It was buried in a box of random bits. Quite a size difference between it and the new(er) booster I plan to replace it with.

#WeirdCarMastodon #classiccar #restoration #ev #EVconversion #openinverter

Two brake masters sit side by side on a bench. On the left, the original, small, manual master. It’s very rusty. It has a small section of brake line still sticking out the front. On the right, the much larger, modern iBooster.

Took this little walk around video last night. Finally feeling like I'm starting to get on top of the rust and bodywork repairs. Should be able to start on putting the suspension back together fairly soon.

https://peertube.chrskly.net/w/sb4AZXJhdXYBqL153dWQh8

#WeirdCarMastodon #ev #EVconversion #openinverter #classiccar

It took a few passes, but I'm calling the rear, right wheel arch done :) Well, the hard part is done. Now I just need to paint and seam seal.
#classiccar #restoration #mustang #openinverter #WeirdCarMastodon

mid-way through removing all of the crud and rust

Gerade einen Growatt SHINE WiFi X (USB-Stick mit WiFi zum Auslesen eines Growatt Wechselrichter) von der China-Cloud befreit. Alle Daten lassen sich jetzt lokal im Netzwerk auslesen. Besteht Interesse an einem HowTo? Aufgespielt habe ich. 👇

https://github.com/OpenInverterGateway/OpenInverterGateway

#growatt #shine #cloud #openinverter #gateway

Doesn’t come out quite right in photo, but love the patina on this part of the car. I’ll still be cleaning and respraying it. It just looks cool right now.

#WeirdCarMastodon #EVconversion #restoration #openinverter

Underside of car, some sections are bare metal, some are red primer, some covered in some sort of bitumen, and some just caked in mud

Little cleaning and priming this evening.

#WeirdCarMastodon #classiccar #EVconversion #openinverter

underside of car with a small freshly painted area

I’ve been leaving the rear wheel wells toward the end of the cleanup of the underside of the car. Partly because I figured it would be tricky (which it is) and partly because I was afraid of finding more rust/rot there (which I didn’t!). An hour of wire wheel grinding and it looks a bit better, but lots more to do.
