Pourquoi j'ai l'impression que quand je tape un acronyme en trois lettres je tombe inévitablement sur des acronymes du ministère de l'éducation nationale ?

La je cherche VPI pour Verilog Procedural Interface, on est loin des vidéoprojecteurs interactifs quand même ;)

#vpi #en #verilog #fpga #simulation #flf

This was an unexpected but welcome thing to wake up to! Quake running natively on the Analogue Pocket!
Definitely a bit choppy at times and with low-res textures and questionable audio, but it's still super rad.
It also supports the link cable for LAN play!
#retrogaming #quake #fpga

AmiGUS Sound Card Lands on GadgetUK’s Amiga
#Amiga #AmiGUS #RetroComputing #ZorroII #AHI #MHI #Amiga4000 #RetroHardware #OpenHardware #Chiptune #MP3 #FPGA
https://theoasisbbs.com/amigus-sound-card-lands-on-gadgetuks-amiga/?fsp_sid=2799

✨ New selected research highlight ✨

LISA on a tabletop

First milestone towards a hardware-in-the-loop testbed of the space-based gravitational-wave detector

ℹ️ https://www.aei.mpg.de/1413242/lisa-on-a-tabletop

📄 https://iopscience.iop.org/article/10.1088/1361-6382/ae4708

A team of @mpi_grav and @unihannover researchers has successfully demonstrated hardware simulations of the LISA inter-satellite links. Their hardware testbed uses field-programmable gate arrays, high-speed computer memory, and signal converters.

It can digitally simulate realistic delays, Doppler shifts, and the injection and recovery of gravitational-wave signals.

#LISA #GravitationalWaves #Research #Science #Space #Laser #FPGA

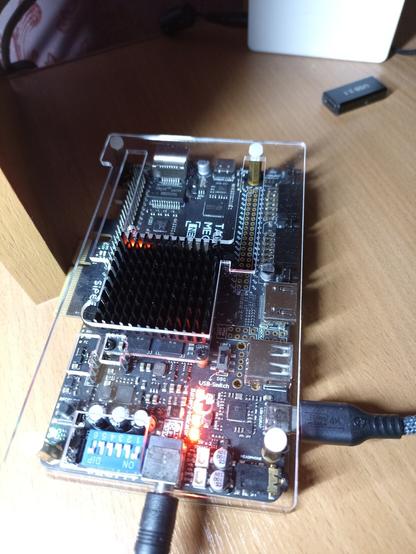

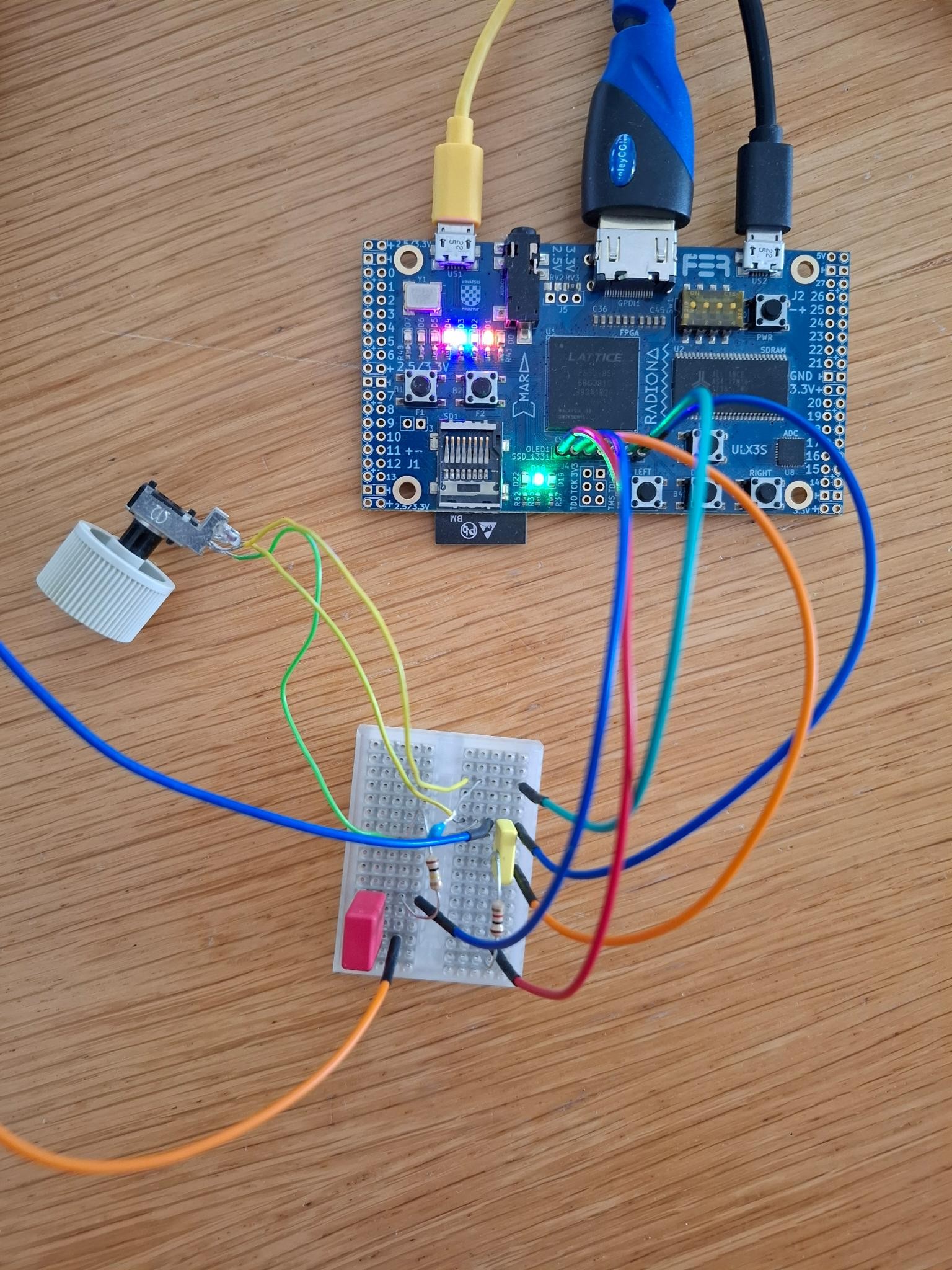

growing bigger

#fpga

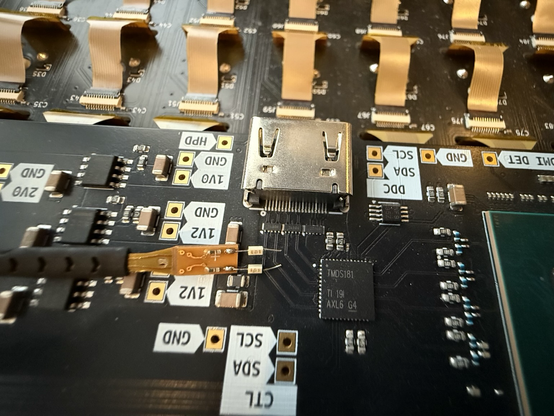

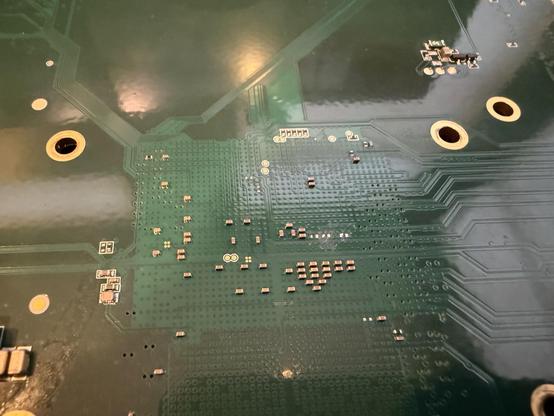

Well, I think this XCVU13P #FPGA is dead. I traced the short on the 1.8 V rail to caps under the BGA and removed three of them. The pads still show the same voltage 😕

Salvaging 4X LTM4630Y and 2X LTM4628Y DC-DC modules makes the purchase worth it anyway.

@jcm@wafrn.jcm.re asked

library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity my_code is generic( WIDTH : integer := 640; HEIGHT : integer := 480; CONSOLE_COLUMNS : integer := WIDTH / 8; CONSOLE_ROWS : integer := HEIGHT / 8 ); port( clk : in std_logic; rst : in std_logic; px : in integer range 0 to WIDTH - 1; py : in integer range 0 to HEIGHT - 1; hsync : in std_logic; vsync : in std_logic; col : in integer range 0 to CONSOLE_COLUMNS - 1; row : in integer range 0 to CONSOLE_ROWS - 1; char : out integer range 0 to 127 := 0; foreground_color : out std_logic_vector(23 downto 0) := (others => '0'); background_color : out std_logic_vector(23 downto 0) := (others => '1') ); end my_code; architecture rtl of my_code is -- Aliases to map the 24-bit vectors to RGB channels easily alias bg_red : std_logic_vector(7 downto 0) is background_color(23 downto 16); alias bg_green : std_logic_vector(7 downto 0) is background_color(15 downto 8); alias bg_blue : std_logic_vector(7 downto 0) is background_color(7 downto 0); alias fg_red : std_logic_vector(7 downto 0) is foreground_color(23 downto 16); alias fg_green : std_logic_vector(7 downto 0) is foreground_color(15 downto 8); alias fg_blue : std_logic_vector(7 downto 0) is foreground_color(7 downto 0); signal frame_counter : unsigned(31 downto 0) := (others => '0'); -- Player Ship ASCII Graphics (Using safe characters to avoid escape sequence issues) constant ship_t : string(1 to 4) := " .^ "; constant ship_m : string(1 to 4) := "===>"; constant ship_b : string(1 to 4) := " 'v "; -- Enemy Asteroid Graphics constant ast_1 : string(1 to 3) := "(O)"; constant ast_2 : string(1 to 3) := "{#}"; -- Game Logic State Signals signal ship_y : integer := 20; signal ast_x : integer := 80; signal ast_y : integer := 20; signal ast_type : std_logic := '0'; signal laser_x : integer := -10; signal laser_y : integer := 0; signal laser_active : std_logic := '0'; -- Math signals for procedurally generated background elements signal xor_pattern : unsigned(7 downto 0); signal star_fast : unsigned(7 downto 0); signal star_slow : unsigned(7 downto 0); begin -- 1. Procedural "Munching Squares" Hyperspace Background -- By XORing the scaled coordinates and the frame counter, we create a mathematical -- fractal pattern that continuously zooms and shifts leftward. xor_pattern <= (to_unsigned(px / 4, 8) + frame_counter(9 downto 2)) xor to_unsigned(py / 4, 8); bg_red <= std_logic_vector(xor_pattern); -- Adding a bit of green and inverted blue makes it a crazy high-contrast neon vibe bg_green <= std_logic_vector(xor_pattern(6 downto 0) & '0'); bg_blue <= std_logic_vector(not xor_pattern); -- 2. Procedural Parallax Starfield Math -- We use prime number multipliers and bit masking to create a pseudo-random distribution -- that requires ZERO hardware division or modulo operators. star_fast <= to_unsigned(col * 13 + row * 7, 8) + frame_counter(8 downto 1); star_slow <= to_unsigned(col * 29 + row * 11, 8) + frame_counter(10 downto 3); -- 3. Character & Foreground Renderer process(col, row, ship_y, ast_x, ast_y, ast_type, frame_counter, laser_x, laser_y, laser_active, star_fast, star_slow) begin -- Default: Empty space char <= 0; fg_red <= x"FF"; fg_green <= x"FF"; fg_blue <= x"FF"; -- RENDER PLAYER SHIP if col >= 5 and col < 9 then if row = ship_y - 1 then char <= character'pos(ship_t(col - 5 + 1)); fg_red <= x"00"; fg_green <= x"FF"; fg_blue <= x"FF"; -- Cyan elsif row = ship_y then char <= character'pos(ship_m(col - 5 + 1)); fg_red <= x"00"; fg_green <= x"FF"; fg_blue <= x"FF"; elsif row = ship_y + 1 then char <= character'pos(ship_b(col - 5 + 1)); fg_red <= x"00"; fg_green <= x"FF"; fg_blue <= x"FF"; end if; -- RENDER ENGINE THRUST FLAME elsif col = 4 and row = ship_y then if frame_counter(2) = '1' then char <= character'pos('~'); fg_red <= x"FF"; fg_green <= x"45"; fg_blue <= x"00"; -- Orange-Red else char <= character'pos('-'); fg_red <= x"FF"; fg_green <= x"D7"; fg_blue <= x"00"; -- Gold end if; -- RENDER LASER BEAM elsif laser_active = '1' and row = laser_y and col >= laser_x and col < laser_x + 3 then char <= character'pos('-'); fg_red <= x"FF"; fg_green <= x"00"; fg_blue <= x"00"; -- Bright Red -- RENDER INCOMING ASTEROIDS elsif row = ast_y and col >= ast_x and col < ast_x + 3 then if ast_type = '0' then char <= character'pos(ast_1(col - ast_x + 1)); else char <= character'pos(ast_2(col - ast_x + 1)); end if; fg_red <= x"A9"; fg_green <= x"A9"; fg_blue <= x"A9"; -- Gray -- RENDER PARALLAX STARFIELD else -- Check the bitmasks of our math signals to spawn stars sparsely if star_fast(4 downto 0) = "00000" then char <= character'pos('-'); -- Fast streaks fg_red <= x"AA"; fg_green <= x"AA"; fg_blue <= x"FF"; elsif star_slow(5 downto 0) = "000000" then char <= character'pos('.'); -- Slow distant dots fg_red <= x"88"; fg_green <= x"88"; fg_blue <= x"88"; end if; end if; end process; -- 4. Game Engine (Animation & Collision Logic) process(clk) variable old_vsync : std_logic := '0'; begin if rising_edge(clk) then if rst = '1' then frame_counter <= (others => '0'); ship_y <= CONSOLE_ROWS / 2; ast_x <= CONSOLE_COLUMNS + 5; ast_y <= 20; laser_active <= '0'; elsif vsync = '0' and old_vsync = '1' then -- Increment global timer frame_counter <= frame_counter + 1; -- 4a. Ship bobbing (Sine wave approximation using counter bits) if frame_counter(5 downto 0) = "000000" then if frame_counter(6) = '1' and ship_y < CONSOLE_ROWS - 4 then ship_y <= ship_y + 1; elsif frame_counter(6) = '0' and ship_y > 4 then ship_y <= ship_y - 1; end if; end if; -- 4b. Asteroid Movement (Moves leftward) if frame_counter(1 downto 0) = "00" then if ast_x < -3 then ast_x <= CONSOLE_COLUMNS + 5; -- Respawn off-screen right -- Use bits of the frame counter to randomly select new Y row and type ast_y <= 5 + to_integer(frame_counter(7 downto 3)); ast_type <= frame_counter(2); else ast_x <= ast_x - 1; end if; end if; -- 4c. Laser Physics and Collision Detection if laser_active = '1' then -- Lasers move very fast to the right laser_x <= laser_x + 2; -- Deactivate if it goes off screen if laser_x > CONSOLE_COLUMNS then laser_active <= '0'; end if; -- Collision Check: Did the laser hit the asteroid? if laser_x >= ast_x and laser_y = ast_y then ast_x <= -10; -- Banish asteroid off-screen laser_active <= '0'; -- Turn off laser end if; else -- Auto-fire mechanism: Shoot a new laser periodically! if frame_counter(6 downto 0) = "0000000" then laser_active <= '1'; laser_x <= 10; laser_y <= ship_y; end if; end if; end if; old_vsync := vsync; end if; end process; end architecture;

Sucess!

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity my_code is
  generic(
    WIDTH : integer := 640;
    HEIGHT : integer := 480;
    CONSOLE_COLUMNS : integer := WIDTH / 8;
    CONSOLE_ROWS : integer := HEIGHT / 8
  );
  port(
    clk : in std_logic;
    rst : in std_logic;
    px : in integer range 0 to WIDTH - 1;
    py : in integer range 0 to HEIGHT - 1;
    hsync : in std_logic;
    vsync : in std_logic;
    col : in integer range 0 to CONSOLE_COLUMNS - 1;
    row : in integer range 0 to CONSOLE_ROWS - 1;
    char : out integer range 0 to 127 := 0;
    foreground_color : out std_logic_vector(23 downto 0) := (others => '0');
    background_color : out std_logic_vector(23 downto 0) := (others => '1')
  );
end my_code;

architecture rtl of my_code is
    -- Aliases to map the 24-bit vectors to RGB channels easily
    alias bg_red   : std_logic_vector(7 downto 0) is background_color(23 downto 16);
    alias bg_green : std_logic_vector(7 downto 0) is background_color(15 downto 8);
    alias bg_blue  : std_logic_vector(7 downto 0) is background_color(7 downto 0);

    alias fg_red   : std_logic_vector(7 downto 0) is foreground_color(23 downto 16);
    alias fg_green : std_logic_vector(7 downto 0) is foreground_color(15 downto 8);
    alias fg_blue  : std_logic_vector(7 downto 0) is foreground_color(7 downto 0);

    signal frame_counter : unsigned(31 downto 0) := (others => '0');

    -- Player Ship ASCII Graphics (Using safe characters to avoid escape sequence issues)
    constant ship_t : string(1 to 4) := " .^ ";
    constant ship_m : string(1 to 4) := "===>";
    constant ship_b : string(1 to 4) := " 'v ";

    -- Enemy Asteroid Graphics
    constant ast_1 : string(1 to 3) := "(O)";
    constant ast_2 : string(1 to 3) := "{#}";

    -- Game Logic State Signals
    signal ship_y       : integer := 20;
    signal ast_x        : integer := 80;
    signal ast_y        : integer := 20;
    signal ast_type     : std_logic := '0';
    signal laser_x      : integer := -10;
    signal laser_y      : integer := 0;
    signal laser_active : std_logic := '0';

    -- Math signals for procedurally generated background elements
    signal xor_pattern  : unsigned(7 downto 0);
    signal star_fast    : unsigned(7 downto 0);
    signal star_slow    : unsigned(7 downto 0);

begin
    -- 1. Procedural "Munching Squares" Hyperspace Background
    -- By XORing the scaled coordinates and the frame counter, we create a mathematical
    -- fractal pattern that continuously zooms and shifts leftward.
    xor_pattern <= (to_unsigned(px / 4, 8) + frame_counter(9 downto 2)) xor to_unsigned(py / 4, 8);

    bg_red   <= std_logic_vector(xor_pattern);
    -- Adding a bit of green and inverted blue makes it a crazy high-contrast neon vibe
    bg_green <= std_logic_vector(xor_pattern(6 downto 0) & '0');
    bg_blue  <= std_logic_vector(not xor_pattern);

    -- 2. Procedural Parallax Starfield Math
    -- We use prime number multipliers and bit masking to create a pseudo-random distribution
    -- that requires ZERO hardware division or modulo operators.
    star_fast <= to_unsigned(col * 13 + row * 7, 8) + frame_counter(8 downto 1);
    star_slow <= to_unsigned(col * 29 + row * 11, 8) + frame_counter(10 downto 3);

    -- 3. Character & Foreground Renderer
    process(col, row, ship_y, ast_x, ast_y, ast_type, frame_counter, laser_x, laser_y, laser_active, star_fast, star_slow)
    begin
        -- Default: Empty space
        char <= 0;
        fg_red <= x"FF"; fg_green <= x"FF"; fg_blue <= x"FF";

        -- RENDER PLAYER SHIP
        if col >= 5 and col < 9 then
            if row = ship_y - 1 then
                char <= character'pos(ship_t(col - 5 + 1));
                fg_red <= x"00"; fg_green <= x"FF"; fg_blue <= x"FF"; -- Cyan
            elsif row = ship_y then
                char <= character'pos(ship_m(col - 5 + 1));
                fg_red <= x"00"; fg_green <= x"FF"; fg_blue <= x"FF";
            elsif row = ship_y + 1 then
                char <= character'pos(ship_b(col - 5 + 1));
                fg_red <= x"00"; fg_green <= x"FF"; fg_blue <= x"FF";
            end if;

        -- RENDER ENGINE THRUST FLAME
        elsif col = 4 and row = ship_y then
            if frame_counter(2) = '1' then
                char <= character'pos('~');
                fg_red <= x"FF"; fg_green <= x"45"; fg_blue <= x"00"; -- Orange-Red
            else
                char <= character'pos('-');
                fg_red <= x"FF"; fg_green <= x"D7"; fg_blue <= x"00"; -- Gold
            end if;

        -- RENDER LASER BEAM
        elsif laser_active = '1' and row = laser_y and col >= laser_x and col < laser_x + 3 then
            char <= character'pos('-');
            fg_red <= x"FF"; fg_green <= x"00"; fg_blue <= x"00"; -- Bright Red

        -- RENDER INCOMING ASTEROIDS
        elsif row = ast_y and col >= ast_x and col < ast_x + 3 then
            if ast_type = '0' then
                char <= character'pos(ast_1(col - ast_x + 1));
            else
                char <= character'pos(ast_2(col - ast_x + 1));
            end if;
            fg_red <= x"A9"; fg_green <= x"A9"; fg_blue <= x"A9"; -- Gray

        -- RENDER PARALLAX STARFIELD
        else
            -- Check the bitmasks of our math signals to spawn stars sparsely
            if star_fast(4 downto 0) = "00000" then
                char <= character'pos('-'); -- Fast streaks
                fg_red <= x"AA"; fg_green <= x"AA"; fg_blue <= x"FF";
            elsif star_slow(5 downto 0) = "000000" then
                char <= character'pos('.'); -- Slow distant dots
                fg_red <= x"88"; fg_green <= x"88"; fg_blue <= x"88";
            end if;
        end if;
    end process;

    -- 4. Game Engine (Animation & Collision Logic)
    process(clk)
        variable old_vsync : std_logic := '0';
    begin
        if rising_edge(clk) then
            if rst = '1' then
                frame_counter <= (others => '0');
                ship_y <= CONSOLE_ROWS / 2;
                ast_x <= CONSOLE_COLUMNS + 5;
                ast_y <= 20;
                laser_active <= '0';
            elsif vsync = '0' and old_vsync = '1' then
                -- Increment global timer
                frame_counter <= frame_counter + 1;

                -- 4a. Ship bobbing (Sine wave approximation using counter bits)
                if frame_counter(5 downto 0) = "000000" then
                    if frame_counter(6) = '1' and ship_y < CONSOLE_ROWS - 4 then
                        ship_y <= ship_y + 1;
                    elsif frame_counter(6) = '0' and ship_y > 4 then
                        ship_y <= ship_y - 1;
                    end if;
                end if;

                -- 4b. Asteroid Movement (Moves leftward)
                if frame_counter(1 downto 0) = "00" then
                    if ast_x < -3 then
                        ast_x <= CONSOLE_COLUMNS + 5; -- Respawn off-screen right
                        -- Use bits of the frame counter to randomly select new Y row and type
                        ast_y <= 5 + to_integer(frame_counter(7 downto 3));
                        ast_type <= frame_counter(2);
                    else
                        ast_x <= ast_x - 1;
                    end if;
                end if;

                -- 4c. Laser Physics and Collision Detection
                if laser_active = '1' then
                    -- Lasers move very fast to the right
                    laser_x <= laser_x + 2;

                    -- Deactivate if it goes off screen
                    if laser_x > CONSOLE_COLUMNS then
                        laser_active <= '0';
                    end if;

                    -- Collision Check: Did the laser hit the asteroid?
                    if laser_x >= ast_x and laser_y = ast_y then
                         ast_x <= -10;        -- Banish asteroid off-screen
                         laser_active <= '0'; -- Turn off laser
                    end if;
                else
                    -- Auto-fire mechanism: Shoot a new laser periodically!
                    if frame_counter(6 downto 0) = "0000000" then
                        laser_active <= '1';
                        laser_x <= 10;
                        laser_y <= ship_y;
                    end if;
                end if;
            end if;

            old_vsync := vsync;
        end if;
    end process;

end architecture;

@jcm@wafrn.jcm.re asked

library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity my_code is generic( WIDTH : integer := 640; HEIGHT : integer := 480; CONSOLE_COLUMNS : integer := WIDTH / 8; CONSOLE_ROWS : integer := HEIGHT / 8 ); port( clk : in std_logic; rst : in std_logic; px : in integer range 0 to WIDTH - 1; py : in integer range 0 to HEIGHT - 1; hsync : in std_logic; vsync : in std_logic; col : in integer range 0 to CONSOLE_COLUMNS - 1; row : in integer range 0 to CONSOLE_ROWS - 1; char : out integer range 0 to 127 := 0; foreground_color : out std_logic_vector(23 downto 0) := (others => '0'); background_color : out std_logic_vector(23 downto 0) := (others => '1') ); end my_code; architecture rtl of my_code is -- Aliases for RGB color channels alias bg_red : std_logic_vector(7 downto 0) is background_color(23 downto 16); alias bg_green : std_logic_vector(7 downto 0) is background_color(15 downto 8); alias bg_blue : std_logic_vector(7 downto 0) is background_color(7 downto 0); alias fg_red : std_logic_vector(7 downto 0) is foreground_color(23 downto 16); alias fg_green : std_logic_vector(7 downto 0) is foreground_color(15 downto 8); alias fg_blue : std_logic_vector(7 downto 0) is foreground_color(7 downto 0); signal frame_counter : unsigned(31 downto 0) := (others => '0'); -- Our ASCII Aquarium residents constant fish_right : string(1 to 5) := " ><> "; constant fish_left : string(1 to 5) := " <>< "; constant crab : string(1 to 5) := "(\_/)"; -- Coordinates for our moving fish (unconstrained integers to allow them to swim off-screen) signal fish1_x : integer := -5; signal fish1_y : integer := 5; signal fish2_x : integer := CONSOLE_COLUMNS + 5; signal fish2_y : integer := 15; -- A slow toggle signal to make the seaweed wave back and forth signal wave_toggle : std_logic; begin -- 1. Deep Sea Gradient Background -- The water is brighter at the top (py = 0) and gets darker as it goes down. bg_red <= std_logic_vector(to_unsigned( 10, 8)); -- Minimal red underwater bg_green <= std_logic_vector(to_unsigned( 180 - (py / 3), 8)); bg_blue <= std_logic_vector(to_unsigned( 255 - (py / 4), 8)); -- 2. Foreground Color Logic process(row) begin if row >= CONSOLE_ROWS - 2 then -- Seaweed green for the bottom of the tank fg_red <= x"2E"; fg_green <= x"8B"; fg_blue <= x"57"; else -- Crisp white for the fish and bubbles fg_red <= x"FF"; fg_green <= x"FF"; fg_blue <= x"FF"; end if; end process; wave_toggle <= frame_counter(4); -- Toggles every 16 frames -- 3. Character Rendering Logic (The Magic) process(col, row, fish1_x, fish1_y, fish2_x, fish2_y, frame_counter, wave_toggle) variable bubble_offset : integer range 0 to 63; begin -- Default: Empty water char <= 0; -- Draw Fish 1 (swimming right) if row = fish1_y and col >= fish1_x and col < fish1_x + 5 then if (col - fish1_x + 1) >= 1 and (col - fish1_x + 1) <= 5 then char <= character'pos(fish_right(col - fish1_x + 1)); end if; -- Draw Fish 2 (swimming left) elsif row = fish2_y and col >= fish2_x and col < fish2_x + 5 then if (col - fish2_x + 1) >= 1 and (col - fish2_x + 1) <= 5 then char <= character'pos(fish_left(col - fish2_x + 1)); end if; -- Draw the little Crab hanging out on the sea floor elsif row = CONSOLE_ROWS - 1 and col >= 30 and col < 35 then char <= character'pos(crab(col - 30 + 1)); -- Draw animated Seaweed at the bottom elsif row >= CONSOLE_ROWS - 2 then if (col mod 7) = 0 then if wave_toggle = '1' then char <= character'pos('~'); else char <= character'pos('S'); end if; elsif (col mod 11) = 0 and row = CONSOLE_ROWS - 1 then if wave_toggle = '0' then char <= character'pos('~'); else char <= character'pos('S'); end if; end if; -- Draw organically rising bubbles else -- Select a few random-looking columns to spawn bubbles if (col = 12) or (col = 28) or (col = 52) or (col = 68) then -- Calculate an upward scrolling offset based on time and column position bubble_offset := to_integer(unsigned'(frame_counter(8 downto 3) + to_unsigned(col * 5, 6))); -- If the bubble is currently on the screen, draw it! if bubble_offset < CONSOLE_ROWS then if row = (CONSOLE_ROWS - 1 - bubble_offset) then if (col mod 3) = 0 then char <= character'pos('o'); else char <= character'pos('O'); end if; end if; end if; end if; end if; end process; -- 4. Animation Timing and Movement process(clk) variable old_vsync : std_logic := '0'; begin if rising_edge(clk) then if rst = '1' then frame_counter <= (others => '0'); fish1_x <= -5; fish2_x <= CONSOLE_COLUMNS + 5; elsif vsync = '0' and old_vsync = '1' then -- Increment frame counter at the start of each new frame frame_counter <= frame_counter + 1; -- Move Fish 1 to the right (Medium Speed) if frame_counter(2 downto 0) = "000" then if fish1_x > CONSOLE_COLUMNS then fish1_x <= -10; -- Wrap around -- Pseudo-randomize depth when it wraps fish1_y <= 3 + to_integer(frame_counter(4 downto 3)); else fish1_x <= fish1_x + 1; end if; end if; -- Move Fish 2 to the left (Slightly Faster) if frame_counter(1 downto 0) = "00" then if fish2_x < -10 then fish2_x <= CONSOLE_COLUMNS + 5; -- Wrap around -- Pseudo-randomize depth when it wraps fish2_y <= 12 + to_integer(frame_counter(5 downto 4)); else fish2_x <= fish2_x - 1; end if; end if; end if; old_vsync := vsync; end if; end process; end architecture;

Sucess!

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity my_code is
  generic(
    WIDTH : integer := 640;
    HEIGHT : integer := 480;
    CONSOLE_COLUMNS : integer := WIDTH / 8;
    CONSOLE_ROWS : integer := HEIGHT / 8
  );
  port(
    clk : in std_logic;
    rst : in std_logic;
    px : in integer range 0 to WIDTH - 1;
    py : in integer range 0 to HEIGHT - 1;
    hsync : in std_logic;
    vsync : in std_logic;
    col : in integer range 0 to CONSOLE_COLUMNS - 1;
    row : in integer range 0 to CONSOLE_ROWS - 1;
    char : out integer range 0 to 127 := 0;
    foreground_color : out std_logic_vector(23 downto 0) := (others => '0');
    background_color : out std_logic_vector(23 downto 0) := (others => '1')
  );
end my_code;

architecture rtl of my_code is
    -- Aliases for RGB color channels
    alias bg_red   : std_logic_vector(7 downto 0) is background_color(23 downto 16);
    alias bg_green : std_logic_vector(7 downto 0) is background_color(15 downto 8);
    alias bg_blue  : std_logic_vector(7 downto 0) is background_color(7 downto 0);

    alias fg_red   : std_logic_vector(7 downto 0) is foreground_color(23 downto 16);
    alias fg_green : std_logic_vector(7 downto 0) is foreground_color(15 downto 8);
    alias fg_blue  : std_logic_vector(7 downto 0) is foreground_color(7 downto 0);

    signal frame_counter : unsigned(31 downto 0) := (others => '0');

    -- Our ASCII Aquarium residents
    constant fish_right : string(1 to 5) := " ><> ";
    constant fish_left  : string(1 to 5) := " <>< ";
    constant crab       : string(1 to 5) := "(\_/)";

    -- Coordinates for our moving fish (unconstrained integers to allow them to swim off-screen)
    signal fish1_x : integer := -5;
    signal fish1_y : integer := 5;

    signal fish2_x : integer := CONSOLE_COLUMNS + 5;
    signal fish2_y : integer := 15;

    -- A slow toggle signal to make the seaweed wave back and forth
    signal wave_toggle : std_logic;

begin
    -- 1. Deep Sea Gradient Background
    -- The water is brighter at the top (py = 0) and gets darker as it goes down.
    bg_red   <= std_logic_vector(to_unsigned( 10, 8)); -- Minimal red underwater
    bg_green <= std_logic_vector(to_unsigned( 180 - (py / 3), 8));
    bg_blue  <= std_logic_vector(to_unsigned( 255 - (py / 4), 8));

    -- 2. Foreground Color Logic
    process(row)
    begin
        if row >= CONSOLE_ROWS - 2 then
            -- Seaweed green for the bottom of the tank
            fg_red   <= x"2E"; fg_green <= x"8B"; fg_blue <= x"57";
        else
            -- Crisp white for the fish and bubbles
            fg_red   <= x"FF"; fg_green <= x"FF"; fg_blue <= x"FF";
        end if;
    end process;

    wave_toggle <= frame_counter(4); -- Toggles every 16 frames

    -- 3. Character Rendering Logic (The Magic)
    process(col, row, fish1_x, fish1_y, fish2_x, fish2_y, frame_counter, wave_toggle)
        variable bubble_offset : integer range 0 to 63;
    begin
        -- Default: Empty water
        char <= 0;

        -- Draw Fish 1 (swimming right)
        if row = fish1_y and col >= fish1_x and col < fish1_x + 5 then
            if (col - fish1_x + 1) >= 1 and (col - fish1_x + 1) <= 5 then
                char <= character'pos(fish_right(col - fish1_x + 1));
            end if;

        -- Draw Fish 2 (swimming left)
        elsif row = fish2_y and col >= fish2_x and col < fish2_x + 5 then
            if (col - fish2_x + 1) >= 1 and (col - fish2_x + 1) <= 5 then
                char <= character'pos(fish_left(col - fish2_x + 1));
            end if;

        -- Draw the little Crab hanging out on the sea floor
        elsif row = CONSOLE_ROWS - 1 and col >= 30 and col < 35 then
            char <= character'pos(crab(col - 30 + 1));

        -- Draw animated Seaweed at the bottom
        elsif row >= CONSOLE_ROWS - 2 then
            if (col mod 7) = 0 then
                if wave_toggle = '1' then
                    char <= character'pos('~');
                else
                    char <= character'pos('S');
                end if;
            elsif (col mod 11) = 0 and row = CONSOLE_ROWS - 1 then
                if wave_toggle = '0' then
                    char <= character'pos('~');
                else
                    char <= character'pos('S');
                end if;
            end if;

        -- Draw organically rising bubbles
        else
            -- Select a few random-looking columns to spawn bubbles
            if (col = 12) or (col = 28) or (col = 52) or (col = 68) then
                -- Calculate an upward scrolling offset based on time and column position
                bubble_offset := to_integer(unsigned'(frame_counter(8 downto 3) + to_unsigned(col * 5, 6)));

                -- If the bubble is currently on the screen, draw it!
                if bubble_offset < CONSOLE_ROWS then
                    if row = (CONSOLE_ROWS - 1 - bubble_offset) then
                        if (col mod 3) = 0 then
                            char <= character'pos('o');
                        else
                            char <= character'pos('O');
                        end if;
                    end if;
                end if;
            end if;
        end if;
    end process;

    -- 4. Animation Timing and Movement
    process(clk)
        variable old_vsync : std_logic := '0';
    begin
        if rising_edge(clk) then
            if rst = '1' then
                frame_counter <= (others => '0');
                fish1_x <= -5;
                fish2_x <= CONSOLE_COLUMNS + 5;
            elsif vsync = '0' and old_vsync = '1' then
                -- Increment frame counter at the start of each new frame
                frame_counter <= frame_counter + 1;

                -- Move Fish 1 to the right (Medium Speed)
                if frame_counter(2 downto 0) = "000" then
                    if fish1_x > CONSOLE_COLUMNS then
                        fish1_x <= -10; -- Wrap around
                        -- Pseudo-randomize depth when it wraps
                        fish1_y <= 3 + to_integer(frame_counter(4 downto 3));
                    else
                        fish1_x <= fish1_x + 1;
                    end if;
                end if;

                -- Move Fish 2 to the left (Slightly Faster)
                if frame_counter(1 downto 0) = "00" then
                    if fish2_x < -10 then
                        fish2_x <= CONSOLE_COLUMNS + 5; -- Wrap around
                        -- Pseudo-randomize depth when it wraps
                        fish2_y <= 12 + to_integer(frame_counter(5 downto 4));
                    else
                        fish2_x <= fish2_x - 1;
                    end if;
                end if;
            end if;

            old_vsync := vsync;
        end if;
    end process;

end architecture;

Nick Brown (@NickBrownHPC)

뮌헨 WAMTA 학회에서 열린 키노트에서 비동기 다중 작업(asynchronous many-tasking)에 대해 발표했으며, @cerebras, RISC-V 및 FPGA를 언급하며 작업 단위(task)가 성능 확보에 결정적 역할을 한다고 설명했습니다.

https://x.com/NickBrownHPC/status/2024534646734688634

#cerebras #riscv #fpga #hardware

@jcm@wafrn.jcm.re asked

module my_code #( parameter int WIDTH = 640, parameter int HEIGHT = 480, parameter int CONSOLE_COLUMNS = WIDTH / 8, parameter int CONSOLE_ROWS = HEIGHT / 8 )( input logic clk, input logic rst, input int px, input int py, input logic hsync, input logic vsync, input int col, input int row, output int char, output logic [23:0] foreground_color, output logic [23:0] background_color ); logic [31:0] frame_counter = 0; logic old_vsync = 0; logic [7:0] red, green, blue; // Define a simple character mapping for demonstration. logic [7:0] char_code; always_comb begin // Calculate the character code based on pixel coordinates. // This creates a very basic "pixelated" text effect. char_code = (px % 8) << 4 | (py % 8); // Combine X and Y into a single char code // Simple color palette - Red for important, Green for normal, Blue for background red = 8'(col * 2); // More intense red based on column. green = 8'(py); // Normal green for the row. blue = frame_counter[7:0]; // Blue changes with the frame counter background_color = {red, green, blue}; foreground_color = char_code[7:0] ? 1'b1 : 1'b0; // Turn on foreground only when a character is being drawn. char = char_code; end always_ff @(posedge clk) begin if (vsync == 1'b0 && old_vsync == 1'b1) begin frame_counter <= frame_counter + 1; end old_vsync <= vsync; end endmodule

Sucess!

module my_code #(
    parameter int WIDTH = 640,
    parameter int HEIGHT = 480,
    parameter int CONSOLE_COLUMNS = WIDTH / 8,
    parameter int CONSOLE_ROWS = HEIGHT / 8
)(
    input  logic clk,
    input  logic rst,

    input  int px,
    input  int py,
    input  logic hsync,
    input  logic vsync,

    input  int col,
    input  int row,

    output int char,
    output logic [23:0] foreground_color,
    output logic [23:0] background_color
);
    logic [31:0] frame_counter = 0;
    logic old_vsync = 0;

    logic [7:0] red, green, blue;

    // Define a simple character mapping for demonstration.
    logic [7:0] char_code;

    always_comb begin
        // Calculate the character code based on pixel coordinates.
        // This creates a very basic "pixelated" text effect.
        char_code = (px % 8) << 4 | (py % 8); // Combine X and Y into a single char code

        // Simple color palette -  Red for important, Green for normal, Blue for background
        red   = 8'(col * 2);   // More intense red based on column.
        green = 8'(py);      // Normal green for the row.
        blue  = frame_counter[7:0]; // Blue changes with the frame counter

        background_color = {red, green, blue};
        foreground_color = char_code[7:0] ? 1'b1 : 1'b0; // Turn on foreground only when a character is being drawn.
        char = char_code;
    end

    always_ff @(posedge clk) begin
        if (vsync == 1'b0 && old_vsync == 1'b1) begin
            frame_counter <= frame_counter + 1;
        end

        old_vsync <= vsync;
    end
endmodule

@jcm@wafrn.jcm.re asked

module my_code #( parameter int WIDTH = 640, parameter int HEIGHT = 480, parameter int CONSOLE_COLUMNS = WIDTH / 8, parameter int CONSOLE_ROWS = HEIGHT / 8 )( input logic clk, input logic rst, input int px, input int py, input logic hsync, input logic vsync, input int col, input int row, output int char, output logic [23:0] foreground_color, output logic [23:0] background_color ); logic [7:0] frame_counter; logic old_vsync; logic [7:0] red, green, blue; logic [7:0] character_data; // Data for the character to display // Character mapping - a simplified ASCII representation. More characters can be added. localparam CHAR_A = 8'h41; localparam CHAR_B = 8'h42; localparam CHAR_C = 8'h43; always_ff @(posedge clk) begin if (rst) begin frame_counter <= 0; old_vsync <= 0; character_data <= 8'h00; // Blank character end else begin frame_counter <= frame_counter + 1; old_vsync <= vsync; // Simple animation: A rotating character if (frame_counter % 30 == 0) begin //Update every 30 frames character_data <= (frame_counter / 30) % 3 ? CHAR_A : (frame_counter / 30) % 3 + 1 ? CHAR_B : CHAR_C; end end end always_comb begin // Color mapping - a simple color scheme. Adjust as needed. red = 8'(col * 2); //Red scales with column position green = 8'(py * 3); //Green scales with row position blue = frame_counter[7:0] % 64; //Blue cycles through a range background_color = {red, green, blue}; //Foreground color based on the character being displayed. if (character_data == CHAR_A) begin foreground_color = 24'h00FF0000; //Green on Black for 'A' end else if(character_data == CHAR_B) begin foreground_color = 24'hFF000000; //Red on Black for 'B' end else if (character_data == CHAR_C) begin foreground_color = 24'h0000FF00; //Green on Black for 'C' end else begin foreground_color = 24'hFFFFFF00; //White on Black for default character. end char = character_data; end endmodule

Sucess!

module my_code #(
    parameter int WIDTH = 640,
    parameter int HEIGHT = 480,
    parameter int CONSOLE_COLUMNS = WIDTH / 8,
    parameter int CONSOLE_ROWS = HEIGHT / 8
)(
    input  logic clk,
    input  logic rst,

    input  int px,
    input  int py,
    input  logic hsync,
    input  logic vsync,

    input  int col,
    input  int row,

    output int char,
    output logic [23:0] foreground_color,
    output logic [23:0] background_color
);
    logic [7:0] frame_counter;
    logic old_vsync;

    logic [7:0] red, green, blue;
    logic [7:0] character_data; // Data for the character to display


    // Character mapping - a simplified ASCII representation.  More characters can be added.
    localparam  CHAR_A = 8'h41;
    localparam  CHAR_B = 8'h42;
    localparam  CHAR_C = 8'h43;

    always_ff @(posedge clk) begin
        if (rst) begin
            frame_counter <= 0;
            old_vsync <= 0;
            character_data <= 8'h00; // Blank character
        end else begin
            frame_counter <= frame_counter + 1;
            old_vsync <= vsync;

            // Simple animation:  A rotating character
            if (frame_counter % 30 == 0) begin //Update every 30 frames
                character_data <= (frame_counter / 30) % 3 ? CHAR_A : (frame_counter / 30) % 3 + 1 ? CHAR_B : CHAR_C;
            end
        end
    end


    always_comb begin
        // Color mapping - a simple color scheme.  Adjust as needed.
        red   = 8'(col * 2); //Red scales with column position
        green = 8'(py * 3);  //Green scales with row position
        blue  = frame_counter[7:0] % 64; //Blue cycles through a range

        background_color = {red, green, blue};

        //Foreground color based on the character being displayed.
        if (character_data == CHAR_A) begin
            foreground_color = 24'h00FF0000;  //Green on Black for 'A'
        end else if(character_data == CHAR_B) begin
            foreground_color = 24'hFF000000; //Red on Black for 'B'
        end else if (character_data == CHAR_C) begin
            foreground_color = 24'h0000FF00;  //Green on Black for 'C'
        end else begin
            foreground_color = 24'hFFFFFF00; //White on Black for default character.
        end

        char = character_data;
    end
endmodule

@jcm@wafrn.jcm.re asked

module my_code #( parameter int WIDTH = 640, parameter int HEIGHT = 480, parameter int CONSOLE_COLUMNS = WIDTH / 8, parameter int CONSOLE_ROWS = HEIGHT / 8 )( input logic clk, input logic rst, input int px, input int py, input logic hsync, input logic vsync, input int col, input int row, output int char, output logic [23:0] foreground_color, output logic [23:0] background_color ); logic [31:0] frame_counter = '0; logic old_vsync = '0; logic [7:0] red, green, blue; // Define a simple character set - ASCII for demonstration. Can be expanded. logic [7:0] char_code; localparam MAX_CHARS = 256; //ASCII range always_comb begin // Simple character mapping based on row and column. Makes it look like text! if (row < CONSOLE_ROWS && col < CONSOLE_COLUMNS) begin char_code = { (col % MAX_CHARS), (row % MAX_CHARS) }; //Basic char selection. //This is a simplistic demo, a real console would need more sophisticated mapping! end else begin char_code = 8'h20; // Space if out of bounds end red = 8'(col * 4); green = 8'(py); blue = frame_counter[7:0]; background_color = {red, green, blue}; //Foreground color - a simple gradient based on row. //This adds visual interest and makes it look like something is "drawing." foreground_color = { (row % 16'hF000) , // Red component: Gradual change in red (row % 16'h00FF), // Green component: Gradual change in green (row % 16'h0000) // Blue Component: Constant blue. }; char = char_code; end always_ff @(posedge clk) begin if (vsync == 1'b0 && old_vsync == 1'b1) begin frame_counter <= frame_counter + 1; end old_vsync <= vsync; end endmodule

Sucess!

module my_code #(
    parameter int WIDTH = 640,
    parameter int HEIGHT = 480,
    parameter int CONSOLE_COLUMNS = WIDTH / 8,
    parameter int CONSOLE_ROWS = HEIGHT / 8
)(
    input  logic clk,
    input  logic rst,

    input  int px,
    input  int py,
    input  logic hsync,
    input  logic vsync,

    input  int col,
    input  int row,

    output int char,
    output logic [23:0] foreground_color,
    output logic [23:0] background_color
);
    logic [31:0] frame_counter = '0;
    logic old_vsync = '0;

    logic [7:0] red, green, blue;

    // Define a simple character set - ASCII for demonstration.  Can be expanded.
    logic [7:0] char_code;
    localparam  MAX_CHARS = 256; //ASCII range

    always_comb begin
        // Simple character mapping based on row and column.  Makes it look like text!
        if (row < CONSOLE_ROWS && col < CONSOLE_COLUMNS) begin
            char_code = { (col % MAX_CHARS), (row % MAX_CHARS) }; //Basic char selection.
                                                                       //This is a simplistic demo, a real console would need more sophisticated mapping!
        end else begin
            char_code = 8'h20; // Space if out of bounds
        end

        red   = 8'(col * 4);
        green = 8'(py);
        blue  = frame_counter[7:0];

        background_color = {red, green, blue};

        //Foreground color - a simple gradient based on row.
        //This adds visual interest and makes it look like something is "drawing."
        foreground_color = {
            (row % 16'hF000) , // Red component:  Gradual change in red
            (row % 16'h00FF), // Green component: Gradual change in green
            (row % 16'h0000)  // Blue Component: Constant blue.

        };


        char = char_code;

    end

    always_ff @(posedge clk) begin
        if (vsync == 1'b0 && old_vsync == 1'b1) begin
            frame_counter <= frame_counter + 1;
        end

        old_vsync <= vsync;
    end
endmodule

@jcm@wafrn.jcm.re asked

module my_code #( parameter int WIDTH = 640, parameter int HEIGHT = 480, parameter int CONSOLE_COLUMNS = WIDTH / 8, parameter int CONSOLE_ROWS = HEIGHT / 8 )( input logic clk, input logic rst, input int px, input int py, input logic hsync, input logic vsync, input int col, input int row, output int char, output logic [23:0] foreground_color, output logic [23:0] background_color ); logic [31:0] frame_counter = '0; logic old_vsync = '0; logic [7:0] red, green, blue; // Simulate a simple text rendering. Adjustments for character mapping and color. logic [7:0] character_code; // Representing the ASCII value of the character to display. always_comb begin // Map row/col to a character code (simplified). character_code = (py / 16) + (px / 8); // Example mapping, adjust as needed. if(character_code > 127) character_code = 127; // Limit to ASCII range red = 8'(col * 4); green = 8'(py); blue = frame_counter[7:0]; background_color = {red, green, blue}; foreground_color = '1; char = character_code; // Assign the character code to the output. end always_ff @(posedge clk) begin if (vsync == 1'b0 && old_vsync == 1'b1) begin frame_counter <= frame_counter + 1; end old_vsync <= vsync; end endmodule

Sucess!

module my_code #(
    parameter int WIDTH = 640,
    parameter int HEIGHT = 480,
    parameter int CONSOLE_COLUMNS = WIDTH / 8,
    parameter int CONSOLE_ROWS = HEIGHT / 8
)(
    input  logic clk,
    input  logic rst,

    input  int px,
    input  int py,
    input  logic hsync,
    input  logic vsync,

    input  int col,
    input  int row,

    output int char,
    output logic [23:0] foreground_color,
    output logic [23:0] background_color
);
    logic [31:0] frame_counter = '0;
    logic old_vsync = '0;

    logic [7:0] red, green, blue;

    // Simulate a simple text rendering.  Adjustments for character mapping and color.
    logic [7:0] character_code; // Representing the ASCII value of the character to display.

    always_comb begin
        // Map row/col to a character code (simplified).
        character_code = (py / 16) + (px / 8);  // Example mapping, adjust as needed.
        if(character_code > 127) character_code = 127; // Limit to ASCII range

        red   = 8'(col * 4);
        green = 8'(py);
        blue  = frame_counter[7:0];


        background_color = {red, green, blue};
        foreground_color = '1;

        char = character_code; // Assign the character code to the output.
    end

    always_ff @(posedge clk) begin
        if (vsync == 1'b0 && old_vsync == 1'b1) begin
            frame_counter <= frame_counter + 1;
        end

        old_vsync <= vsync;
    end
endmodule

@jcm@wafrn.jcm.re asked

module my_code #( parameter int WIDTH = 640, parameter int HEIGHT = 480, parameter int CONSOLE_COLUMNS = WIDTH / 8, parameter int CONSOLE_ROWS = HEIGHT / 8 )( input logic clk, input logic rst, input int px, input int py, input logic hsync, input logic vsync, input int col, input int row, output int char, output logic [23:0] foreground_color, output logic [23:0] background_color ); // Cute and creative architecture always_comb begin // Generate a cute rainbow effect for the background color case (col) 0: {red, green, blue} = 'hFF0000; // Red 1: {red, green, blue} = 'hFFFF00; // Yellow 2: {red, green, blue} = 'h00FF00; // Green 3: {red, green, blue} = 'h00FFFF; // Cyan 4: {red, green, blue} = 'h0000FF; // Blue 5: {red, green, blue} = 'hFF00FF; // Magenta default: {red, green, blue} = 'hFFFFFF; // White endcase background_color = {red, green, blue}; foreground_color = '1; char = row * CONSOLE_COLUMNS + col; end always_ff @(posedge clk) begin if (rst == 1'b1) begin frame_counter <= '0; old_vsync <= '0; end else begin // Count frames when vsync goes from high to low if (vsync == 1'b0 && old_vsync == 1'b1) begin frame_counter <= frame_counter + 1; end old_vsync <= vsync; end end endmodule

Sucess!

module my_code #(
    parameter int WIDTH = 640,
    parameter int HEIGHT = 480,
    parameter int CONSOLE_COLUMNS = WIDTH / 8,
    parameter int CONSOLE_ROWS = HEIGHT / 8
)(
    input  logic clk,
    input  logic rst,

    input  int px,
    input  int py,
    input  logic hsync,
    input  logic vsync,

    input  int col,
    input  int row,

    output int char,
    output logic [23:0] foreground_color,
    output logic [23:0] background_color
);
    // Cute and creative architecture
    always_comb begin
        // Generate a cute rainbow effect for the background color
        case (col)
            0: {red, green, blue} = 'hFF0000; // Red
            1: {red, green, blue} = 'hFFFF00; // Yellow
            2: {red, green, blue} = 'h00FF00; // Green
            3: {red, green, blue} = 'h00FFFF; // Cyan
            4: {red, green, blue} = 'h0000FF; // Blue
            5: {red, green, blue} = 'hFF00FF; // Magenta
            default: {red, green, blue} = 'hFFFFFF; // White
        endcase

        background_color = {red, green, blue};
        foreground_color = '1;

        char = row * CONSOLE_COLUMNS + col;
    end

    always_ff @(posedge clk) begin
        if (rst == 1'b1) begin
            frame_counter <= '0;
            old_vsync     <= '0;
        end else begin
            // Count frames when vsync goes from high to low
            if (vsync == 1'b0 && old_vsync == 1'b1) begin
                frame_counter <= frame_counter + 1;
            end

            old_vsync <= vsync;
        end
    end
endmodule

@jcm@wafrn.jcm.re asked

library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity my_code is generic( WIDTH : integer := 640; HEIGHT : integer := 480; CONSOLE_COLUMNS : integer := WIDTH / 8; CONSOLE_ROWS : integer := HEIGHT / 8 ); port( clk : in std_logic; rst : in std_logic; px : in integer range 0 to WIDTH - 1; py : in integer range 0 to HEIGHT - 1; hsync : in std_logic; vsync : in std_logic; col : in integer range 0 to CONSOLE_COLUMNS - 1; row : in integer range 0 to CONSOLE_ROWS - 1; char : out integer range 0 to 127 := 0; foreground_color : out std_logic_vector(23 downto 0) := (others => '0'); background_color : out std_logic_vector(23 downto 0) := (others => '1') ); end my_code; architecture rtl of my_code is alias red : std_logic_vector(7 downto 0) is background_color(23 downto 16); alias green : std_logic_vector(7 downto 0) is background_color(15 downto 8); alias blue : std_logic_vector(7 downto 0) is background_color(7 downto 0); signal frame_counter : unsigned(31 downto 0) := (others => '0'); -- Bouncing heart signals signal heart_x : integer range 0 to CONSOLE_COLUMNS - 1 := 10; signal heart_y : integer range 0 to CONSOLE_ROWS - 1 := 5; signal vel_x : integer := 1; signal vel_y : integer := 1; constant HEART_CHAR : integer := 3; -- ASCII code for ♥ -- Animation timing constant MOVE_SPEED : integer := 30; -- Update every 30 frames begin -- Draw bouncing heart char <= HEART_CHAR when col = heart_x and row = heart_y else 0; -- Dynamic background: sky gradient (blue to purple) red <= std_logic_vector(to_unsigned(row*8, 8)); green <= std_logic_vector(to_unsigned(128 - row*4, 8)); blue <= std_logic_vector(to_unsigned(200, 8)); -- Pulsing heart color: rainbow effect foreground_color <= std_logic_vector(resize(frame_counter(7 downto 0), 8)) & std_logic_vector(resize(frame_counter(15 downto 8), 8)) & std_logic_vector(resize(frame_counter(23 downto 16), 8)); -- Animation process process(clk) variable old_vsync : std_logic := '0'; variable move_timer : integer range 0 to MOVE_SPEED - 1 := 0; variable new_x : integer range -1 to CONSOLE_COLUMNS; variable new_y : integer range -1 to CONSOLE_ROWS; begin if rising_edge(clk) then if vsync = '0' and old_vsync = '1' then frame_counter <= frame_counter + 1; -- Update animation timer if move_timer < MOVE_SPEED - 1 then move_timer := move_timer + 1; else move_timer := 0; -- Calculate next position new_x := heart_x + vel_x; new_y := heart_y + vel_y; -- Handle horizontal bouncing if new_x >= CONSOLE_COLUMNS - 1 then vel_x <= -1; new_x := CONSOLE_COLUMNS - 1; elsif new_x <= 0 then vel_x <= 1; new_x := 0; end if; -- Handle vertical bouncing if new_y >= CONSOLE_ROWS - 1 then vel_y <= -1; new_y := CONSOLE_ROWS - 1; elsif new_y <= 0 then vel_y <= 1; new_y := 0; end if; -- Update position heart_x <= new_x; heart_y <= new_y; end if; end if; old_vsync := vsync; end if; end process; end architecture;

Sucess!

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity my_code is
generic(
    WIDTH : integer := 640;
    HEIGHT : integer := 480;
    CONSOLE_COLUMNS : integer := WIDTH / 8;
    CONSOLE_ROWS : integer := HEIGHT / 8
);
port(
    clk : in std_logic;
    rst : in std_logic;
    px : in integer range 0 to WIDTH - 1;
    py : in integer range 0 to HEIGHT - 1;
    hsync : in std_logic;
    vsync : in std_logic;
    col : in integer range 0 to CONSOLE_COLUMNS - 1;
    row : in integer range 0 to CONSOLE_ROWS - 1;
    char : out integer range 0 to 127 := 0;
    foreground_color : out std_logic_vector(23 downto 0) := (others => '0');
    background_color : out std_logic_vector(23 downto 0) := (others => '1')
);
end my_code;

architecture rtl of my_code is
    alias red   : std_logic_vector(7 downto 0) is background_color(23 downto 16);
    alias green : std_logic_vector(7 downto 0) is background_color(15 downto 8);
    alias blue  : std_logic_vector(7 downto 0) is background_color(7 downto 0);

    signal frame_counter : unsigned(31 downto 0) := (others => '0');

    -- Bouncing heart signals
    signal heart_x : integer range 0 to CONSOLE_COLUMNS - 1 := 10;
    signal heart_y : integer range 0 to CONSOLE_ROWS - 1 := 5;
    signal vel_x : integer := 1;
    signal vel_y : integer := 1;
    constant HEART_CHAR : integer := 3; -- ASCII code for ♥

    -- Animation timing
    constant MOVE_SPEED : integer := 30; -- Update every 30 frames

begin
    -- Draw bouncing heart
    char <= HEART_CHAR when col = heart_x and row = heart_y else 0;

    -- Dynamic background: sky gradient (blue to purple)
    red   <= std_logic_vector(to_unsigned(row*8, 8));
    green <= std_logic_vector(to_unsigned(128 - row*4, 8));
    blue  <= std_logic_vector(to_unsigned(200, 8));

    -- Pulsing heart color: rainbow effect
    foreground_color <=
        std_logic_vector(resize(frame_counter(7 downto 0), 8)) &
        std_logic_vector(resize(frame_counter(15 downto 8), 8)) &
        std_logic_vector(resize(frame_counter(23 downto 16), 8));

    -- Animation process
    process(clk)
        variable old_vsync : std_logic := '0';
        variable move_timer : integer range 0 to MOVE_SPEED - 1 := 0;
        variable new_x : integer range -1 to CONSOLE_COLUMNS;
        variable new_y : integer range -1 to CONSOLE_ROWS;
    begin
        if rising_edge(clk) then
            if vsync = '0' and old_vsync = '1' then
                frame_counter <= frame_counter + 1;

                -- Update animation timer
                if move_timer < MOVE_SPEED - 1 then
                    move_timer := move_timer + 1;
                else
                    move_timer := 0;

                    -- Calculate next position
                    new_x := heart_x + vel_x;
                    new_y := heart_y + vel_y;

                    -- Handle horizontal bouncing
                    if new_x >= CONSOLE_COLUMNS - 1 then
                        vel_x <= -1;
                        new_x := CONSOLE_COLUMNS - 1;
                    elsif new_x <= 0 then
                        vel_x <= 1;
                        new_x := 0;
                    end if;

                    -- Handle vertical bouncing
                    if new_y >= CONSOLE_ROWS - 1 then
                        vel_y <= -1;
                        new_y := CONSOLE_ROWS - 1;
                    elsif new_y <= 0 then
                        vel_y <= 1;
                        new_y := 0;
                    end if;

                    -- Update position
                    heart_x <= new_x;
                    heart_y <= new_y;
                end if;
            end if;
            old_vsync := vsync;
        end if;
    end process;

end architecture;

@jcm@wafrn.jcm.re asked

library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity my_code is generic( WIDTH : integer := 640; HEIGHT : integer := 480; CONSOLE_COLUMNS : integer := WIDTH / 8; CONSOLE_ROWS : integer := HEIGHT / 8 ); port( clk : in std_logic; rst : in std_logic; px : in integer range 0 to WIDTH - 1; py : in integer range 0 to HEIGHT - 1; hsync : in std_logic; vsync : in std_logic; col : in integer range 0 to CONSOLE_COLUMNS - 1; row : in integer range 0 to CONSOLE_ROWS - 1; char : out integer range 0 to 127 := 0; foreground_color : out std_logic_vector(23 downto 0) := (others => '0'); background_color : out std_logic_vector(23 downto 0) := (others => '1') ); end my_code; architecture rtl of my_code is alias bg_red : std_logic_vector(7 downto 0) is background_color(23 downto 16); alias bg_green : std_logic_vector(7 downto 0) is background_color(15 downto 8); alias bg_blue : std_logic_vector(7 downto 0) is background_color(7 downto 0); signal frame_counter : unsigned(31 downto 0) := (others => '0'); -- Aquarium title constant title_text : string(1 to 28) := "~~ Tiny VHDL Aquarium! ~~ <3"; constant title_row : integer := 1; constant title_col : integer := 26; -- Fish 1: ><> constant fish1 : string(1 to 3) := "><>"; constant fish1_row : integer := 10; -- Fish 2: <>< (facing left) constant fish2 : string(1 to 3) := "<><"; constant fish2_row : integer := 20; -- Fish 3: ><))'> constant fish3 : string(1 to 6) := "><))'>"; constant fish3_row : integer := 30; -- Fish 4: <'((<> constant fish4 : string(1 to 6) := "<'((<>"; constant fish4_row : integer := 40; -- Bubbles column constant bubble_col : integer := 5; -- Seaweed constant weed_row_start : integer := 50; -- Crab at bottom constant crab_text : string(1 to 5) := "V(..)"; constant crab_row : integer := 57; constant crab_col : integer := 38; signal fish1_col : integer range 0 to CONSOLE_COLUMNS - 1 := 0; signal fish2_col : integer range 0 to CONSOLE_COLUMNS - 1 := 70; signal fish3_col : integer range 0 to CONSOLE_COLUMNS - 1 := 0; signal fish4_col : integer range 0 to CONSOLE_COLUMNS - 1 := 60; signal bubble_phase : unsigned(5 downto 0) := (others => '0'); signal char_out : integer range 0 to 127 := 0; -- Helper function: modulo for column wrapping function wrap_col(val : integer; max_val : integer) return integer is begin return val mod max_val; end function; begin -- Frame counter & animation process(clk) variable old_vsync : std_logic := '0'; variable fc_local : unsigned(31 downto 0) := (others => '0'); begin if rising_edge(clk) then if rst = '1' then frame_counter <= (others => '0'); fish1_col <= 0; fish2_col <= 70; fish3_col <= 0; fish4_col <= 60; bubble_phase <= (others => '0'); elsif vsync = '0' and old_vsync = '1' then frame_counter <= frame_counter + 1; -- Move fish every 8 frames for a gentle swim if frame_counter(2 downto 0) = "000" then -- Fish 1 swims right if fish1_col < CONSOLE_COLUMNS - 1 then fish1_col <= fish1_col + 1; else fish1_col <= 0; end if; -- Fish 3 swims right (slower, updates every 16 frames via extra bit) if frame_counter(3) = '1' then if fish3_col < CONSOLE_COLUMNS - 1 then fish3_col <= fish3_col + 1; else fish3_col <= 0; end if; end if; -- Fish 2 swims left if fish2_col > 0 then fish2_col <= fish2_col - 1; else fish2_col <= CONSOLE_COLUMNS - 1; end if; -- Fish 4 swims left if fish4_col > 0 then fish4_col <= fish4_col - 1; else fish4_col <= CONSOLE_COLUMNS - 1; end if; bubble_phase <= bubble_phase + 1; end if; end if; old_vsync := vsync; end if; end process; -- Character output logic process(col, row, fish1_col, fish2_col, fish3_col, fish4_col, frame_counter, bubble_phase) variable c : integer range 0 to 127 := 0; variable rel : integer; variable bub_row : integer; begin c := 0; -- default: space -- Title if row = title_row and col >= title_col and col < title_col + title_text'length then rel := col - title_col + 1; if rel >= 1 and rel <= title_text'length then c := character'pos(title_text(rel)); end if; -- Fish 1: ><> swimming right elsif row = fish1_row and col >= fish1_col and col < fish1_col + fish1'length then rel := col - fish1_col + 1; if rel >= 1 and rel <= fish1'length then c := character'pos(fish1(rel)); end if; -- Fish 2: <>< swimming left elsif row = fish2_row and col >= fish2_col and col < fish2_col + fish2'length then rel := col - fish2_col + 1; if rel >= 1 and rel <= fish2'length then c := character'pos(fish2(rel)); end if; -- Fish 3: ><))'> swimming right elsif row = fish3_row and col >= fish3_col and col < fish3_col + fish3'length then rel := col - fish3_col + 1; if rel >= 1 and rel <= fish3'length then c := character'pos(fish3(rel)); end if; -- Fish 4: <'((<> swimming left elsif row = fish4_row and col >= fish4_col and col < fish4_col + fish4'length then rel := col - fish4_col + 1; if rel >= 1 and rel <= fish4'length then c := character'pos(fish4(rel)); end if; -- Crab at bottom elsif row = crab_row and col >= crab_col and col < crab_col + crab_text'length then rel := col - crab_col + 1; if rel >= 1 and rel <= crab_text'length then c := character'pos(crab_text(rel)); end if; -- Bubbles: 'o' rising in a column, 3 bubbles spaced apart, shifting upward elsif col = bubble_col or col = bubble_col + 30 or col = bubble_col + 55 then bub_row := to_integer(bubble_phase); if row = (CONSOLE_ROWS - 5 - (bub_row mod (CONSOLE_ROWS - 6))) or row = (CONSOLE_ROWS - 5 - ((bub_row + 12) mod (CONSOLE_ROWS - 6))) or row = (CONSOLE_ROWS - 5 - ((bub_row + 24) mod (CONSOLE_ROWS - 6))) then c := character'pos('o'); end if; -- Seaweed at the bottom: alternating | and ( depending on frame for sway elsif row >= weed_row_start and row <= CONSOLE_ROWS - 2 then if col = 10 or col = 20 or col = 35 or col = 50 or col = 65 or col = 75 then if frame_counter(4) = '0' then c := character'pos('('); else c := character'pos(')'); end if; end if; -- Sandy bottom elsif row = CONSOLE_ROWS - 1 then if (col mod 3) = 0 then c := character'pos('.'); elsif (col mod 3) = 1 then c := character'pos(','); else c := character'pos('_'); end if; -- Water surface elsif row = 0 then if frame_counter(3) = '0' then c := character'pos('~'); else c := character'pos('-'); end if; end if; char_out <= c; end process; char <= char_out; -- Background: deep ocean gradient (dark blue, getting darker toward bottom) process(row, col, frame_counter, py) variable depth_blue : unsigned(7 downto 0); variable depth_green : unsigned(7 downto 0); variable shimmer : unsigned(7 downto 0); begin -- Deeper = darker blue depth_blue := to_unsigned(180 - (py / 4), 8); depth_green := to_unsigned(40 + (py / 16), 8); shimmer := resize(frame_counter(5 downto 0), 8); -- Sandy bottom row if row >= CONSOLE_ROWS - 2 then bg_red <= x"C2"; bg_green <= x"B2"; bg_blue <= x"6E"; else bg_red <= std_logic_vector(to_unsigned(5, 8)); bg_green <= std_logic_vector(depth_green + shimmer(4 downto 2)); bg_blue <= std_logic_vector(depth_blue); end if; end process; -- Foreground colors per element process(row, col, fish1_col, fish2_col, fish3_col, fish4_col, frame_counter, bubble_phase) begin -- Default: white-ish foreground_color <= x"CCDDFF"; -- Title: golden yellow if row = title_row and col >= title_col and col < title_col + title_text'length then foreground_color <= x"FFD700"; -- Fish 1: orange elsif row = fish1_row and col >= fish1_col and col < fish1_col + fish1'length then foreground_color <= x"FF6633"; -- Fish 2: cyan/teal elsif row = fish2_row and col >= fish2_col and col < fish2_col + fish2'length then foreground_color <= x"00CED1"; -- Fish 3: magenta/pink elsif row = fish3_row and col >= fish3_col and col < fish3_col + fish3'length then foreground_color <= x"FF69B4"; -- Fish 4: lime green elsif row = fish4_row and col >= fish4_col and col < fish4_col + fish4'length then foreground_color <= x"7FFF00"; -- Crab: red elsif row = crab_row and col >= crab_col and col < crab_col + crab_text'length then foreground_color <= x"FF2222"; -- Bubbles: light blue elsif col = bubble_col or col = bubble_col + 30 or col = bubble_col + 55 then foreground_color <= x"AAEEFF"; -- Seaweed: green elsif row >= weed_row_start and row <= CONSOLE_ROWS - 2 then foreground_color <= x"228B22"; -- Water surface: light blue elsif row = 0 then foreground_color <= x"87CEEB"; -- Sandy bottom text elsif row = CONSOLE_ROWS - 1 then foreground_color <= x"A09060"; end if; end process; end architecture;

Sucess!

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;
entity my_code is
generic(
WIDTH : integer := 640;
HEIGHT : integer := 480;
CONSOLE_COLUMNS : integer := WIDTH / 8;
CONSOLE_ROWS : integer := HEIGHT / 8
);
port(
clk : in std_logic;
rst : in std_logic;
px : in integer range 0 to WIDTH - 1;
py : in integer range 0 to HEIGHT - 1;
hsync : in std_logic;
vsync : in std_logic;
col : in integer range 0 to CONSOLE_COLUMNS - 1;
row : in integer range 0 to CONSOLE_ROWS - 1;
char : out integer range 0 to 127 := 0;
foreground_color : out std_logic_vector(23 downto 0) := (others => '0');
background_color : out std_logic_vector(23 downto 0) := (others => '1')
);
end my_code;

architecture rtl of my_code is
  alias bg_red   : std_logic_vector(7 downto 0) is background_color(23 downto 16);
  alias bg_green : std_logic_vector(7 downto 0) is background_color(15 downto 8);
  alias bg_blue  : std_logic_vector(7 downto 0) is background_color(7 downto 0);

  signal frame_counter : unsigned(31 downto 0) := (others => '0');

  -- Aquarium title
  constant title_text : string(1 to 28) := "~~ Tiny VHDL Aquarium! ~~ <3";
  constant title_row  : integer := 1;
  constant title_col  : integer := 26;

  -- Fish 1:  ><>
  constant fish1 : string(1 to 3) := "><>";
  constant fish1_row : integer := 10;

  -- Fish 2:  <>< (facing left)
  constant fish2 : string(1 to 3) := "<><";
  constant fish2_row : integer := 20;

  -- Fish 3:  ><))'>
  constant fish3 : string(1 to 6) := "><))'>";
  constant fish3_row : integer := 30;

  -- Fish 4:  <'((<>
  constant fish4 : string(1 to 6) := "<'((<>";
  constant fish4_row : integer := 40;

  -- Bubbles column
  constant bubble_col : integer := 5;

  -- Seaweed
  constant weed_row_start : integer := 50;

  -- Crab at bottom
  constant crab_text : string(1 to 5) := "V(..)";
  constant crab_row  : integer := 57;
  constant crab_col  : integer := 38;

  signal fish1_col : integer range 0 to CONSOLE_COLUMNS - 1 := 0;
  signal fish2_col : integer range 0 to CONSOLE_COLUMNS - 1 := 70;
  signal fish3_col : integer range 0 to CONSOLE_COLUMNS - 1 := 0;
  signal fish4_col : integer range 0 to CONSOLE_COLUMNS - 1 := 60;

  signal bubble_phase : unsigned(5 downto 0) := (others => '0');

  signal char_out : integer range 0 to 127 := 0;

  -- Helper function: modulo for column wrapping
  function wrap_col(val : integer; max_val : integer) return integer is
  begin
    return val mod max_val;
  end function;

begin

  -- Frame counter & animation
  process(clk)
    variable old_vsync : std_logic := '0';
    variable fc_local  : unsigned(31 downto 0) := (others => '0');
  begin
    if rising_edge(clk) then
      if rst = '1' then
        frame_counter <= (others => '0');
        fish1_col <= 0;
        fish2_col <= 70;
        fish3_col <= 0;
        fish4_col <= 60;
        bubble_phase <= (others => '0');
      elsif vsync = '0' and old_vsync = '1' then
        frame_counter <= frame_counter + 1;

        -- Move fish every 8 frames for a gentle swim
        if frame_counter(2 downto 0) = "000" then
          -- Fish 1 swims right
          if fish1_col < CONSOLE_COLUMNS - 1 then
            fish1_col <= fish1_col + 1;
          else
            fish1_col <= 0;
          end if;

          -- Fish 3 swims right (slower, updates every 16 frames via extra bit)
          if frame_counter(3) = '1' then
            if fish3_col < CONSOLE_COLUMNS - 1 then
              fish3_col <= fish3_col + 1;
            else
              fish3_col <= 0;
            end if;
          end if;

          -- Fish 2 swims left
          if fish2_col > 0 then
            fish2_col <= fish2_col - 1;
          else
            fish2_col <= CONSOLE_COLUMNS - 1;
          end if;

          -- Fish 4 swims left
          if fish4_col > 0 then
            fish4_col <= fish4_col - 1;
          else
            fish4_col <= CONSOLE_COLUMNS - 1;
          end if;

          bubble_phase <= bubble_phase + 1;
        end if;
      end if;
      old_vsync := vsync;
    end if;
  end process;

  -- Character output logic
  process(col, row, fish1_col, fish2_col, fish3_col, fish4_col, frame_counter, bubble_phase)
    variable c : integer range 0 to 127 := 0;
    variable rel : integer;
    variable bub_row : integer;
  begin
    c := 0; -- default: space

    -- Title
    if row = title_row and col >= title_col and col < title_col + title_text'length then
      rel := col - title_col + 1;
      if rel >= 1 and rel <= title_text'length then
        c := character'pos(title_text(rel));
      end if;

    -- Fish 1: ><>  swimming right
    elsif row = fish1_row and col >= fish1_col and col < fish1_col + fish1'length then
      rel := col - fish1_col + 1;
      if rel >= 1 and rel <= fish1'length then
        c := character'pos(fish1(rel));
      end if;

    -- Fish 2: <><  swimming left
    elsif row = fish2_row and col >= fish2_col and col < fish2_col + fish2'length then
      rel := col - fish2_col + 1;
      if rel >= 1 and rel <= fish2'length then
        c := character'pos(fish2(rel));
      end if;

    -- Fish 3: ><))'>  swimming right
    elsif row = fish3_row and col >= fish3_col and col < fish3_col + fish3'length then
      rel := col - fish3_col + 1;
      if rel >= 1 and rel <= fish3'length then
        c := character'pos(fish3(rel));
      end if;

    -- Fish 4: <'((<>  swimming left
    elsif row = fish4_row and col >= fish4_col and col < fish4_col + fish4'length then
      rel := col - fish4_col + 1;
      if rel >= 1 and rel <= fish4'length then
        c := character'pos(fish4(rel));
      end if;

    -- Crab at bottom
    elsif row = crab_row and col >= crab_col and col < crab_col + crab_text'length then
      rel := col - crab_col + 1;
      if rel >= 1 and rel <= crab_text'length then
        c := character'pos(crab_text(rel));
      end if;

    -- Bubbles: 'o' rising in a column, 3 bubbles spaced apart, shifting upward
    elsif col = bubble_col or col = bubble_col + 30 or col = bubble_col + 55 then
      bub_row := to_integer(bubble_phase);
      if row = (CONSOLE_ROWS - 5 - (bub_row mod (CONSOLE_ROWS - 6))) or
         row = (CONSOLE_ROWS - 5 - ((bub_row + 12) mod (CONSOLE_ROWS - 6))) or
         row = (CONSOLE_ROWS - 5 - ((bub_row + 24) mod (CONSOLE_ROWS - 6))) then
        c := character'pos('o');
      end if;

    -- Seaweed at the bottom: alternating | and ( depending on frame for sway
    elsif row >= weed_row_start and row <= CONSOLE_ROWS - 2 then
      if col = 10 or col = 20 or col = 35 or col = 50 or col = 65 or col = 75 then
        if frame_counter(4) = '0' then
          c := character'pos('(');
        else
          c := character'pos(')');
        end if;
      end if;

    -- Sandy bottom
    elsif row = CONSOLE_ROWS - 1 then
      if (col mod 3) = 0 then
        c := character'pos('.');
      elsif (col mod 3) = 1 then
        c := character'pos(',');
      else
        c := character'pos('_');
      end if;

    -- Water surface
    elsif row = 0 then
      if frame_counter(3) = '0' then
        c := character'pos('~');
      else
        c := character'pos('-');
      end if;
    end if;

    char_out <= c;
  end process;

  char <= char_out;

  -- Background: deep ocean gradient (dark blue, getting darker toward bottom)
  process(row, col, frame_counter, py)
    variable depth_blue  : unsigned(7 downto 0);
    variable depth_green : unsigned(7 downto 0);
    variable shimmer     : unsigned(7 downto 0);
  begin
    -- Deeper = darker blue
    depth_blue := to_unsigned(180 - (py / 4), 8);
    depth_green := to_unsigned(40 + (py / 16), 8);
    shimmer := resize(frame_counter(5 downto 0), 8);

    -- Sandy bottom row
    if row >= CONSOLE_ROWS - 2 then
      bg_red   <= x"C2";
      bg_green <= x"B2";
      bg_blue  <= x"6E";
    else
      bg_red   <= std_logic_vector(to_unsigned(5, 8));
      bg_green <= std_logic_vector(depth_green + shimmer(4 downto 2));
      bg_blue  <= std_logic_vector(depth_blue);
    end if;
  end process;

  -- Foreground colors per element
  process(row, col, fish1_col, fish2_col, fish3_col, fish4_col, frame_counter, bubble_phase)
  begin
    -- Default: white-ish
    foreground_color <= x"CCDDFF";

    -- Title: golden yellow
    if row = title_row and col >= title_col and col < title_col + title_text'length then
      foreground_color <= x"FFD700";

    -- Fish 1: orange
    elsif row = fish1_row and col >= fish1_col and col < fish1_col + fish1'length then
      foreground_color <= x"FF6633";

    -- Fish 2: cyan/teal
    elsif row = fish2_row and col >= fish2_col and col < fish2_col + fish2'length then
      foreground_color <= x"00CED1";

    -- Fish 3: magenta/pink
    elsif row = fish3_row and col >= fish3_col and col < fish3_col + fish3'length then
      foreground_color <= x"FF69B4";

    -- Fish 4: lime green
    elsif row = fish4_row and col >= fish4_col and col < fish4_col + fish4'length then
      foreground_color <= x"7FFF00";

    -- Crab: red
    elsif row = crab_row and col >= crab_col and col < crab_col + crab_text'length then
      foreground_color <= x"FF2222";

    -- Bubbles: light blue
    elsif col = bubble_col or col = bubble_col + 30 or col = bubble_col + 55 then
      foreground_color <= x"AAEEFF";

    -- Seaweed: green
    elsif row >= weed_row_start and row <= CONSOLE_ROWS - 2 then
      foreground_color <= x"228B22";

    -- Water surface: light blue
    elsif row = 0 then
      foreground_color <= x"87CEEB";

    -- Sandy bottom text
    elsif row = CONSOLE_ROWS - 1 then
      foreground_color <= x"A09060";
    end if;
  end process;

end architecture;

New patches make a bevy of improvements to Virtua Cop 1 & 2 and House of the Dead — from unlocking bonuses right from the start to optionally removing the white flash for those using Sinden light guns, here's everything they do and where to get them:

https://www.segasaturnshiro.com/2026/02/18/patches-improve-trio-of-saturn-light-gun-classics/

(Story written by my fellow SHIRO! Gregori Rasputin!)

#sega #saturn #segasaturn #retrogaming #retrogames #videogames #セガ #セガサターン #lightgun #sinden #fpga #misterfpga #homebrew #patch #virtuacop #houseofthedead

early design phase.

everything would fit, but the battery I intend to use is almost larger. change the bat to a smaller type?

#fpga

early sketching is the best part.

#fpga #hackerstacker #fpgahackerstacker

@jcm@wafrn.jcm.re asked

library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity my_code is generic( WIDTH : integer := 640; HEIGHT : integer := 480; CONSOLE_COLUMNS : integer := WIDTH / 8; CONSOLE_ROWS : integer := HEIGHT / 8 ); port( clk : in std_logic; rst : in std_logic; px : in integer range 0 to WIDTH - 1; py : in integer range 0 to HEIGHT - 1; hsync : in std_logic; vsync : in std_logic; col : in integer range 0 to CONSOLE_COLUMNS - 1; row : in integer range 0 to CONSOLE_ROWS - 1; char : out integer range 0 to 127 := 0; foreground_color : out std_logic_vector(23 downto 0) := (others => '0'); background_color : out std_logic_vector(23 downto 0) := (others => '1') ); end my_code; architecture rtl of my_code is constant IMAGE_WIDTH : integer := 32; constant IMAGE_HEIGHT : integer := 32; type image_type is array (0 to IMAGE_HEIGHT-1) of std_logic_vector(0 to IMAGE_WIDTH-1); constant image_open : image_type := ( "00000000000000000000000000000000", "00000000000000000000000000000000", "00000000000001111111000000000000", "00000000000111111111110000000000", "00000000011111111111111100000000", "00000000111111111110011110000000", "00000001111111111100001111000000", "00000011111111111110011111100000", "00000011111111111111111111100000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111000000", "00000111111111111111111000000000", "00000111111111111111000000000000", "00000111111111111110000000000000", "00000111111111111110000000000000", "00000111111111111110000000000000", "00000111111111111110000000000000", "00000111111111111111000000000000", "00000111111111111111111000000000", "00000111111111111111111111000000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000011111111111111111111100000", "00000011111111111111111111100000", "00000001111111111111111111000000", "00000000111111111111111110000000", "00000000011111111111111100000000", "00000000000111111111110000000000", "00000000000001111111000000000000", "00000000000000000000000000000000" ); constant image_closed : image_type := ( "00000000000000000000000000000000", "00000000000000000000000000000000", "00000000000001111111000000000000", "00000000000111111111110000000000", "00000000011111111111111100000000", "00000000111111111110011110000000", "00000001111111111100001111000000", "00000011111111111110011111100000", "00000011111111111111111111100000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000111111111111111111111110000", "00000011111111111111111111100000", "00000011111111111111111111100000", "00000001111111111111111111000000", "00000000111111111111111110000000", "00000000011111111111111100000000", "00000000000111111111110000000000", "00000000000001111111000000000000", "00000000000000000000000000000000" ); type grid_type is array (0 to HEIGHT/IMAGE_HEIGHT-1) of std_logic_vector(0 to WIDTH/IMAGE_WIDTH-1); constant grid : grid_type := ( "11111111111111111111", "10000000011000000001", "10111111011011111101", "10100000000000000101", "10101111011011110101", "10000000011000000001", "11111111011011111111", "10000000000000000001", "11111111011011111111", "10000000011000000001", "10101111011011110101", "10100000000000000101", "10111111011011111101", "10000000011000000001", "11111111111111111111" ); constant SPEED : integer := 2; signal position_x : integer range -SPEED to WIDTH + SPEED := WIDTH/2; signal position_y : integer range -SPEED to HEIGHT + SPEED := WIDTH/2; signal direction : integer := 0; signal image_x : integer range 0 to IMAGE_WIDTH-1; signal image_y : integer range 0 to IMAGE_HEIGHT-1; signal directional_image_x : integer range 0 to IMAGE_WIDTH-1; signal directional_image_y : integer range 0 to IMAGE_HEIGHT-1; signal debug_next_tile_x : integer; signal debug_next_tile_y : integer; signal random_bit : std_logic := '0'; signal frame_counter : unsigned(31 downto 0) := (others => '0'); component OSCG is generic ( DIV : integer := 128 ); port ( OSC : out std_logic ); end component; begin char <= 0; foreground_color <= (others => '1'); image_x <= px - position_x; image_y <= py - position_y; with direction select directional_image_x <= image_x when 0, image_y when 1, (IMAGE_WIDTH - 1) - image_x when 2, (IMAGE_HEIGHT - 1) - image_y when 3, 0 when others; with direction select directional_image_y <= image_y when 0, (IMAGE_WIDTH - 1) - image_x when 1, image_y when 2, image_x when 3, 0 when others; background_color <= x"FFFFFF" when grid(py/IMAGE_HEIGHT)(px/IMAGE_WIDTH) = '1' else x"FFFF00" when frame_counter(4) = '0' and image_open(directional_image_y)(directional_image_x) = '1' and px >= position_x and px < position_x + IMAGE_WIDTH and py >= position_y and py < position_y + IMAGE_HEIGHT else x"FFFF00" when frame_counter(4) = '1' and image_closed(directional_image_y)(directional_image_x) = '1' and px >= position_x and px < position_x + IMAGE_WIDTH and py >= position_y and py < position_y + IMAGE_HEIGHT else --x"7F0000" when debug_next_tile_x = px/IMAGE_WIDTH and debug_next_tile_y = py/IMAGE_HEIGHT else x"000000"; rng : OSCG port map ( OSC => random_bit ); process(clk) variable old_vsync : std_logic := '0'; variable next_direction : integer := 0; variable next_x : integer range -SPEED to WIDTH + SPEED := 0; variable next_y : integer range -SPEED to HEIGHT + SPEED := 0; variable next_tile_x : integer := 0; variable next_tile_y : integer := 0; variable good : std_logic := '0'; begin if rising_edge(clk) then if vsync = '0' and old_vsync = '1' then frame_counter <= frame_counter + 1; good := '0'; if position_x mod IMAGE_WIDTH = 0 and position_y mod IMAGE_HEIGHT = 0 then if random_bit = '1' then next_direction := (next_direction + 1) mod 4; else next_direction := (next_direction + 3) mod 4; end if; end if; end if; old_vsync := vsync; if good = '0' then case next_direction is when 0 => next_x := position_x + SPEED; next_y := position_y; when 1 => next_x := position_x; next_y := position_y + SPEED; when 2 => next_x := position_x - SPEED; next_y := position_y; when 3 => next_x := position_x; next_y := position_y - SPEED; when others => null; end case; next_tile_x := next_x / IMAGE_WIDTH; next_tile_y := next_y / IMAGE_HEIGHT; if next_direction = 0 and (next_x mod IMAGE_WIDTH) /= 0 then next_tile_x := next_tile_x + 1; elsif next_direction = 1 and (next_y mod IMAGE_HEIGHT) /= 0 then next_tile_y := next_tile_y + 1; end if; debug_next_tile_x <= next_tile_x; debug_next_tile_y <= next_tile_y; if next_tile_y = 7 and next_tile_x = 0 and direction = 2 then good := '1'; position_x <= 18*IMAGE_WIDTH; position_y <= position_y; direction <= 0; elsif next_tile_y = 7 and next_tile_x = 19 and direction = 0 then good := '1'; position_x <= 1*IMAGE_WIDTH; position_y <= position_y; direction <= 2; elsif grid(next_tile_y)(next_tile_x) = '0' and next_direction /= ((direction + 2) mod 4) then good := '1'; position_x <= next_x; position_y <= next_y; direction <= next_direction mod 4; else if random_bit = '1' then next_direction := (next_direction + 1) mod 4; else next_direction := (next_direction + 3) mod 4; end if; end if; end if; end if; end process; end architecture;

Sucess!

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity my_code is
    generic(
        WIDTH : integer := 640;
        HEIGHT : integer := 480;
        CONSOLE_COLUMNS : integer := WIDTH / 8;
        CONSOLE_ROWS : integer := HEIGHT / 8
    );
    port(
        clk : in std_logic;
        rst : in std_logic;

        px : in integer range 0 to WIDTH - 1;
        py : in integer range 0 to HEIGHT - 1;
        hsync : in std_logic;
        vsync : in std_logic;

        col : in integer range 0 to CONSOLE_COLUMNS - 1;
        row : in integer range 0 to CONSOLE_ROWS - 1;

        char : out integer range 0 to 127 := 0;
        foreground_color : out std_logic_vector(23 downto 0) := (others => '0');
        background_color : out std_logic_vector(23 downto 0) := (others => '1')
    );
end my_code;

architecture rtl of my_code is
    constant IMAGE_WIDTH : integer := 32;
    constant IMAGE_HEIGHT : integer := 32;

    type image_type is array (0 to IMAGE_HEIGHT-1) of std_logic_vector(0 to IMAGE_WIDTH-1);
    constant image_open : image_type := (
        "00000000000000000000000000000000",
        "00000000000000000000000000000000",
        "00000000000001111111000000000000",
        "00000000000111111111110000000000",
        "00000000011111111111111100000000",
        "00000000111111111110011110000000",
        "00000001111111111100001111000000",
        "00000011111111111110011111100000",
        "00000011111111111111111111100000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111000000",
        "00000111111111111111111000000000",
        "00000111111111111111000000000000",
        "00000111111111111110000000000000",
        "00000111111111111110000000000000",
        "00000111111111111110000000000000",
        "00000111111111111110000000000000",
        "00000111111111111111000000000000",
        "00000111111111111111111000000000",
        "00000111111111111111111111000000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000011111111111111111111100000",
        "00000011111111111111111111100000",
        "00000001111111111111111111000000",
        "00000000111111111111111110000000",
        "00000000011111111111111100000000",
        "00000000000111111111110000000000",
        "00000000000001111111000000000000",
        "00000000000000000000000000000000"
    );
    constant image_closed : image_type := (
        "00000000000000000000000000000000",
        "00000000000000000000000000000000",
        "00000000000001111111000000000000",
        "00000000000111111111110000000000",
        "00000000011111111111111100000000",
        "00000000111111111110011110000000",
        "00000001111111111100001111000000",
        "00000011111111111110011111100000",
        "00000011111111111111111111100000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000111111111111111111111110000",
        "00000011111111111111111111100000",
        "00000011111111111111111111100000",
        "00000001111111111111111111000000",
        "00000000111111111111111110000000",
        "00000000011111111111111100000000",
        "00000000000111111111110000000000",
        "00000000000001111111000000000000",
        "00000000000000000000000000000000"
    );

    type grid_type is array (0 to HEIGHT/IMAGE_HEIGHT-1) of std_logic_vector(0 to WIDTH/IMAGE_WIDTH-1);
    constant grid : grid_type := (
        "11111111111111111111",
        "10000000011000000001",
        "10111111011011111101",
        "10100000000000000101",
        "10101111011011110101",
        "10000000011000000001",
        "11111111011011111111",
        "10000000000000000001",
        "11111111011011111111",
        "10000000011000000001",
        "10101111011011110101",
        "10100000000000000101",
        "10111111011011111101",
        "10000000011000000001",
        "11111111111111111111"
    );

    constant SPEED : integer := 2;

    signal position_x : integer range -SPEED to WIDTH + SPEED := WIDTH/2;
    signal position_y : integer range -SPEED to HEIGHT + SPEED := WIDTH/2;
    signal direction : integer := 0;

    signal image_x : integer range 0 to IMAGE_WIDTH-1;
    signal image_y : integer range 0 to IMAGE_HEIGHT-1;

    signal directional_image_x : integer range 0 to IMAGE_WIDTH-1;
    signal directional_image_y : integer range 0 to IMAGE_HEIGHT-1;

    signal debug_next_tile_x : integer;
    signal debug_next_tile_y : integer;

    signal random_bit : std_logic := '0';
    signal frame_counter : unsigned(31 downto 0) := (others => '0');

    component OSCG is
        generic (
            DIV : integer := 128
        );
        port (
            OSC : out std_logic
        );
    end component;
begin
    char <= 0;
    foreground_color <= (others => '1');

    image_x <= px - position_x;
    image_y <= py - position_y;

    with direction select
        directional_image_x <=
            image_x when 0,
            image_y when 1,
            (IMAGE_WIDTH - 1) - image_x when 2,
            (IMAGE_HEIGHT - 1) - image_y when 3,
            0 when others;

    with direction select
        directional_image_y <=
            image_y when 0,
            (IMAGE_WIDTH - 1) - image_x when 1,
            image_y when 2,
            image_x when 3,
            0 when others;


    background_color <=
        x"FFFFFF" when grid(py/IMAGE_HEIGHT)(px/IMAGE_WIDTH) = '1' else
        x"FFFF00" when frame_counter(4) = '0' and image_open(directional_image_y)(directional_image_x) = '1' and
                px >= position_x and px < position_x + IMAGE_WIDTH and
                py >= position_y and py < position_y + IMAGE_HEIGHT
            else
        x"FFFF00" when frame_counter(4) = '1' and image_closed(directional_image_y)(directional_image_x) = '1' and
                px >= position_x and px < position_x + IMAGE_WIDTH and
                py >= position_y and py < position_y + IMAGE_HEIGHT
            else
        --x"7F0000" when debug_next_tile_x = px/IMAGE_WIDTH and debug_next_tile_y = py/IMAGE_HEIGHT else
        x"000000";

    rng : OSCG port map (
        OSC => random_bit
    );

    process(clk)
        variable old_vsync : std_logic := '0';
        variable next_direction : integer := 0;

        variable next_x : integer range -SPEED to WIDTH + SPEED := 0;
        variable next_y : integer range -SPEED to HEIGHT + SPEED := 0;
        variable next_tile_x : integer := 0;
        variable next_tile_y : integer := 0;

        variable good : std_logic := '0';
    begin
        if rising_edge(clk) then
            if vsync = '0' and old_vsync = '1' then
                frame_counter <= frame_counter + 1;
                good := '0';

                if position_x mod IMAGE_WIDTH = 0 and position_y mod IMAGE_HEIGHT = 0 then
                    if random_bit = '1' then
                        next_direction := (next_direction + 1) mod 4;
                    else
                        next_direction := (next_direction + 3) mod 4;
                    end if;
                end if;
            end if;
            old_vsync := vsync;

            if good = '0' then
                case next_direction is
                    when 0 =>
                        next_x := position_x + SPEED;
                        next_y := position_y;
                    when 1 =>
                        next_x := position_x;
                        next_y := position_y + SPEED;
                    when 2 =>
                        next_x := position_x - SPEED;
                        next_y := position_y;
                    when 3 =>
                        next_x := position_x;
                        next_y := position_y - SPEED;
                    when others =>
                        null;
                end case;

                next_tile_x := next_x / IMAGE_WIDTH;
                next_tile_y := next_y / IMAGE_HEIGHT;
                if next_direction = 0 and (next_x mod IMAGE_WIDTH) /= 0 then
                    next_tile_x := next_tile_x + 1;
                elsif next_direction = 1 and (next_y mod IMAGE_HEIGHT) /= 0 then
                    next_tile_y := next_tile_y + 1;
                end if;

                debug_next_tile_x <= next_tile_x;
                debug_next_tile_y <= next_tile_y;

                if next_tile_y = 7 and next_tile_x = 0 and direction = 2 then
                    good := '1';
                    position_x <= 18*IMAGE_WIDTH;
                    position_y <= position_y;
                    direction <= 0;
                elsif next_tile_y = 7 and next_tile_x = 19 and direction = 0 then
                    good := '1';
                    position_x <= 1*IMAGE_WIDTH;
                    position_y <= position_y;
                    direction <= 2;
                elsif grid(next_tile_y)(next_tile_x) = '0' and next_direction /= ((direction + 2) mod 4) then
                    good := '1';
                    position_x <= next_x;
                    position_y <= next_y;
                    direction <= next_direction mod 4;
                else
                    if random_bit = '1' then
                        next_direction := (next_direction + 1) mod 4;
                    else
                        next_direction := (next_direction + 3) mod 4;
                    end if;
                end if;
            end if;
        end if;
    end process;
end architecture;
