Lmst

next try

#electronics #DIY #smd

Photo of smd components on a structured grey antistatic mat. The column with the case from a partlist is printed out and fixed next to the parts. It starts with four 0402 resistors for scale followed by eight potis, four large wide increased creaping soics, a pile of opamps in sc-70-5, four five pin wide soics and opamps again.

shiny waste

#DIY #electronics #SMD

Photo of the section of the pcb after baking and cleaning. Above the two opamps an u.fl connector with golden inner pin and ceramic base is visible. The solder bridges are set by shiny silver solder while the unused pads still shine in golden enig. There is a considerable size difference between the bulk and de decap despite they are both 0402s.

No to zobaczymy… strach się bać jakie to małe. :D

#DIY #SMD #MójPierwszyRaz :D

Bałagan z lutownicą i innym stuffem dookoła lutowania elektroniki

paste

#DIY #SMD #electronics

Section of a photo of a pcb with solder paste applied. Some of the solder jumper pads wich are default open are still shining bright in enig. The other pads have grey solder paste applied selectively to them by the stencil.

Testing a Cheap SMD Practice LED Matrix Kit

https://makertube.net/w/5QKV5H1W5FX4VRKWsNXwZZ

I’ve had a few difficult weeks recently dealing with some health issues (nothing serious but painful), but a while ago I decided to upgrade my desoldering tools with a very nice pair of #Hakko FX8804 heated tweezers. I received them today and they’re a thing of beauty 😍 #electronics #smd #diy #repair

A pair of HAKKO FX8804 heated tweezers on an antistatic pad.

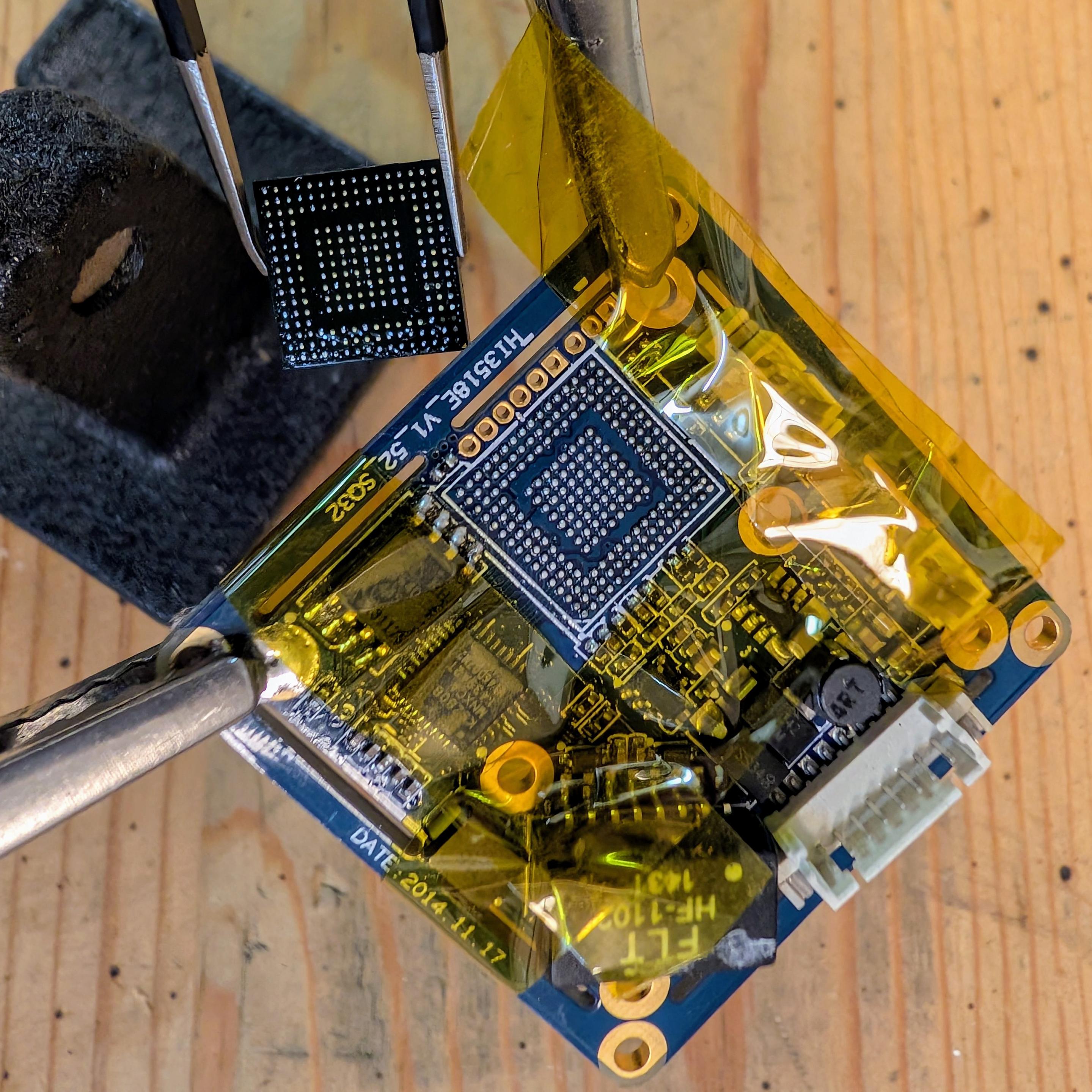

Partner asked if anyone knows anyone in Germany (where he lives) who can de-solder BGA153 EMMCs, he has a few boards and would be grateful for some help

#electronics #smd #rework #help

over 1.5 years ago i was "gifted" fancy anker powerbank that had had a smol water incident and failed. looking inside (RIP the case) there is an obviously failed SOT-89 but i am totally stumped trying to figure out what it is (or was). now trying to tidy my workbench i am looking at it again...

the SMD code reads "8DP__" with the damaged characters probably being "KR" from a teardown on youtube. it has failed with pins 1 and 3 shorted which adds to the confusion, but one of those pins is gnd/0v and the only candidate i can find when searching the code has gnd on pin 2 so that seems not a match...?

i could just rip out the cells and recycle them in to some other housing, but that seems kinda wasteful seeing as the rest of it might just be fine apart from 1 component...

(or there is something else somewhere that has failed and is shorting those pins together... i guess i should try and setup the hot air soldering thing my lovely partner got me for christmas and try and remove it...)

#repair #electronics #smd

photo of part of a very densely populated pcb with a SOT-89 that as had a Bad Time and has a big crack in the casing

screenshot of a youtube video showing the inside of the same model of powerbank, with the same component highlighted

Organ_Chip_tabletop_Emulate_AVATAR 🧑‍🚀

#AVATAR #ArtemisII #ArtemisScience #Biological&PhysicalSciencees #Biological&PhysicalSciences #SMD

⏩ 8 new pictures from NASA (Image Library) https://commons.wikimedia.org/wiki/Special:ListFiles?limit=8&user=OptimusPrimeBot&ilshowall=1&offset=20260115010134



SMD hattınızda 8 saat kesintisiz stabil baskı mümkün.
TongFang TF239 Serisi krem lehimler, üretimde duruşları azaltır, her baskıda aynı kaliteyi sağlar.

🔹 Düşük voiding (IPC7095 Class III)
🔹 180 µm fine pitch hassas baskı
🔹 ICT uyumlu, şeffaf kalıntı
🔹 Sıfır halojen, çevre dostu

ProSMT Elektronik ile dünya standartlarında lehimleme teknolojisi.
Numune ve teknik bilgi için bize ulaşın.

#ProSMT #TongFang #KremLehim #SMD #ElektronikUretim #SAC305 #FinePitch

Since it'll take some time for the PCBs to arrive, I decided to make a #prototype on #perfboard. It works fine, and I can test my programs using it. Turns out an #ATtiny814 is good enough for the task.
The #WS2812B #SMD #LEDs are very bright, though, and reducing brightness also reduces the possible color range.
The different color shadings are not very distinguishable, yet. I might have to adjust the color palette.
#diyelectronics #soldering

the back side of the perfboard prototype. there are lots of ceramic capacitors arranged in a heart shape. a few jumper wires are visible, with the insulation red, black, white, and without.

the front side of the perfboard prototype. there are 34 WS2812B SMD LEDs, arranged in a heart shape.

the perfboard prototype showing a red heart. the shading at the bottom is not distinguishable

the perfboard prototype showing a yellowish heart. the different color shades are hard to distinguish

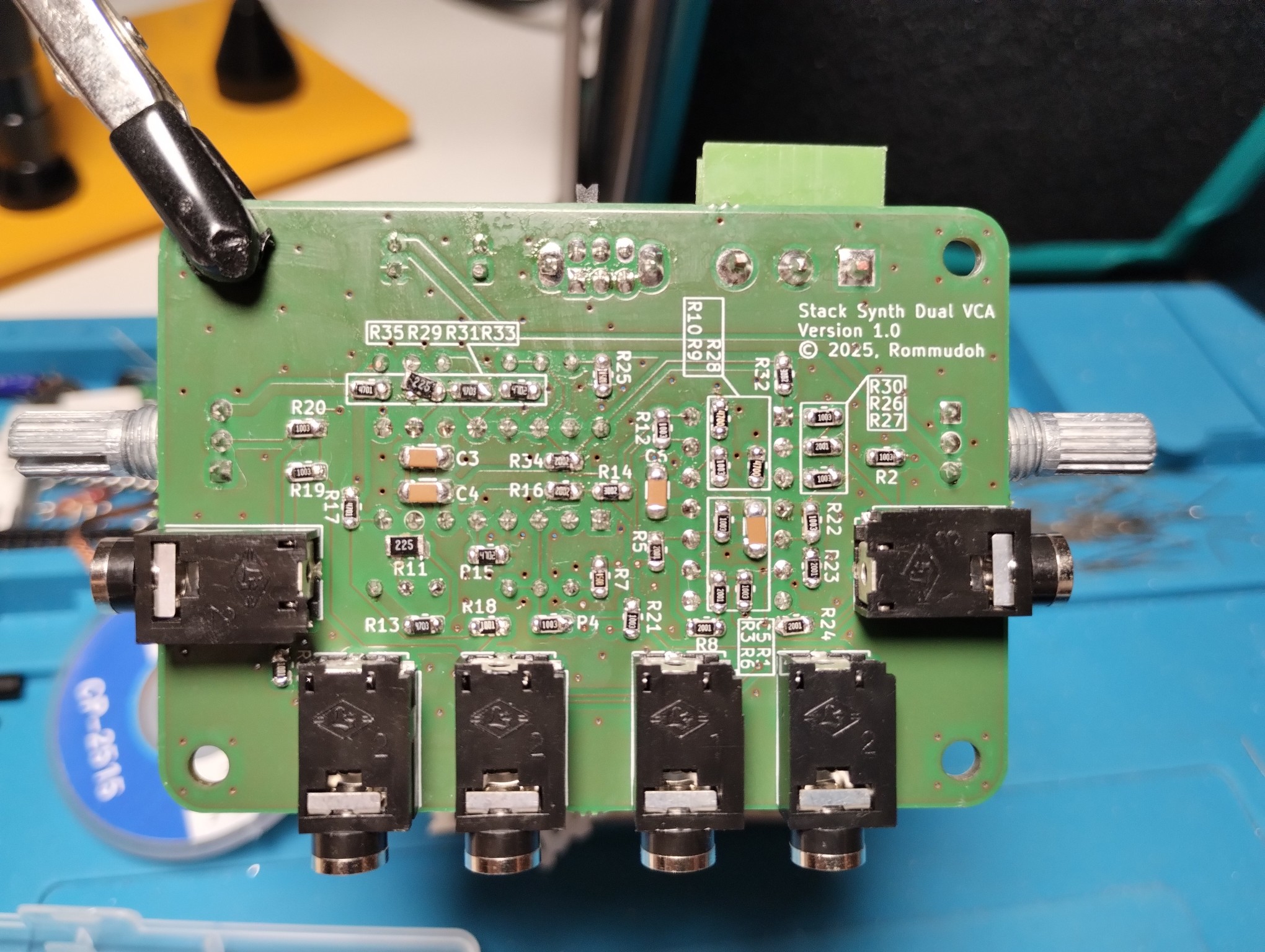

First board went well. I’m going to make a batch of 3 more now (all I have the components for today). #smd #electronics #pcb

Components placed. It is now in the oven. #SMD

PCB with components played on solder pasted pads ready to bake.

#nerdalert #smd #helpneeded #electronics #fixer #repair Has anyone got a steer on what this is, I’m drawing a blank. It’s on the power supply board for a heating system. The DF04S that feeds it is blown, so is a 78M05 nearby (as well as 3 opto isolators). Suspect a lightning strike.

Close-up image of a printed circuit board (PCB) featuring a semiconductor component, with visible markings and connections. The background is a green textured surface.

My first step: #hotairrework #smd

Trying to decide if being #lazy is acceptable, or if I should do the job properly.

I have a #pcb with a 100 Ω #SMD #resistor already soldered to it, but need to replace it with something around (but not under) 27 Ω.

I could attempt to desolder the original resistor (but I don't have a heat gun/plate, so would have to do it with a soldering iron) and replace it with the correct value; OR I could solder a 39 Ω resistor on top of it, giving the equivalent resistance of ~28 Ω.

But is the lazy approach actually ok in practice? Should I just do it properly? 😬

#electronics

@karlsruhe

Mir gings eigentlich nicht um das lernen ansich.

Eher die Abschreckung das #SMD und somit #elektronik teuer ist.

Wer hat schon ein Mikroskop etc dafür zu Hause?

Auch die #Platinen für #SMD gibt es nicht wirklich als universell.

Alleine wie man diese herstellt / bestellt ist ein eigener Kurs.

Lochraster, ein bißchen Draht für ein bißchen #BlinkiBlinki ist wesentlich günstiger für den lernenden Anfänger.

@karlsruhe

Beim dritten mal löten gleich #SMD halte ich für gewagt.

#elektronik #elektrotechnik

Домашний поверхностный монтаж: путь к своей мини-фабрике

Картинка — Youtube-каналы: Tobi , StuckAtPrototype Рано или поздно каждый, интересующийся электроникой, начинает задумываться о своём проекте и практически сразу упирается в вопрос: где и как производить изделия? И каждый решает этот вопрос по-разному. Так как эта тема мне тоже весьма близка, и этот вопрос стоит передо мной в полный рост, я решил разобраться и думаю, что вся последующая информация будет полезна любому, кто задаётся такими же вопросами. Вообще, вся эта статья — скорее приглашение к диалогу, так как если вы сможете чем-то поделиться, дать ценный совет, что-то подкорректировать — это будет на пользу всем читающим. Итак…

https://habr.com/ru/companies/ruvds/articles/966866/?utm_source=habrahabr&utm_medium=rss&utm_campaign=966866

#diy #smd #поверхностный_монтаж #фабрика_дома #электроника #ruvds_статьи

Домашний поверхностный монтаж: путь к своей мини-фабрике

Картинка — Youtube-каналы: Tobi , StuckAtPrototype Рано или поздно каждый, интересующийся электроникой, начинает задумываться о своём проекте и практически сразу упирается в вопрос: где и как производить изделия? И каждый решает этот вопрос по-разному. Так как эта тема мне тоже весьма близка, и этот вопрос стоит передо мной в полный рост, я решил разобраться и думаю, что вся последующая информация будет полезна любому, кто задаётся такими же вопросами. Вообще, вся эта статья — скорее приглашение к диалогу, так как если вы сможете чем-то поделиться, дать ценный совет, что-то подкорректировать — это будет на пользу всем читающим. Итак…

https://habr.com/ru/companies/ruvds/articles/966866/

#diy #smd #поверхностный_монтаж #фабрика_дома #электроника #ruvds_статьи
