What really determines the efficiency of an antenna?

Is it Standing Wave Ratio (SWR)?

It is common knowledge that when an antenna has high SWR some of our transmitted power is wasted instead of being transmitted. But is this really true? The trouble with “common knowledge” is that it spreads without further scrutiny. “It must be true because that’s what everybody thinks”. But let’s consider another perspective.

What happens to our signal when it meets an antenna with high SWR? Some of the signal is radiated while the rest is reflected back down the transmission line to its source – the transceiver. What happens to the reflected signal when it reaches the transceiver? It is re-reflected back towards the antenna and the cycle repeats.

So does all the signal eventually get radiated? No. Energy is lost (RED ALERT from the physics department: Energy can neither be created nor destroyed, only converted from one form to another). Ok, my apologies to the physics department, some of the energy is converted to heat as our signal passes along the transmission line and through any ununs, baluns, impedance transformers or other devices en route. Further energy is converted to heat due to the resistance of the wires and the impedance of the transmission line itself.

Thus, on every trip between the transceiver and the antenna, some of our transmitted RF is converted to heat. If the antenna has a high SWR some of our signal travels back and forth between the transceiver and the antenna multiple times and becomes further attenuated on each trip. Therefore, if we can reduce the loss of RF (due to conversion to heat) as it passes through any devices along the journey between the source (transceiver) and load (antenna) we will improve the efficiency of our antenna system.

How can we do that?

One simple way to achieve that is to correct for the high SWR right at the antenna. A remote tuner can do that. A loading coil will compensate for the high capacitive reactance of a short antenna, but loading coils can be inefficient because of wire resistance. This is especially true in the case of base-loading coils on a quarter-wave vertical antenna. The current is highest at the base of the antenna so more RF energy will be lost to heat (P=I^2*R) than with a center-loading or top-loading coil.

So the real culprit is not SWR, but the insertion loss of ununs, baluns, impedance transformers, loading coils, transmatches and any other “energy conversion” devices, including the transmission line itself, through which our signal has to pass.

Insertion loss of Ham Radio Outside the Box’s 4:1 ununs

In the previous post I reported on my build of field test versions of a 4:1 unun and a 4:1 balun to compare how each would handle the task assigned to them. Now the job I set myself was to transform what might be called the “Ugly Sisters” builds into something with the good looks of Cinderella. And Cinderella had to be an unun tough enough to withstand rough treatment out in the Big Blue Sky Shack through all four Canadian seasons (Late Winter, Brief Summer, Early Winter, Deep Winter).

QRP 4:1 unun

I built two versions of a 4:1 unun; one for QRP and another for what I like to call QROp. “QROp” is an unofficial label I have adopted to mean about 20 watts or so. Twenty watts will give a 1 S-unit advantage over 5 watts – maybe just enough for our signal to poke its nose above the noise floor when propagation conditions are not so good.

QROp unun

There are 2 main differences between the QRP and the QROp versions: The QRP unun uses a BNC connector and a 4:1 transformer wound on a tiny FT82-43 toroid. The QROp version uses an SO-239 connector and a 4:1 transformer wound on an FT140-43 toroid.

If we look at the tables below, we can see that the QRP version may have a little too much insertion loss. When we are trying to do as much as we can with as little as possible every milliwatt is wanted. As the wonderful friendly folks on the big Canadian island of Newfoundland like to say: “A little’s a lot if it’s all you’ve got”.

Insertion Loss effects of the Ham Radio Outside the Box QRP unun

BandQRP (5 watts) UNUN Insertion Loss (dB)RF Power Lost (watts)% RF Power Lost10m0.390.438.612m0.370.418.215m0.350.397.817m0.340.387.614m0.330.377.430m0.320.367.240m0.350.397.880m0.730.7715.4

Insertion Loss effects of the Ham Radio Outside the Box QROp unun

BandQROp (20 watts) UNUN Insertion Loss (dB)RF Power Lost (watts)% RF Power Lost10m0.241.085.4012m0.231.035.1515m0.220.994.9517m0.210.944.7014m0.200.904.5030m0.200.904.5040m0.200.904.5080m0.220.994.95

A little extra heat in winter

You would think Canadians wouldn’t mind a little extra heat in winter. It’s true, but not when the source of that heat is our precious transmitted RF. In case you were wondering, the amount of RF converted to heat by inefficient devices is mostly undetectable. If it can be easily detected the “magic smoke” can’t be far behind. When it’s 253 Kelvins outside you just ain’t gonna notice when the temperature rises to 254 Kelvins (note: the physics department advised me to use Kelvins to avoid confusion between degrees Fahrenheit and degrees Celsius).

Oh no! There’s more?

Yes indeed. An unun does not attenuate Common Mode Current (CMC). For that we need a Common Mode Current Choke (CMCC). CMC is the current on the outer surface of a coax braid. Differential mode current is carried on the core and inner surface of the coax braid. Does a CMCC also have insertion loss? Yes, but how much? Let’s take a look.

Insertion Loss of a QRP (5 watts) Common Mode Current Choke (CMCC)

BandQRP (5 watts) CMCC Insertion Loss (dB)RF Power Lost (watts)% RF Power Lost10m0.250.285.612m0.220.255.015m0.210.244.817m0.190.214.214m0.170.193.830m0.150.173.440m0.140.163.280m0.130.153.0 QRP CMCC

Insertion Loss of a QROp (20 watts) Common Mode Current Choke (CMCC)

BandQRP (5 watts) CMCC Insertion Loss (dB)RF Power Lost (watts)% RF Power Lost10m0.180.814.0512m0.160.723.6015m0.150.683.4017m0.130.592.9514m0.110.502.5030m0.100.462.3040m0.090.412.0580m0.080.371.85 QROp CMCC

The (not so) grand total of RF going up the chimney

BandTotal QRP (5W) % RF power lost to heatTotal QROp (20W) % RF power lost to heat10m14.29.0912m13.28.7515m12.68.3517m11.87.6514m11.27.0030m10.66.8040m10.06.5580m18.46.80

The white bearded man in the red suit and his flying reindeer might be grateful for a few watts of heat going up the chimney at this time of year, but those of us in the frozen barren tundra of the northern states and provinces, as well as licensed ham dwellers in other cold lands, may not see things the same way.

What can we conclude?

If we only consider the insertion loss – in this example – of the 4:1 voltage unun and the Common Mode Current Choke and ignore resistive losses in the transmission line, and possibly insertion loss in a transmatch (“tuner”), we can determine the potential efficiency of our antenna system.

  • For our QRP devices the efficiency varies between 81.6% and 90% across the bands
  • For our QRO devices the efficiency varies between 90.9% and 93.5% across the bands

This conclusion is based on the assumption that there is no loss in the antenna itself. We are treating the antenna, the transmission line, unun and CMCC as the “antenna system”. I have made no allowance for SWR losses for the reasons stated in the introduction to this post.

What a load of old codswallop!

I am an expert in the sense that “X” is an unknown quantity and “spurt” is a drip under pressure. I may be completely wrong; I may have fallen off my horse and bumped my head on a rock. I may have come to a fork in the road and taken it as Yogi Berra once famously said. If you would like to correct me on any wrong assumptions please do so. I receive a lot of direct emails from readers and, while they are most welcome, if you write a comment to this post instead it may trigger an interesting technical discussion here.

A big thank you to all the new and many existing subscribers to Ham Radio Outside the Box. It is people like you who make writing these posts so worthwhile. I appreciate every one of you.

Help support HamRadioOutsidetheBox

No “tip-jar”, “buy me a coffee”, Patreon, or Amazon links here. I enjoy my hobby and I enjoy writing about it. If you would like to support this blog please follow/subscribe using the link at the bottom of my home page, or like, comment (links at the bottom of each post), repost or share links to my posts on social media. If you would like to email me directly you will find my email address on my QRZ.com page. Thank you!

The following copyright notice applies to all content on this blog.


This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License.

#amateurRadio2 #antennas #cw #outdoorOps #unun

Jim "Ham on a Bike"N4JAW@mastodon.radio
2025-11-20

Due to weather I made a 40 - 10 Meter #EFHW with Walt #NE4TN #QRP #TennTennas #UNUN specifically for portable use with my #Heathkit #HW8 and got a #HWA7 Power Supply for QTH from one of the BEST Brick & Mortar Ham Radio Stores #r_lelectronics

Amateur Radio 49:1 Unun for Ham Radio End Fed Half Wave AntennaHeathkit HWA-7-1 Power Supply for Heathkit HW-8 Amateur Radio Morse Code Transceiver
spmatich vk3spm :blobcoffee:spmatich@ioc.exchange
2025-08-31

Made an #Unun for HF (64:1 impedance ratio). Still needs a bypass capacitor (on order) to deal with the leakage-inductance of the transformer winding. But the VSWR of 1.09 (according to #NanoVNA) at 5.5MHz into a 3.9k load looks promising. #Hamradio #AmatuerRadio

Unun with lid off showing transformer and mounting, connected to nanoVNA scan of VSWR from 2-30MHz
Javier EA2EQQ 📶ea2eqq@mastodon.radio
2025-08-27

🎣📡 ENDFED Antenna
🌍📻 Intercontinental reception with the antenna!
QSO between Australia VK2LS and La Palma, Canary Islands EA8CVZ, perfectly received with the fishing rod setup.
Distance: ~18,000 km
Band: 20m, 14.260MHz
Very clear signals on reception 📡
Portable antenna receiving perfectly! 🎣
#HamRadio #Ham #ENDFED #QRP #PortableAntennas #uSDR #UnUn #SOTA #POTA #FieldActivations #DIY #AmateurRadio

Javier EA2EQQ 📶ea2eqq@mastodon.radio
2025-08-27

🎣📡 ENDFED Antenna - SWR testing with uSDR

SWR results across different bands using the built-in analyzer. In the video you can see real-time measurements and how the antenna performs at different frequencies.

Results have been quite promising!

#HamRadio #Ham #ENDFED #QRP #PortableAntennas #uSDR #UnUn #SOTA #POTA #FieldActivations #DIY #AmateurRadio

Javier EA2EQQ 📶ea2eqq@mastodon.radio
2025-08-27

🎣📡 ENDFED antenna mounted on 7m fishing rod!
Configuration:
UnUn 49:1
Radiator ~20.5m
8m coaxial RG58
Radio: uSDR QRP
Perfect portable solution for field activations. Complete setup in the video.
#HamRadio #Ham #ENDFED #QRP #PortableAntennas #uSDR #UnUn #SOTA #POTA #FieldActivations #DIY #AmateurRadio

Javier EA2EQQ 📶ea2eqq@mastodon.radio
2025-08-27

🎣📡 Antena ENDFED

🌍📻 ¡Escucha intercontinental con la antena!

QSO entre Australia VK2LS y La Palma, Canarias EA8CVZ, captado perfectamente con la configuración de caña de pescar.

Distancia: ~18.000 km
Banda: 20m, 14.260mhz

Señales muy claras en recepción 📡

¡La antena portátil recibiendo a la perfección! 🎣

#RadioAficionado #Ham #HamRadio #ENDFED #QRP #AntenasPortatiles #uSDR #EA #UnUn #sota #pota #ActivacionesDeCampo

Javier EA2EQQ 📶ea2eqq@mastodon.radio
2025-08-27

🎣📡 Antena ENDFED - Pruebas de estacionarias con uSDR
Resultados de SWR en diferentes bandas con el analizador integrado. En el vídeo podéis ver las mediciones en tiempo real y cómo se comporta la antena en las distintas frecuencias.
¡Los resultados han sido bastante prometedores!
#RadioAficionado #Ham #HamRadio #ENDFED #QRP #AntenasPortatiles #uSDR #EA #UnUn #sota #pota #ActivacionesDeCampo

Javier EA2EQQ 📶ea2eqq@mastodon.radio
2025-08-27

🎣📡 Antena ENDFED montada en caña de pescar de 7m!
Configuración:

UnUn 49:1
Radiante ~20.5m
8m coaxial RG58
Emisora: uSDR QRP

Solución portátil perfecta para activaciones de campo. En el vídeo el montaje completo.

#RadioAficionado #Ham #HamRadio #ENDFED #QRP #AntenasPortatiles #uSDR #EA #UnUn #sota #pota #ActivacionesDeCampo

DK2BN :verified:dk2bn@radiosocial.de
2025-06-17

Logbuch einer #Nordsee Reise:

Tag 1: #EFHW mit 10m Draht und meinem ersten selbstgebauten #UnUn läuft, aber nicht wirklich Platz zum Aufbau. Kommunica Power #HF-1-Pro mit Magnetfuss auf Auto ums verrecken nicht resonant zu bekommen.

Tag 2: #EFWH zerschnitten und als Gegengewicht an der #HF-1-Pro genutzt. Läuft, aber bei jedem Husten ist das SWR im a****. Außerdem: IC-705 lässt sich per USB laden. Sehr praktisch!

vy73 aus JO44fq

#hamradio

Baluns & Ununs: The Unsung Heroes of Antenna Building and Signal Matching

758 words, 4 minutes read time.

When diving into the world of antenna systems, whether you’re a hobbyist or a professional, you might often hear about Baluns and Ununs. These are specialized transformers that play pivotal roles in signal transmission. Their primary function is to match impedances between components in your system to ensure the highest efficiency and performance. But what exactly are they, and how do they contribute to antenna building?

What Is a Balun?

A Balun, short for BALanced to UNbalanced, is an electrical transformer that allows the connection of a balanced load (like a dipole antenna) to an unbalanced feed line (such as coaxial cable). It’s a key component in matching the impedance between these two differing systems, ensuring that signals are transferred without significant loss. Baluns are widely used in radio frequency (RF) systems to ensure minimal signal reflection, noise, and interference.

Baluns come in various configurations, depending on the specific needs of the system. They can handle impedance transformations with ratios like 1:1, 1:4, or 1:9. The type of balun you choose depends on the specific characteristics of your antenna and feed line. For example, a 1:1 balun keeps impedance consistent, while a 1:4 balun is typically used to match a 75-ohm coax to a 300-ohm antenna.

Additionally, there are different types of Baluns, such as current baluns and voltage baluns. A current balun is used to block common mode currents, while a voltage balun balances the voltages on the antenna.

What Is an Unun?

An Unun, which stands for UNbalanced to UNbalanced, is another crucial transformer, but it serves a slightly different purpose. While a balun connects a balanced antenna to an unbalanced feed line, an unun matches impedance between unbalanced components. It’s commonly used with antennas like end-fed half-wave (EFHW) antennas, which are often unbalanced in nature. The unun’s job is to ensure that the impedance of the antenna matches that of the transmission line, reducing signal reflections and losses.

Ununs are typically used in situations where both the antenna and transmission line are unbalanced but have different impedance values. For example, a 1:1 unun might be used to match a high-impedance antenna, like an EFHW, to a coaxial cable. The most common configurations for ununs are 1:1 or 4:1, but just like baluns, the specific ratio needed depends on the application.

The Key Differences Between Baluns and Ununs

While both baluns and ununs serve to match impedance, the key difference lies in what they connect. A balun bridges the gap between a balanced antenna and an unbalanced feed line, whereas an unun is used for matching different impedances between unbalanced components. The choice between a balun and an unun largely depends on the antenna system you’re working with. For example, for dipoles or Yagi antennas (which are balanced), a balun is typically required. For end-fed antennas, an unun is more appropriate.

Why Are Baluns and Ununs Important for Antenna Performance?

Impedance matching is vital in any antenna system, and both baluns and ununs make this process possible. Without proper impedance matching, your antenna system could suffer from inefficiencies such as signal loss, poor radiation patterns, and mismatched power transfer. By using the correct balun or unun, you ensure that the antenna system operates at peak efficiency, minimizing reflections and maximizing power transfer.

Furthermore, these components also help in reducing common-mode currents that could otherwise introduce noise and distortions. Whether you’re dealing with high-frequency signals in amateur radio or broader RF applications, a well-matched antenna system ensures cleaner, stronger signals.

Practical Applications and Tips

When building or designing an antenna system, consider the following practical tips:

  • Choose the right impedance transformation ratio: Whether you’re using a balun or an unun, selecting the right ratio (e.g., 1:1, 1:4, or 1:9) will significantly impact the performance of your antenna system.
  • Select the right materials: Baluns and ununs can be made from various core materials like ferrite, powdered iron, or even air. The choice of core material can affect the device’s efficiency, especially at higher frequencies.
  • Use for noise reduction: For systems prone to interference or common-mode noise, a balun (particularly a current balun) can help to suppress these unwanted signals.

Conclusion

Baluns and ununs might seem like small components in the grand scheme of antenna building, but they play an essential role in ensuring your antenna system performs optimally. Whether you’re setting up a dipole antenna, a Yagi, or an end-fed wire, understanding the role of these transformers will help you make the right decisions for better signal transmission, reduced interference, and overall improved antenna performance.

D. Bryan King

Related Posts

Rate this:

#11Balun #41Unun #antennaBuilding #antennaEfficiency #antennaPerformance #antennaSignalMatching #antennaSystems #balancedAntennas #Balun #coaxialCable #coaxialTransmissionLines #commonModeCurrents #currentBalun #dipoleAntenna #endFedAntenna #impedanceMatching #impedanceTransformation #noiseReductionInAntennas #powerTransfer #radioFrequencySystems #RFTransformers #signalInterference #signalLoss #transformerDesign #unbalancedAntennas #Unun #voltageBalun #YagiAntennas

2024-02-29

First antenna 📡

RF is such a bizarre discipline. Wrap some wire on a metal donut: oh look now you can talk* to a different continent on a 9V battery

*morse if conditions are right

Photo of a NanoVNA showing an SWR drop to 1.2 at 28MHz3d printed wire winder with a transformer, bnc connector and some wire
2024-01-18

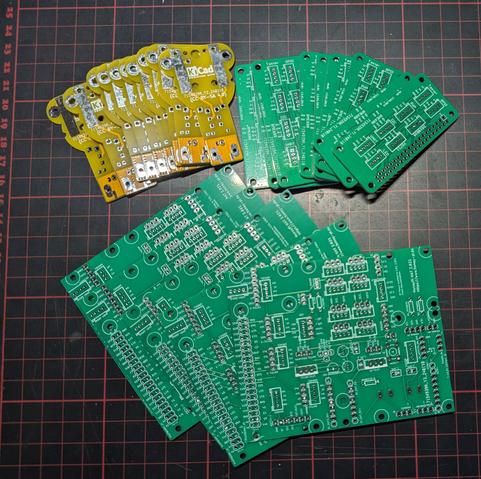

Letzte Woche am Dienstag bestellt und heute schon geliefert. Hätte nicht gedacht das es so schnell geht. #jlcpcb #honeypi #dg1jan #unun

2023-12-27

Descriptions LDG RU-9:1 #Unun all say "easy to #weatherproof" but give no details.
Any suggestions about how to weather proof it.

2023-12-02

that's the box... just need to build it now #QDX #QRP #49:1 #49to1 #UNUN #EFHW - @2U0HZY i'm nearly there! :-)

If I tapped a 49:1 unun at turn 6 (indicated by the red arrow below), could I use that tap when I want a 9:1 unun? A dual-purpose unun could be handy. #unun #HamRadio #AmateurRadio

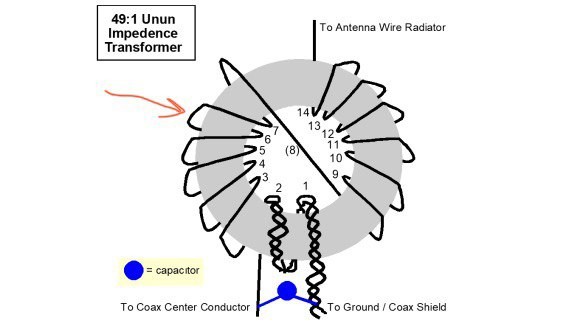

A drawing showing how a toroid is wound to make a 49:1 unun. A red arrow indicates a proposed tap at winding 6.
