Working list: World’s tallest seaport cranes

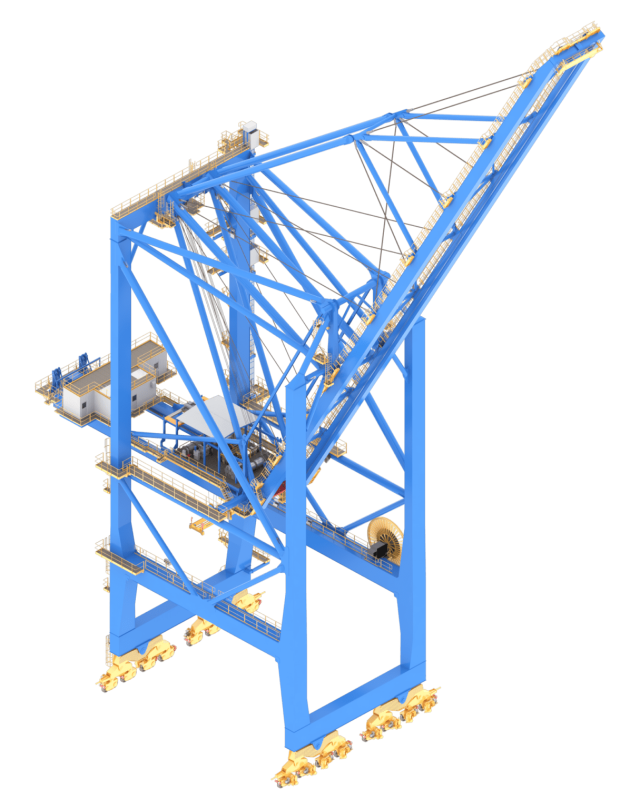

High profile S-T-S crane in the raised boom position – Source: liftech.net

All the cranes listed are ship-to-shore (STS) designs unless otherwise indicated in parentheses next to the height of the crane. The minimum height for inclusion on the list is 200 feet. In many cases, there are multiple cranes of the same size at the same seaport.

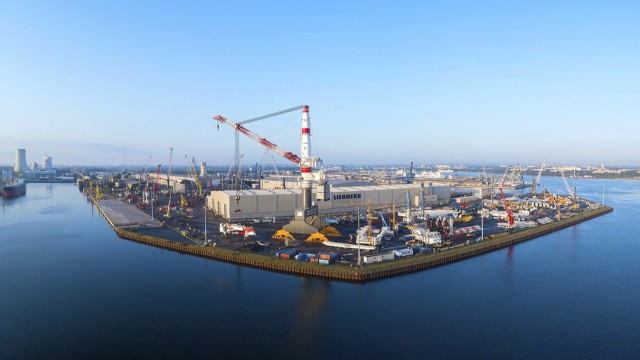

Enormous gantry crane in Rostock, Germany

Please note that whenever possible the fully raised boom-up height is used, though in some cases the superstructure height may only be shown. Variations in height depend on a number of factors including harbor/channel depth (impacting ship sizes), bridge clearance, seaport specialization, the use of low-profile cranes, and even proximity to the flight paths of nearby airports.

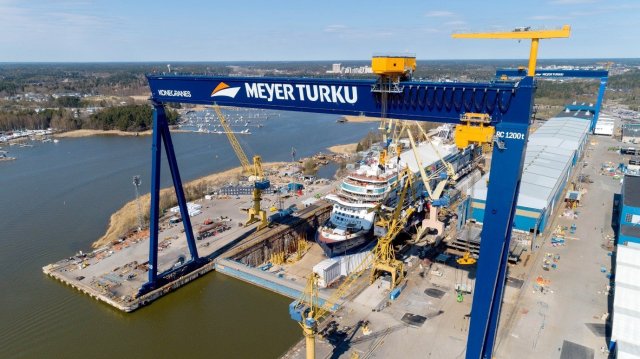

Traditional shipyard gantry crane in Turku, Finland

If a seaport is listed more than once, it may be different types of cranes, different generations of cranes being represented, or the locational requirements necessitate an alternate size. As more information becomes available, additional cranes will be added. As always, any additions, corrections, or suggestions are most welcome. Peace!

Source: tots.upol.cz/pdfs/tot/2013/01/02.pdf

= Known height

~ Estimated height is based on outreach, height above ground, and approx. raised angle

*Identified gantry cranes below, are strictly traditional gantry cranes, not STS cranes perched upon a gantry.

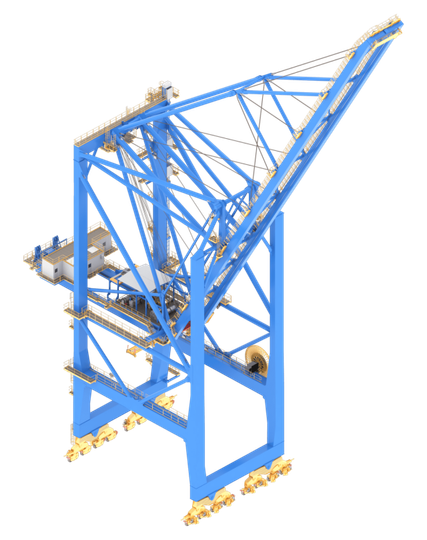

S-T-S Crane in Newark, NJ – Source: container-mag.com

_______

Newark, NJ, USA (2014) = 561 feet

2. Rostock, Germany (2019) = 538 feet (gantry)

3-4. Newark, NJ, USA (2022) and Elizabeth, NJ, USA (2022) = 492 feet

5-6. Tangier, Morocco (2018) = 472 feet and Antwerp, Belgium (2021) ~ 472 feet

7. Ashdod, Israel (2022) = 461 feet

8. Gdansk, Poland (2025) = 459 feet

9-11. Dubai/Jebel Ali, UAE (2014); London Gateway, England (2013) = 453 feet and Ulsan “Tears of Malmo”, South Korea (1974) = 453 feet (gantry) – originally installed in Malmo, Sweden

12-14. Baltimore, MD, USA (2021) and Vancouver/Deltaport, BC, Canada (2015) = 450 feet and San Francisco/Hunter’s Point, CA, USA (1947) = 450 feet (gantry) – historic and decommissioned)

15. Norfolk, VA, USA (2019) = 446 feet

16. Bremerhaven, Germany (2021) = 443 feet

17. Oakland, CA, USA (2021) = 442 feet

18. Tema, Ghana (2019) = 440 feet

19-20. Lisbon, Portugal (2017) = 436 feet and Yantai, China (ca 2008) = 436 feet (gantry)

21. Tacoma, WA, USA (2018) = 434 feet

22. Liverpool, England (2019) = 433 feet

23-25. Rotterdam, Netherlands; Southampton, England (2018); and Antwerp, Belgium (2015) = 427 feet

26. Tampa, FL, USA (2023) = 425 feet

27. Columbo, Sri Lanka (2024) = 417 feet

28. Abu Dhabi/Khalifa, UAE (2015) = 415 feet

29. Southampton England (2014) = 413 feet

30. Panama City, Panama (2025) ~ 412 feet

31. Miami, FL, USA (Cranes 13-16) ~ 410 feet

32. Vancouver, BC, Canada = 407 feet

33-34. Gioia Tauro, Italy (2024); Piraeus, Greece (2020); and Le Harve, France (2020) ~ 405 feet

35. Freeport, Bahamas (2011) = 404 feet

36. Pattaya City/Laem Chabang, Thailand (2024) ~ 402 feet

37-40. Hamburg, Germany (2024); Stockholm, Sweden; = 394 feet; Long Beach, CA, USA (2023) ~ 394 feet and Turku, Finland (2018) = 394 feet (gantry)

41. Philadelphia, PA, USA (2019) = 391 feet

42-43. Miami, FL, USA (Cranes 11-12: 2005) and Haiphong, Vietnam (2024) ~ 386 feet

44. Saint John, NB, Canada (2023) = 377 feet

45. Rio de Janeiro, Brazil (2020) ~ 373 feet

46. Sines, Portugal (2024) ~ 366 feet

47. Rijeka, Croatia (2025) ~ 365 feet

48. Lagos/Lekki, Nigeria (2023) ~ 364 feet

49. Mombasa, Kenya (2018) = 361 feet

50-51. Houston, TX, USA (2015) and Charleston, SC, USA ~ 360 feet

52. Halifax, NS, Canada (2023) ~ 356 feet

53. Brisbane, Australia (2006) = 354 feet

54. Melbourne, Australia (2023) ~ 351 feet

55-56. Belfast “Samson”, Northern Ireland (1974) and Saint Nazaire, France (2022) = 348 feet (both gantry)

57. Manzanillo, Mexico ~ 347 feet

58. Kochi, India = 344 feet (gantry)

59-61. Valparaiso, Chile (2018); Gqeberha (Port Elizabeth) Ngqura, South Africa (2014); and Kribi, Cameroon (2024) ~ 341 feet

62-63. Anchorage, Alaska (2015) = 340 feet and San Juan, PR, USA (2017) ~ 340 feet

64. Mobile, AL, USA ~ 333 feet

65-66. Haifa, Israel (2021) = 329 feet and Rio Grande do Sul, Brazil (2020) ~ 329 feet (gantry)

67. Riga, Latvia (2020) = 328 feet

68. Los Angeles, CA, USA = 325 feet (boom down height)

69. Szczecin, Poland (2023) = 322 feet

70. Seattle, WA, USA (2023) = 316 feet (boom down height)

71. Belfast “Goliath”, Northern Ireland (1969) = 315 feet (gantry)

72. Santo Domingo, Dominican Republic (2022) ~ 314 feet – acquired from Virginia

73. Santos, Brazil (2024) = 308 feet and San Antonio, Chile (2022) ~ 308 feet

74. New York City, NY, USA (2004/increased in 2023) ~ 307 feet

75. Savannah, GA, USA (2023) = 306 feet

76. Ba’ Rja, Vietnam (2020) = 305 feet

77. Saint Nazaire, France (2013) = 302 feet (gantry)

78-79. Long Beach, CA, USA and La Ciotat, France (1969) = 300 feet (both gantry)

80. Miami, FL, USA (Cranes 4-6: 1980s) ~ 296 feet

81-83. Savannah, GA, USA (2023); Istanbul, Turkiye (2022); and Genoa/Vado Ligure, Italy (2018) = 295 feet

84. Los Angeles, CA, USA (2024) ~ 294 feet (boom down height)

85. Glasgow (Greenock), Scotland (2024) = 292 feet

86. Buenos Aires, Argentina (2012) ~ 288 feet

87-89. Gqeberha (Port Elizabeth) Ngqura, South Africa (2012/2018); Durban, South Africa (2012); and Cape Town, South Africa (2012) ~ 286 feet

90. Gothenburg “Erisberg”, Sweden (1969) = 276 feet (historic gantry)

91-92. Houston, TX, USA and Auckland, New Zealand (2019) = 270 feet

93. Alicante, Spain (2021) ~ 267 feet

94-95. Prince Rupert, BC, Canada (2007) = 262 feet and Montreal, QC, Canada (2020) ~ 262 feet

96. Marseille, France = 259 feet

97. Salalah, Oman (2025) = 252 feet

98. New Orleans, LA, USA (2021) = 250 feet

99. Tampico/Altamira, Mexico (2009) ~ 244 feet

100. Newport News, VA, USA (2018) = 241 feet (gantry)

101. Pointe-à-Pitre, Guadalupe (2019) = 223 feet

102-103. Jacksonville, FL, USA (2018) = 220 feet and Venice, Italy (2020) = 220 feet (gantry)

104. Sydney, Australia ~ 219 feet

105. Jiangsu, China (2014) = 213 feet (gantry)

106. Boston, MA, USA (2021) = 205 feet (height limited by Logan Airport flight path)

S-T-S cranes being delivered to Tacoma, WA, USA

More information needed:

Alexandria, Egypt
Amsterdam, Netherlands
Bangkok, Thailand
Beirut, Lebanon
Busan, South Korea
Callao, Peru
Cartagena, Colombia
Chennai, India
Chittagong, Bangladesh
Constanta, Romania
Da Nang, Vietnam
Dar es Salaam, Tanzania
Doraleh, Djibouti
Fremantle, Australia
Havana, Cuba
Hong Kong, China
Immingham, England
Incheon, South Korea
Izmir, Turkiye
Kaoshiung, Taiwan
Karachi, Pakistan
Kingston Upon Hull, England
Kobe, Japan
Luanda, Angola
Malmo, Sweden
Mumbai, India
Tallinn/Muuga, Lithuania
Odesa, Ukraine
Osaka, Japan
Penang, Malaysia
Pointe Noire, Congo
Port Said, Egypt
Shanghai, China
St. Petersburg, Russia
Tampico, Mexico
Tokyo, Japan
Valencia, Spain
Veracruz, Mexico
Vldavostok, Russia
Yokohama, Japan

SOURCES:

#containerPorts #containers #cranes #gantry #geography #harbors #history #landUse #planning #ports #shipToShore #shipping #STS #terminals #transportation

Enjoy Totality Every Day With This Personal Eclipse Generator https://hackaday.com/2024/06/27/enjoy-totality-every-day-with-this-personal-eclipse-generator/ #ArduinoHacks #coronagraph #homehacks #arduino #eclipse #gantry #window #blind #shade #moon #sun #X-Y

Folks, thank you once again for all your great tips - #GravCMS ft. #Gantry framework look like to be my choice.
Actually, I am already migrating the stuff there. It seems to be exactly what I wanted.

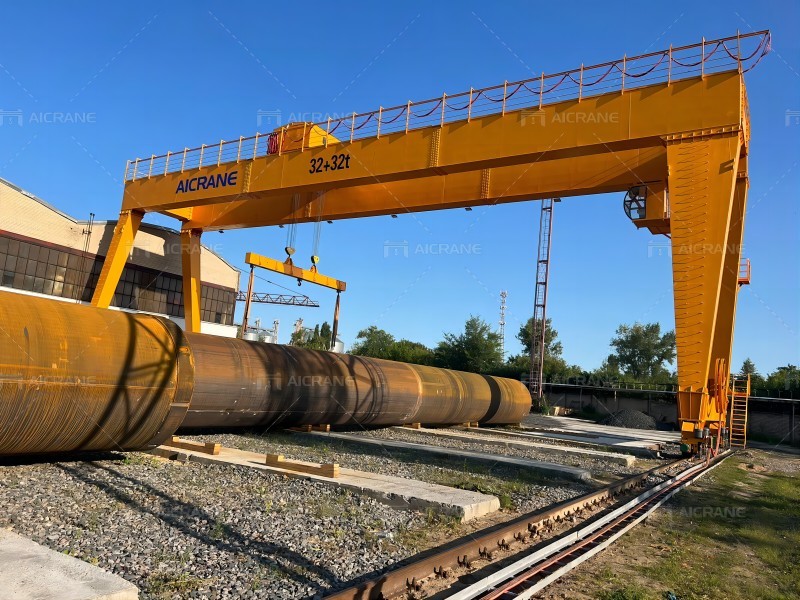

Gantry cranes are versatile lifting solutions that are widely used in industrial environments for loading, unloading and transporting heavy objects. It is able to cover a wide area and lift large amounts of weight with precision.😀
