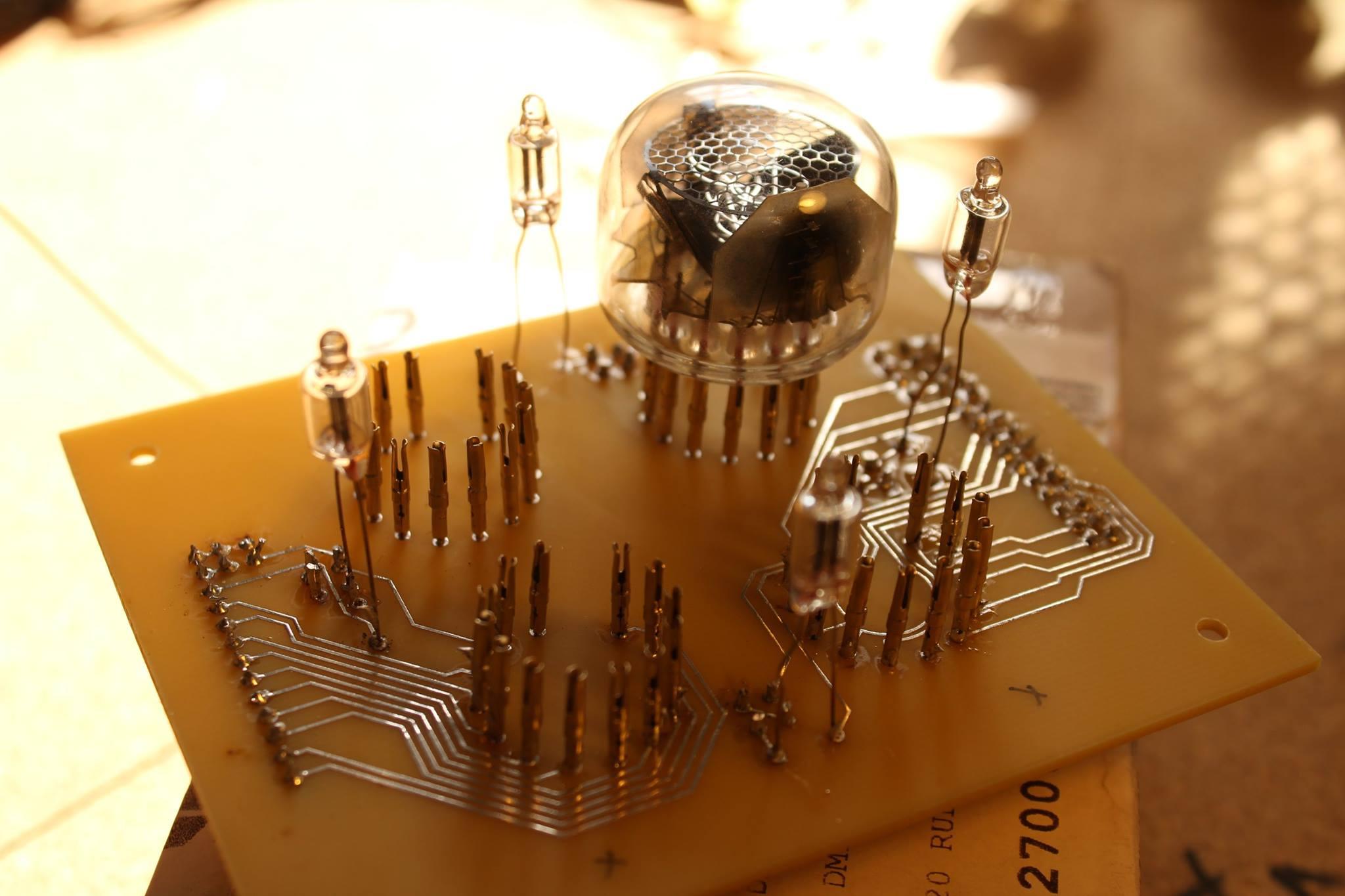

A daylight view of the nixie tubes mounting PCB, with only one tube installed out of the four

A side view of the tubes, displaying their cosy orange color glowing in the dark. The front of the tubes show a clear purple glow.

A picture showing the mounting PCB of the nixie tubes in a vise, with the tubes displaying some digits. An ESP32 control board and a breadboard with some cablework is visible in the background

Some close-up shots :
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart

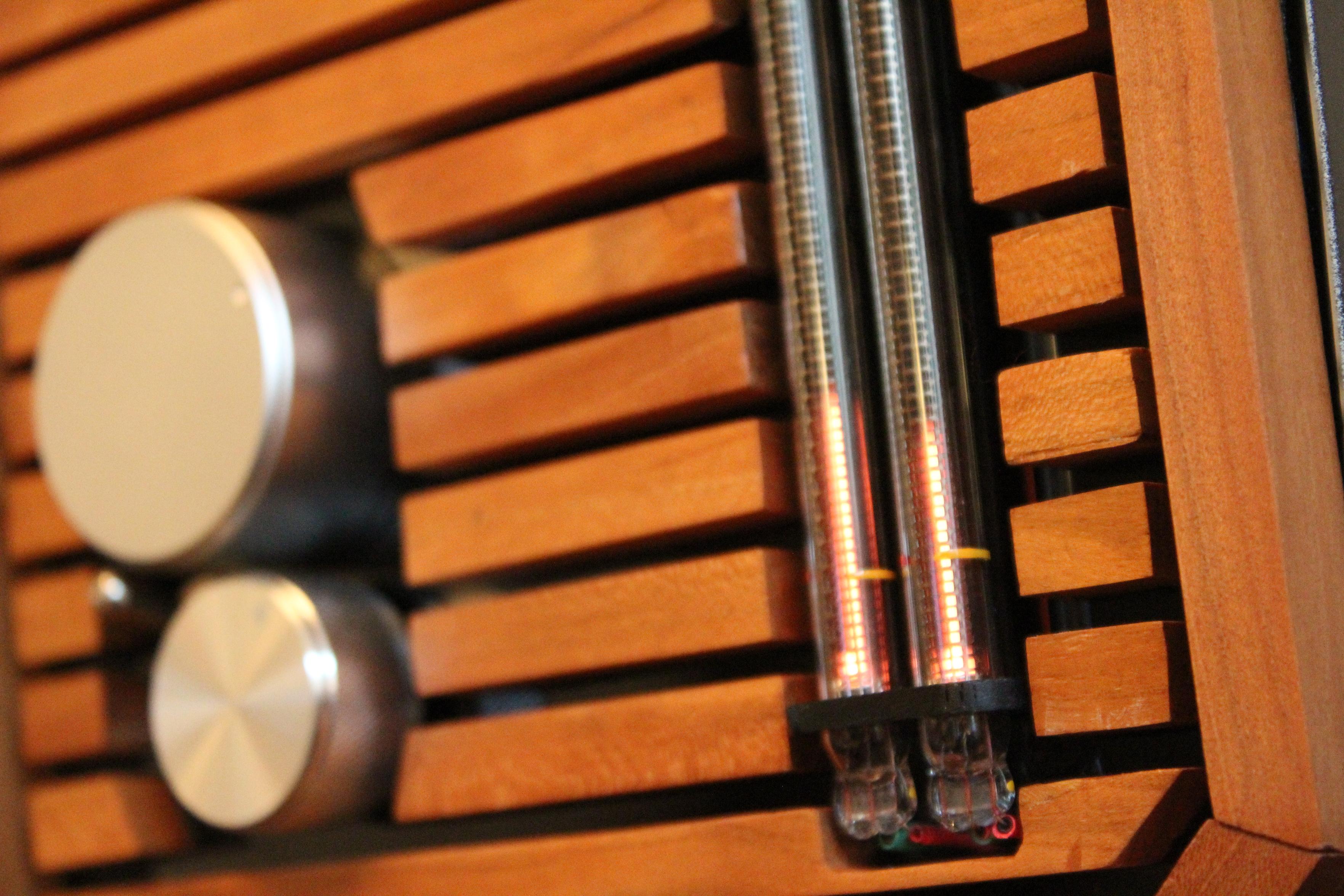

Close-up shot of the nixie amplifier from the left side, focusing on the metal knobs, power switch and input jack

Close-up shot of the nixie amplifier from the right side, focusing on the IN-13 tubes, glowing from the bottom

The amp uses the SGVU151 kit and IN-13 tubes. The audio part uses the ELA21306 board, as its power matches the speakers I want to use. It's okay for the moment, but I might swap if for something better if I want to revisit this project one day.
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart

A photograph showcasing the amplifier described in the first message, front view.

A photograph showcasing the amplifier described in the first message, facing left.

A photograph showcasing the amplifier described in the first message, facing right.

Some close-up shots
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart

Macro photograph of lit-up nixie tubes, with the one in the foreground displaying the digit 7

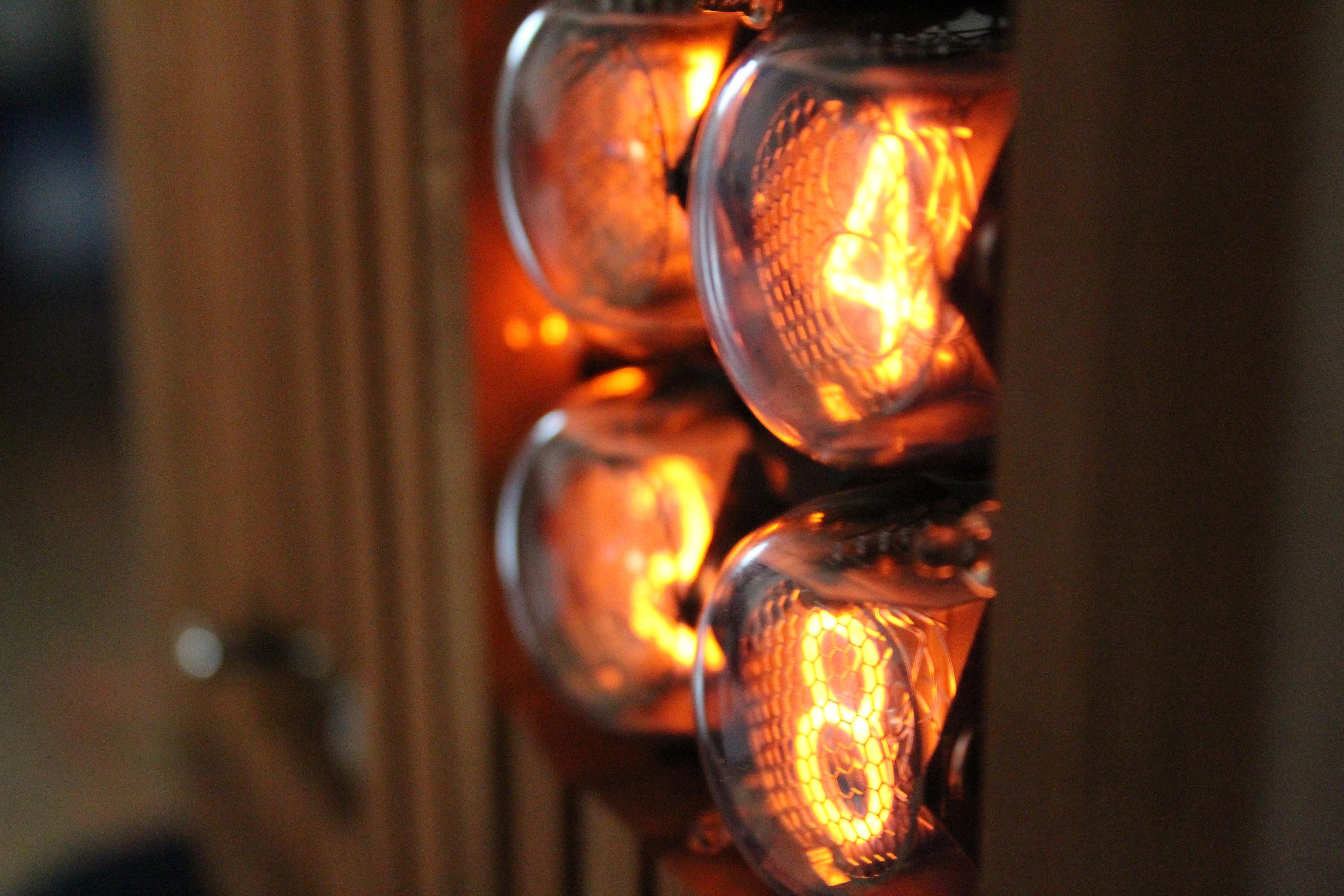

Close-up shot of the nixie clock from the right side, focusing on the stacked nixie tubes and the wood-clad façade surrounding it

Close-up shot of the nixie clock from the right side, focusing on the stacked nixie tubes and the wood-clad façade surrounding it. The orange glow offers a nice contrast in addition with the distinct foreground versus the blurry background

Photograph of the nixie clock, facing right, showcasint more the on-off lever switch and chromed button

The clock : it uses german Z5600M tubes and 4 small neon lamps, the brains are an Arduino UNO R4 Wifi with the Arduinix (http://www.arduinix.com/) shield. It connects to my Wifi Accesspoint on startup and every friday to (re)synchronize. If you power it up while pressing the button, it will create an access point and a webpage, from which you can set up your local wifi info.
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #lasercutting #woodworking #Conceptart

A photograph showcasing the clock described in the previous message, front view.

A photograph showcasing the clock described in the previous message, view facing slightly left.

A photograph showcasing the clock described in the previous message, view facing slightly right.

My "Nixiez" : I am finally wrapping up a project I started in 2017 ! A DIY clock and audio amplifier duo.
Here's the github page with the code and more details than I have the patience to share here : https://github.com/dmeat-art/DMT-Nixie-clock-amp
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart

A photograph of two square shaped appliances. The one on the left is an audio amplifier, featuring some control knobs and lever, and two vertical nixie tubes that are the VU meter. The one on the left is a clock that features 4 round nixie tubes, stacked in a square layout, reading the hours on top and the minutes at the bottom. Each machine has a wood-clad façade and framing, the amplifier having horizontal strips, and the clock having vertical strips.

Same objects as the previous photo, but at an angle, focusing on the amplifier.

Same objects as the previous photo, but at an angle, focusing on the clock.

Just bought this weird #nixie meter of some kind on ebay, I'll have to post a foone-style thread of my disassembly and documentation once it arrives.
#nixietube #nixieclock #vintageelectronics

Angled view of some kind of vintage electronic equipment, a cylinder with a square plate on one end, showing 5 nixie tubes through a cutout. There are various switches and a reset button on the front of the plate.

Front view of the vintage electronic equipment, showing 5 nixie tubes through a cutout in a square plate. There are various switches and a reset button beneath the cutout.

Closeup view of the 5 nixie tubes through the cutout in the front plate, with a tape measure for scale. Each tube is approximately 0.5 inches wide and 0.75 inches tall.

Ik ben al tijden verliefd op zo'n #nixieclock die Wednesday Addams op haar werktafel heeft staan. Deze op dit plaatje is 'm niet helemaal, maar komt in de buurt.
#NetflixWednesday #WednesdayNetflix #WednesdayAddams

Afbeelding van een klok met wat ouderwets ogende neonbuisjes met oranje oplichtende cijfers, #nixietubes.

Upcycled Nixie Clock Fit For A Friend

Building a clock from parts is a right of passage for makers, and often represents a sensible introduction into the world of electronics. It's also hard to beat the warm glow of Nixie tubes in a desktop clock, as [Joshua Coleman] discovered when building a Nixie tube clock for a friend.

The original decision to upcycle the chassis from an unrepairable Heathkit function generator came a little undone after some misaligned cutting, so the front panel ended up being redesigned and 3D printed. This ended up being serendipitous, as the redesigned front panel allowed the Nixie tubes to be inset within the metal chassis. This effect looks great, and it also better protects the tubes from impact damage.

Sourcing clones of the 74141 Nixie driver ICs ended up being easier than anticipated, and the rest of the electronics came together quickly. The decoders are driven by an Arduino, and the IN-4 Nixie tubes are powered by a bespoke 170 volt DC power supply.

Unfortunately four of the tubes were damaged during installation, however replacements were readily available online. The gorgeous IN-4 Nixie tube has a reputation for breaking easily, but is priced accordingly on auction sites and relatively easy to source.

The build video after the break should get any aspiring Nixie clock makers started, but the video description is also full of extra information and links for those needing help getting started.
