#Capacitors

Radio AzureusRadioAzureus
2025-05-25

@klausman @brouhaha

Those are Words Of Wisdom.
I didn't bother to go with surface mount device soldering, because of the prohibitive amount of cash involved for a hobbyist and a kid. I needed a microscope and a surface mount soldering station for which I would need to pay $2,000 to 4,000 USD in the 90's

When I started out I actually had a production level Phillips single Channel integrated amp as a kit. I got the same amp in a Philips turntable!

Radio AzureusRadioAzureus
2025-05-25

@brouhaha

I still remember Radio Shack. They had a store at the Gravenstraat in my country where I could see thousands and thousands of electronic components. Since I've been soldering ever since I was a child, it was very sad to see them go indeed. For some reason which is very odd to me people just stopped soldering at the hobby scale

Kevin P. Flemingkevin@km6g.us
2025-04-08

I'm designing a small circuit board which will have an STM32 microcontroller.

One document from STMicro says that the part must have two capacitors to filter the power supply, a 'ceramic' cap at 100nF, and a 'chemical' cap at 4.7uF.

Another document says they should both be ceramic caps, and the Nucleo64 evaluation board (sold by STMicro) uses ceramic caps for both.

Should I bother using a different cap for the larger value? If so, what qualifies as a 'chemical' capacitor, just electrolytics?

#Electronics #Capacitors #SchematicDesign

Daniele Verducci 🧉penguin86@social.ichibi.eu
2025-04-05

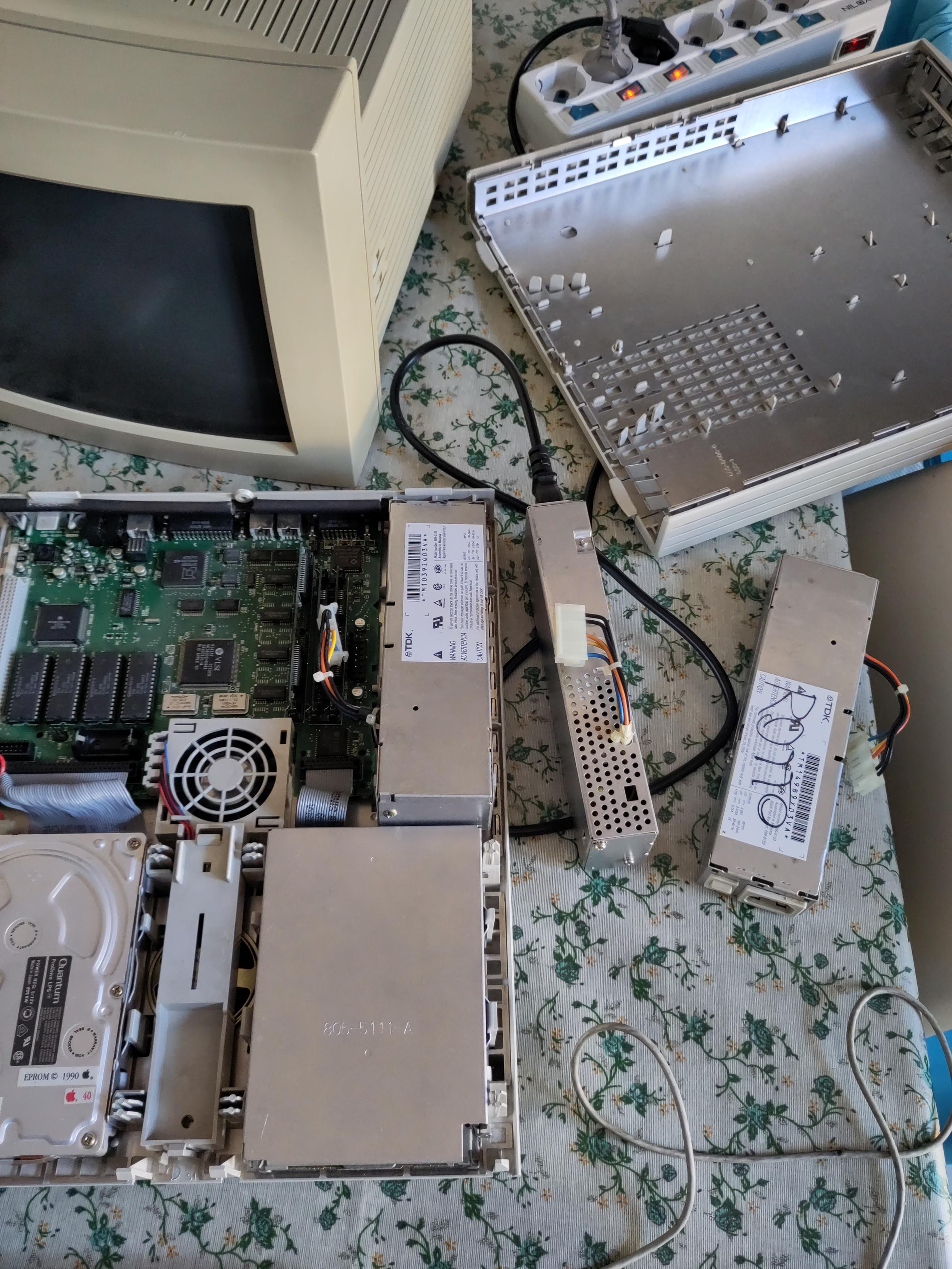

The #powersupply seems dead. I have other two, so I tried them. One was dead (as written, in italian, on the label), and one turned on the computer but no "bong" from the speaker. And the fan seemed a little more noisy than I remembered, so I checked the voltages and... holy cow 20v! I immediately disconnected it, hope not to have caused further damage. There was no #magicsmoke, only some fishy smell typical of the #capacitors #electrolyte. Not surprising, considered they have leaked.
Tisha Tigertisha@htt.social
2025-03-31

I've done my homework! 💪

#electronic #tinker #DIY #capacitors

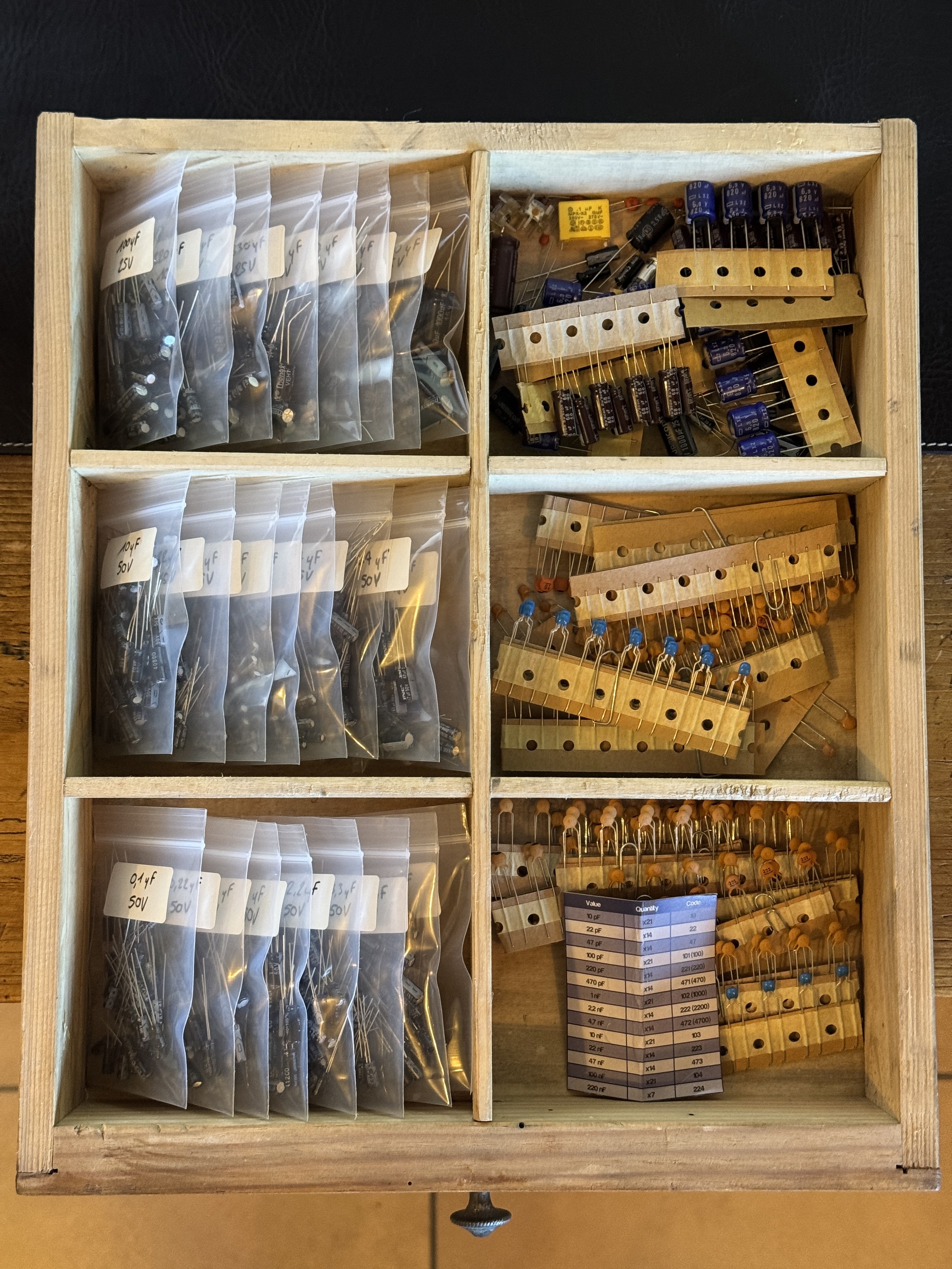

Wooden drawer filled with capacitors sorted by value in little plastic bags
Dendrobatus AzureusDendrobatus_Azureus@bsd.cafe
2025-03-18

This period was a nightmare for technical persons building computers. At that point in time I was building computers with a frequency of about 6 to 12 per day. The operating systems were put in afterwards.

Imagine the following nightmare scenario; at the certain point in time within the period of guarantee client calls with the message that the computer just stops working. The client has done everything that's needed to protect it; UPS, grounded outlets, ground resistance between .5 ohms and 1.2 ohms
Good UPS APC were good ones at that point in time.

Computers come in and after a while it's easy to see what happened because all the Elco's were dead, all of them!

#electronics #parts #capacitors  #chemistry #physics

Energy And PowerEnergys
2025-03-18

🔋 Aluminum Electrolyte Capacitors Market projected to reach $7.92B by 2030!

Get Sample:maximizemarketresearch.com/req

2025-03-17

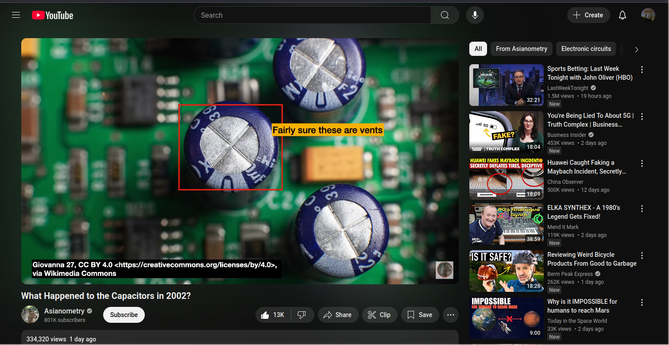

The capacitor plague of the early 2000s.

The Asianometry YouTube channel picks apart the story about this painful time. I had equipment fail because of this .

youtube.com/watch?v=rSpzAVpnXo

#china #capacitors #electronics

Fabrizio BenedettiscienceFab@mstdn.science
2025-02-28

Scientists accidentally discover powerful energy storage material: 'Exceptional performance and durability'. A plastic supercapacitor
yahoo.com/tech/scientists-acci
#supercapacitors #capacitors #energy

2025-02-27

Have to #reverse #engineering this little #Minox #analog #film #camera to find the short in its #electronics. It has some battery corrosion but my money is on one of the #tantalum #capacitors on the circuit board. I managed find #repair #manual but it's useless as the board diagram is nothing as it is on the actual camera. I guess I'll have to do it the old way, desoldering the board and mapping the traces.

Minox 35 EL analog film camera in a clear plastic bag with its upper section deassembled

Basic Electronics for the Amateur Radio Operator: What You Need to Know for Your Technician License

1,003 words, 5 minutes read time.

If you’re preparing for the Amateur Radio Technician License Exam, understanding basic electronics is a must. While you don’t need to be an electrical engineer, the exam includes fundamental concepts like Ohm’s Law, circuits, components, and RF safety. This guide will walk you through the essential topics, ensuring you’re ready for the test and your first steps as a ham radio operator.

Understanding Electricity: The Basics for Amateur Radio

Electricity is the movement of electrons through a conductor, like a wire. Three key electrical properties define how electricity behaves:

  • Voltage (V) is the force that pushes electrons through a circuit. It’s measured in volts (V).
  • Current (I) is the flow of electrons, measured in amperes (A).
  • Resistance (R) opposes the flow of electricity and is measured in ohms (Ω).

These three are tied together by Ohm’s Law, a fundamental equation in electronics:

V=I×R

This means if you know any two values, you can calculate the third. Understanding this equation is critical for both the exam and real-world troubleshooting.

Direct Current (DC) vs. Alternating Current (AC)

Electricity comes in two forms:

  • Direct Current (DC) flows in one direction. Batteries and solar panels produce DC.
  • Alternating Current (AC) changes direction many times per second. Household electricity is AC because it’s more efficient for transmission over long distances.

For amateur radio, most equipment runs on DC power, but you’ll also need to understand AC because radio signals are alternating currents that oscillate at high frequencies.

Essential Electronic Components and Their Functions

Several key electronic components appear on the Technician Exam. Here’s what they do:

  • Resistors limit current flow.
  • Capacitors store and release energy, often used in filtering circuits.
  • Inductors store energy in magnetic fields and are important in tuning circuits.
  • Diodes allow current to flow in only one direction, useful in rectifier circuits that convert AC to DC.
  • Transistors act as switches and amplifiers in radio circuits.

Understanding these basics helps you answer questions about circuit behavior and troubleshooting.

Series and Parallel Circuits

Circuits are made up of components arranged in either series or parallel:

  • In a series circuit, current flows through all components one after another. The same current passes through each, but the voltage is divided.
  • In a parallel circuit, components share the same voltage, but the current divides among them.

For the exam, you should know how voltage, current, and resistance behave in each type of circuit. For example, total resistance in a series circuit is the sum of all resistances, while in parallel circuits, total resistance is lower than the smallest individual resistor.

Basic AC Concepts and Frequency

Radio waves are AC signals that oscillate at different frequencies. Frequency (f) is measured in hertz (Hz) and tells us how many times per second the wave changes direction. One kilohertz (kHz) is 1,000 Hz, and one megahertz (MHz) is 1,000,000 Hz.

Ham radios operate in different frequency bands, such as:

  • VHF (Very High Frequency): 30 MHz – 300 MHz (e.g., 2-meter band)
  • UHF (Ultra High Frequency): 300 MHz – 3 GHz (e.g., 70-centimeter band)

Higher frequencies allow for shorter antennas and are good for local communication, while lower frequencies travel further.

Modulation: How We Send Information Over Radio Waves

Modulation is how a radio wave (carrier wave) carries information. The Technician Exam covers three main types:

  • Amplitude Modulation (AM): The signal strength (amplitude) changes with the voice signal.
  • Frequency Modulation (FM): The frequency of the wave changes to encode information. FM is more resistant to noise and is commonly used in VHF and UHF bands.
  • Single Sideband (SSB): A variation of AM that uses less bandwidth and is more efficient for long-distance communication.

Knowing these helps when selecting modes for different types of contacts.

Power, Batteries, and Safety

Most ham radios run on 12V DC power sources, such as batteries or regulated power supplies. It’s important to understand:

  • Battery safety: Overcharging or short-circuiting batteries (especially lithium-ion) can be dangerous.
  • Fuse protection: Many radios have built-in fuses to prevent excessive current draw.

Another key topic on the test is RF exposure safety. High-power transmissions can generate strong radio frequency (RF) radiation, which may cause health risks. To minimize exposure:

  • Maintain a safe distance from transmitting antennas.
  • Use the lowest power necessary for effective communication.
  • Follow FCC RF exposure limits for your frequency and power level.

Ohm’s Law in Real-World Ham Radio Applications

A common exam question might involve calculating current or voltage using Ohm’s Law. For example:

Question: If a radio operates at 12V and draws 2A of current, what is the resistance?

Using Ohm’s Law:

Understanding these calculations can help with troubleshooting and designing circuits.

Final Thoughts: Studying for the Exam and Beyond

The Technician License Exam covers these topics, but learning electronics doesn’t stop there. Once licensed, you’ll continue exploring concepts like antenna design, signal propagation, and digital communication.

Great resources for studying include:

  • ARRL’s Technician Class License Manual: The official guide with explanations and practice questions.
  • HamStudy.org: Free practice tests and flashcards.
  • QRZ.com Practice Exams: Simulated tests with real exam questions.

By mastering these basic electronics concepts, you’ll be well on your way to passing the exam and starting your journey in amateur radio. Keep practicing, get hands-on experience, and soon, you’ll be making contacts on the air!

D. Bryan King

Sources

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

Related Posts

Rate this:

#ACVsDC #am #AmateurRadio #amateurRadioEducation #amateurRadioTraining #antennaTheory #ARRLStudyGuide #basicElectronics #beginnerHamRadio #capacitors #circuits #current #diodes #electricalComponents #electronicsBasics #examPrep #FCCExam #FM #hamExam #hamLicense #hamOperator #hamRadio #hamRadioBands #hamRadioBeginner #hamRadioComponents #hamRadioEquipment #hamRadioOperator #hamRadioStudy #HamRadioStudyGuide #HamRadioTraining #hamStudyGuide #inductors #modulation #OhmSLaw #powerSupply #radioBroadcasting #radioCommunication #radioFrequencies #radioFrequency #radioFundamentals #RadioLicensing #radioSignals #RadioTechnology #radioTransmission #radioWaves #resistance #resistors #RFExposure #RFSafety #SSB #technicianClass #TechnicianLicense #transistors #UHF #VHF #voltage

2025-02-24

I read this headline, and the first thing I thought was "oh hey, I wonder what old radios they recapped and fixed! I would watch that! They have awards for that, though? 🤔 "

#hamradio #capacitors #recapping

ABC News: Recapping awards show weekend
2025-02-12

Finished #soldering. What I learned so far: l should clean between soldering #SMD components and #throughhole ones. I should leave enough space between the SMD components. I also dislike 0806 #resistors, better get some in 1206 size. The #capacitors were okay.
I tried it out with a square and a triangle wave as two inputs, connected through #potentiometers on a mini #breadboard and looked at the #oscilloscope
#diyelectronics #electronics #diysynth

finished board with all components soldered in. two inputs and the power are connected.photo of my test setup. the oscilloscope shows the square wave input and the resulting output after mixing it with a triangle wave.
2025-02-11

2/ This is why I have never been a fan of Linux, people should be writing their own OSs 😜

As an aside, I found this #USENET thread with some familiar names from 1987 about porting Minix to the Atari - I assume that would have been the ST then.

linux.co.cr/unix-source-code/r

#DEC #Digital #PDP11 #LSI11 #Minix #Linux #OperatingSystems #Decent #Capacitors #USENET #Atari #AtariST #RetroComputing

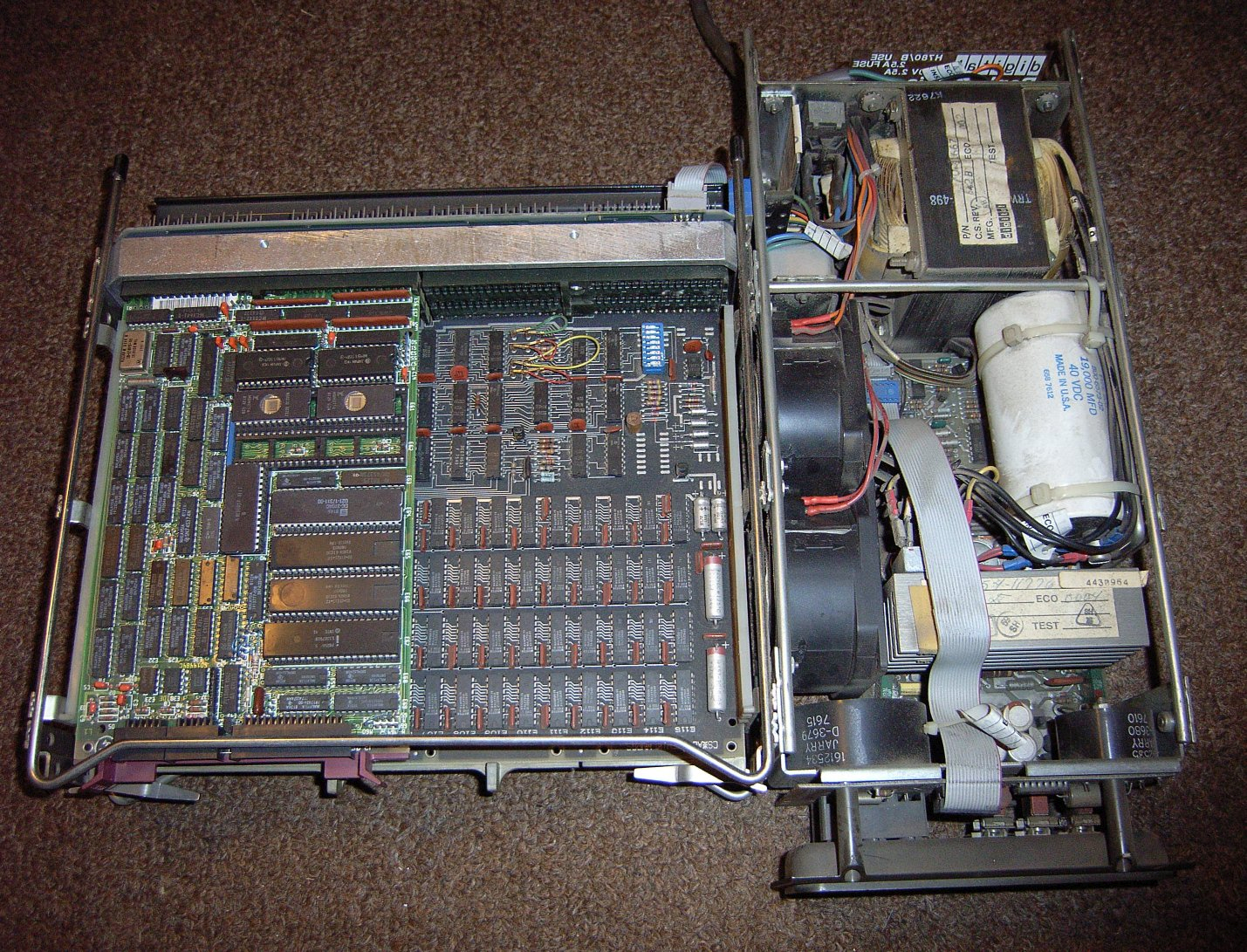

Some LSI-11 innards - Lots of chips, and a huge great capacitor just to hurt people who abuse the poor thing.
2025-02-11

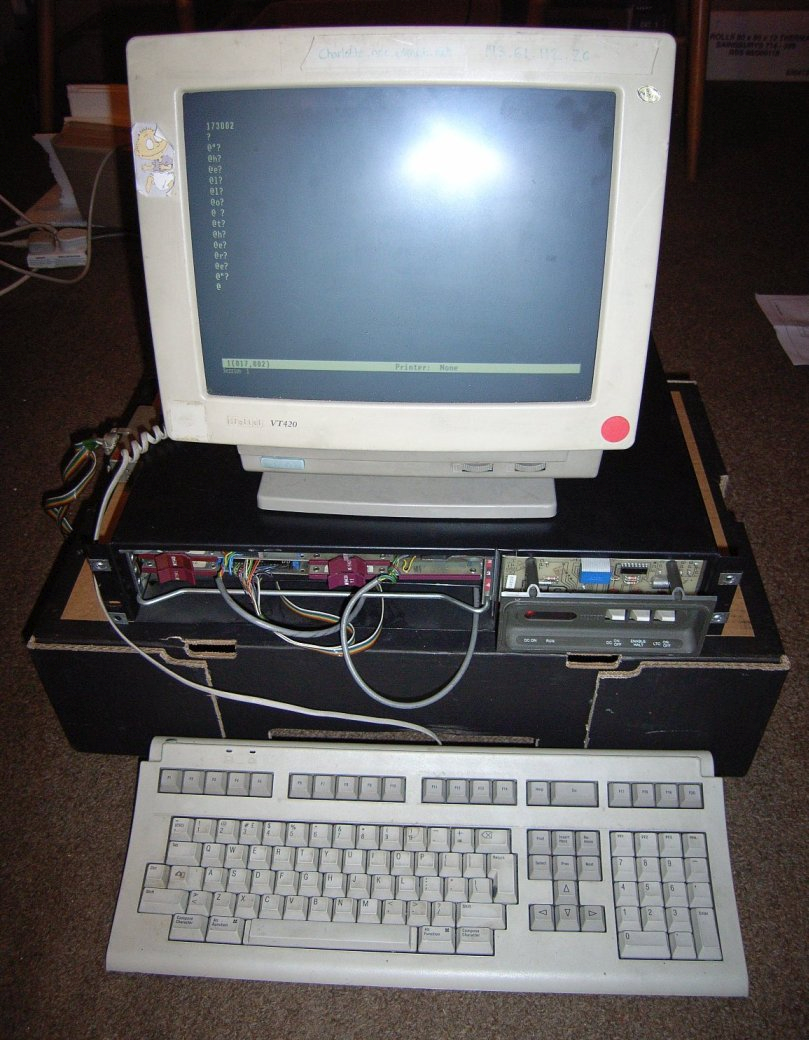

1/ Just because, here's my LSI-11 desktop - It works, they used much better capacitors in those days.

Way back when, the LSI-11 was often used to teach people Operating Systems and Compiler Design, and in my CS degree in 1986 we'd fiddle with MINIX on these things, and deal with re-writing different low-level UNIX things. Life was much easier with only 50 instructions to work with.

#DEC #Digital #PDP11 #LSI11 #Minix #Linux #OperatingSystems #Capacitors #USENET #Atari #AtariST #RetroComputing

The LSI-11 A large desktop PC sized black machine with some telltale purple card pulls showing connected to a VT420 monitor. The screen has text on it, but it's just "hello there" typed one letter at a time to the pdp's "@" prompt.
2025-01-28

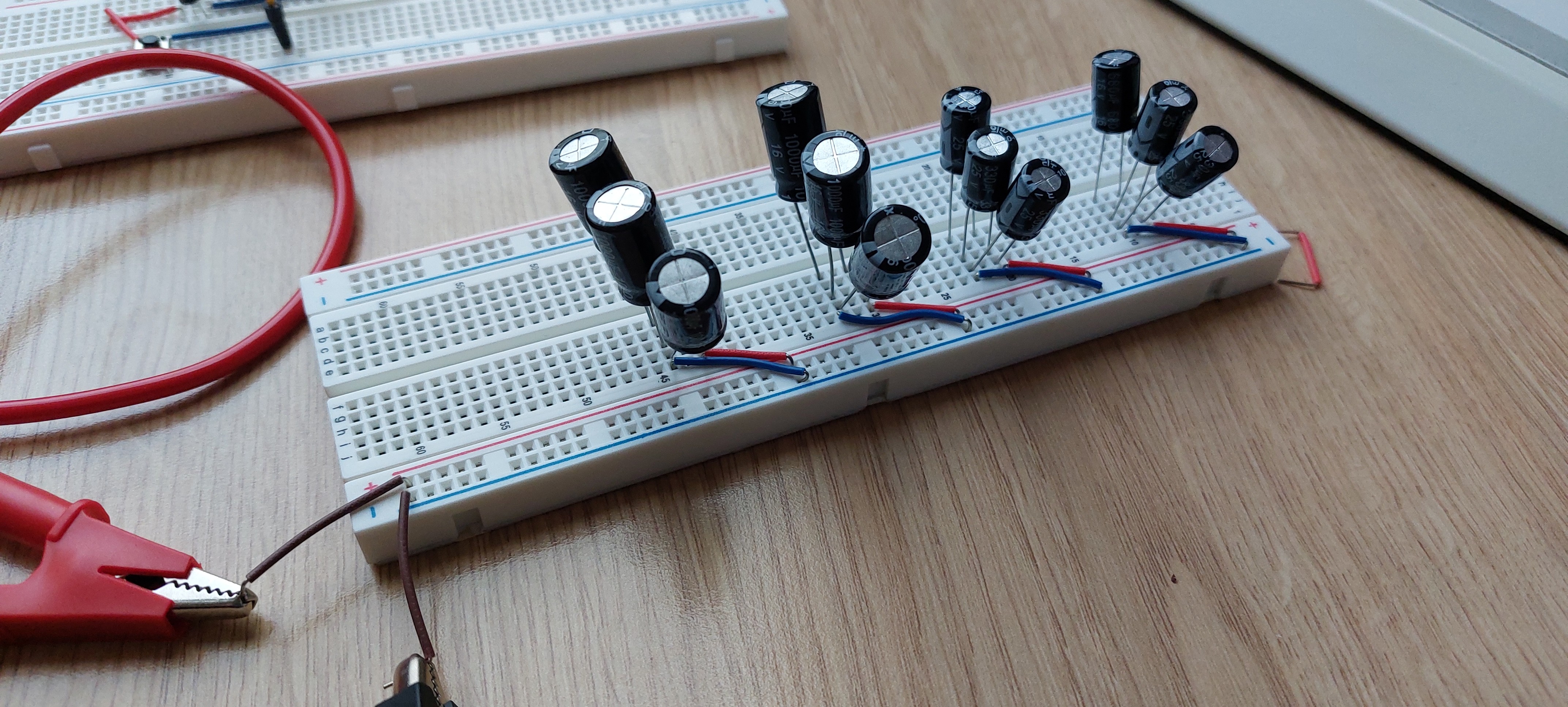

Safety advisory: Always discharge your capacitors. Especially for some breadboard testing.

Ask me how I know.

Ouch.

#electronics #diy #breadboard #hobby #circuits #capacitors #dc

5021tips5021tips
2025-01-27

It's seems that usually marked on the negative terminal 🤷!
You notice most capacitors have the Positive lead marked🤔?
, it could be just a coin toss to use the negative or positive side, or 🤷!

www.5021.tips/ujanja/ecucomponents

☝️👆
This some rubbish on on a of a having for

in_sympathyin_sympathy
2025-01-19

Of tens or maybe even around hundred Raspberry Pis that I repaired and saved from - today I met the first one with a shorted capacitor.

My first ever shorted cap.

WOW.
